We ran the 1914 T at the inlaws last weekend. We discovered even more parts.
Can anyone tell me what year was this NH is from?
It appears to be all steel and complete. The float works.
Any wisdom given much appreciated.
NH Carb - But what year?
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
1914ROADSTERT
Topic author - Posts: 18
- Joined: Tue Jun 21, 2022 9:08 pm
- First Name: J
- Last Name: C
- * REQUIRED* Type and Year of Model Ts owned: 1914 Roadster
- Location: Maryland
NH Carb - But what year?

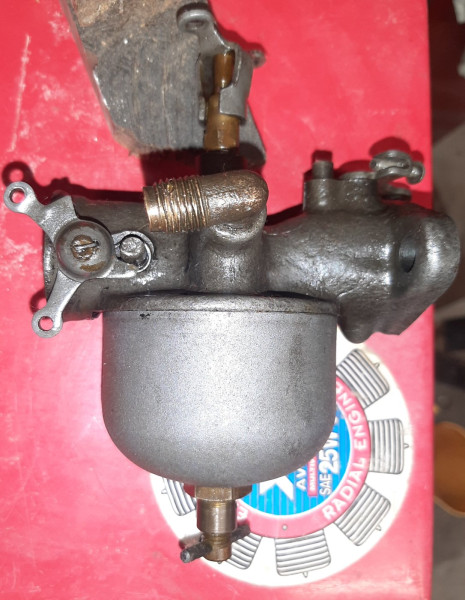

Hello,
We ran the 1914 T at the inlaws last weekend. We discovered even more parts.
Can anyone tell me what year was this NH is from?
It appears to be all steel and complete. The float works.
Any wisdom given much appreciated.
We ran the 1914 T at the inlaws last weekend. We discovered even more parts.
Can anyone tell me what year was this NH is from?
It appears to be all steel and complete. The float works.
Any wisdom given much appreciated.
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: NH Carb - But what year?

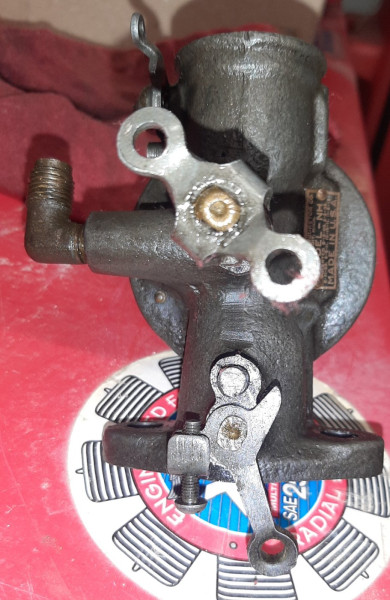

Need to see the choke lever for offset & confirm a short throttle lever.
As shown: a late 25-27 with the mixture needle modified to fit a pre 25 T.
As shown: a late 25-27 with the mixture needle modified to fit a pre 25 T.
-
1914ROADSTERT
Topic author - Posts: 18
- Joined: Tue Jun 21, 2022 9:08 pm
- First Name: J
- Last Name: C
- * REQUIRED* Type and Year of Model Ts owned: 1914 Roadster
- Location: Maryland
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: NH Carb - But what year?
The short throttle lever & offset choke lever arm are consistent with a 26-7 carb.
