Measurements for 24Z 2393 fuel level gauge

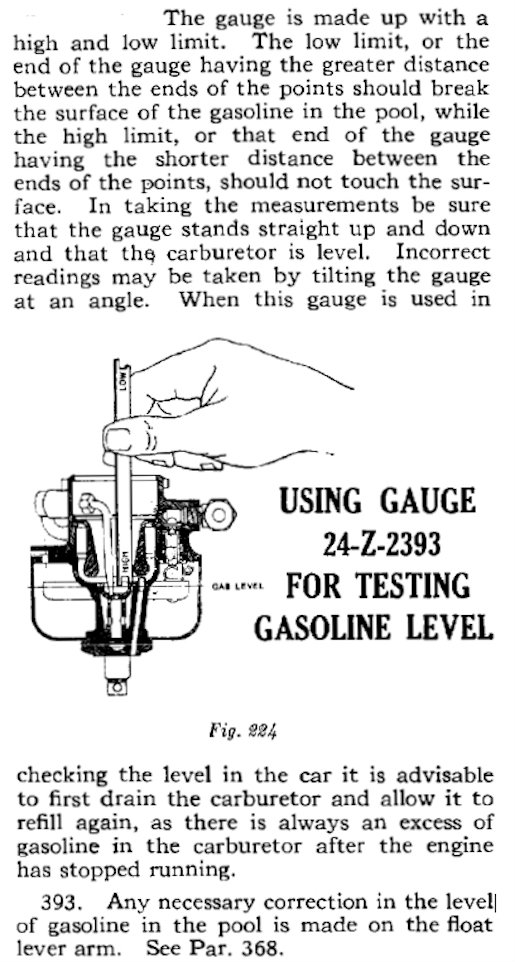

Here is the service bulletin page describing how to check the fuel level in the Holley G carburetor. Somewhere I have seen measurements for the gauge. If that was in a service bulletin I missed it. Where did I see that?
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
ThreePedalTapDancer
- Posts: 1631
- Joined: Sun Nov 24, 2019 2:29 pm
- First Name: Ed
- Last Name: Martin
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
- Location: Idaho
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Measurements for 24Z 2393 fuel level gauge

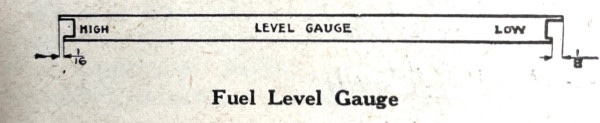

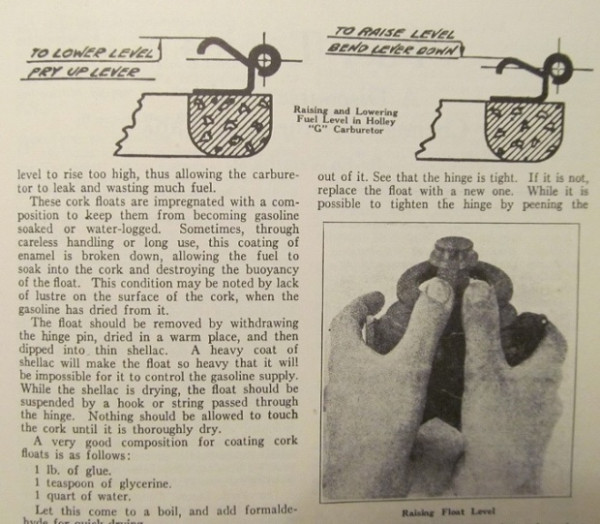

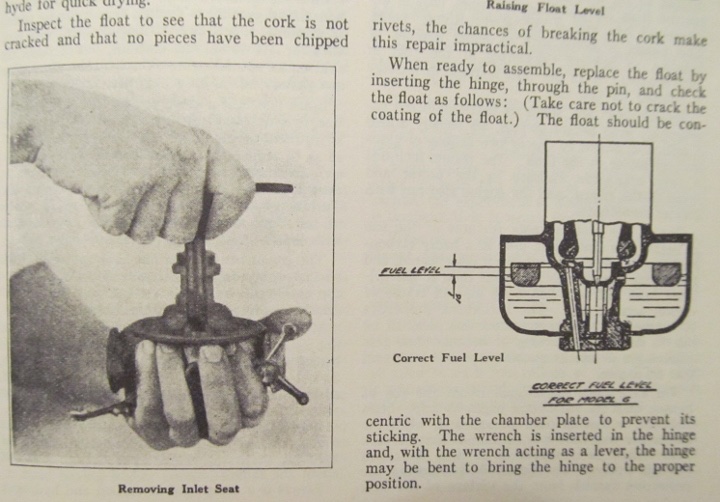

Here's some detail of the Holley G float setting and gage.
- Attachments
-
- CC7BE614-9831-47A1-B9C0-9B975E25D634.jpeg (165.01 KiB) Viewed 453 times
-
- FD5F218B-07F8-45D4-8630-0FFE946552D5.jpeg (24.83 KiB) Viewed 453 times
