I have ‘rollers’ that I’ve never worried too much about. Today after moving then out of the garage for a week and then placing them back today.

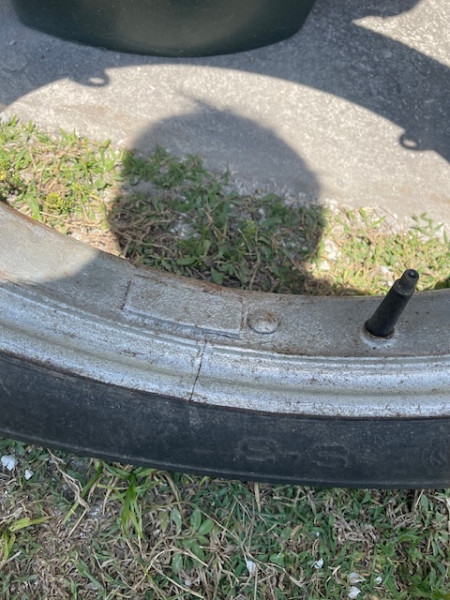

Look at the picture, please. This been welded? Or am I missing on how this particular latch works? Tube spun as you can see, at least want to straighten it out. Old eyes, not ready to get into it and find I can’t unlatch it
Thanks in advance
Demount tire rim.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
George Mills
Topic author - Posts: 619
- Joined: Sun Jan 06, 2019 12:32 pm
- First Name: George
- Last Name: Mills
- * REQUIRED* Type and Year of Model Ts owned: 1915 Roadster, 1919 Hack, 1925 Fordor
- Location: Cherry Hill NJ/Anona Largo FL
- Board Member Since: 1999
Demount tire rim.
- Attachments
-
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Demount tire rim.
The short piece (right) sits in a rectangular hole. There was a latch that pivoted in the plugged hole.
The latch sat on that small shelf in the strap. Looks like a heavy coat of silver paint, not welded on the right side.
Tap it with a rubber mallet & see if a separation joint becomes more obvious.
If you are not familiar with this type of split rim, search the forum for pictures.
The latch sat on that small shelf in the strap. Looks like a heavy coat of silver paint, not welded on the right side.
Tap it with a rubber mallet & see if a separation joint becomes more obvious.
If you are not familiar with this type of split rim, search the forum for pictures.
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: Demount tire rim.

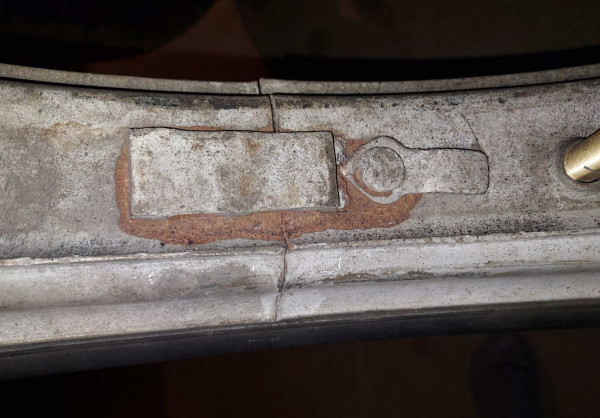

This is what it should look like.
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Demount tire rim.
You could put that rim/tyre on the opposite side of the car, under inflate it somewhat and take a slow drive until the valve stem is upright again, if that is your only concern.
Allan from down under.
Allan from down under.
-
George Mills
Topic author - Posts: 619
- Joined: Sun Jan 06, 2019 12:32 pm
- First Name: George
- Last Name: Mills
- * REQUIRED* Type and Year of Model Ts owned: 1915 Roadster, 1919 Hack, 1925 Fordor
- Location: Cherry Hill NJ/Anona Largo FL
- Board Member Since: 1999
Re: Demount tire rim.
Thanks all, I never noticed when I bought the 4 ‘rollers’ at Hershey that this one was different until today.
I’ll prob take Allan excellent advice and run it backwards on the next time I use a ‘roll’
I’ll prob take Allan excellent advice and run it backwards on the next time I use a ‘roll’
