One bushing in brake drum???
Does anyone have a copy of Service Bulletins where it has to only install one bushing in brake drum. I am away from my Bulletins and someone ask me about that. Think it was late 25. Can you please post it here? Thanks Dan
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: One bushing in brake drum???
November of 1925 - paragraph 119.
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: One bushing in brake drum???
I disagree with omitting that 2nd bushing.
That puts all the load/weight of the drum pack on the smallest & fastest wearing bushing.
Ford omitted this in late production. To save 1/2 cent per unit? Why the change after 13 or 14 million units?
If you have rebuilt the transmission correctly, alignment wont be an issue.
That puts all the load/weight of the drum pack on the smallest & fastest wearing bushing.
Ford omitted this in late production. To save 1/2 cent per unit? Why the change after 13 or 14 million units?
If you have rebuilt the transmission correctly, alignment wont be an issue.
-
Dan Hatch
Topic author - Posts: 5009
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: One bushing in brake drum???
Thanks Steve, I’ll look it up when I get home.
-
RGould1910
- Posts: 1128
- Joined: Tue Jan 22, 2019 8:16 am
- First Name: Richard
- Last Name: Gould
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1912 roadster , 1927 roadster
- Location: Folsom, CA
Re: One bushing in brake drum???
I agree with you, John but its worth pointing out that the 26-7 style driving plate is captured inside the brake drum and is way more secure than the earlier version where there is always a degree of slop in the lip that secures the driving plate to the brake drum, making the second bushing a necessity to hold alignment.
I have heard of rebuilders omitting the middle bushings thinking its not necessary even in pre 26 transmissions because Ford omitted it in late 25. In my thinking that is a big mistake.

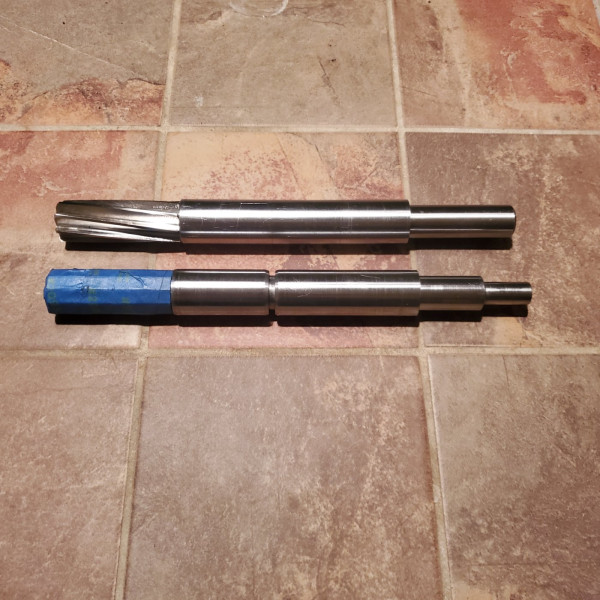

BTW its pretty easy and inexpensive to make a driving plate alighment reamer pattered after the KRWilson reamer that indexes off the two brake drum bushings. Ive made a couple.
I have heard of rebuilders omitting the middle bushings thinking its not necessary even in pre 26 transmissions because Ford omitted it in late 25. In my thinking that is a big mistake.
BTW its pretty easy and inexpensive to make a driving plate alighment reamer pattered after the KRWilson reamer that indexes off the two brake drum bushings. Ive made a couple.
Last edited by RGould1910 on Tue May 14, 2024 8:14 pm, edited 2 times in total.
-
Adam
- Posts: 1550
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: Adam
- Last Name: Doleshal
- * REQUIRED* Type and Year of Model Ts owned: ‘13 Touring, ‘24 Touring, ‘25 TT dump truck, ‘26 Tudor, ‘20 Theiman harvester T powerplant, ‘20 T Staude tractor
- Location: Wisconsin
- Board Member Since: 2000
Re: One bushing in brake drum???
After they omitted the rear bushing I’m pretty sure that a matter of months later they began installing it again… It’s not good engineering to leave it out. The driven gear shaft needs that extra support.
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: One bushing in brake drum???
Can you verify your assumption, Adam ?
-
J and M Machine
- Posts: 116
- Joined: Wed Jan 09, 2019 6:46 pm
- First Name: John
- Last Name: Gulbankian
- Location: Massachusetts
- Contact:
Re: One bushing in brake drum???
I too have seen late original drums with one bushing installed .
However I've always installed two .
Makes more sense to have two installed rather than only one with the amount of load on main shaft, two share the load.
My high school drafting teacher told us; "Engineer may design it but takes a machinist to make it work".
www.jandm-machine.com
https://www.jandm-machine.com/for_sale.html
However I've always installed two .
Makes more sense to have two installed rather than only one with the amount of load on main shaft, two share the load.
My high school drafting teacher told us; "Engineer may design it but takes a machinist to make it work".
www.jandm-machine.com
https://www.jandm-machine.com/for_sale.html
Last edited by J and M Machine on Wed May 15, 2024 12:07 pm, edited 1 time in total.
-
Jerry VanOoteghem
- Posts: 4082
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: One bushing in brake drum???
Give them what they want, in place of what they ask for.J and M Machine wrote: ↑Wed May 15, 2024 8:55 amMy high school drafting teacher told us; "Engineer may design it but takes a machinist to make it work".
