Is this a T part?

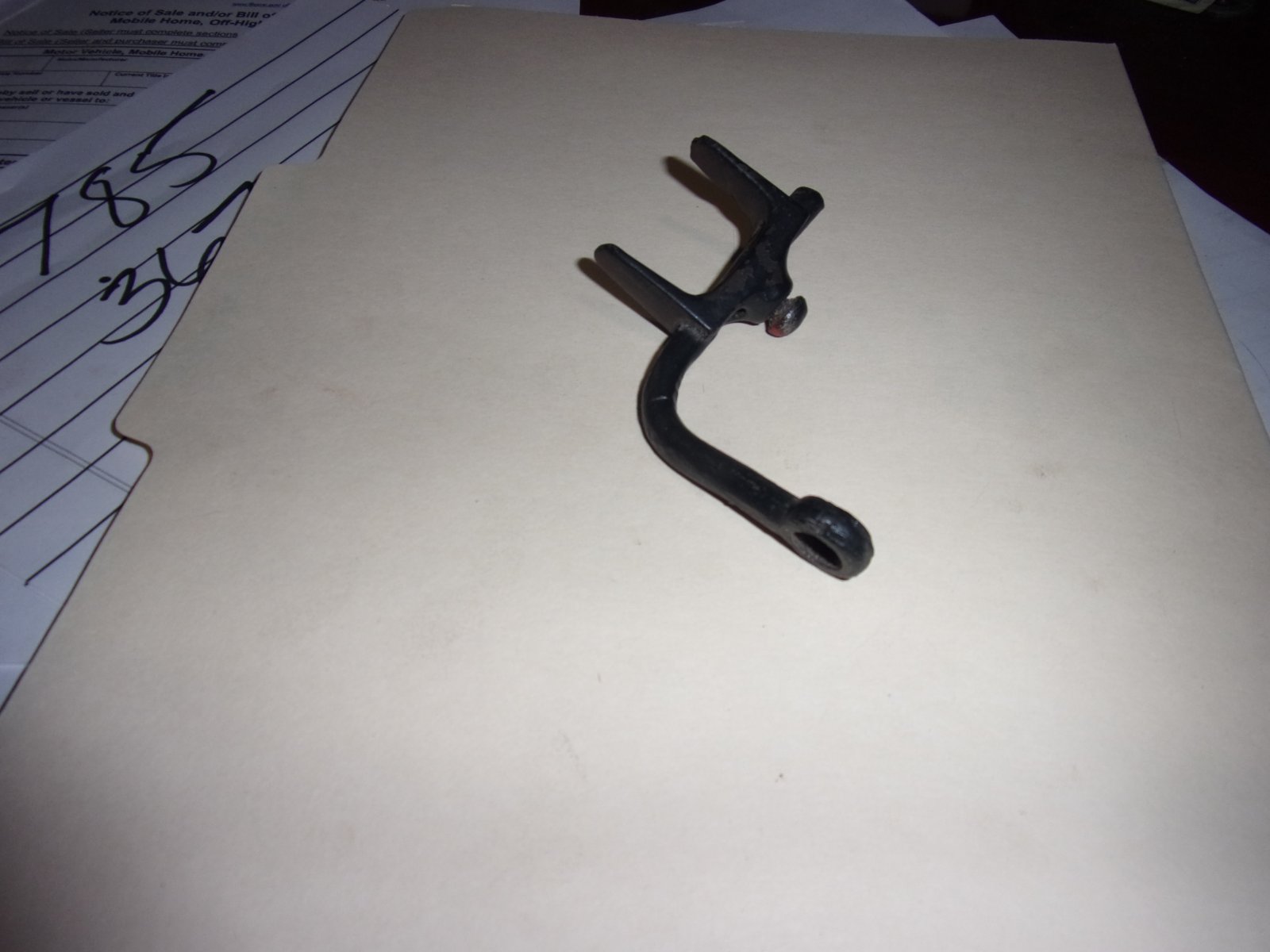

Cleaning up the parts shelf and totes today and this one has me stymied. Could be T, TT military vehicle or refrigerator ice maker.
I'll hang up and listen. And, if it gets ID'd and anyone needs it, I don't.
I'll hang up and listen. And, if it gets ID'd and anyone needs it, I don't.
Why do we drive on parkways and park on driveways?
A bunch of old cars
Sometimes they run.
Sometimes, they don't.
A bunch of old cars
Sometimes they run.
Sometimes, they don't.
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: Is this a T part?
Not a Ford part.
-
kevinf
- Posts: 130
- Joined: Sun Jan 13, 2019 9:17 pm
- First Name: Kevin
- Last Name: Fielding
- Location: Ewe-taw
Re: Is this a T part?
A couple of photos with scale would help. Looks to me to be a fan belt guide, but kind of hard to tell the exact size.
Good Luck,
Kevin
Good Luck,
Kevin
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Is this a T part?
Yep, agree, you nailed it, an accessory fan belt guide to keep the flat belt on the fan and crank pulley.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
jiminbartow
- Posts: 2433
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: Is this a T part?
Yes. It is a fan belt guide that straddles the fan belt and keeps the belt centered on the pulley, preventing the belt from going to and fro on the pulley. My 1926 coupe had a very rusted and pitted one on it when I bought it in 1970. The parts places sell a modern version of this from their inventory. The one in the picture is sold by Snyder’s. Jim Patrick
- IMG_8753.jpeg (13.53 KiB) Viewed 1487 times
-
OilyBill
- Posts: 641
- Joined: Sat Apr 25, 2020 3:51 pm
- First Name: William
- Last Name: May
- * REQUIRED* Type and Year of Model Ts owned: 1914 Runabout
- Location: Tucson, Arizona
Re: Is this a T part?
Ummmm.............do they still cost 14 cents?
-
signsup
Topic author - Posts: 472
- Joined: Thu Jan 10, 2019 12:56 pm
- First Name: Robert
- Last Name: Brough
- * REQUIRED* Type and Year of Model Ts owned: 1915 War Wagon 1927 Depot Hack 1927 TT
- Location: Winston, GA
- Board Member Since: 2015
Re: Is this a T part?
I'M RICH!
Thanks to all. Makes perfect sense. I have to pull my radiator when I get fenders painted and ready to reassemble the WWI ambulance project, so I'll see if I can figure out where to attach and put it on at that time. Don't see any downside to installing one.
Thanks again. I'.. mark a bag and package it up so I don't forget what the heck it is.
Have a safe weekend. Car show got rained out this morning in Talapoosa, GA, so catching up on research and paperwork.
Thanks to all. Makes perfect sense. I have to pull my radiator when I get fenders painted and ready to reassemble the WWI ambulance project, so I'll see if I can figure out where to attach and put it on at that time. Don't see any downside to installing one.
Thanks again. I'.. mark a bag and package it up so I don't forget what the heck it is.
Have a safe weekend. Car show got rained out this morning in Talapoosa, GA, so catching up on research and paperwork.
Why do we drive on parkways and park on driveways?
A bunch of old cars
Sometimes they run.
Sometimes, they don't.
A bunch of old cars
Sometimes they run.
Sometimes, they don't.
-
jiminbartow
- Posts: 2433
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: Is this a T part?
The fan pulley is convex with the widest part at the center so the belt is supposed to seek the widest part of the pulley and stay centered, but if the pulley has been worn flat, or the fan bushing or shaft is worn or bent, causing the fan to dip down, your guide is useful to help keep the belt centered on the pulley, even if it frays the edge of the belt. This drawing is of the 1926-27 fans assembly but you can see how the pulley is convex.
Note: If your fan assembly suffers from any of the problems listed above, the problems should be repaired instead of remedied using this contraption. Jim Patrick
PS. Jeff is right that it is not a Ford part, specifically, but were marketed to Fords since the Model T was the prevalent car on the roads at the time. They were not installed at the factory, but is an after market accessory designed for many cars of the era.
Note: If your fan assembly suffers from any of the problems listed above, the problems should be repaired instead of remedied using this contraption. Jim Patrick
PS. Jeff is right that it is not a Ford part, specifically, but were marketed to Fords since the Model T was the prevalent car on the roads at the time. They were not installed at the factory, but is an after market accessory designed for many cars of the era.
