26-27 Roadster top iron windshield brackets

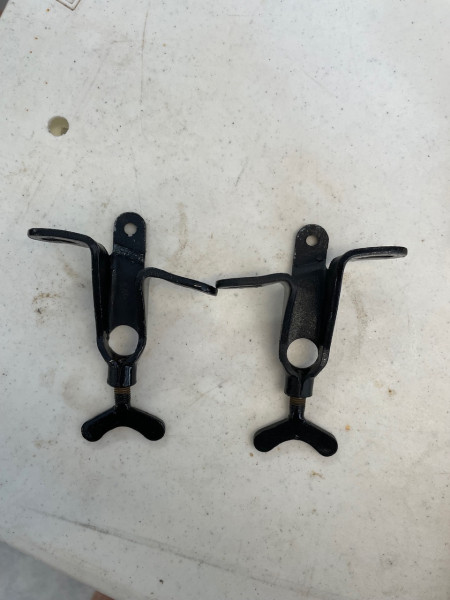

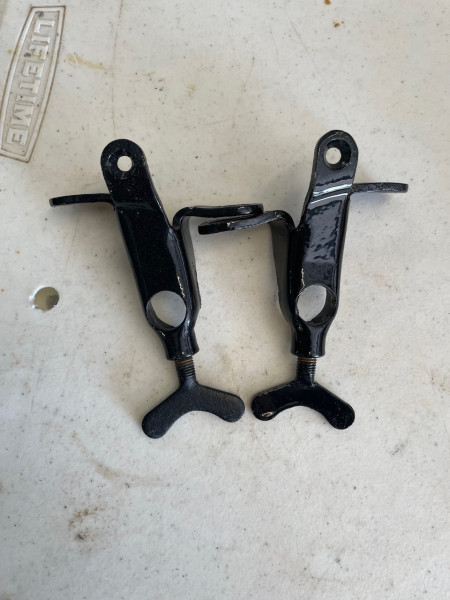

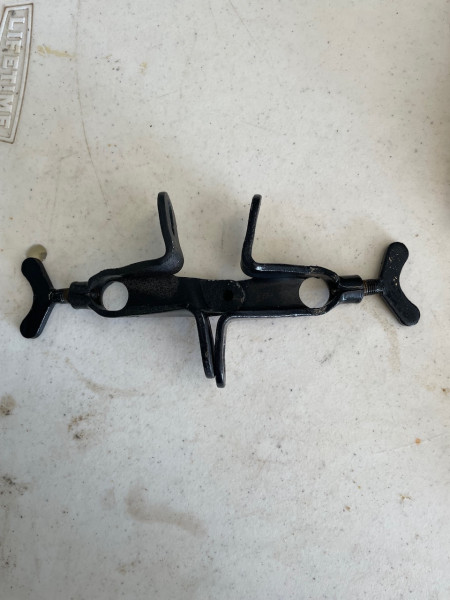

So after figuring out how long my front top iron is supposed to be and fabricating one, the how long the straight wood pieces are between the irons, now I’m trying to fit things together up top and come to the windshield brackets that came with my swap meet (incomplete) top irons so many moons ago I didn’t know better! Here’s what I’ve got and it seems the two ears that fasten to the front wood should be pretty much even with each other instead of the rather large offset that looks like they would fasten to the curve of the top iron. It looks like I’ve got a few hours of blacksmithing and welding work to make these things fit/fasten correctly. Does anyone recognize that these may be for an earlier year or possibly another make?
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: 26-27 Roadster top iron windshield brackets
Actually they be messed up.
The bow attaching bars are pretty straight for all of the slant W/S top mounts.
I recently redid my 27 roadster PU.
I think someone had a narrower top than correct & made the brackets fit onto the metal bow radii.
The bow attaching bars are pretty straight for all of the slant W/S top mounts.
I recently redid my 27 roadster PU.
I think someone had a narrower top than correct & made the brackets fit onto the metal bow radii.
-
fordt
Topic author - Posts: 162
- Joined: Wed Jun 19, 2019 5:21 pm
- First Name: Rob
- Last Name: Trippet
- * REQUIRED* Type and Year of Model Ts owned: 27 Roadster PU (in progress)
- Location: Comfort, TX
Re: 26-27 Roadster top iron windshield brackets
That’s what I suspected, but they did a good job of “finishing” the cut down/bent portion to fit their application…..it looks factory produced!
-
Ken Buhler
- Posts: 515
- Joined: Mon Jan 21, 2019 4:14 pm
- First Name: Ken
- Last Name: Buhler
- * REQUIRED* Type and Year of Model Ts owned: 1927 Roadster 1927 Coupe
- Location: Kelowna B.C.
- Board Member Since: 2012
Re: 26-27 Roadster top iron windshield brackets
Bob,

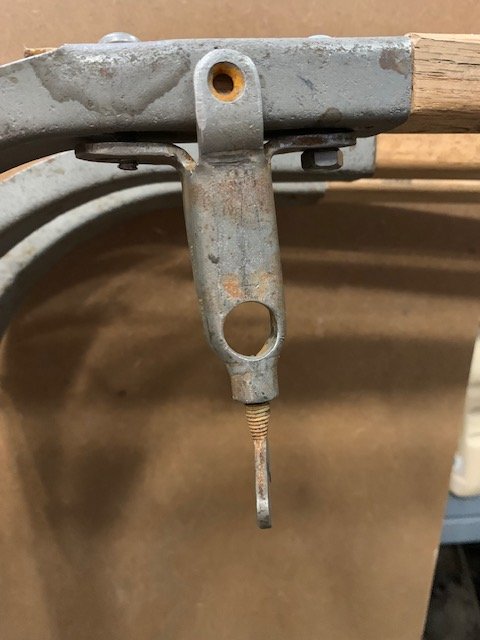

I have several of those and, you appear to have brackets for an earlier year. The one you see mounted is for my 27 Roadster.
Ken
I have several of those and, you appear to have brackets for an earlier year. The one you see mounted is for my 27 Roadster.
Work honestly
Stay true to your word
Get the job done right
Stay true to your word
Get the job done right
-
fordt
Topic author - Posts: 162
- Joined: Wed Jun 19, 2019 5:21 pm
- First Name: Rob
- Last Name: Trippet
- * REQUIRED* Type and Year of Model Ts owned: 27 Roadster PU (in progress)
- Location: Comfort, TX
Re: 26-27 Roadster top iron windshield brackets
Just saw this! Great collection and explanation of my brackets, but they’ve been heated, and bent to fit now! Frankencar has its problems with apparently other years parts! But we soldier on……
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: 26-27 Roadster top iron windshield brackets

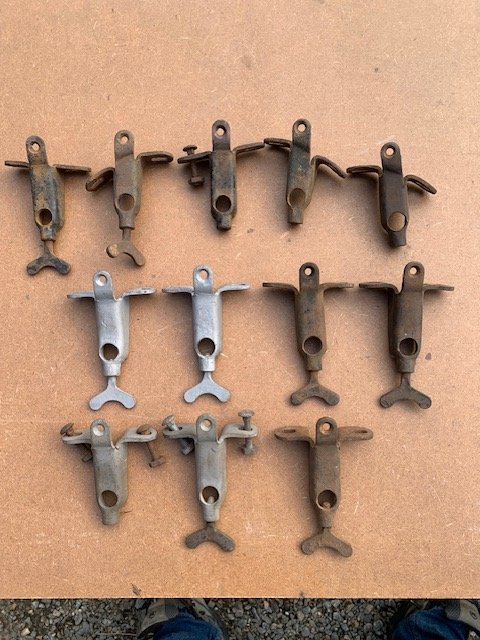

Looking @ the layout of brackets, notice the top row has some as yours.(not with extra bending)
I had occasion to survey several T's. They all used the lower style with the tabs flat & the mount perpendicular to the bow.
26-7 roadster & touring, 23 touring & 25 roadster.
So what does the other style (like yours) fit?? Canadian pre 23?? slant W/S? Some other brand?? Anybody?
I had occasion to survey several T's. They all used the lower style with the tabs flat & the mount perpendicular to the bow.
26-7 roadster & touring, 23 touring & 25 roadster.
So what does the other style (like yours) fit?? Canadian pre 23?? slant W/S? Some other brand?? Anybody?
