I have an idea for one of our parts suppliers to make a pipe which will thread into the tank which raises the gas station nozzle just enough to be able to use the vapor recovery system and only one hand on the gas nozzle. It is difficult to hold back the recover system with one hand while using the nozzle with the other hand, especially on the cowl tanks of the later cars.
Norm
Gas tank filler neck
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Norman Kling
Topic author - Posts: 4634
- Joined: Tue Jan 08, 2019 1:39 pm
- First Name: Norman
- Last Name: Kling
- Location: Alpine California
-
John.Zibell
- Posts: 361
- Joined: Mon Jan 07, 2019 9:09 am
- First Name: John
- Last Name: Zibell
- * REQUIRED* Type and Year of Model Ts owned: 1926 Tudor
- Location: Huntsville, AL
Re: Gas tank filler neck
Motorcycle riders have been contending with this a long time. You want a Nozzle Buddy. http://www.millproprecisionmachining.co ... NZLBDY-200
1926 Tudor
-
TXGOAT2
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Gas tank filler neck
So glad I live in Texas... in spite of the heat.
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Gas tank filler neck
Does Texas not use those gas nozzles ?
-
TXGOAT2
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Gas tank filler neck
They may be "required" in "non attainment areas", but I've never seen one. Hope I never do!
-
kmatt2
- Posts: 655
- Joined: Wed Jun 17, 2020 1:41 pm
- First Name: Kevin
- Last Name: Matthiesen
- * REQUIRED* Type and Year of Model Ts owned: 26 T Coupe, 16 T Open Express, 21 TT Flatbed. 15 T Roadster, 13 & 25 T Speedster’s,51 Mercury 4 door sport sedan, 67 Mercury Cougar
- Location: Madera CA 93636
Re: Gas tank filler neck
Norm, Try Synders Model T and A parts, under part A-9031 gas tank neck extension for 28-29 Model A Fords. A little pricey but should work as you describe. Not threaded , fits inside 28-29 tank with a gasket to seal, 28-29 A tank treads are on outside of tank unlike 26-27 Model T tanks.
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Gas tank filler neck
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
DHort
- Posts: 2826
- Joined: Sun Jan 06, 2019 1:30 pm
- First Name: Dave
- Last Name: Hjortnaes
- * REQUIRED* Type and Year of Model Ts owned: 24 Speedster, 20 touring
- Location: Men Falls, WI
Re: Gas tank filler neck
Must be a CA thing. I have never seen anything like this in the Midwest.
-
Wayne Sheldon
- Posts: 4249
- Joined: Sun Jan 06, 2019 3:13 pm
- First Name: Wayne
- Last Name: Sheldon
- * REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
- Location: Grass Valley California, USA
- Board Member Since: 2005
Re: Gas tank filler neck
What if you took a long funnel for adding fluid into the automatic transmission of a modern car. Using a hacksaw, cut the small end off to just small enough to go into the gasoline tank about an inch. Then cut the large end down to where the top opening is about two inches. It might need to be a bit more or less to hold the vapor recovery back to function as it wants to. Be sure to clean up the cut edges.
The piece should stick into the gasoline tank and stay if not pushed sideways much, and have enough length to allow the vapor recovery to function. As with any cowl gasoline tank, some care must be taken to avoid spills.
I wish I had a car to try it out myself, but I do not. If someone would like to try it? I hope it works.
The piece should stick into the gasoline tank and stay if not pushed sideways much, and have enough length to allow the vapor recovery to function. As with any cowl gasoline tank, some care must be taken to avoid spills.
I wish I had a car to try it out myself, but I do not. If someone would like to try it? I hope it works.
-
Wayne Sheldon
- Posts: 4249
- Joined: Sun Jan 06, 2019 3:13 pm
- First Name: Wayne
- Last Name: Sheldon
- * REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
- Location: Grass Valley California, USA
- Board Member Since: 2005
Re: Gas tank filler neck
The better DIY would be to buy a reproduction brass gasoline tank cap. A bit more difficult, but cut the whole center out of it, leaving just the threads and the ridge at the top. Then solder a piece of appropriate size tubing (about four inches long) into the threaded remains of the cap. Copper pipe would be nice, and a bit of a bell to enlarge the area for the vapor recovery might be needed.
This could be made very well, securely threaded into the filler on the gasoline tank, and almost spill proof.
Just another idea.
This could be made very well, securely threaded into the filler on the gasoline tank, and almost spill proof.
Just another idea.
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Gas tank filler neck
Looks like many States that had them can now remove them. However, some Local Cities & Counties may still require them.

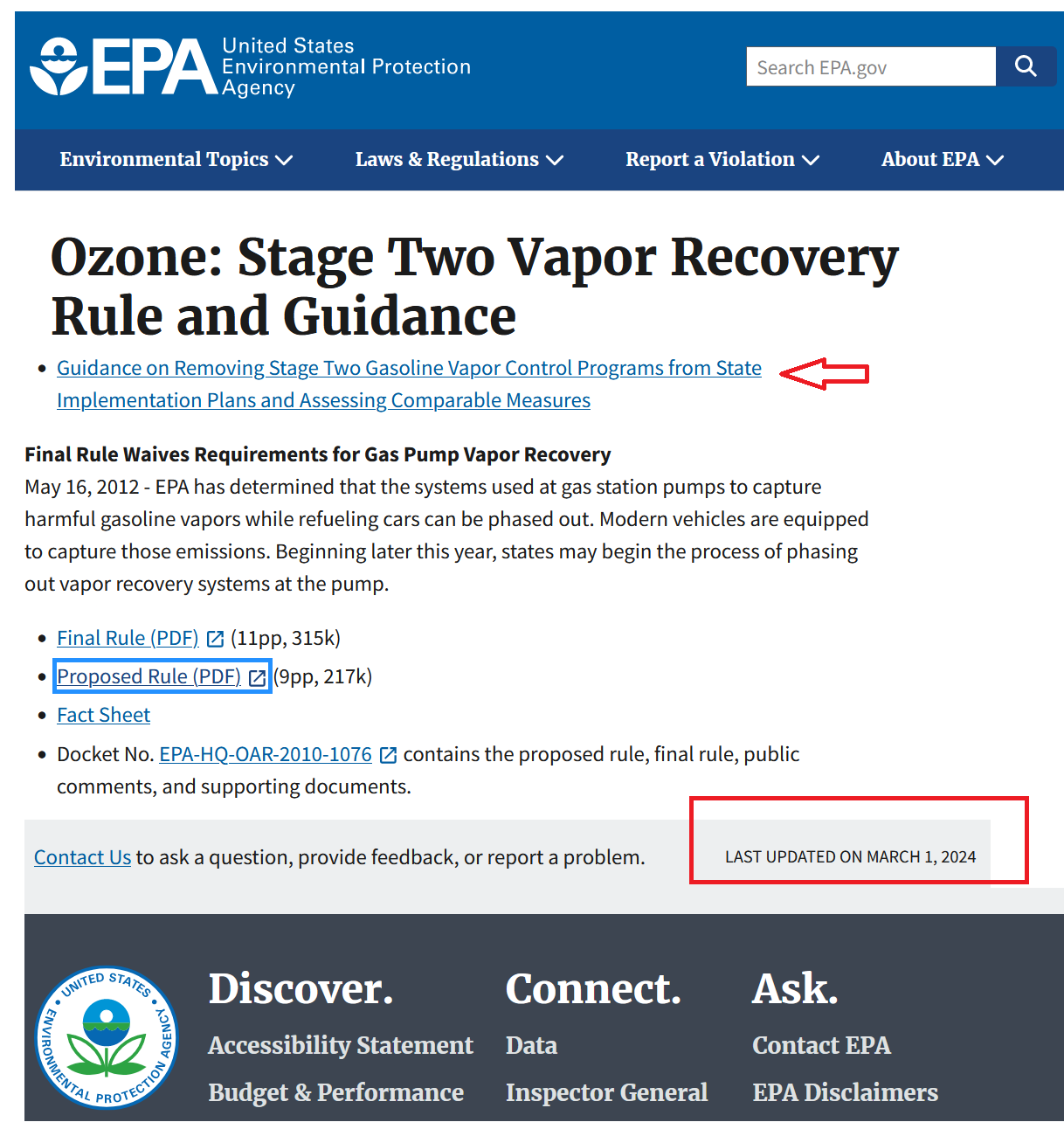

EPA Info site https://www.epa.gov/ground-level-ozone- ... d-guidance
--
--
If you go to this site it will explain what the State plans are by clicking on the state in the map on the site https://www.sourcena.com/stage2/
--
EPA Info site https://www.epa.gov/ground-level-ozone- ... d-guidance
--
If you go to this site it will explain what the State plans are by clicking on the state in the map on the site https://www.sourcena.com/stage2/
--
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
TXGOAT2
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Gas tank filler neck
Rule of bureaucracy....
