21" split rim latch bolt?

Post by KWTownsend » Thu Jun 27, 2024 3:08 pm

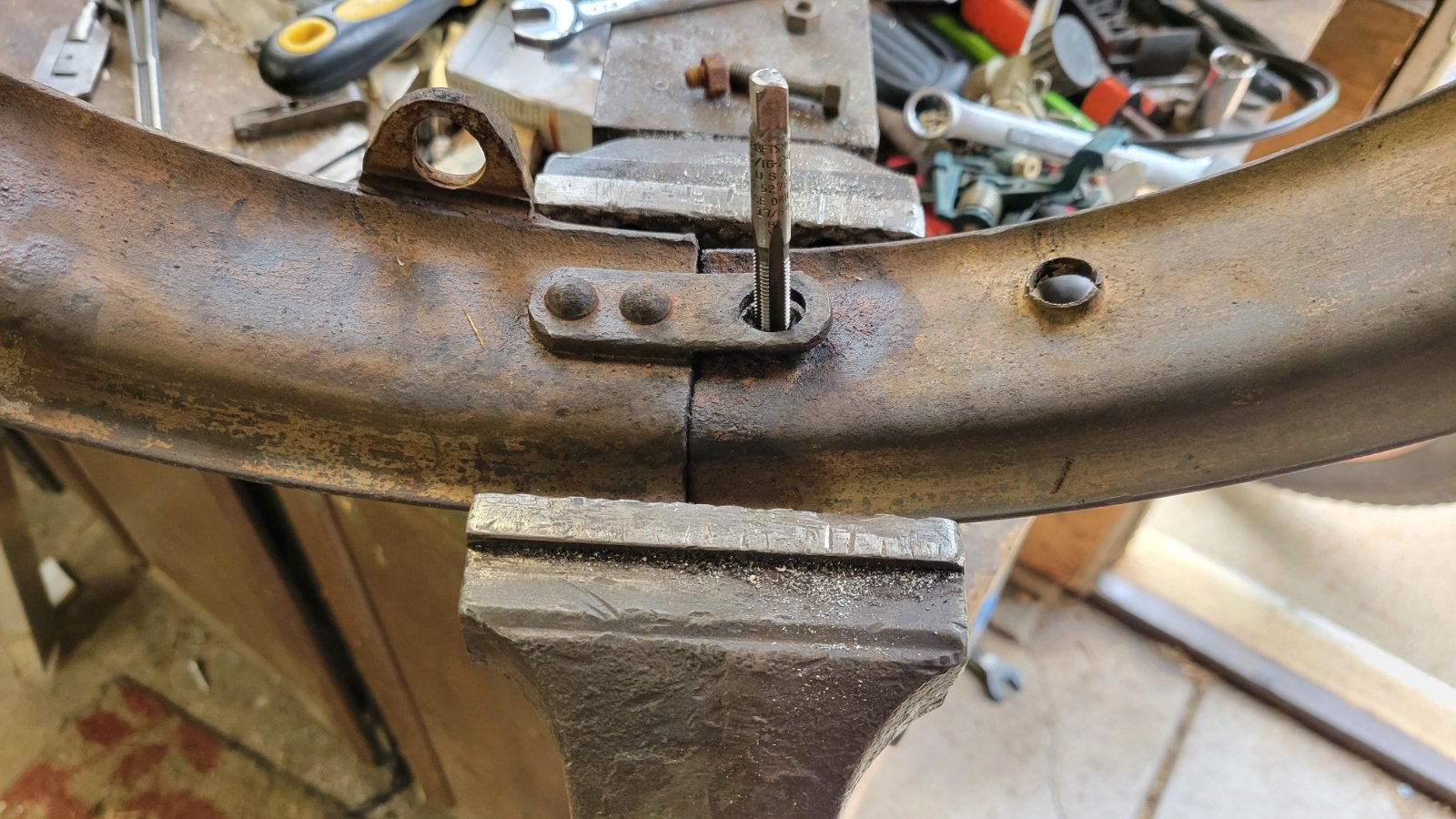

This rim is missing the latch bolt. It looks to be a 5/16" x 24 tpi thread. Does it just use a short bolt and washer?
Thanks,

: ^ )

Keith
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: 21" split rim latch bolt?

Post by Humblej » Thu Jun 27, 2024 3:25 pm

Just a sloted round head screw.
Top
User avatar

Topic author
KWTownsend
Posts: 1382
Joined: Mon Jan 07, 2019 6:51 pm
First Name: Keith
Last Name: Townsend
* REQUIRED* Type and Year of Model Ts owned: late 1911 touring, 1915 runabout, 1919 touring, brass speedster
Location: Gresham, Orygun
MTFCA Life Member: YES
Board Member Since: 1999

Re: 21" split rim latch bolt?

Post by KWTownsend » Thu Jun 27, 2024 4:23 pm

Then just flush on the under side?
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: 21" split rim latch bolt?

Post by RajoRacer » Thu Jun 27, 2024 4:45 pm

I might add to Jeff's description - it's a rather LARGE round head slotted screw - no washer needed !
Top
User avatar

Topic author
KWTownsend
Posts: 1382
Joined: Mon Jan 07, 2019 6:51 pm
First Name: Keith
Last Name: Townsend
* REQUIRED* Type and Year of Model Ts owned: late 1911 touring, 1915 runabout, 1919 touring, brass speedster
Location: Gresham, Orygun
MTFCA Life Member: YES
Board Member Since: 1999

Re: 21" split rim latch bolt?

Post by KWTownsend » Thu Jun 27, 2024 5:00 pm

Satisfactory for git 'er done?
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: 21" split rim latch bolt?

Post by speedytinc » Thu Jun 27, 2024 5:05 pm

RajoRacer wrote: ↑
Thu Jun 27, 2024 4:45 pm
 I might add to Jeff's description - it's a rather LARGE round head slotted screw - no washer needed !
Been a while since I have seen an original screw.
I recall it looks a lot like an early cam bearing retaining screw.
Top

Tekirgis
Posts: 17
Joined: Wed Jul 12, 2023 6:04 pm
First Name: Tom
Last Name: Kirgis
* REQUIRED* Type and Year of Model Ts owned: 1926 fordoor
Location: Dublin ohio
Board Member Since: 2024

Re: 21" split rim latch bolt?

Post by Tekirgis » Thu Jun 27, 2024 6:35 pm

The bolt/ screw was available at langs, I bought a couple a few months ago
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: 21" split rim latch bolt?

Post by speedytinc » Thu Jun 27, 2024 6:44 pm

Tekirgis wrote: ↑
Thu Jun 27, 2024 6:35 pm
 The bolt/ screw was available at langs, I bought a couple a few months ago
Thanks for the info.
$4.95 thru Langs.
