What is this?

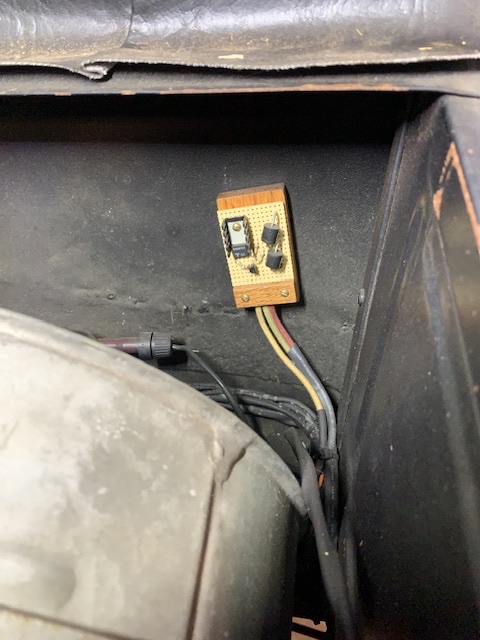

Is this a Fun Projects mag battery charger? Any one have hook up diagram? Does it have one lead hooks to mag?
Email me at address in pictures if you want to. Thanks Day
Email me at address in pictures if you want to. Thanks Day
-
Dan Hatch
Topic author - Posts: 5009
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: What is this?
Is this bitter engineering battery charger?
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: What is this?
Looks like old Radio Shack parts. Would help to see lettering on components, Also what is the brown tube connected to.
- whatsiisss.png (240.75 KiB) Viewed 2274 times
Fun Projects Mag Charger (just a diode & bulb)
- charger.jpeg (30.96 KiB) Viewed 2274 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Dan Hatch
Topic author - Posts: 5009
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: What is this?
That is a fuse holder that is part of the turn signals.
I wonder if that circuit board is this?
https://www.snydersantiqueauto.com/cont ... 5165-6.pdf
I wonder if that circuit board is this?
https://www.snydersantiqueauto.com/cont ... 5165-6.pdf
-
Arbs
- Posts: 216
- Joined: Thu Oct 06, 2022 8:42 pm
- First Name: Dan
- Last Name: A
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring
- Location: Pennsylvania
- Board Member Since: 2022
Re: What is this?
Dan,
Can you get a close up with more detail?
Can you get a close up with more detail?
Where is the OBD2 port on this thing?
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: What is this?
Not a Bitner set-up.
-
Dan Hatch
Topic author - Posts: 5009
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: What is this?
Try this .Has to be a mag battery charger.
Yellow wire is 12v in
Green is 12v out
Red has no voltage. Must hook to mag.
It is like the Bitter.
Yellow wire is 12v in
Green is 12v out
Red has no voltage. Must hook to mag.
It is like the Bitter.
-
JTT3
- Posts: 1855
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: John
- Last Name: Tannehill
- Location: Hot Coffee, MS
Re: What is this?
Dan I believe that’s a Seth Harbuck mag charger. Seth made one very similar to the one pictured. You may recall he was an early proponent (2005) of the ability for the mag to charge the battery. He sent out several to friends including me for a 1915 roadster.
Best John
Best John
-
Dan Hatch
Topic author - Posts: 5009
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: What is this?
John by chance do you have the instructions for it still? Thanks for the help. Dan
-
Arbs
- Posts: 216
- Joined: Thu Oct 06, 2022 8:42 pm
- First Name: Dan
- Last Name: A
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring
- Location: Pennsylvania
- Board Member Since: 2022
Re: What is this?
The part with the heat sink looks like a voltage regulator. Everything else looks like resistors and one transistor. You may be right, could be a homemade mag charger. These components would be all you would need.
Where is the OBD2 port on this thing?
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: What is this?
If the Heat Sink part # is S4008FS21 see https://datasheetz.com/data/Discrete%20 ... heetz.html
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
varmint
- Posts: 838
- Joined: Mon Jan 07, 2019 2:02 pm
- First Name: Vernon
- Last Name: Worley
- * REQUIRED* Type and Year of Model Ts owned: October 26, 1926 Coupe
- Location: New Orleans, LA
- Contact:
Re: What is this?
Not and electronics engineer but used to play with this stuff 50 years ago.
This is my guess:
This is my guess:
- mag charger.png (272.61 KiB) Viewed 1728 times
Vern (Vieux Carre)
-
Dan Hatch
Topic author - Posts: 5009
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: What is this?
I know what the parts are. I want to know if it is battery charger, which I know it is. And who made it , how it hooks up.
I pulled a big screw up and unhooked it pulling the engine to fix cracked drums. Oh I will remember how that goes, yeah right.
Well with all else going on guess what? I think I have got it right so we shall see.
I pulled a big screw up and unhooked it pulling the engine to fix cracked drums. Oh I will remember how that goes, yeah right.
Well with all else going on guess what? I think I have got it right so we shall see.
