What is this?
This lever was in my pile of levers. Any ideas?

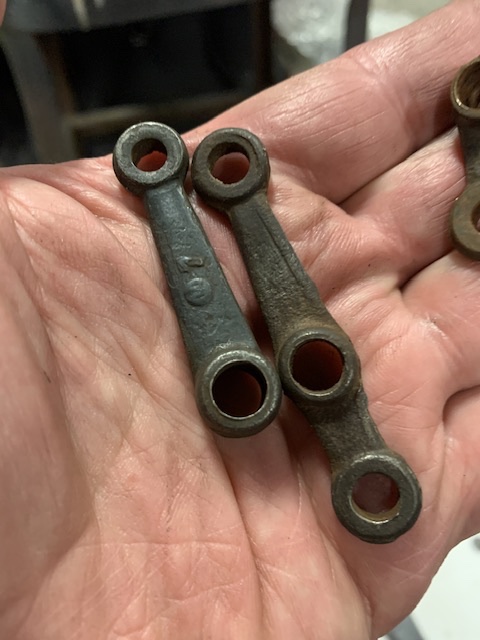

Here side by side with a long one.
Here is a short one added.
Any ideas about it? Came from a Ford dealer back in the day.
-
George House
- Posts: 2814
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: George
- Last Name: House
- * REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
- Location: Northern Caldwell County TX
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: What is this?
Off a Fordson Model F
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT
-
Dan Hatch
Topic author - Posts: 5009
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: What is this?
Thanks George.
-
Swinz
- Posts: 15
- Joined: Wed Apr 22, 2020 9:35 pm
- First Name: Paul
- Last Name: Swindell
- * REQUIRED* Type and Year of Model Ts owned: 1921 Touring, 1923 Touring
- Location: Derby UK
Re: What is this?
I'm glad that this question was asked and has Been answered, I found a lever that looks the same whilst clearing my late father's garage and thought it had a Ford look but was not quite the same as anything on my model T.
The Fordson model F makes perfect sense as my Grandfather had one on his farm back in the 1930s, my question is what exactly does it do on a model F?
Paul.
[image][/image]
The Fordson model F makes perfect sense as my Grandfather had one on his farm back in the 1930s, my question is what exactly does it do on a model F?
Paul.
[image][/image]
- Attachments
-
-
kevinf
- Posts: 130
- Joined: Sun Jan 13, 2019 9:17 pm
- First Name: Kevin
- Last Name: Fielding
- Location: Ewe-taw
Re: What is this?
Dan,
Here is the June 1927, parts manual. It shows part number S-489-B, Throttle control rod lever. If you look at part number S-488-B you will see the rod assembled with the lever on the left end. This rod goes from the dash on the tractor along the top of the engine to the carburetor or vaporizer. The operator control for the throttle is mounted under the steering wheel with a short rod, I believe S487 going down to the part you have.
Sorry its been a while since playing with Fordson's so most of this is from memory.
Hope it helps,
Kevin
Here is the June 1927, parts manual. It shows part number S-489-B, Throttle control rod lever. If you look at part number S-488-B you will see the rod assembled with the lever on the left end. This rod goes from the dash on the tractor along the top of the engine to the carburetor or vaporizer. The operator control for the throttle is mounted under the steering wheel with a short rod, I believe S487 going down to the part you have.
Sorry its been a while since playing with Fordson's so most of this is from memory.
Hope it helps,
Kevin
