Looking at Tinkering Tips 2 I was reading about Ford timers on page 62. It says on making the gauge to set a Ford timer to have the holes 2 1/4 inches apart center to center. Looking at the picture included it shows 2 1/2 inches center to center. Interesting. That 1/4 inch could be a broken wrist or arm.
How do you identify an original Ford timer? I assume it was of the pressed steel type but did they put a Ford stamp on them? No marked ones in my parts collection.
Timer Guage discrepensy
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Dennis_Brown
Topic author - Posts: 245
- Joined: Wed Jan 09, 2019 10:14 pm
- First Name: Dennis
- Last Name: Brown
- * REQUIRED* Type and Year of Model Ts owned: 1926 Roadster pickup
- Location: Spring Hill Fl
-
Moxie26
- Posts: 1863
- Joined: Sun Jan 06, 2019 8:20 pm
- First Name: Robert
- Last Name: Jablonski
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: New Jersey
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Timer Guage discrepensy
Typographical error .... Most references puts the center to center measurement at 2.5 inches. Could be best to ask the vendors if their Ford style commutators are made to actual Ford factory specifications .
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: Timer Guage discrepensy

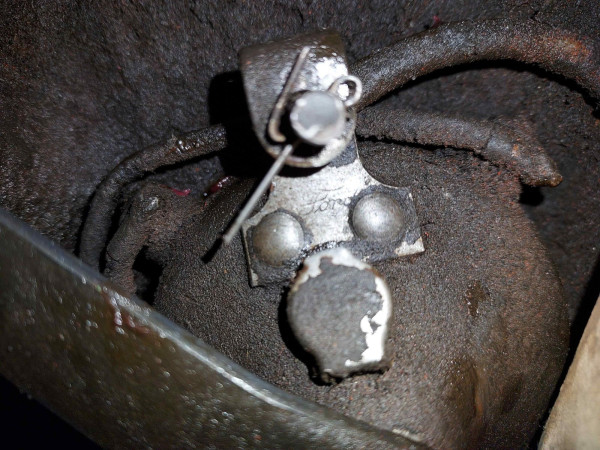

This is how to identify a Ford timer.
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: Timer Guage discrepensy

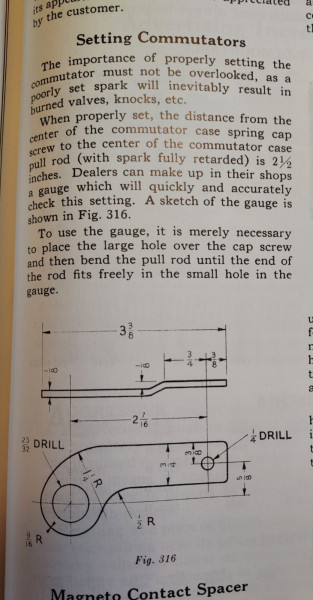

Here is what the Ford Service Bulletins has for a timer gauge.
-
modeltspaz
- Posts: 253
- Joined: Sun Jan 06, 2019 11:15 am
- First Name: Mike
- Last Name: Spaziano
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring
- Location: Bellflower, California
Re: Timer Guage discrepensy
The timer and roller that I removed from my engine to replace with a New Day Timer had "Ford" stamped on both. These were cleaned and placed under the front seat.
Your timer and roller may be non-Ford replacements.
Your timer and roller may be non-Ford replacements.
Knowledge that isn't shared, is wasted knowledge.
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Timer Guage discrepensy
Tinkering Tips info may be subject to how to tinker for sure.
A good Ford source of the day was Murray Fahnestock, writer for Ford Owner magazines and respected then a good source.
His topic stated Ford standardized the distance from the short bent end of the timer rod that engages the timer shell lug, to the head of the bolt that holds the timer spring. That std. center to center distance is 2 1/2". He stated older Fords with magneto only ignition, the distance was 2 5/8". The change in distance was from the addition of electric start to protect the Bendix from backfiring.
As mentioned, std. distance is only for Ford original style timers.
A good Ford source of the day was Murray Fahnestock, writer for Ford Owner magazines and respected then a good source.
His topic stated Ford standardized the distance from the short bent end of the timer rod that engages the timer shell lug, to the head of the bolt that holds the timer spring. That std. center to center distance is 2 1/2". He stated older Fords with magneto only ignition, the distance was 2 5/8". The change in distance was from the addition of electric start to protect the Bendix from backfiring.
As mentioned, std. distance is only for Ford original style timers.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Timer Guage discrepensy
Forget the gauge.
https://dauntlessgeezer.com/DG97.html
https://dauntlessgeezer.com/DG97.html
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
AndyClary
- Posts: 835
- Joined: Sun Jan 06, 2019 11:15 am
- First Name: Andrew
- Last Name: Clary
- * REQUIRED* Type and Year of Model Ts owned: 1914 Runabout 1926 Coupe. Mercury Speedster #1249
- Location: Usa
Re: Timer Guage discrepensy
I’m with Steve. You can over think the timing. I set #1 at Top Dead Center then adjust the rod so the coil buzzes 2-3 notches down. You can go more if you want. The spark lever will pull in more advance than you’ll ever need.
Andy
Andy
-
TWrenn
- Posts: 3743
- Joined: Sun Jan 06, 2019 10:53 am
- First Name: Tim
- Last Name: Wrenn
- * REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
- Location: Ohio
- Board Member Since: 2019
Re: Timer Guage discrepensy
AndyClary wrote: ↑Sun Aug 25, 2024 12:36 pmI’m with Steve. You can over think the timing. I set #1 at Top Dead Center then adjust the rod so the coil buzzes 2-3 notches down. You can go more if you want. The spark lever will pull in more advance than you’ll ever need.
Yep me too. This is how John Regan taught me. I call it the "9:30-3:30" method and man it's got Clara my '13 to start so easy hand cranking it ain't funny. On a starter car I guess there's a bit more latitude as you just keep cranking the starter til it starts! Up to a point of course!
Andy
