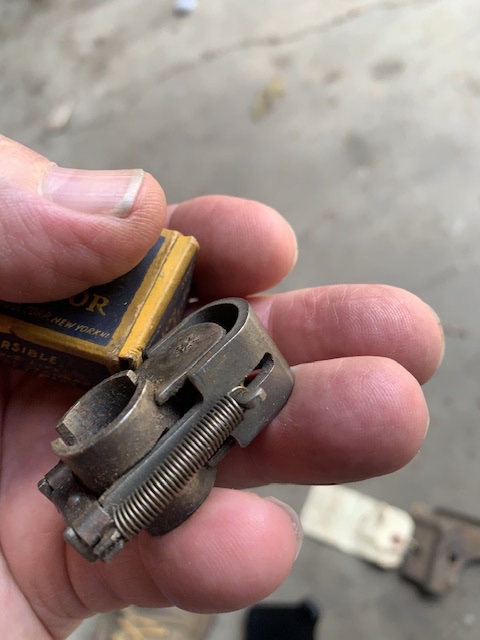

Fast forward to today… I was sorting through a trailer load of parts I picked up and found these in the bottom of a box. Anyone ever seen this style before? What type of commutater housing was used?
- IMG_0695.jpeg (28.19 KiB) Viewed 1770 times
Anyone ever see this type of timer brush?
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Kenny Edmondson
Topic author - Posts: 146
- Joined: Mon Jan 07, 2019 8:26 am
- First Name: Kenny
- Last Name: Edmondson
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring 1924 Roadster PU
- Location: Indianapolis, IN
Anyone ever see this type of timer brush?
When I originally designed the carbon brush timer, I had looked at a lot of various designs and wanted to make one that would required less maintenance including no lubrication.
Fast forward to today… I was sorting through a trailer load of parts I picked up and found these in the bottom of a box. Anyone ever seen this style before? What type of commutater housing was used?
Fast forward to today… I was sorting through a trailer load of parts I picked up and found these in the bottom of a box. Anyone ever seen this style before? What type of commutater housing was used?
-
TWrenn
- Posts: 3743
- Joined: Sun Jan 06, 2019 10:53 am
- First Name: Tim
- Last Name: Wrenn
- * REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
- Location: Ohio
- Board Member Since: 2019
Re: Anyone ever see this type of timer brush?
Never seen it before but looks like it would work well on a normal roller timer. Similar to the infamous TW timer in a way, which I swear by. Give it a try!
- Attachments
-
- TW timer brush holder showing brush mounted inside prior to installation. The brush is spring loaded to always maintain good contact inside the commutator (timer)
-
Kenny Edmondson
Topic author - Posts: 146
- Joined: Mon Jan 07, 2019 8:26 am
- First Name: Kenny
- Last Name: Edmondson
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring 1924 Roadster PU
- Location: Indianapolis, IN
Re: Anyone ever see this type of timer brush?
Tim, it looks like it would work on a roller timer but not sure how it would wear. I’ve got to determine what the brush is made of. It’s not carbon, brass or copper on 1st inspection.
-
TWrenn
- Posts: 3743
- Joined: Sun Jan 06, 2019 10:53 am
- First Name: Tim
- Last Name: Wrenn
- * REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
- Location: Ohio
- Board Member Since: 2019
Re: Anyone ever see this type of timer brush?
I got a hunch the inner black ring of the roller timer will wear faster than the brush(es) you're holding. The ring seems to be of a bit softer material than that of which was used in "Tony's timer", which I believe to be Micarta. I have a sheet of Micarta that I bought last year in hopes or in case it's needed to have new rings made. So far getting someone with a CNC machine to carve them out at a reasonable cost is the hold up. My sheet is big enough to make 9 rings. I wonder if those brushes are just some sort of steel.Kenny Edmondson wrote: ↑Thu Sep 19, 2024 6:11 pmTim, it looks like it would work on a roller timer but not sure how it would wear. I’ve got to determine what the brush is made of. It’s not carbon, brass or copper on 1st inspection.
-
Kenny Edmondson
Topic author - Posts: 146
- Joined: Mon Jan 07, 2019 8:26 am
- First Name: Kenny
- Last Name: Edmondson
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring 1924 Roadster PU
- Location: Indianapolis, IN
Re: Anyone ever see this type of timer brush?
Tim, the “brush” is a ferrous metal. Can’t imagine the timer commutator lasting long but might try one just to see what happens. And as usual, I’ll carry a spare.
-
Dan Hatch
- Posts: 5018
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: Anyone ever see this type of timer brush?
Kind of like these. They run good in a regular Ford style timer.
-
Kenny Edmondson
Topic author - Posts: 146
- Joined: Mon Jan 07, 2019 8:26 am
- First Name: Kenny
- Last Name: Edmondson
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring 1924 Roadster PU
- Location: Indianapolis, IN
Re: Anyone ever see this type of timer brush?
Dan, that one is interesting as well.
-
Aussie16
- Posts: 263
- Joined: Sat Jan 05, 2019 9:24 pm
- First Name: Warwick
- Last Name: Landy
- * REQUIRED* Type and Year of Model Ts owned: 1916 RHD Canadian Touring 1916 Pickup 1926 Fordor 1925 Dalgety Tourer 1916 Speedster
- Location: Trarlagon Victoria Australia
Re: Anyone ever see this type of timer brush?
I kind of like this version. There was a guy selling them new from the classifieds section. Works on a standard roller timer and scrapes over like a wiping brush. I have not tried it yet as I have an Anderson and an I timer on both the cars I drive regularly and so far both have functioned maintenance free and reliable operation for many miles.
- Attachments
-
-
-
Kenny Edmondson
Topic author - Posts: 146
- Joined: Mon Jan 07, 2019 8:26 am
- First Name: Kenny
- Last Name: Edmondson
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring 1924 Roadster PU
- Location: Indianapolis, IN
Re: Anyone ever see this type of timer brush?
Warwick, I thought about one like that when I was 1st thinking of the carbon brush timer designs. That one is interesting also.
