1925 Model T Roadster Pickup Wood Plan
Does anyone have a plan for the wood in a 1925 Model T Roadster Pickup? Im in the middle of a restoration.
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: 1925 Model T Roadster Pickup Wood Plan
Haven't seen a plan of the wood pieces, length and width for the '25, they are different than the '26-'27, but do use the similar means of fastening metal bed strips, anchored in the saw kerf grooves of the bed boards.

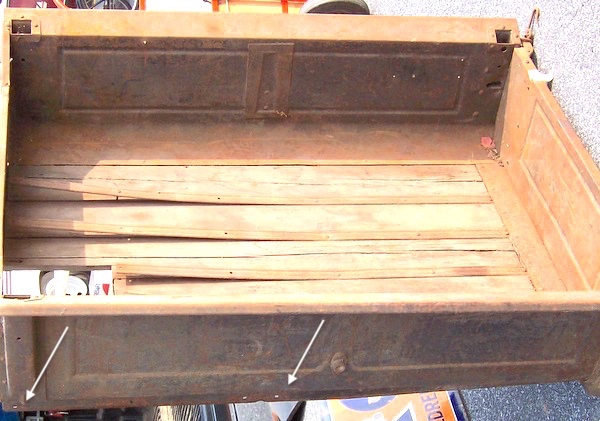

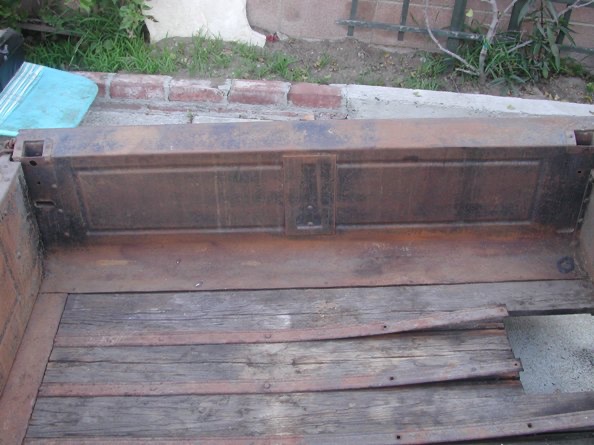

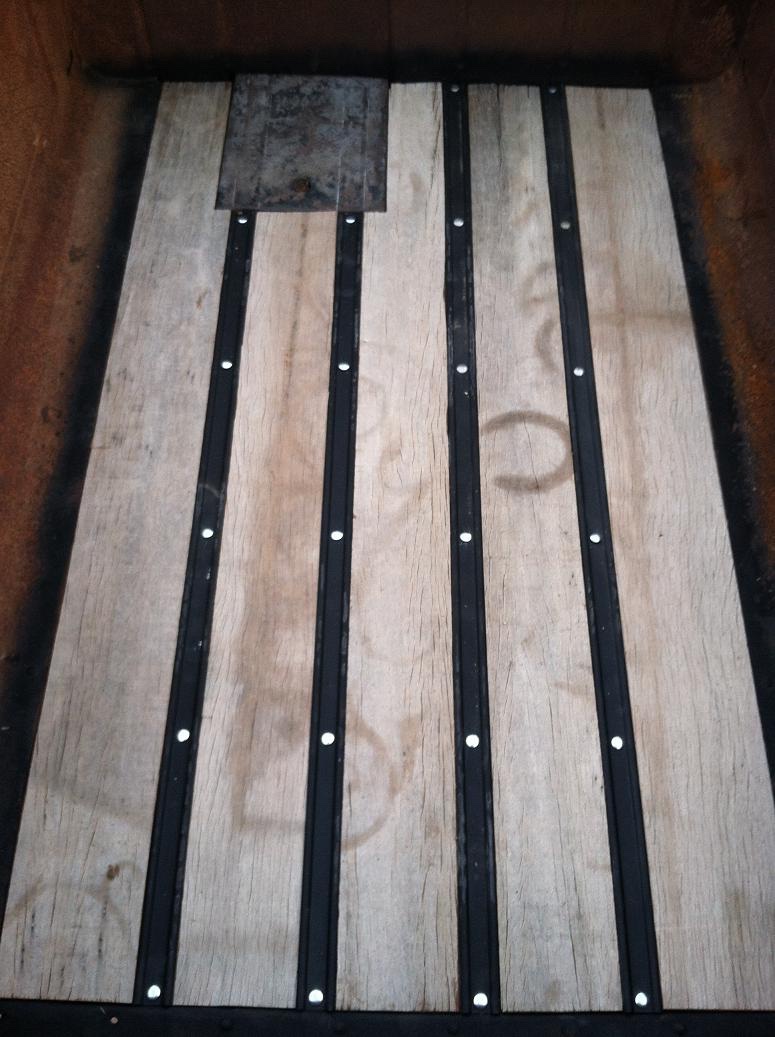

Here are some photos of original wood and bed strips in a 1925 pick up bed.

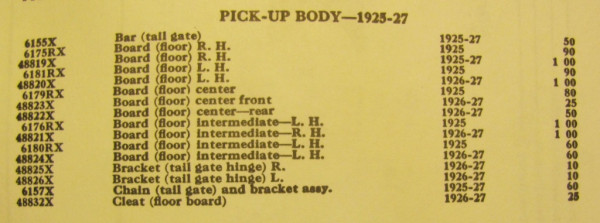

Factory part numbers showing the bed boards for the '25 are different from the '26-'27
Here are some photos of original wood and bed strips in a 1925 pick up bed.
- 25 bed copy.jpg (102.83 KiB) Viewed 1772 times
- 913544.jpg (88.69 KiB) Viewed 1772 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: 1925 Model T Roadster Pickup Wood Plan
Perhaps Larry Smith will add his expertise on '25 P/U bed wood - he has a real one !
-
Jim overstreet
- Posts: 26
- Joined: Sun Jan 06, 2019 3:27 pm
- First Name: jim
- Last Name: overstreet
- * REQUIRED* Type and Year of Model Ts owned: 1925 roadster pickup project, 1916 touring project, 1929 A closed cab pickup
- Location: Forkland, Ky
Re: 1925 Model T Roadster Pickup Wood Plan
Hello,
There was a thread on the old forum 9/30/2010 with John Baier and Larry Smith. The bed boards were described in detail. Not sure how to access that old thread.
There was a thread on the old forum 9/30/2010 with John Baier and Larry Smith. The bed boards were described in detail. Not sure how to access that old thread.
'Endeavor to persevere' - Lone Wattie
-
Jerry VanOoteghem
- Posts: 4082
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: 1925 Model T Roadster Pickup Wood Plan
https://www.mtfca.com/discus/messages/1 ... 1301620399
Read the 3rd post @ 6:54AM
https://www.mtfca.com/discus/messages/8 ... 1543491186
Read the 3rd post @ 6:54AM
https://www.mtfca.com/discus/messages/8 ... 1543491186
Last edited by Jerry VanOoteghem on Tue Oct 22, 2024 10:55 am, edited 2 times in total.
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: 1925 Model T Roadster Pickup Wood Plan
Here is that former postJim overstreet wrote: ↑Tue Oct 22, 2024 9:28 amHello,
There was a thread on the old forum 9/30/2010 with John Baier and Larry Smith. The bed boards were described in detail. Not sure how to access that old thread.
http://www.mtfca.com/discus/messages/11 ... 1286072946
The sketch is mine, but isn't for 1925 bed wood, only the later '26-'27 bed wood.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
EdVaughn
Topic author - Posts: 11
- Joined: Tue Oct 15, 2024 2:30 pm
- First Name: Ed
- Last Name: Vaughn
- * REQUIRED* Type and Year of Model Ts owned: 1925 Runabout Pickup
- Location: Jacksonville, FL
Re: 1925 Model T Roadster Pickup Wood Plan
all-
Thanks for all the great replies they will be helpful when I get to the pickup bed.
I should have been more specific as I am looking for drawings of the body. I have a box of wood parts and I am trying to figure out what they are are what I am missing.
Thanks, Ed
Thanks for all the great replies they will be helpful when I get to the pickup bed.
I should have been more specific as I am looking for drawings of the body. I have a box of wood parts and I am trying to figure out what they are are what I am missing.
Thanks, Ed
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: 1925 Model T Roadster Pickup Wood Plan
This should help
https://fordwood.com/images/road23new.jpg
https://fordwood.com/images/road23new.jpg
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: 1925 Model T Roadster Pickup Wood Plan
I don't feel like checking my old articles, but as I recall the thickness of all the boards is 13/16" not 3/4". A question I've always wondered about is why someone with metal working experience hasn't made a roller to convert the later style metal bed strips to the correct style used in 1925.
-
Jerry VanOoteghem
- Posts: 4082
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: 1925 Model T Roadster Pickup Wood Plan
Yes, you stated 13/16" on March 30, 2011. Don't you remember that?Original Smith wrote: ↑Fri Oct 25, 2024 12:47 pmI don't feel like checking my old articles, but as I recall the thickness of all the boards is 13/16" not 3/4". A question I've always wondered about is why someone with metal working experience hasn't made a roller to convert the later style metal bed strips to the correct style used in 1925.
