Spedometer drive gears

Post by Craig E. Luton » Sun Nov 03, 2024 5:57 pm

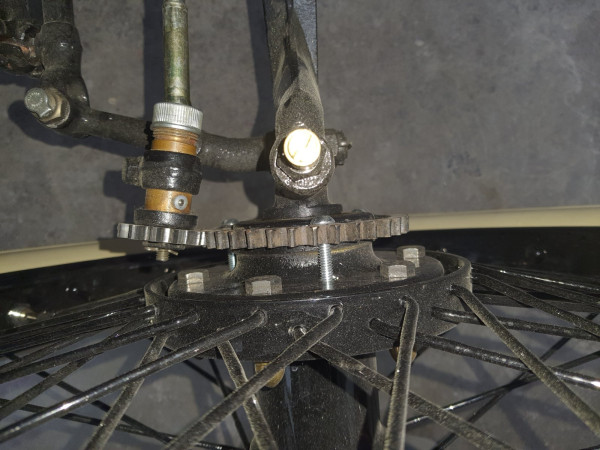

image001 (003).jpg
The above picture is of the speedometer drive and driven gears on my 1914 Roadster. As you can see, the two gears are not alighned with each other. What am I doing wrong? Or is this setup normal?

Thank you for looking.
Craig
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Spedometer drive gears

Post by RajoRacer » Sun Nov 03, 2024 6:56 pm

Not normal - definably whonky !
Top
User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: Spedometer drive gears

Post by Mark Gregush » Sun Nov 03, 2024 7:41 pm

Which speedometer and gears do you have installed. Too me it looks to be a mix of wrong parts. You might need the shorter L bracket and S clamp.
https://www.modeltford.com/item/2740S.aspx
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Spedometer drive gears

Post by RajoRacer » Sun Nov 03, 2024 9:11 pm

Let's get a photo from the side, please.
Top

Dan McEachern
Posts: 1398
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
* REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
Location: ALAMEDA,CA,USA

Re: Spedometer drive gears

Post by Dan McEachern » Sun Nov 03, 2024 10:41 pm

What speedo? Ford Special? Pretty sure the arm with the hole takes the SW round 90 deg bracket with the tapered end, and then an intermediate bracket that clamps the swivel. Perhaps contact Russ Furstnow?
Top

Topic author
Craig E. Luton
Posts: 183
Joined: Sun Jan 20, 2019 1:40 pm
First Name: Craig
Last Name: Luton
* REQUIRED* Type and Year of Model Ts owned: 1914 Ford Runabout; 1915 Ford Touring; 1936 Ford Pick-up
Location: Clancy Montana

Re: Spedometer drive gears

Post by Craig E. Luton » Mon Nov 04, 2024 12:25 am

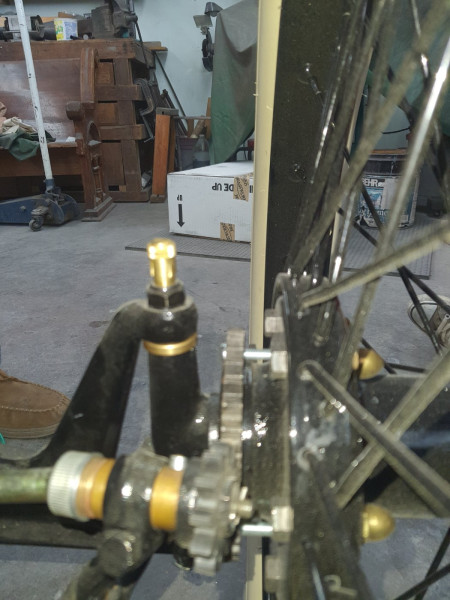

image002 (002).jpg
1915 Photo 2 (1).JPG

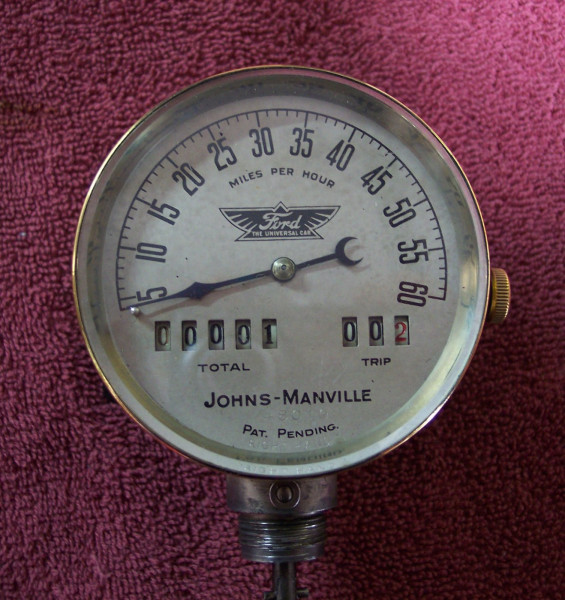

The speedometer is a Johns-Manville, the drive gear is a Stewart 35 tooth and 8 pitch. The person I purchased the speedometer, driven gear and cable from was recommended to me on this forum. I would have to look through my records to get his name. He restores speedometers and sells the parts to get it working. I have had these parts for quite a while and am just getting around to installing them. I do have the "L" iron mentioned earlier. I had the drive gear and the bracket and cable drive so I used them. Any help is aporeciated.

Thank you
Craig
Top

Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Spedometer drive gears

Post by Allan » Mon Nov 04, 2024 2:40 am

What you have cannot work. To get the cable drive gear parallel to the wheel gear requires the drive assembly to be rotated, which you cannot do because the wheel gear will not allow it. You need an L bracket and S clamp.

Allan from down under.
Top
User avatar

DanTreace
Posts: 3812
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Spedometer drive gears

Post by DanTreace » Mon Nov 04, 2024 8:19 am

The clamp to the spindle arm w/hole is right, it rotates in the hole, could be the dia. of that S-W road gear is too much, the correct gears for that J-M Ford Special are J-M 35T 8P, and 12T 8P.

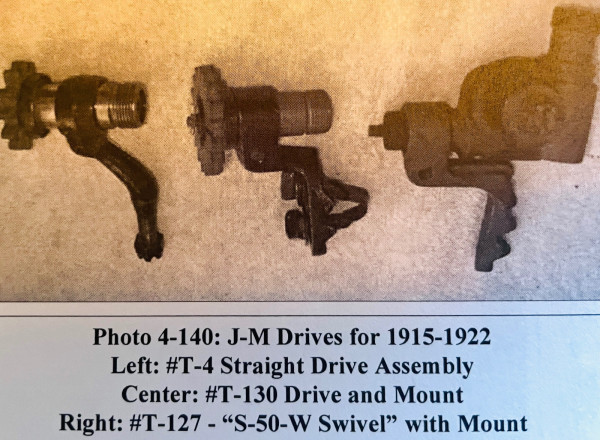

Other mounts by J-M
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Spedometer drive gears

Post by RajoRacer » Mon Nov 04, 2024 10:50 am

I can take a few photos of the similar set-up on our '14 today - I'll be back !
Top
User avatar

Oldav8tor
Posts: 2245
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Juhl
* REQUIRED* Type and Year of Model Ts owned: 1917 Touring
Location: Thumb of Michigan
Board Member Since: 2018

Re: Spedometer drive gears

Post by Oldav8tor » Mon Nov 04, 2024 11:40 am

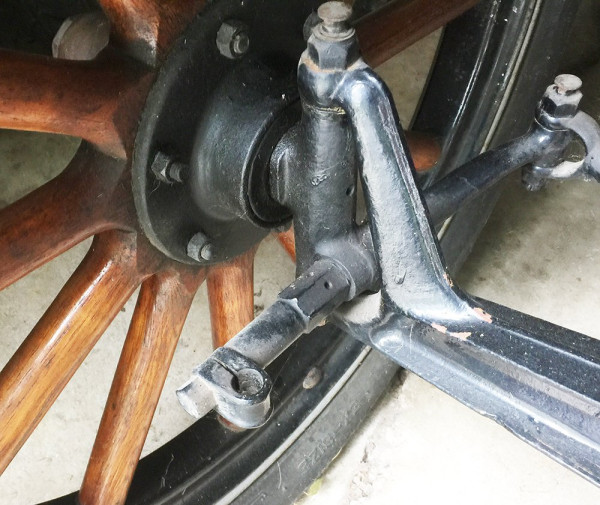

I don't have a speedometer but my right spindle is set up for one. In place of the nut there is a extension that the speedometer gears could attach to. It aligns with the same plane that the wheel-mounted gears would have.
IMG_1844 copy.jpg
1917 Touring
1946 Aeronca Champ
1952 Willys M38a1 Jeep (sold 2023)
1953 Ford Jubilee Tractor
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Spedometer drive gears

Post by RajoRacer » Mon Nov 04, 2024 11:58 am

That's a later mounting style Tim - early cars used a mount from the rear.
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Spedometer drive gears

Post by RajoRacer » Mon Nov 04, 2024 2:21 pm

See if this helps.
Attachments

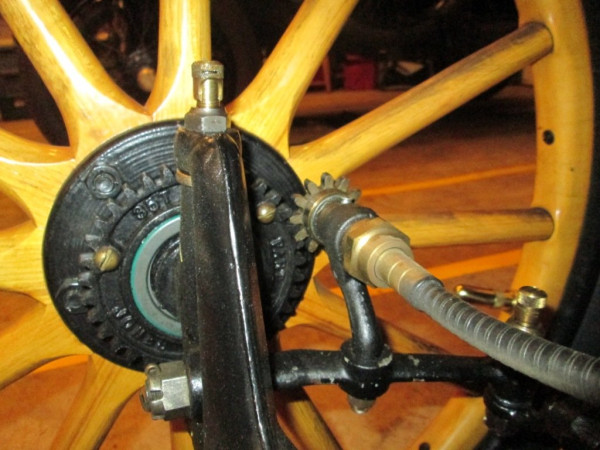

Ford Special 1.JPG

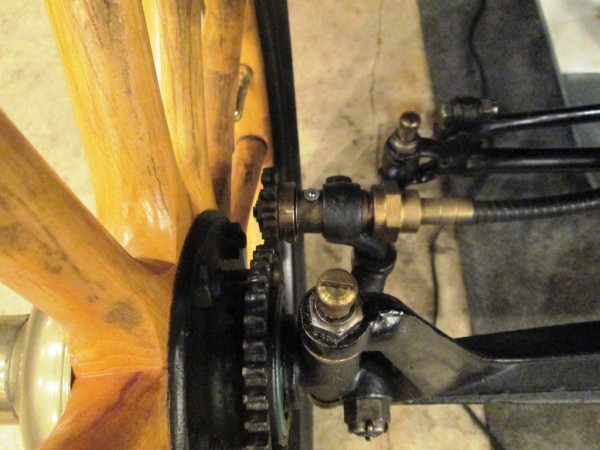

Ford Special 2.JPG

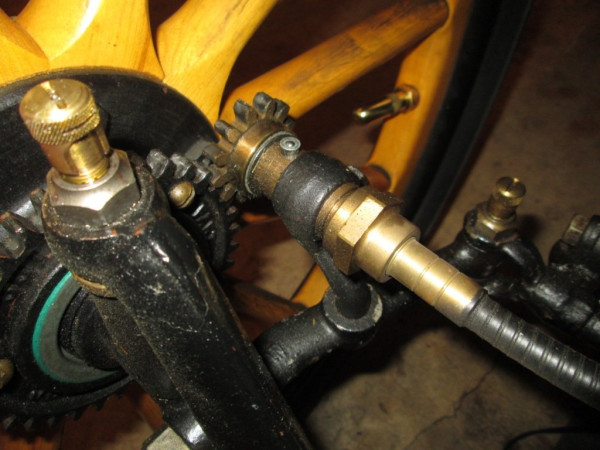

Ford Special 3.JPG
Top

Russ_Furstnow
Posts: 370
Joined: Tue Jan 08, 2019 9:01 am
First Name: Russ
Last Name: Furstnow
* REQUIRED* Type and Year of Model Ts owned: 1911 Torpedo,1913 Touring, 1914 Runabout, 1915 Coupelet, 1916 Coupelet, 1917 Coupelet
Location: Flagstaff, AZ
MTFCA Life Member: YES

Re: Spedometer drive gears

Post by Russ_Furstnow » Sat Nov 16, 2024 2:40 pm

The bracket that holds the drive can be bent to the rear of the car to align the gears. This allows the two gears to run correctly. I hope this helps, Russ Furstnow
Top

Topic author
Craig E. Luton
Posts: 183
Joined: Sun Jan 20, 2019 1:40 pm
First Name: Craig
Last Name: Luton
* REQUIRED* Type and Year of Model Ts owned: 1914 Ford Runabout; 1915 Ford Touring; 1936 Ford Pick-up
Location: Clancy Montana

Re: Spedometer drive gears

Post by Craig E. Luton » Mon Nov 25, 2024 9:08 pm

I thought I would get this problem corrected before I commented on my posted problem. I talked at length with Langs and he thought the bracket was bent. I inspected it and agreed with him, after all it is 110 years old. My son-in-law finally came up and we heated and bent the bracket to the correct shape and it now works just fine. Thank you everyone for your input, it is much appreciated. \
Craig
