I am wondering if Ford made different length pitman arms. I am working on a speedster, and have run into a problem with the length of the pitman arm that is on car now.
Fitz
Pitman arm
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
ModelTWoods
- Posts: 1418
- Joined: Tue Jan 08, 2019 10:53 am
- First Name: Terry
- Last Name: Woods
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T coupe, 1926 4 door sedan
- Location: Cibolo (San Antonio), TX
Re: Pitman arm
Yes they did,and they may have made some with other differences other than length or part number. For instance because of a 26-27 chassis having a lower stance than previous models, the pitman arm was slightly different.
-
John kuehn
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Pitman arm
Check out this earlier post for the differences. https://www.mtfca.com/discus/messages/4 ... 1402824133
-
TRDxB2
- Posts: 6259
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Pitman arm

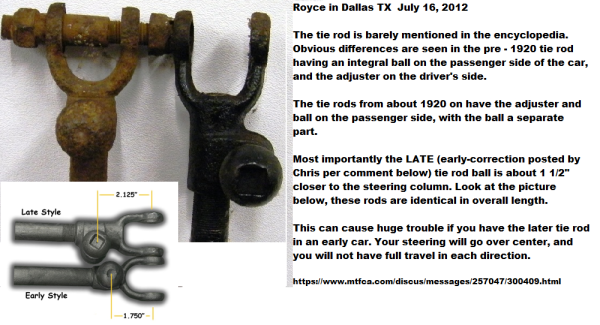

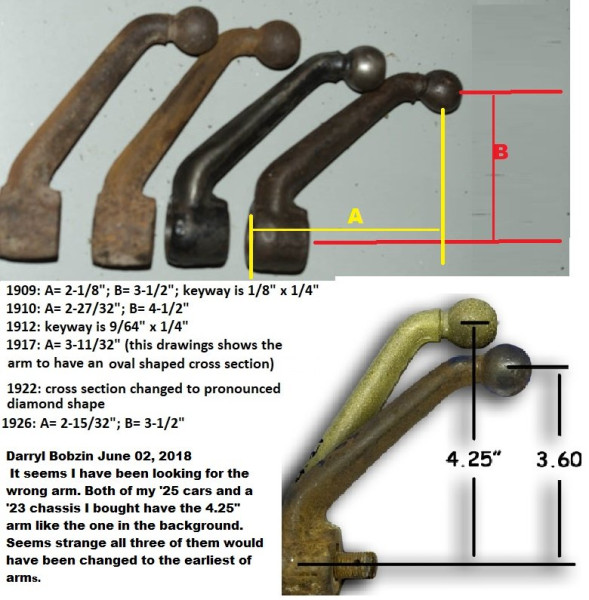

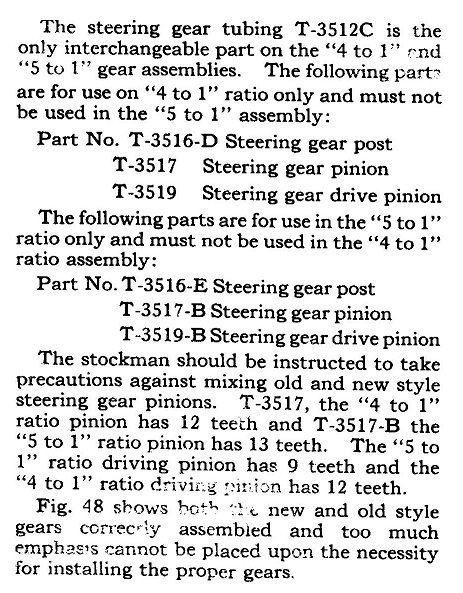

Different front end pieces
- Attachments
-
-
- Steering Change Details.jpg (108.25 KiB) Viewed 3878 times
-
-

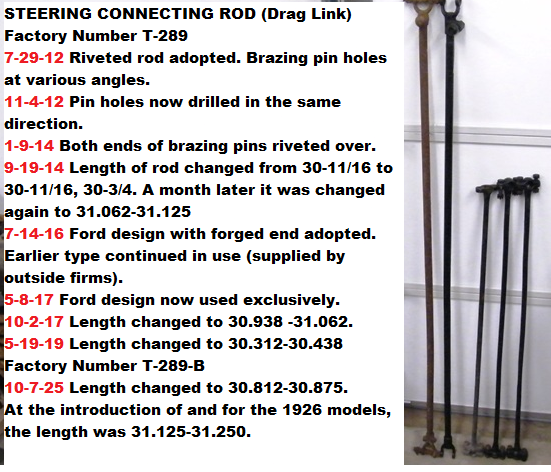

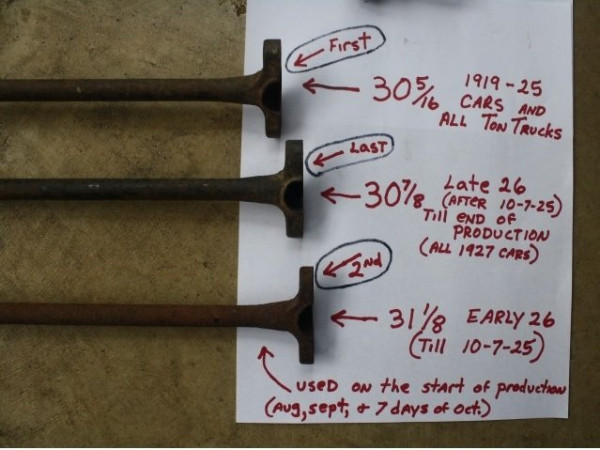

- Drag link.png (162.93 KiB) Viewed 3878 times
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Pitman arm
I always mike the ball. Some of them are quite worn.
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Pitman arm

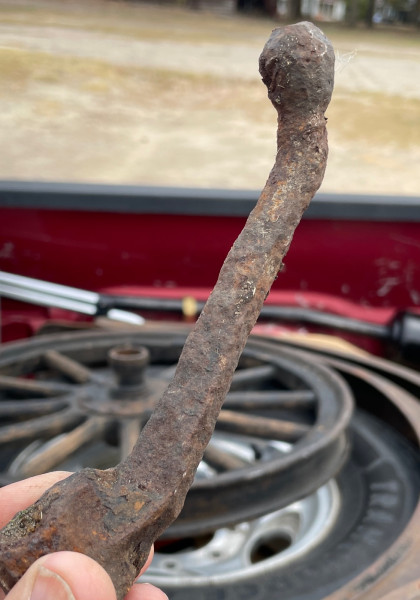

No need to mike this T-3547 Steering Gear Ball ArmOriginal Smith wrote: ↑Wed Jan 08, 2025 11:13 amI always mike the ball. Some of them are quite worn.
