two piecce timers

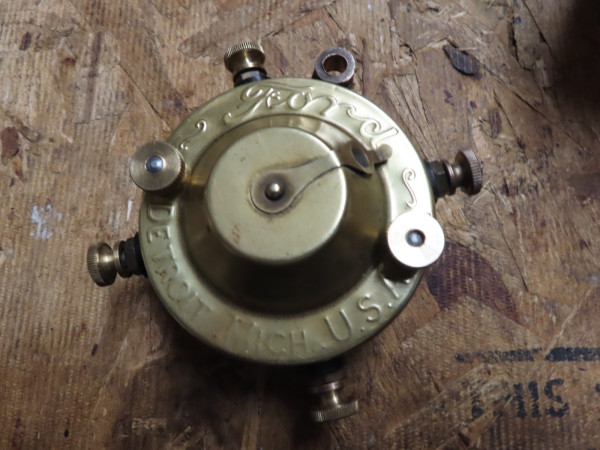

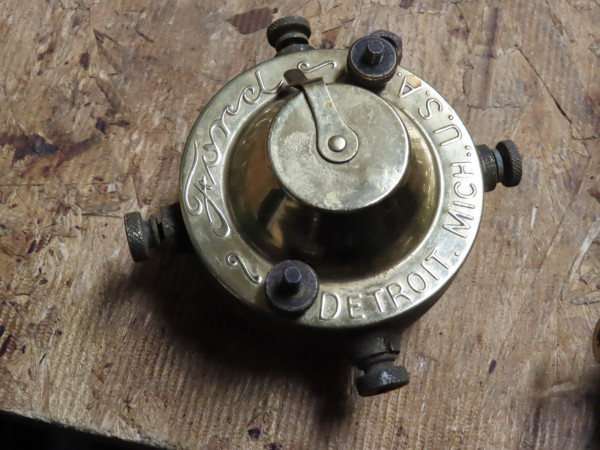

picture number one illustrates that the two studs hoilding the cover are alined with the control knob. This is the way all seem to be. picture number two is the timer I bought last month. the two studs holding the cover are off set from the knob by 90 degrees. Has anyone seen or have a two piece timer that is like number two?
- Attachments
-
-
-
Kevin Pharis
- Posts: 1558
- Joined: Thu Jan 10, 2019 3:54 pm
- First Name: Kevin
- Last Name: Pharis
- Location: Sacramento CA
- Contact:
Re: two piecce timers
The embossed lettering in the 2nd photo is much less crisp, possibly a reproduction…? Some of these reproduction parts are older today, than the T’s were when the reproduction parts were made. Getting hard to tell the difference in some cases
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: two piecce timers
And, they centered "Ford" over the timing rod eye & the oiler cover is on the other side of the eye also !
-
RGould1910
- Posts: 1128
- Joined: Tue Jan 22, 2019 8:16 am
- First Name: Richard
- Last Name: Gould
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1912 roadster , 1927 roadster
- Location: Folsom, CA
Re: two piecce timers
The races are held to the case by four screws, two of which extend to told the cover on. By changing the position of the long screws you have the correct orientation.
-
ModelT46
Topic author - Posts: 1627
- Joined: Sun Jan 06, 2019 8:35 pm
- First Name: Darel
- Last Name: Leipold
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring
- Location: Excelsior MN
- Board Member Since: 1999
Re: two piecce timers
Thank you for the \help. I will change the poistions of the screws.
