Headlight difference

Post by Dennis_Brown » Fri May 09, 2025 10:16 pm

What is the difference between 15-16 headlight mounting posts and 17-23 posts. Iam trying to identify some I have or are they all the same and interchangeable?
Top
User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: Headlight difference

Post by Mark Gregush » Sat May 10, 2025 8:43 am

Easiest visual clue is the location of the focus screw. The 1915/16 maybe part of 17(?) it was located at 12 0-clock over the bulb holder. After that it was at the 9 o-clock. 1915 up to the indroduction of the fluted lens, the rim would have the narrow tabs to hold the round glass.
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup
Top
User avatar

TRDxB2
Posts: 6259
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Headlight difference

Post by TRDxB2 » Sat May 10, 2025 9:45 am

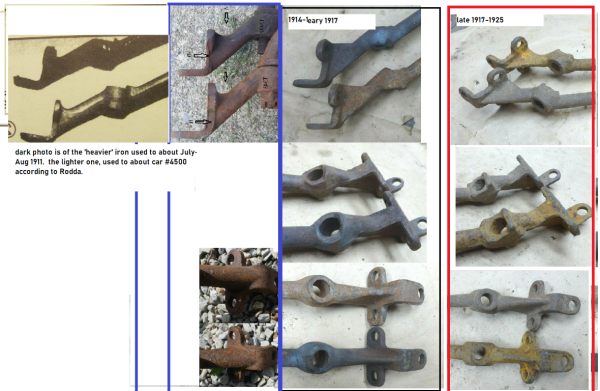

Can't get the link copied. so Google Front Fender Brackets TRDxB2 MTFCA. There is addition pictures and explanation by year
Attachments
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top
User avatar

RajoRacer
Posts: 5170
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Headlight difference

Post by RajoRacer » Sat May 10, 2025 12:02 pm

'15 - '17 posts have straight, parallel sides that fit into the one sided fender iron mount, if that makes sense - later stems were "beveled" for the re- designed iron mount as Frank shows above.
Top
User avatar

DanTreace
Posts: 3812
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Headlight difference

Post by DanTreace » Sat May 10, 2025 4:00 pm

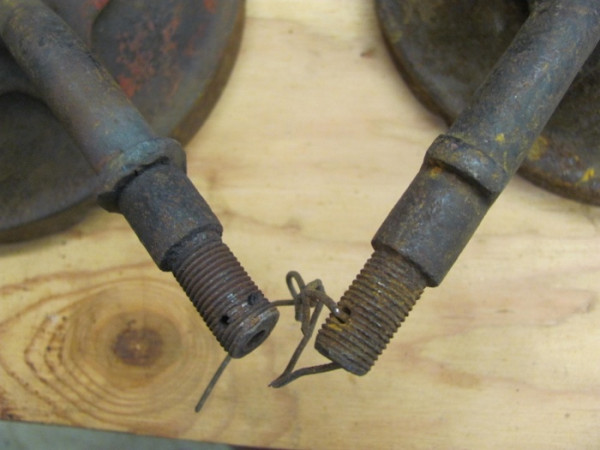

Early style bucket stem on right, has straight sides to fit the early fender post mount, '15-'17.

Later on right, with wedge type stem.
IMG_0151 (700x525).jpg
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top

Erik Johnson
Posts: 1055
Joined: Mon Feb 04, 2019 10:25 pm
First Name: Erik
Last Name: Johnson
Location: Minneapolis, MN

Re: Headlight difference

Post by Erik Johnson » Sat May 10, 2025 5:20 pm

Adjustment screw at 12 o'clock position on the bucket is correct through at least the 1917 model year.
