Rear spring install
I keep having trouble getting to get the rear spring in straight. Every time I clamp the u bolts down it pulls the spring down tighter on the one side making the spring sit angled down on the left side. This makes the car sit angled down on the left side. Is there a certain position for the spring clamps to be in ?
-
speedytinc
- Posts: 4724
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Rear spring install
The spring should "drop" up into position without frame interference. Is the frame end hit? The only time I had such an issue was when I used a rubber pad. The pad got between the spring leafs & U channel. Stuck it tight off center. I learned not to use rubber. Use leather or the original style oil cloth with 2 small leather pads on the ends.
-
John L
Topic author - Posts: 146
- Joined: Sun Jan 06, 2019 2:39 pm
- First Name: John
- Last Name: Leffler
- * REQUIRED* Type and Year of Model Ts owned: 1923 Coupe, 1927 Touring
- Location: Lebanon PA 17046
Re: Rear spring install
The spring goes up into the frame ok. But when I tighten it down it pulls down on the left side , uneven from the right . Is there a certain position the clamps go in ?
-
Steve Jelf
- Posts: 7233
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
-
John L
Topic author - Posts: 146
- Joined: Sun Jan 06, 2019 2:39 pm
- First Name: John
- Last Name: Leffler
- * REQUIRED* Type and Year of Model Ts owned: 1923 Coupe, 1927 Touring
- Location: Lebanon PA 17046
Re: Rear spring install
It’s a brand new pad
-
speedytinc
- Posts: 4724
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Rear spring install

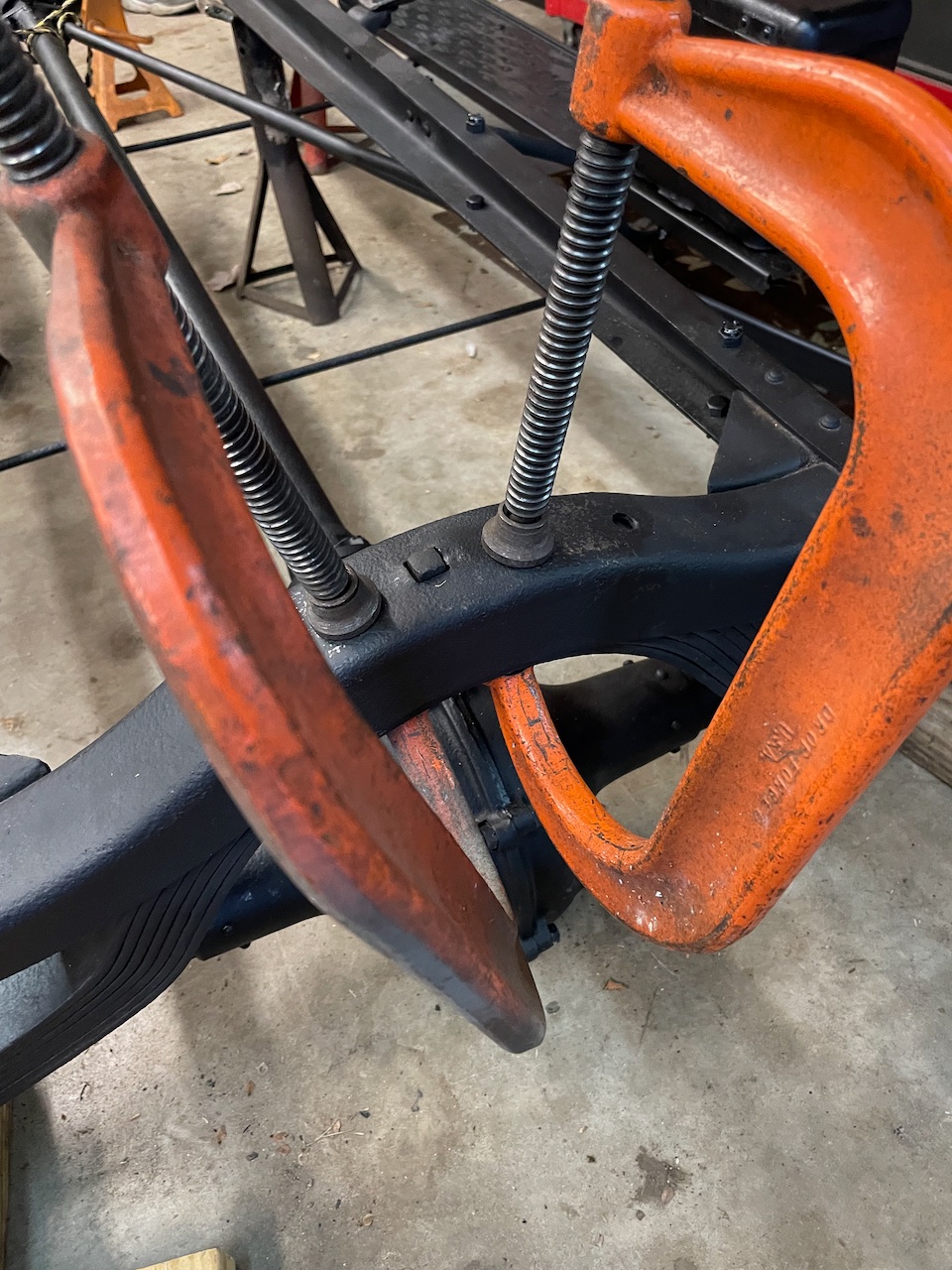

Have solved that issue using large C-clamps. These pulled the spring stack up into the rear crossmember, making the clip install easy.
Having the spring stack very secure (i.e. snug) is best to prevent leaf factures.
Having the spring stack very secure (i.e. snug) is best to prevent leaf factures.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Norman Kling
- Posts: 4631
- Joined: Tue Jan 08, 2019 1:39 pm
- First Name: Norman
- Last Name: Kling
- Location: Alpine California
Re: Rear spring install
Works easiest with some weight on the chassis. Body on is easiest, even someone sitting in the back seat or in the turtle back some weight. Put wood block under one end and install the shackle. Then another block under the other end of the spring to install the shackle. When you get the shackles in and tight, then take the wood out and let the spring find it's own position. Hardest to install without any weight on the rear spring.
Norm
Norm
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Rear spring install
What happens if you back off one U bolt and tighten down the other?
Allan from down under.
Allan from down under.
-
TRDxB2
- Posts: 6258
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Rear spring install

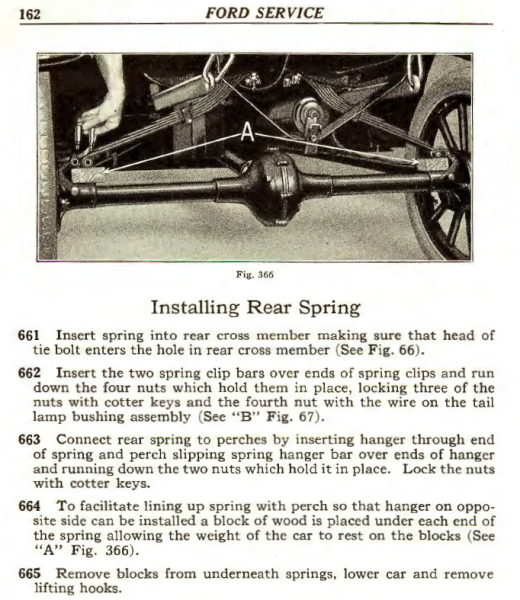

Not sure what your sequence of attaching parts is.
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Rear spring install
If it is down on the left, try loosening the left U bolt ad tightening the right. Down on the left a bit is better than on the right. It will compensate for the camber in some roads.
Allan from down under.
Allan from down under.
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Rear spring install
In later years, Ford replaced the leather pad with a piece of top material. I suggest using the earlier style leather pads. The top material pads still had the leather pieces on each end.
