I have several Rim Clamp charts found on the Internet. Recently I came across several STONE Brand rim clamps but like the others their numbers don't match Model T numbers. Also does anyone have a cross reference of Rim Clams to wheels I can start one if needed.

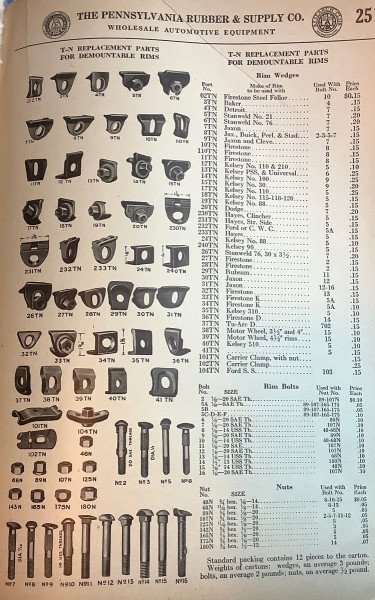

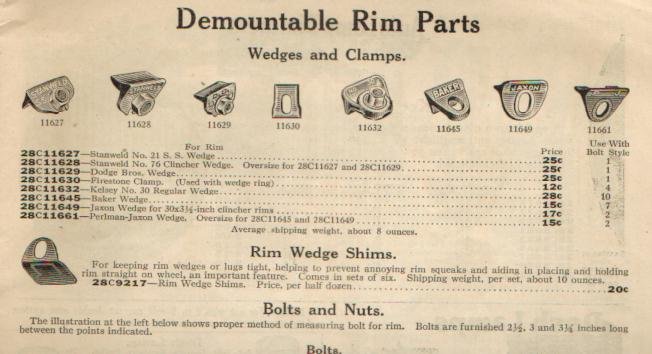

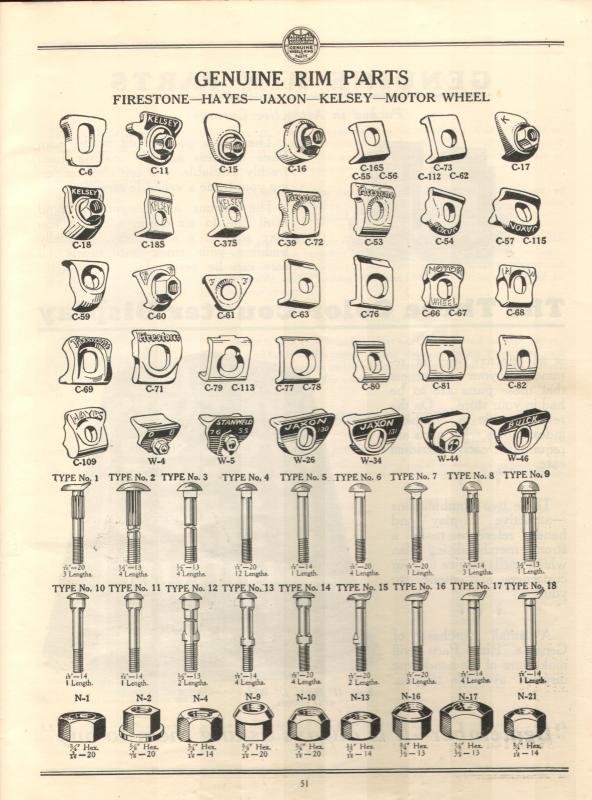

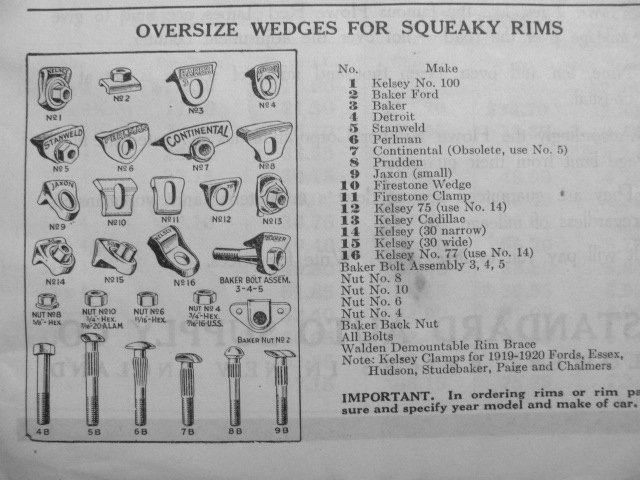

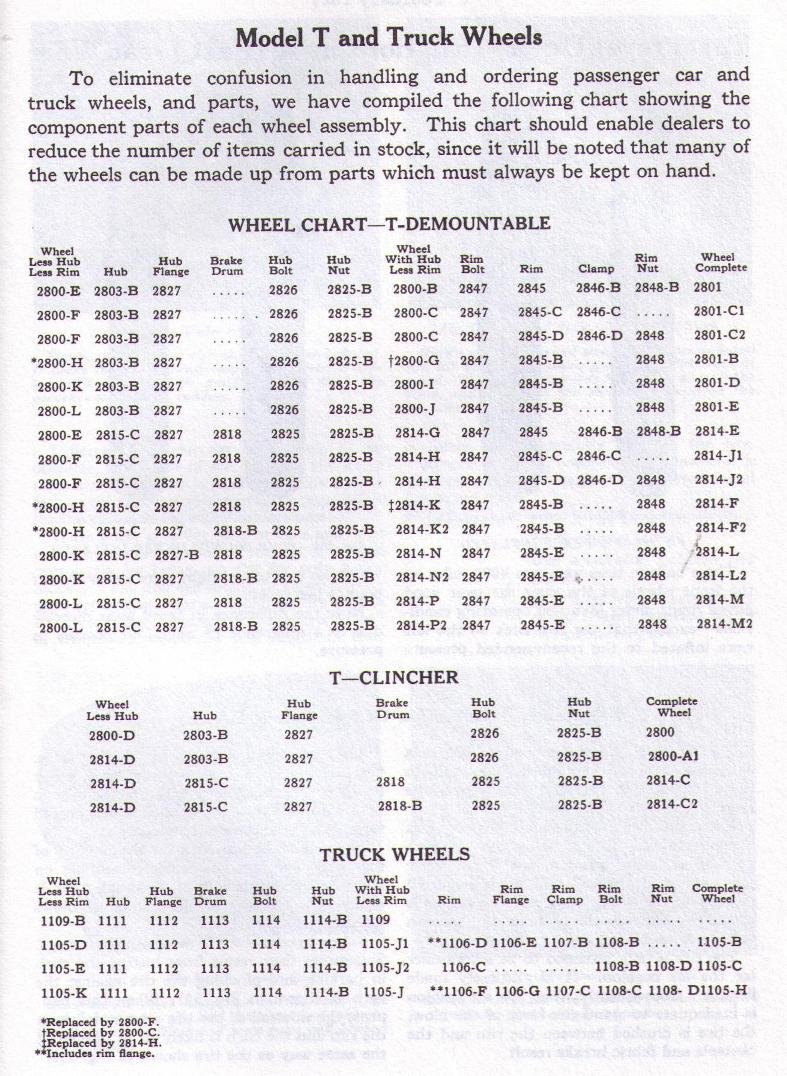

These are some charts I already have
STONE Brand Rim Clamp x-ref
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
TRDxB2
Topic author - Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
STONE Brand Rim Clamp x-ref
- Attachments
-
-
-
-
-
- E530278E-13D5-4038-81C9-E4F35FBFD55A.jpeg (83.63 KiB) Viewed 517 times
Last edited by TRDxB2 on Tue May 27, 2025 12:16 pm, edited 2 times in total.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
TRDxB2
Topic author - Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: STRONG Brand Rim Clamp x-ref

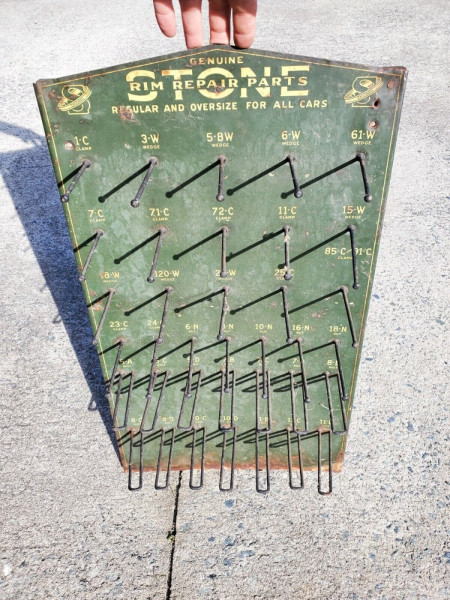

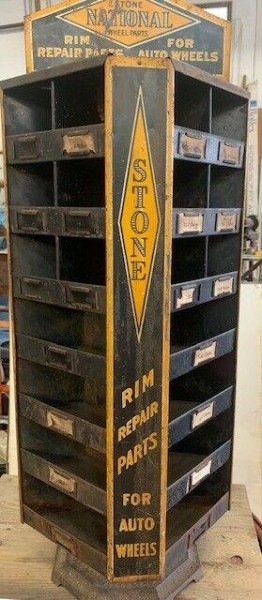

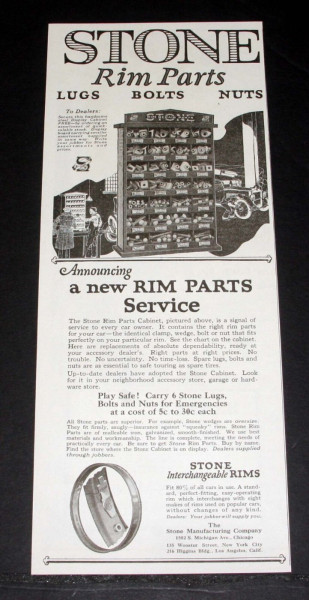

Some STONE displays
- Attachments
-
-
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
