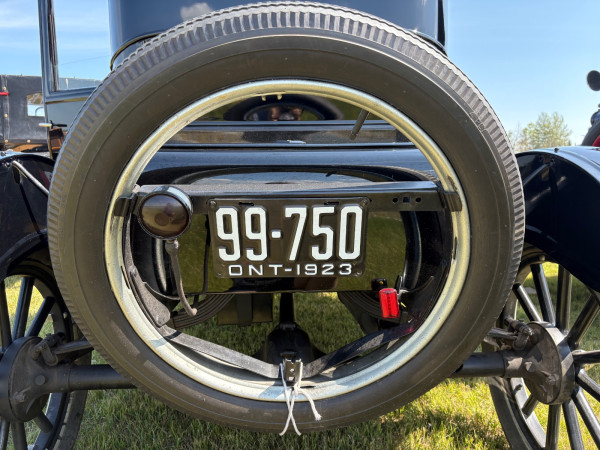

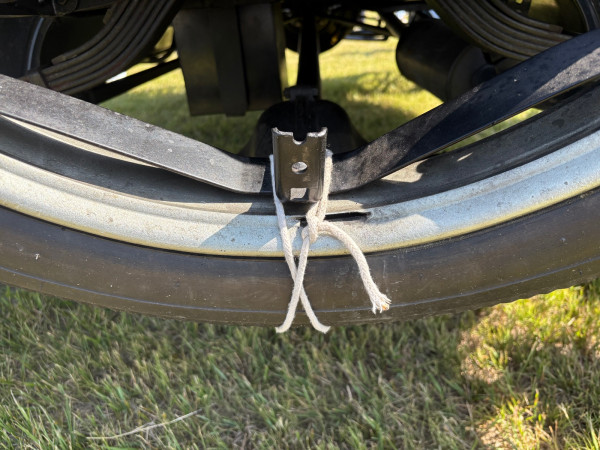

Does anyone recognize this spare tire holder? The clip on the bottom fell off and I need replace it.
Thanks,
Rod
Spare Tire Bracket
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Rod
Topic author - Posts: 86
- Joined: Sun Jan 06, 2019 3:38 pm
- First Name: Rod
- Last Name: Barrett
- * REQUIRED* Type and Year of Model Ts owned: 1909 Two Pedal Touring, 1910 Wide Track Tourabout, 1912 Towncar, 1912 Touring, 1913 Touring, 1924 Depot Hack, 1925 Front Wheel Drive Speedster
- Location: Anderson, IN
- MTFCA Life Member: YES
- Board Member Since: 2014
- Contact:
Spare Tire Bracket
- Attachments
-
-
-
speedytinc
- Posts: 4746
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Spare Tire Bracket
This is the most common factory carrier. Missing the carriage bolt stud & the locking plate.
-
Steve Jelf
- Posts: 7267
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Spare Tire Bracket
I happen to have the same carrier. One of the lugs on my Hayes rim goes at the bottom and the carriage bolt takes a lug nut to hold the rim in place. For a rim without lugs, I gather you'll need a spare lug and nut to go on the bolt.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
speedytinc
- Posts: 4746
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Spare Tire Bracket

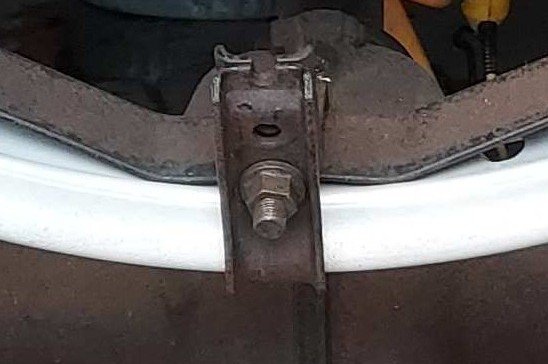

The way you have the spare mounted is not correct. The rim lug doesn't attach to the lower bracket. You are missing the clamp #2849D.Steve Jelf wrote: ↑Fri Jul 18, 2025 5:15 pmI happen to have the same carrier. One of the lugs on my Hayes rim goes at the bottom and the carriage bolt takes a lug nut to hold the rim in place. For a rim without lugs, I gather you'll need a spare lug and nut to go on the bolt.
The rim should be rotated 45 degrees. The clamp is held by a lug nut. The upper part of the clamp has a hole & slot for a padlock.
You don't need to take my word for it. Look @ factory photos.
-
John kuehn
- Posts: 4445
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Spare Tire Bracket
The parts you need are on this page from Lang’s. The bolt, clamp and nut. https://www.modeltford.com/pl.aspx?t=s& ... amp&page=1
This should give you an idea of what parts you need for your spare tire bracket.
This should give you an idea of what parts you need for your spare tire bracket.
-
Humblej
- Posts: 1961
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: Spare Tire Bracket
This is how it is on my 1924 Runabout.
- Spare.jpg (34.91 KiB) Viewed 133 times
