Which motor/wishbone springs are correct?
Should the springs be tighter like in the first picture or looser

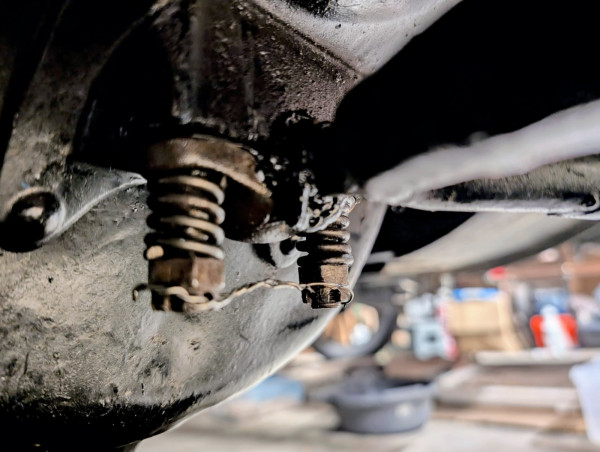

like in the second picture, or should they be tightened all the way?
Do not know why the first pic is shown twice.
like in the second picture, or should they be tightened all the way?
Do not know why the first pic is shown twice.
- Attachments
-
-
Allan
- Posts: 6922
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Which motor/wishbone springs are correct?
First pic. is OK. They are not meant to be tightened right up. No point is having a spring loaded cap if the springs are already compressed tight.
Allan from down under.
Allan from down under.
-
Shrshot
- Posts: 113
- Joined: Thu Dec 26, 2024 9:38 pm
- First Name: Kent
- Last Name: Palazzo
- * REQUIRED* Type and Year of Model Ts owned: 1926 Tudor
- Location: Algoma, WI
Re: Which motor/wishbone springs are correct?
Allen, I got a question. I understand the springs not being compressed, but why do some of the vendors sell the steel shims to put in the cap then?
-
speedytinc
- Posts: 4963
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Which motor/wishbone springs are correct?
It's a 1/2 essed way to take up the wear on the ball & socket. Those shims will pound out in time.
Note the gap between the cap & base. There must be a small gap.
The springs provide the tension to hold the wishbone ball firmly in place to stay snug without moving around loose.
Note the gap between the cap & base. There must be a small gap.
The springs provide the tension to hold the wishbone ball firmly in place to stay snug without moving around loose.
-
DanTreace
- Posts: 3953
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: '23 cutoff pickup, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Which motor/wishbone springs are correct?

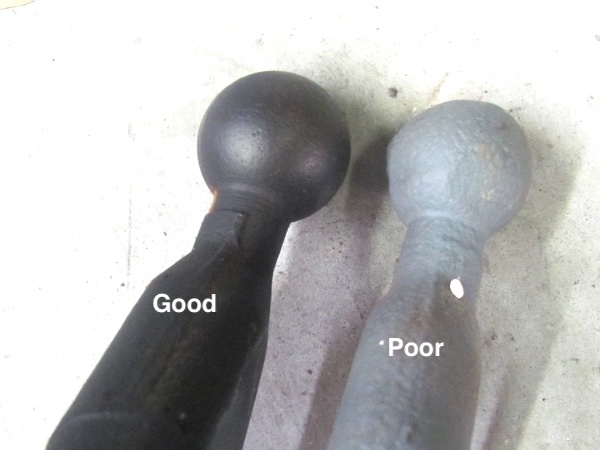

Wishbone ball when new is 1 1/4" spherical ball. They wear, so shims are sold to help, but don't work on an oblong ball.
Best is a nice round ball, and a new cap. Then the springs on the cap (grease the ball and cap) can assist holding the wishbone snugly, but with the slight rotation needed for the Ford 3 point suspension of the front end.
Better than shims is an accessory spring loaded ball cap, that can give good results.
Best is a nice round ball, and a new cap. Then the springs on the cap (grease the ball and cap) can assist holding the wishbone snugly, but with the slight rotation needed for the Ford 3 point suspension of the front end.
Better than shims is an accessory spring loaded ball cap, that can give good results.
- 1.250 dia ball wishbone.jpg (68 KiB) Viewed 161 times

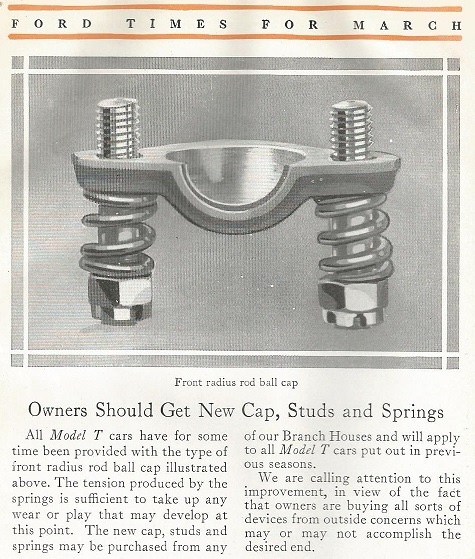

- 553655.jpg (152.11 KiB) Viewed 161 times

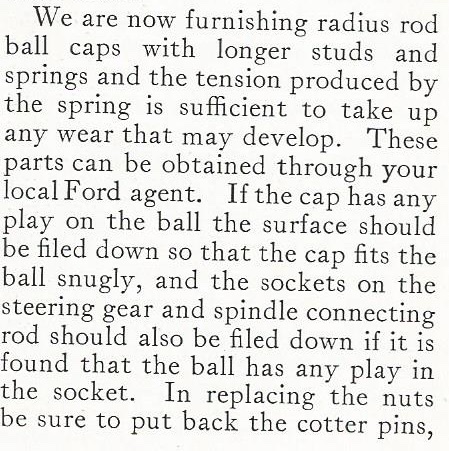

- 553653.jpg (121.71 KiB) Viewed 161 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Jerry VanOoteghem
- Posts: 4239
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: Which motor/wishbone springs are correct?
I usually assemble with the springs nearly fully compressed. The thought being, that if the wishbone gets yanked forward, the springs will not be able to further compress enough to allow the ball to come out of the socket. You only need to see that happen once in order to guard against it.
-
big2bird
- Posts: 632
- Joined: Mon Sep 14, 2020 10:57 pm
- First Name: Jeffrey
- Last Name: Hausey
- * REQUIRED* Type and Year of Model Ts owned: Early 23 Touring
- Location: Anaheim, Ca.
- Board Member Since: 2020
Re: Which motor/wishbone springs are correct?
Agreed.Jerry VanOoteghem wrote: ↑Tue Oct 21, 2025 5:10 pmI usually assemble with the springs nearly fully compressed. The thought being, that if the wishbone gets yanked forward, the springs will not be able to further compress enough to allow the ball to come out of the socket. You only need to see that happen once in order to guard against it.
Also that bulletin reminds you to use cotter pins. Don't. Safety wire there. Tie both together.
