Fitting beaded edge tyres.

Post by Allan » Tue Jul 09, 2019 7:59 am

A recent post about problems with clincher tyres on wire wheels had me wishing I had taken photos of a recent fitting I had to do. Well, I found some on my phone.

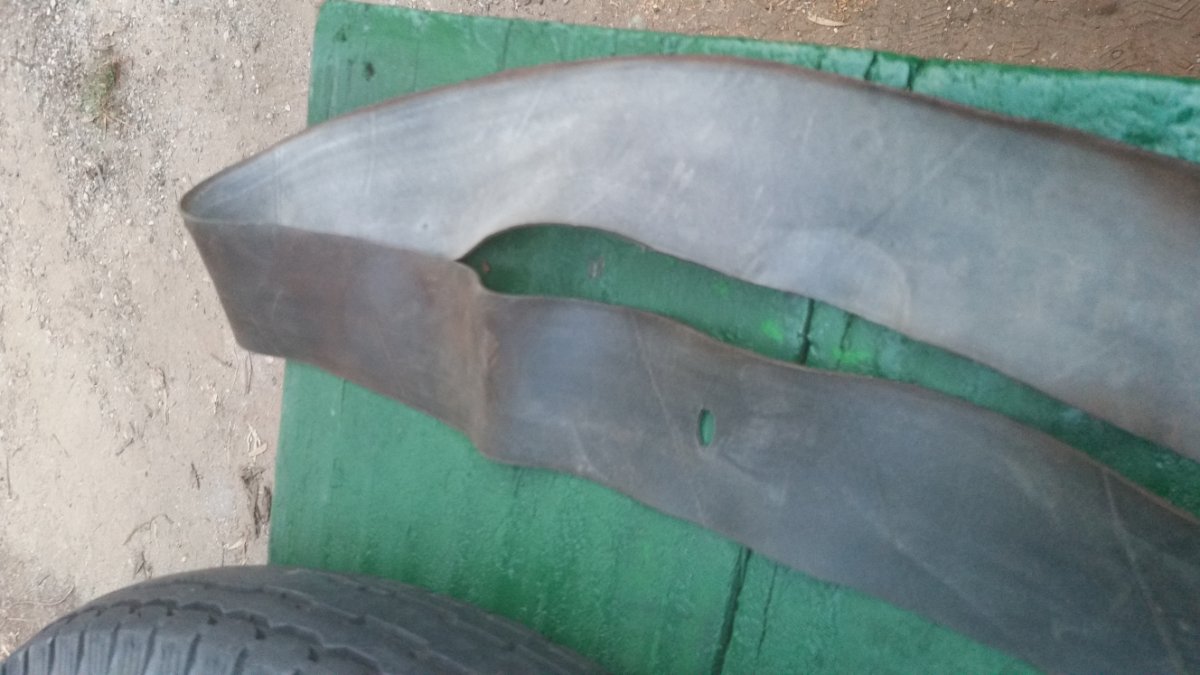

This is a rim liner cut from a 13" inner tube.

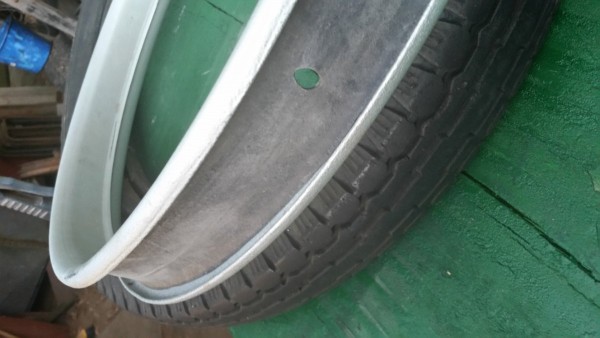

Here the liner is fitted to the rim. Note that it will be captured by the tyre beads, perhaps making them a firmer fit in the rim.

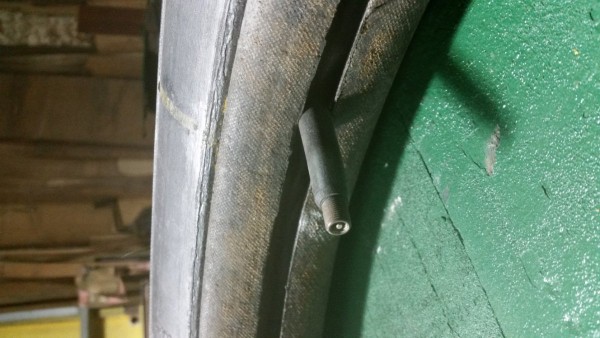

Here the tube is fitted in the tyre. Note there is no need to notch the beads, even on these wide beads on old Olympic tyres.

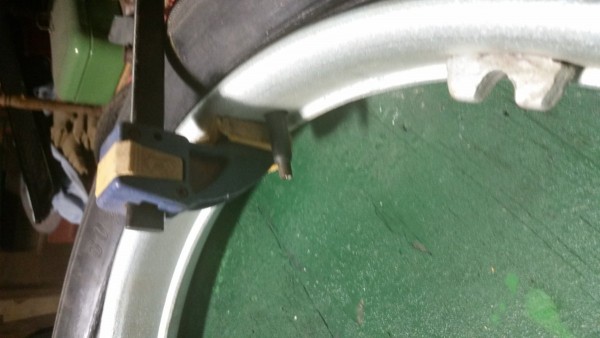

I clamp both beads and the valve stem in place and lever both sides of the tyre on at the same time.


Right at the end, just one bead may have to be levered on to complete the job.
There is no need to notch the beads if the tyres are fitted in this manner.

Others do it differently.
Allan from down under.
Attachments

User avatar

John Warren
Posts: 652
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Fitting beaded edge tyres.

Post by John Warren » Tue Jul 09, 2019 8:12 am

I like it, thanks
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P


Dallas Landers
Posts: 1744
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: Fitting beaded edge tyres.

Post by Dallas Landers » Tue Jul 09, 2019 8:16 am

Thats how I do it Allan. The clamp is a great idea tho. Thanks


Humblej
Posts: 469
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Fitting beaded edge tyres.

Post by Humblej » Tue Jul 09, 2019 12:34 pm

Liner does not go between the tire bead and the rim, it gets tucked between the tube and tire.

User avatar

RajoRacer
Posts: 1461
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Fitting beaded edge tyres.

Post by RajoRacer » Tue Jul 09, 2019 12:51 pm

Flaps go into the tire - liners go onto the rim.


Humblej
Posts: 469
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Fitting beaded edge tyres.

Post by Humblej » Tue Jul 09, 2019 4:17 pm

Ok, sorry, wrong words being thrown around here. The FLAPS go between the tire and tube. A rim LINER goes between the tube and rim, but is narrow enough to not go under the tire bead. Rim liners are often soft rubber band like and easy to stretch. Tire flaps are often heavy, not much stretch and have tapered edges. Rim liners are typically used on drop center wire spoke wheels. Flaps are great to keep the tube from being pinched during installation on clincher and split rims. Many use them, many do not, and some make thier own from old inner tubes and use them as oversized rim liners...to each his own.


D Stroud
Posts: 888
Joined: Sun Jan 06, 2019 10:45 am
First Name: David
Last Name: Stroud
Location: Mound City, MO 64470
Board Member Since: 2011

Re: Fitting beaded edge tyres.

Post by D Stroud » Tue Jul 09, 2019 4:25 pm

Jeff, read Allan's first post. He cut the rim LINER from a 13" inner tube. It's NOT a flap. Dave
1925 mostly original coupe.
