Outside oil line

Post by Cambin » Tue Jul 09, 2019 6:29 am

Outside oil line
Last edited by Cambin on Tue Jul 09, 2019 6:36 am, edited 1 time in total.

User avatar

Topic author
Cambin
Posts: 43
Joined: Sun Jan 13, 2019 12:36 pm
First Name: Cameron
Last Name: Smythe
Location: Warragul Victoria AU

Re: Outside oil line

Post by Cambin » Tue Jul 09, 2019 6:35 am

I was just finishing putting the last few bits back on my new engine when I discovered that the outside oil line was dodgy so I looked at my other engines oiler and copied it

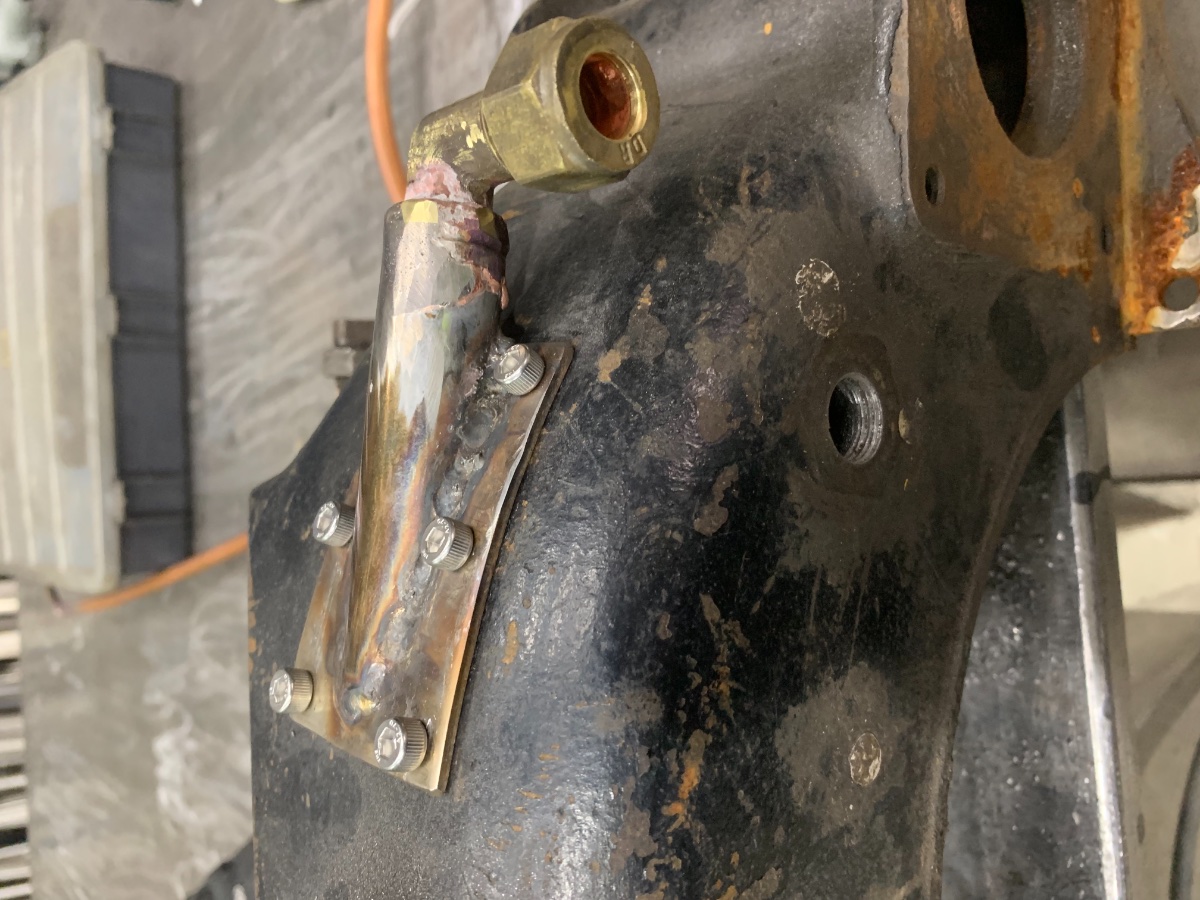

It is a 1/2” copper fitting a bit of pipe and a plate
And this is how it came out
Attachments


Jim Eubanks
Posts: 56
Joined: Mon Jan 07, 2019 6:04 pm
First Name: Jim
Last Name: Eubanks
Location: Powell, TN
MTFCA Number: 49847
MTFCI Number: 8340

Re: Outside oil line

Post by Jim Eubanks » Tue Jul 09, 2019 7:54 am

Even if this is what appears to be a right hand drive Starter, rotation is the other way so it would appear your pick up is backwards?

User avatar

John Warren
Posts: 544
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Outside oil line

Post by John Warren » Tue Jul 09, 2019 8:11 am

Cameron, Nice job I am sure it w ill work great.
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P

User avatar

Topic author
Cambin
Posts: 43
Joined: Sun Jan 13, 2019 12:36 pm
First Name: Cameron
Last Name: Smythe
Location: Warragul Victoria AU

Re: Outside oil line

Post by Cambin » Tue Jul 09, 2019 8:26 am

Take time to think about that john if I crank an engine clock wize and if you look at the hogshead right the out let of my oil line is end close wize I think it’s the correct way
Cam

User avatar

Topic author
Cambin
Posts: 43
Joined: Sun Jan 13, 2019 12:36 pm
First Name: Cameron
Last Name: Smythe
Location: Warragul Victoria AU

Re: Outside oil line

Post by Cambin » Tue Jul 09, 2019 8:26 am

Sorry jim


Dennis_Brown
Posts: 58
Joined: Wed Jan 09, 2019 10:14 pm
First Name: Dennis
Last Name: Brown
Location: Spring Hill Fl
MTFCA Number: 21458

Re: Outside oil line

Post by Dennis_Brown » Tue Jul 09, 2019 9:58 pm

Looks correct, the starter hangs on the left from the drivers seat and rotation throws oil over the top toward the top of starter and the picture shows the starter mount holes for the left forward Side .

Post Reply Previous topicNext topic
