Howdy. New to me ‘25 touring (motor 12,3xx,xxx) from Texas.

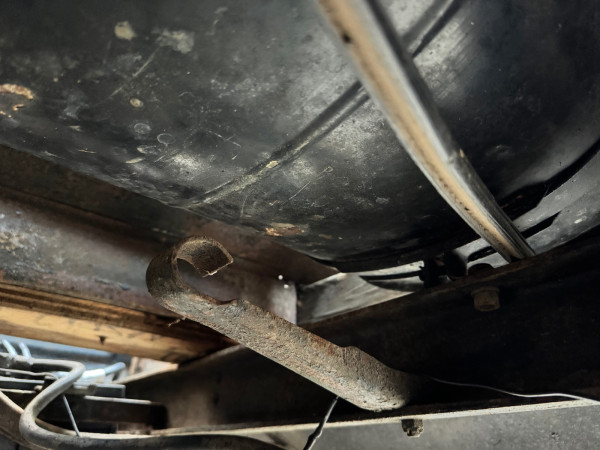

Crawlin around underneath trying to knock 100 years of grease and grime I came across the attached bracket riveted to the drivers side frame underneath the gas tank, pretty sturdy, with a C cup hook on the end of about an inch in diameter. Too small for drivetrain or exhaust, too big for e-brake or lines.
Anyone know what it’s for? Hang groceries under the car? Carrier for javelins? It’s got a lot of accessories such as hassler shocks, electric windshield wiper, oil pan wings and a fan belt tensioner, so someone was really into modifications some time in its history.
Just curious.
Uplifting support but for what?
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Wrice123
Topic author - Posts: 3
- Joined: Sat Mar 29, 2025 11:52 pm
- First Name: William
- Last Name: Rice
- * REQUIRED* Type and Year of Model Ts owned: ‘20 touring pickup conversion, ‘25 touring
- Location: Houston TX
- MTFCA Life Member: YES
- Contact:
Uplifting support but for what?
- Attachments
-
-
Marshall V. Daut
- Posts: 224
- Joined: Wed Jan 16, 2019 2:57 pm
- First Name: Marshall
- Last Name: Daut
- * REQUIRED* Type and Year of Model Ts owned: 1924 Coupe
- Location: Davenport, Iowa
Re: Uplifting support but for what?
Battery cable guide/support from the battery to the starter switch.
Marshall
Marshall
-
TXGOAT2
- Posts: 8293
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Uplifting support but for what?
Starter cable support?
-
Marshall V. Daut
- Posts: 224
- Joined: Wed Jan 16, 2019 2:57 pm
- First Name: Marshall
- Last Name: Daut
- * REQUIRED* Type and Year of Model Ts owned: 1924 Coupe
- Location: Davenport, Iowa
Re: Uplifting support but for what?
This is the grommet you need to surround the battery cable inside that bracket: https://www.snydersantiqueauto.com/prod ... &cat=41825
The cable should be #00 gauge, NOT a skinny 12 volt cable from your local auto parts store. Buy the correct thickness and length cable from a Model T parts supplier or else your starter's operation will be affected.
Marshall
The cable should be #00 gauge, NOT a skinny 12 volt cable from your local auto parts store. Buy the correct thickness and length cable from a Model T parts supplier or else your starter's operation will be affected.
Marshall
