Identifying a K R Wilson fixture
Check this out. Seems like they're made for reaming out triple gear bushings. But just doesn't make sense. Anyone know what they're designed for? Found 'em on eBay, pretty cheap. I already had the Wilson reamer, which I tested, and iit fits inside the fixture bores.
-
Mike Silbert
- Posts: 366
- Joined: Sat Feb 08, 2020 11:30 pm
- First Name: Mike
- Last Name: Silbert
- Location: Sykesville Md
- MTFCA Life Member: YES
Re: Identifying a K R Wilson fixture
It kinda looks like the ones pictured here made by several manufacturers
https://www.mtfca.com/discus/messages/1 ... 1325030711
https://www.mtfca.com/discus/messages/1 ... 1306256827
https://www.mtfca.com/discus/messages/2 ... 1185115781
Service tools were also evolving just like the cars.
Mike
https://www.mtfca.com/discus/messages/1 ... 1325030711
https://www.mtfca.com/discus/messages/1 ... 1306256827
https://www.mtfca.com/discus/messages/2 ... 1185115781
Service tools were also evolving just like the cars.
Mike
-
RGould1910
Topic author - Posts: 1242
- Joined: Tue Jan 22, 2019 8:16 am
- First Name: Richard
- Last Name: Gould
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1912 roadster , 1927 roadster
- Location: Folsom, CA
Re: Identifying a K R Wilson fixture

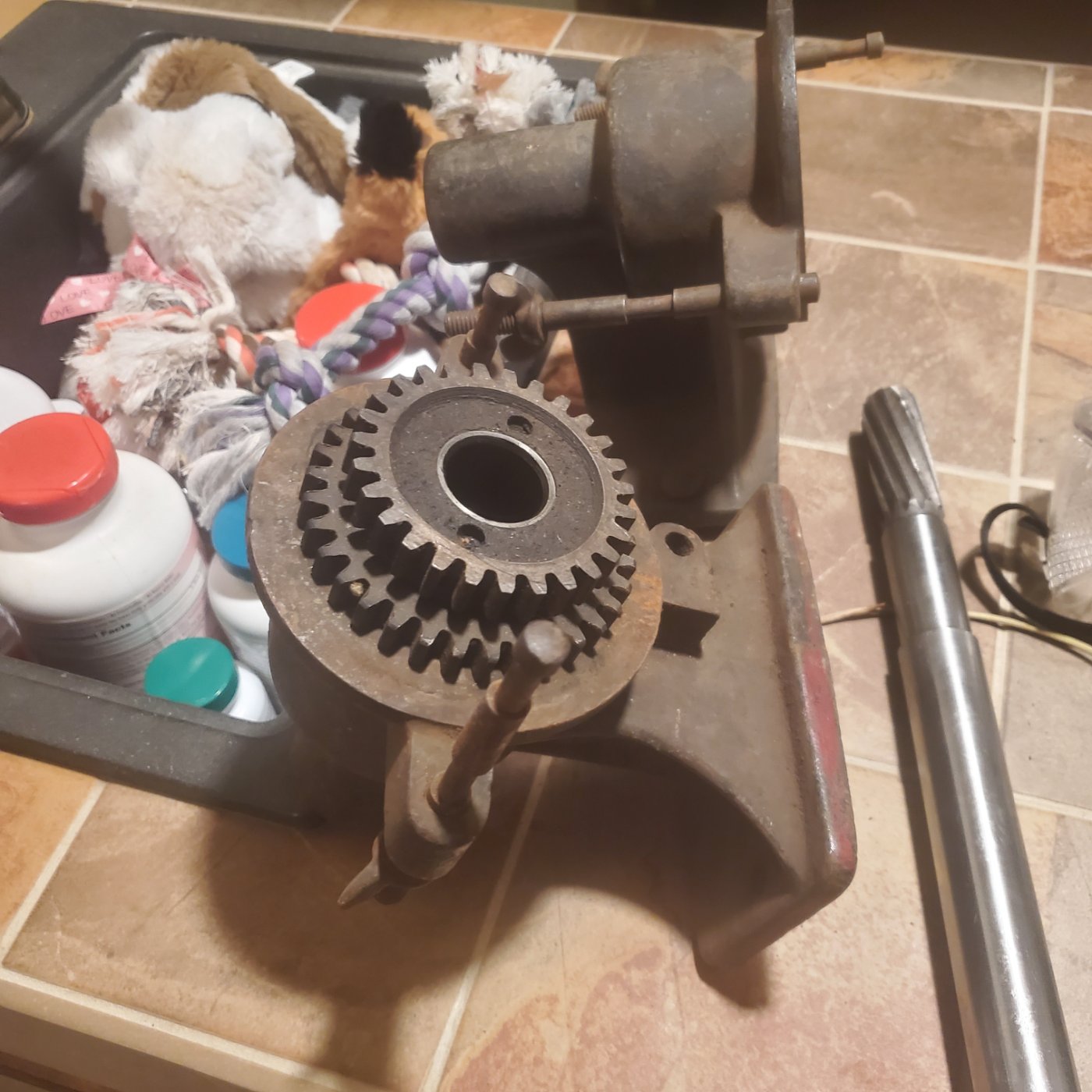

It could have been the forerunner of the KR Wilson transmission jig that's commonly seen. KR Wilson is both embossed on the fixture and there is a red label as well. One side of the triple gear fits in the hole with about 10 thou clearance. The hole is recessed about 2".
I'll change clamps and make a retaining plate. Should work fine. As with thre more common variety, the exact placement of the gear in the fixture will be determined by the taper in the reamer.
Thanks to Adam who alerted me to these pieces on eBay.
I'll change clamps and make a retaining plate. Should work fine. As with thre more common variety, the exact placement of the gear in the fixture will be determined by the taper in the reamer.
Thanks to Adam who alerted me to these pieces on eBay.
-
Mark Gregush
- Posts: 5562
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Identifying a K R Wilson fixture
What is the casting number? I am thinking the red paint is later then the Model T. They could be something for later in the Model A/V8 era. Don't know but the number would help.
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
RGould1910
Topic author - Posts: 1242
- Joined: Tue Jan 22, 2019 8:16 am
- First Name: Richard
- Last Name: Gould
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1912 roadster , 1927 roadster
- Location: Folsom, CA
Re: Identifying a K R Wilson fixture
No casting number I can find. Just KR Wilson
Buffalo, NY embossed and the red stamp.
Buffalo, NY embossed and the red stamp.
