When there is smoke there must be fire.

Post by AndreFordT » Sun Jul 14, 2019 2:41 am

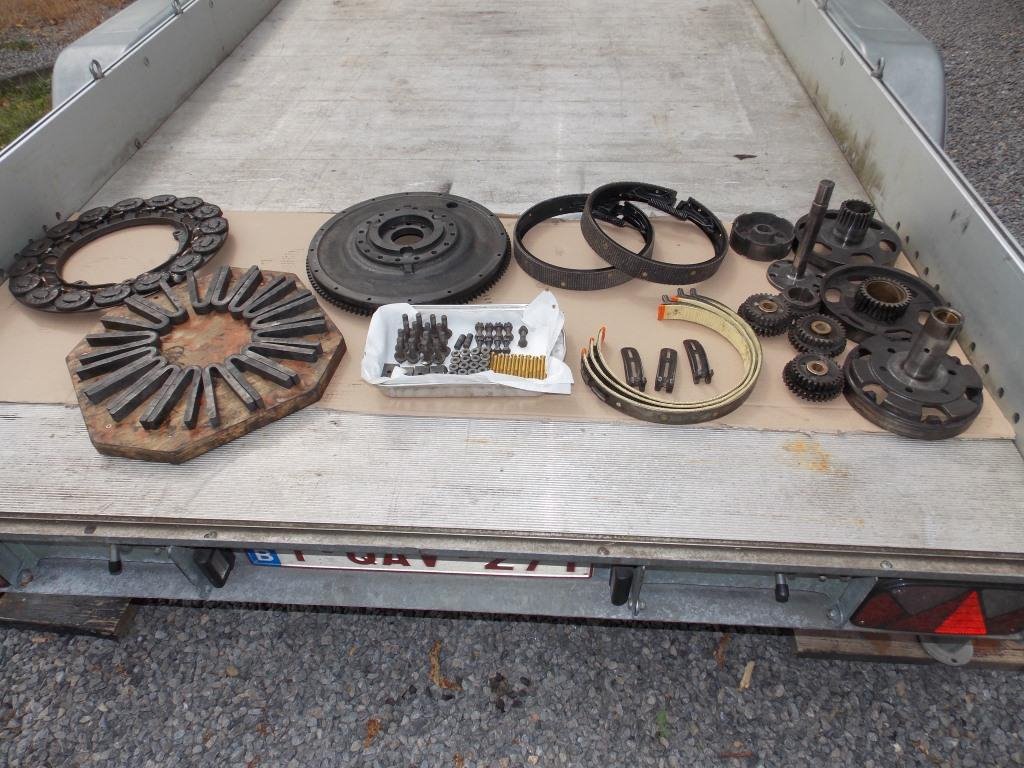

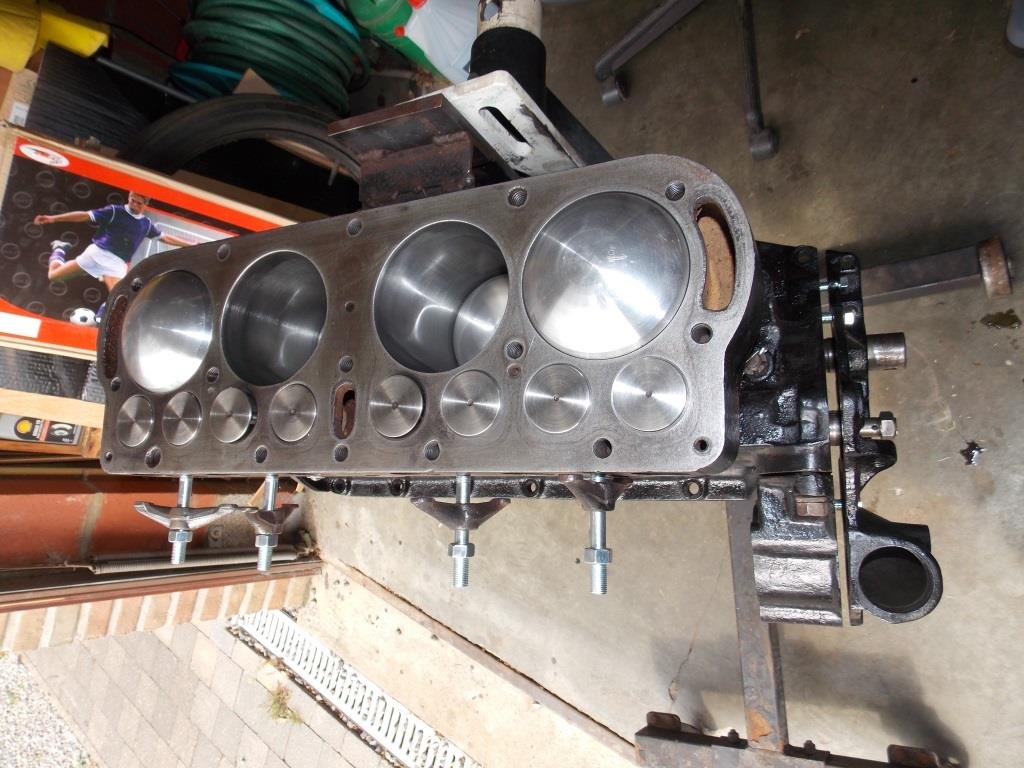

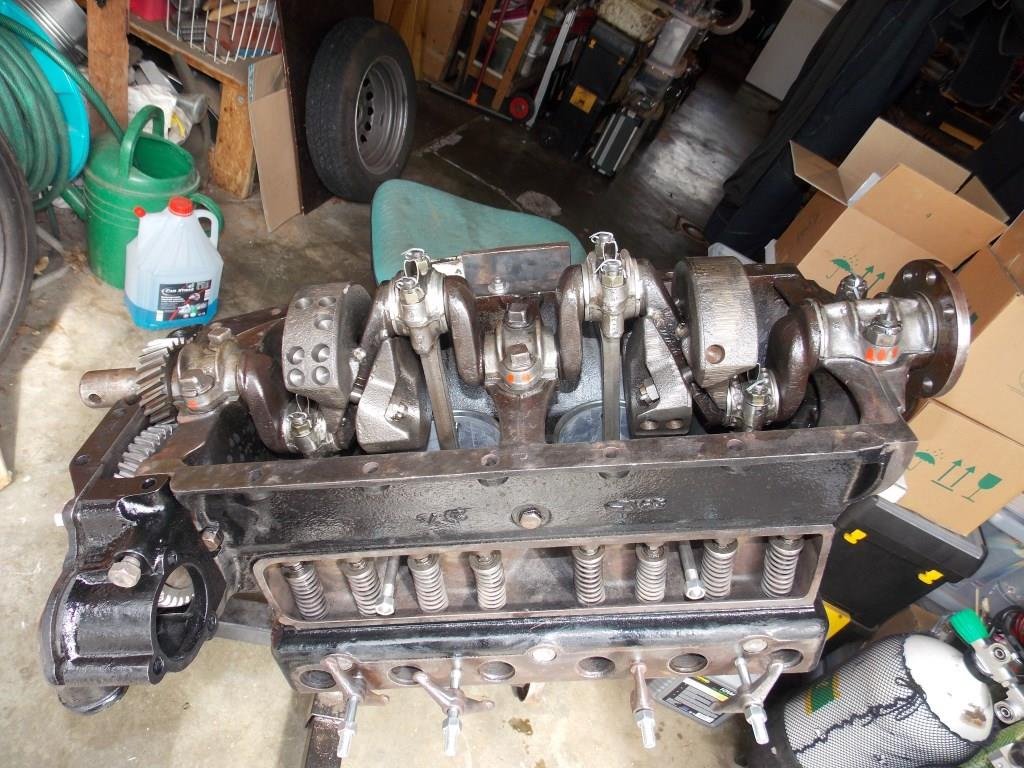

During the rebuild of en engine last Saturday I was recharging the magnets by using the coil loop that came with the engine and was looking good.

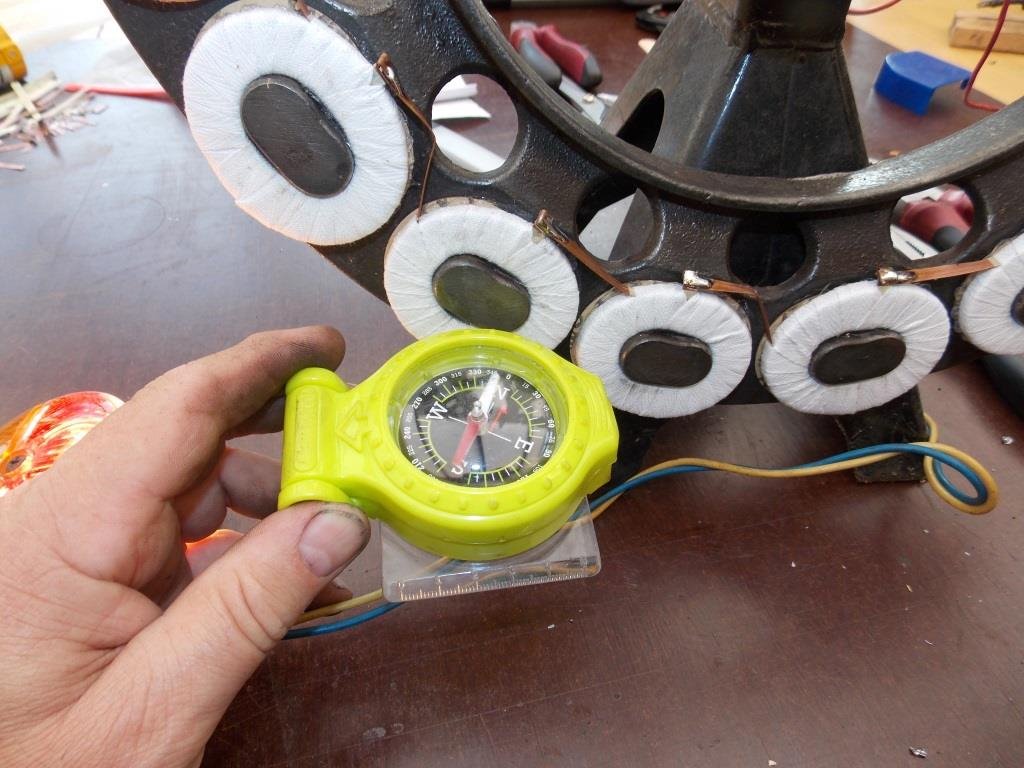

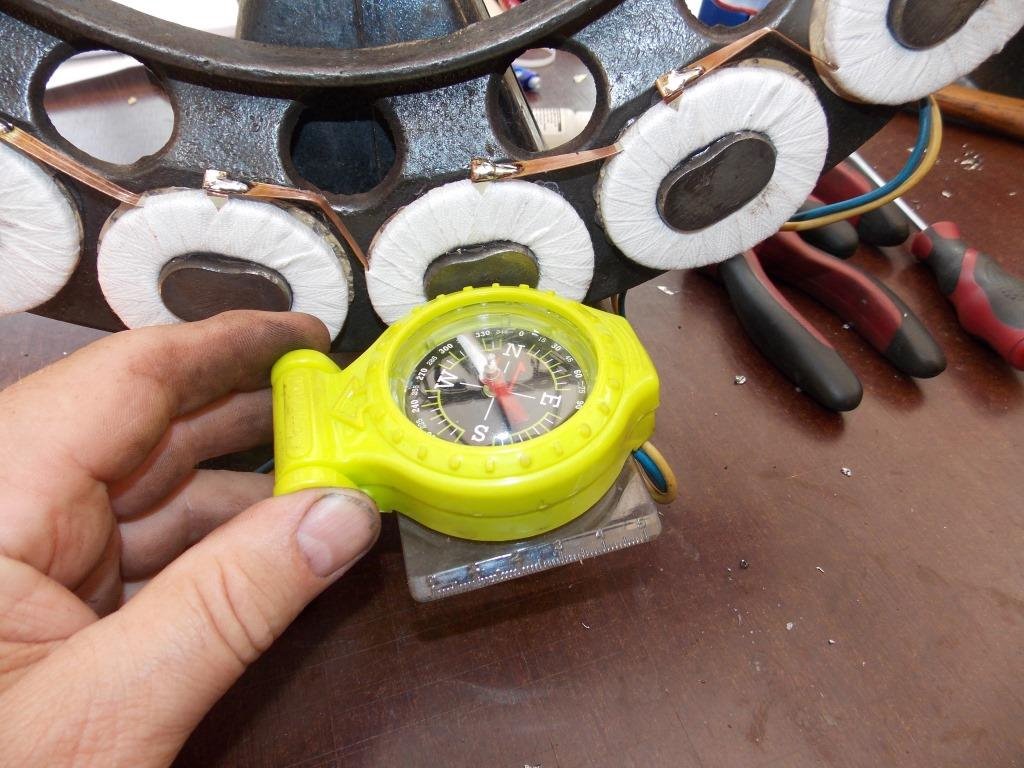

Before I tested the coil ring by building it in serie with a 12V 21W light and a 12 battery and checking the change of polarity on each coil. No problem there.

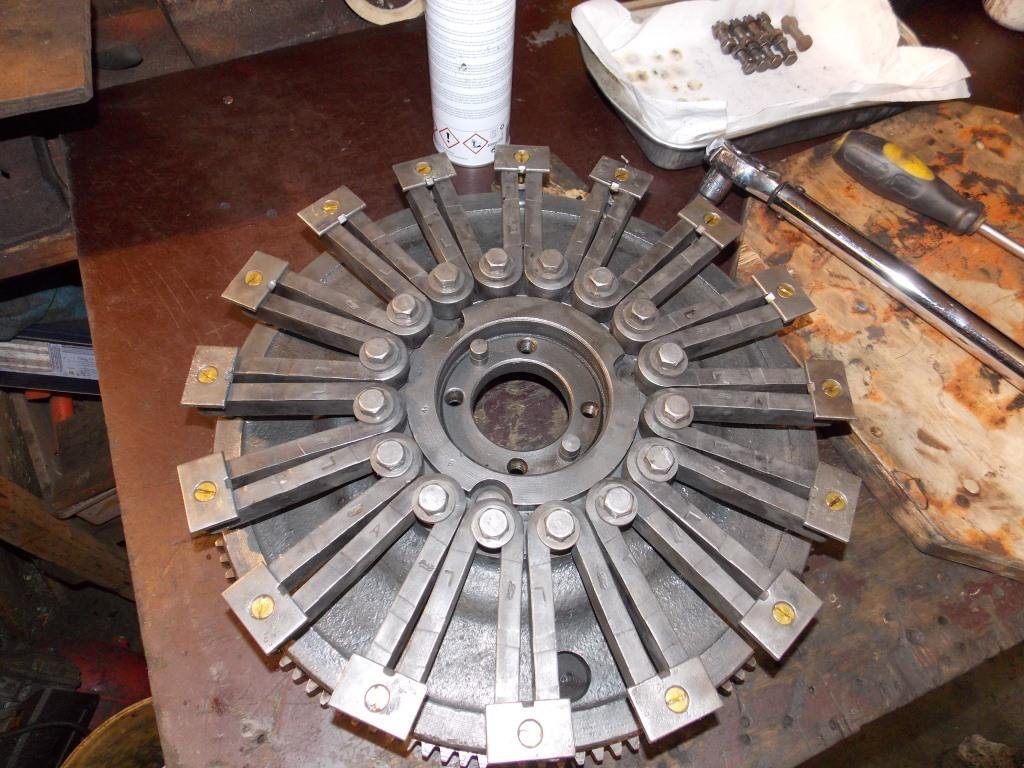

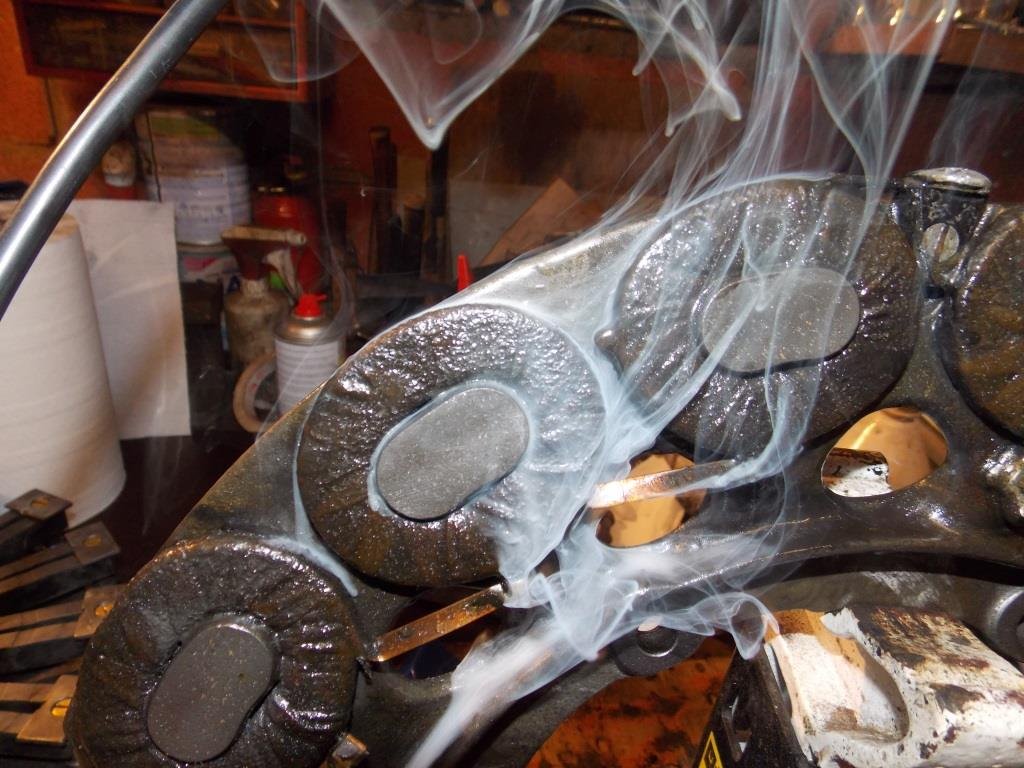

For recharging the magnets, I use three 12V battery's in serie and flash the coil ring a few times. During this there was some smoke coming out of one coil.
Result: magneto coil ring need a rebuild!!!!

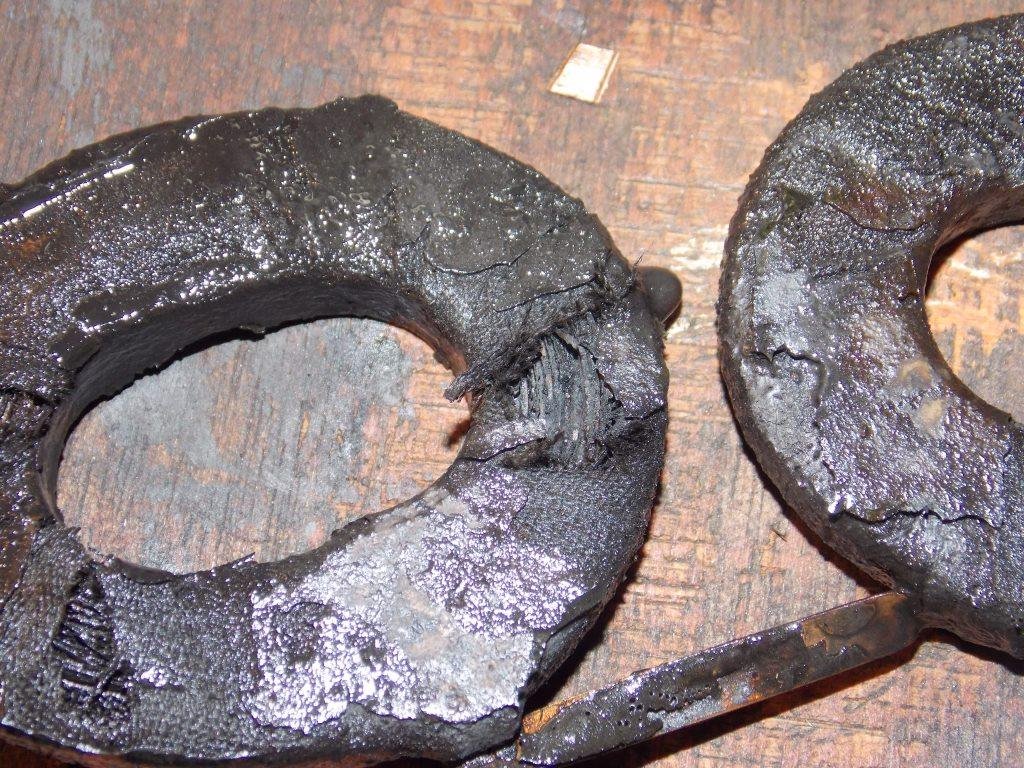

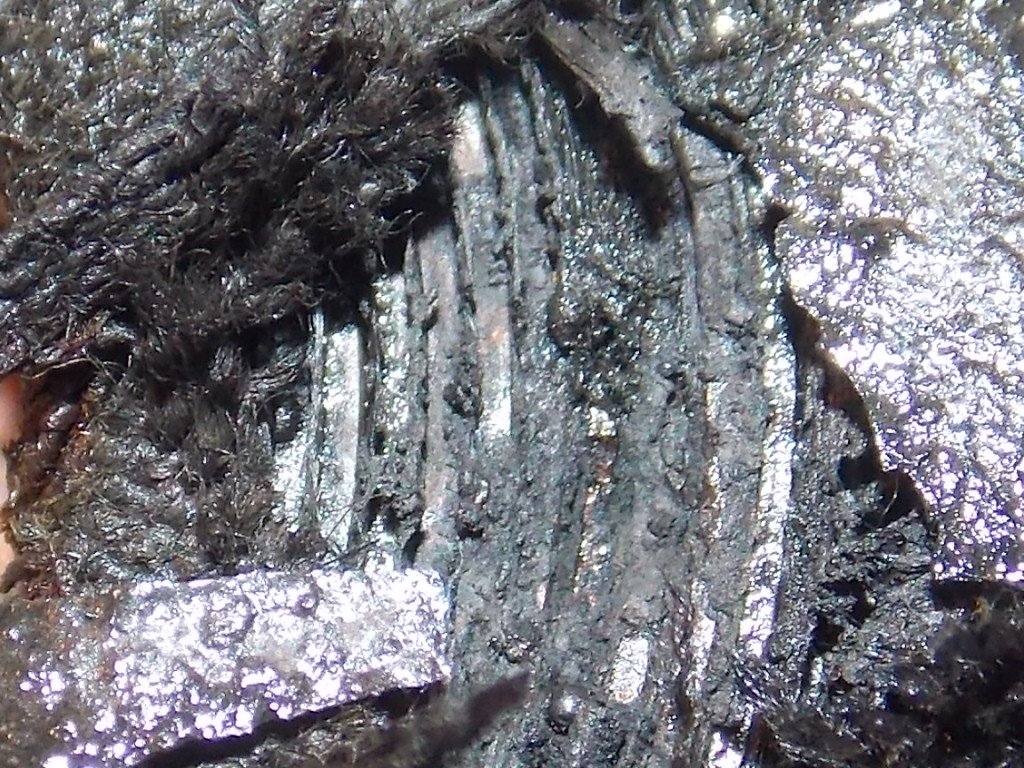

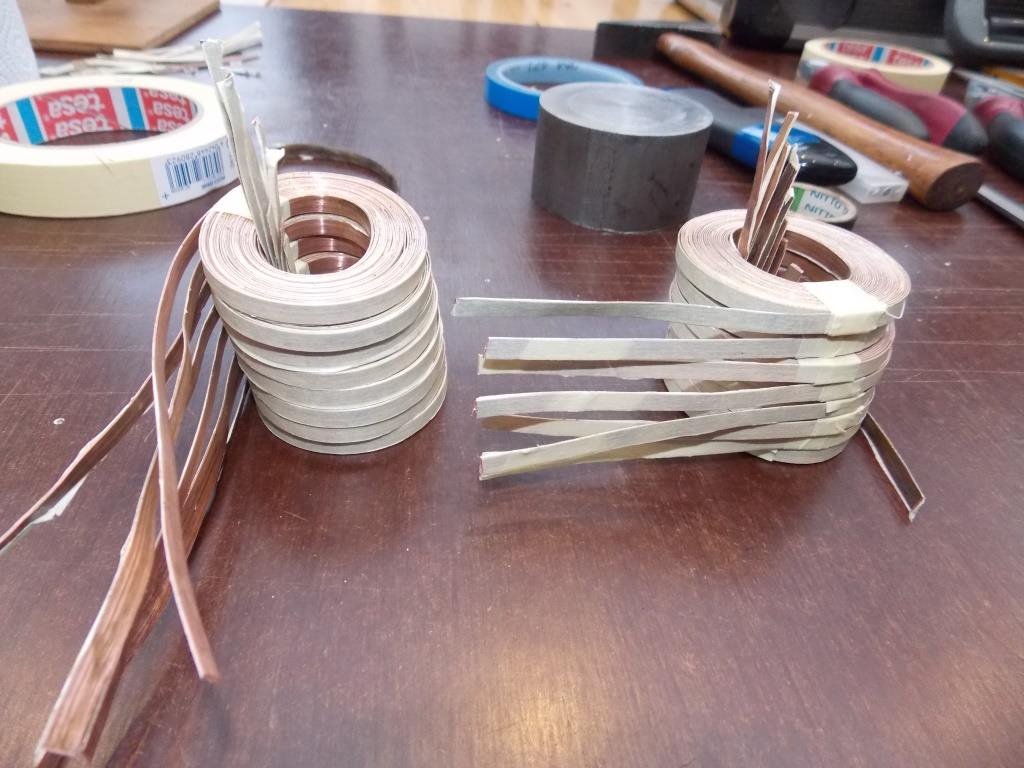

First I was thinking to replace only this coil but I found there was no insulation between the coil and the cotton warp. All the loop will come apart and will be rebuild.

Andre
Belgium

Had a sort like problem awhile ago but than there was some fire too.
Attachments

User avatar

Topic author
AndreFordT
Posts: 279
Joined: Sun Jan 06, 2019 12:25 pm
First Name: Andre
Last Name: Valkenaers
Location: Scherpenheuvel
MTFCA Number: 23792
MTFCI Number: 19330

Re: When there is smoke there must be fire.

Post by AndreFordT » Sun Jul 14, 2019 2:43 am

some more photos
Attachments


Dallas Landers
Posts: 1964
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: When there is smoke there must be fire.

Post by Dallas Landers » Sun Jul 14, 2019 9:08 am

Dont forget to get a bottle of this for the rebuild. It is for the wiring harness but should work on the mag also. Same part number.. :D

User avatar

Topic author
AndreFordT
Posts: 279
Joined: Sun Jan 06, 2019 12:25 pm
First Name: Andre
Last Name: Valkenaers
Location: Scherpenheuvel
MTFCA Number: 23792
MTFCI Number: 19330

Re: When there is smoke there must be fire.

Post by AndreFordT » Sun Jul 14, 2019 9:50 am

I forgot to collect the smoke so I will need your bottle. I am also looking for a can of elbow grease and skin varnish.

Have a fine Sunday. I will be rebuilding a coil loop

Andre
Belgium

User avatar

Jem
Posts: 151
Joined: Sun Jan 06, 2019 5:37 pm
First Name: Jem
Last Name: Bowkett
Location: Spalding United Kingdom
Board Member Since: 1999

Re: When there is smoke there must be fire.

Post by Jem » Sun Jul 14, 2019 5:15 pm

Dallas, you faked that bottle! I recognise it, it's a Jaguar part.


Rich Bingham
Posts: 1402
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: When there is smoke there must be fire.

Post by Rich Bingham » Sun Jul 14, 2019 5:53 pm

Jem, you nailed it ! Thing is, the Jag item is compatible with all Lucas systems. :lol:
"Get a horse !"


Dallas Landers
Posts: 1964
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: When there is smoke there must be fire.

Post by Dallas Landers » Sun Jul 14, 2019 6:11 pm

Whooda thunk it? A T and Jag part interchangable. :shock:

User avatar

John Warren
Posts: 826
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: When there is smoke there must be fire.

Post by John Warren » Mon Jul 15, 2019 8:49 am

Lucas. Prince of darkness 😂. And that is no joke.
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P

User avatar

Topic author
AndreFordT
Posts: 279
Joined: Sun Jan 06, 2019 12:25 pm
First Name: Andre
Last Name: Valkenaers
Location: Scherpenheuvel
MTFCA Number: 23792
MTFCI Number: 19330

Re: When there is smoke there must be fire.

Post by AndreFordT » Mon Jul 15, 2019 2:01 pm

Guys, guys,

I am only going for the real stuff, no replacements only New Old Stock .
No Jaguar smoke but Model T smoke!
No monkey elbow grease but the real stuff!
No pig skin varnish but authentic skin varnish!


By the way the coil loop is nearly done.
:P :P :P :P
Andre
Belgium
:lol: :lol: :lol: :lol:

User avatar

Topic author
AndreFordT
Posts: 279
Joined: Sun Jan 06, 2019 12:25 pm
First Name: Andre
Last Name: Valkenaers
Location: Scherpenheuvel
MTFCA Number: 23792
MTFCI Number: 19330

Re: When there is smoke there must be fire.

Post by AndreFordT » Tue Jul 16, 2019 3:04 pm

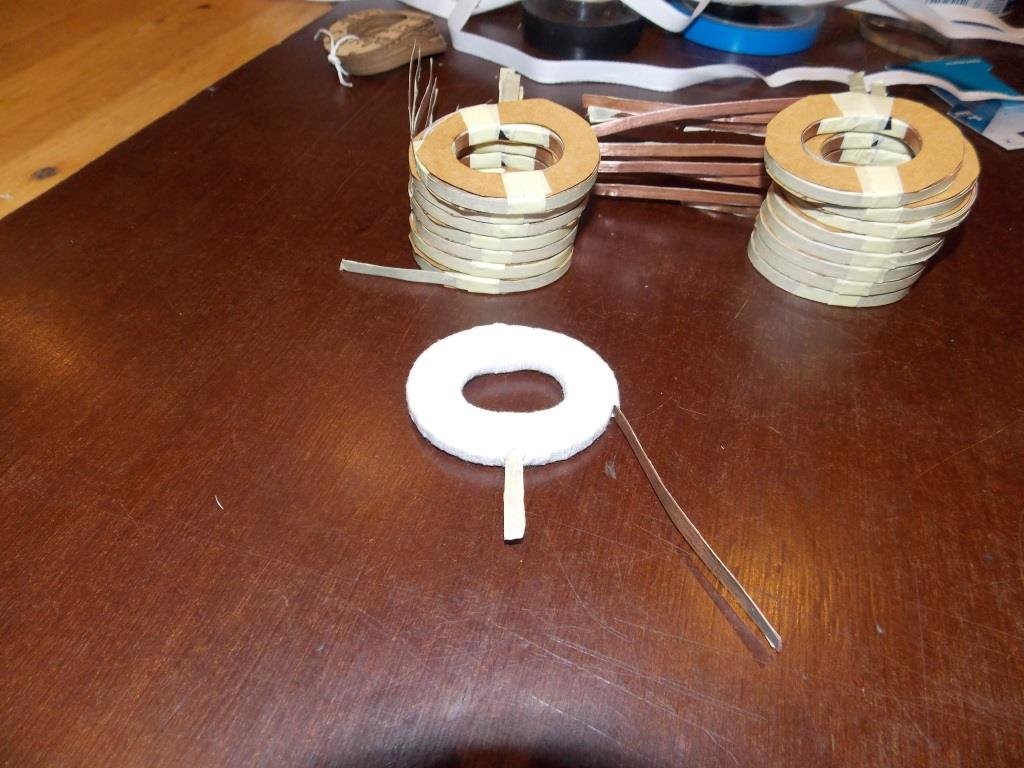

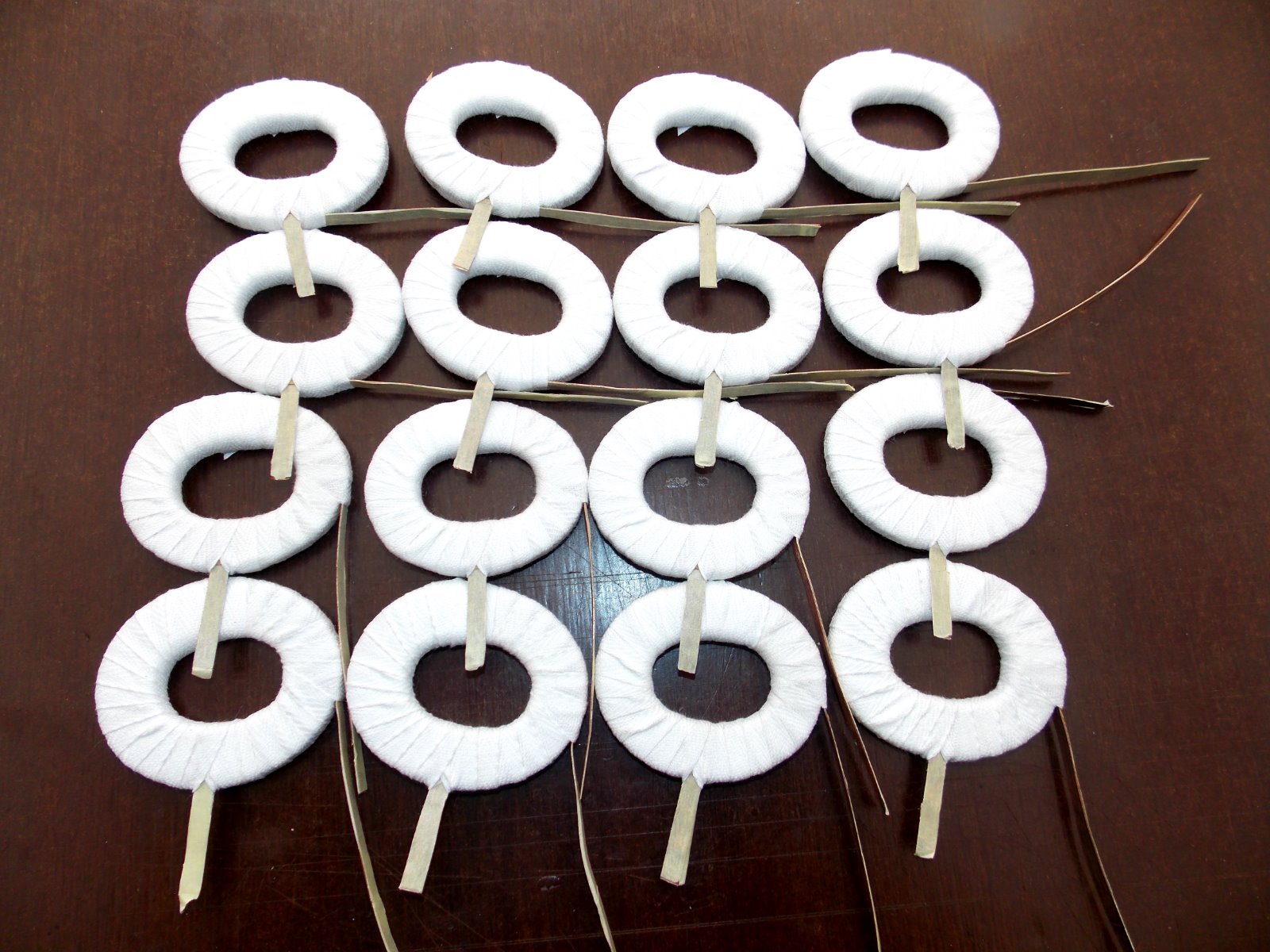

Missing two layers of polyester and one layer of isolation varnish to go and the fire is out.

Andre
Belgium
Attachments

User avatar

Topic author
AndreFordT
Posts: 279
Joined: Sun Jan 06, 2019 12:25 pm
First Name: Andre
Last Name: Valkenaers
Location: Scherpenheuvel
MTFCA Number: 23792
MTFCI Number: 19330

Re: When there is smoke there must be fire.

Post by AndreFordT » Tue Jul 16, 2019 3:04 pm

Andre
Belgium
Attachments


Dallas Landers
Posts: 1964
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: When there is smoke there must be fire.

Post by Dallas Landers » Tue Jul 16, 2019 3:37 pm

Nice work!!!
Looks as if the smoke will be contained nicely.
