APCO Radius Rod Accessory

Post by RustyFords » Wed Jul 24, 2019 10:24 am

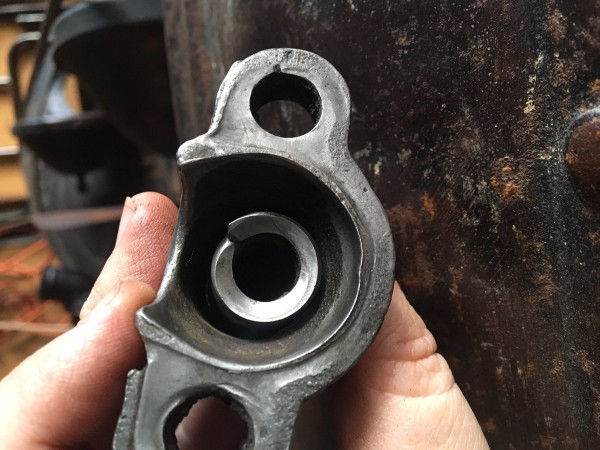

My parts chassis came with this APCO radius rod thingamabob. I'm assuming it's a vintage one because the chassis was last a real car that was being used sometime back in the late 50's or early 60's.

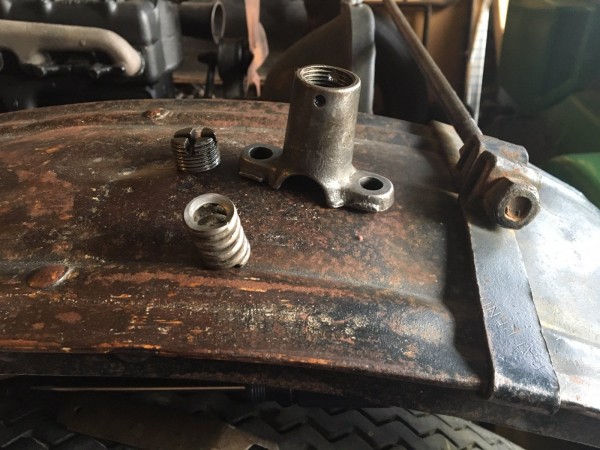

It was really crusty and seized up but I managed to free up all the bits after soaking it for a few weeks in penetrating oil. After that, it cleaned up nicely. It appears to be missing the little cup that goes between the spring and the radius rod ball.

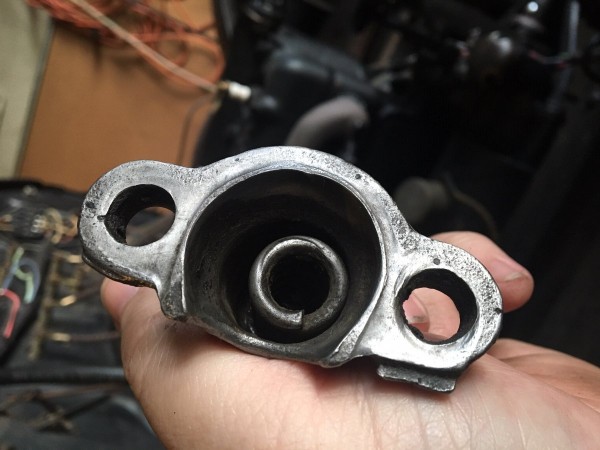

Also...a question: The spring seems to be really small compared to the inner diameter of the main body. Is that correct?

If anyone has a spare cup laying around, I'd love to "press" it into service (pun intended). ;)
Attachments
1924 Touring
Top
User avatar

George House
Posts: 2814
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
* REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
Location: Northern Caldwell County TX
MTFCA Life Member: YES
Board Member Since: 1999

Re: APCO Radius Rod Accessory

Post by George House » Wed Jul 24, 2019 11:50 am

Spring is correct. Little cup is available from most T vendors. Mailing will cost more than the cup. Wait until you have large order.
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔
Top
User avatar

Topic author
RustyFords
Posts: 1559
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
* REQUIRED* Type and Year of Model Ts owned: 1924 Touring
Location: Houston, TX

Re: APCO Radius Rod Accessory

Post by RustyFords » Wed Jul 24, 2019 12:14 pm

Thanks George. I couldn’t find the little cup on Lang’s site....I’ll take another look.
1924 Touring
Top
User avatar

Rich Eagle
Posts: 6895
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
* REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
Location: Idaho Falls, ID

Re: APCO Radius Rod Accessory

Post by Rich Eagle » Wed Jul 24, 2019 12:40 pm

I have no connection to Lang's. Other vendors may have these. I made my own.
Rich
https://www.modeltford.com/item/2728C.aspx
https://www.modeltford.com/item/2728S.aspx
https://www.modeltford.com/item/2728APCO.aspx
When did I do that?
Top
User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: APCO Radius Rod Accessory

Post by RajoRacer » Wed Jul 24, 2019 1:28 pm

The above is for the tie rod - here's the link for the radius rod cup - https://www.modeltford.com/item/2736APCC.aspx
Top
User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: APCO Radius Rod Accessory

Post by RajoRacer » Wed Jul 24, 2019 1:29 pm

My apologies - I referenced tie rod - it's drag link.
Top
User avatar

Topic author
RustyFords
Posts: 1559
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
* REQUIRED* Type and Year of Model Ts owned: 1924 Touring
Location: Houston, TX

Re: APCO Radius Rod Accessory

Post by RustyFords » Wed Jul 24, 2019 1:59 pm

Thanks...I had a few other things to order as well, so I just put in the order.
1924 Touring
Top
