Bow Saddle

Post by john_aldrich » Sat Sep 07, 2019 3:27 pm

The saddle that my top bows rest on when the top is down is loose. I know there is a nut on it inside but for the life of me simply peeling back the panels I cannot reach that nut to tighten it.

Suggestions? Tricks?


Topic author
john_aldrich
Posts: 32
Joined: Wed Mar 13, 2019 10:46 am
First Name: John
Last Name: Aldrich
Location: Kapowsin

Re: Bow Saddle

Post by john_aldrich » Sat Sep 07, 2019 3:34 pm

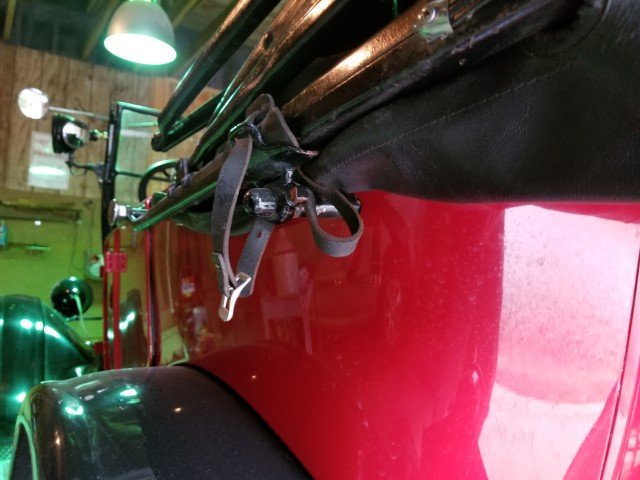

Here is a picture for clarification.
20190907_121248 (Small).jpg

User avatar

DanTreace
Posts: 1353
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: Bow Saddle

Post by DanTreace » Sat Sep 07, 2019 3:57 pm

Isn’t a nut inside, only a female thread boss on the metal upright strut. Use a pipe wrench or vice grip pliers to snug the top prop rod.

Appears to me your prop rod has a bullet nose sleeve over the outer end, might be there to increase the rod diameter for earlier saddle, early have 5/8” hole, later 23-27 have 1/2” holes for the later 1/2” prop rod.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford

User avatar

George House
Posts: 735
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
Location: Northern Caldwell County TX
MTFCA Number: 115
MTFCA Life Member: YES

Re: Bow Saddle

Post by George House » Sat Sep 07, 2019 4:48 pm

You have a ‘26-‘27 touring. That forged saddle should have a 1/2” hole for your “prop rod”.
One of the biggest problems with today’s youth is they’ve never known the fear of hearing leather being rapidly pulled through seven Wrangler belt loops.

User avatar

RajoRacer
Posts: 1422
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Bow Saddle

Post by RajoRacer » Sat Sep 07, 2019 10:23 pm

Hey John - 2 different parts - "top prop rod" threads into a boss on the body support iron as Dan stated - "top saddle" has it's own square head set screw which tightens onto the top prop rod - one or the other is coming from together !


Topic author
john_aldrich
Posts: 32
Joined: Wed Mar 13, 2019 10:46 am
First Name: John
Last Name: Aldrich
Location: Kapowsin

Re: Bow Saddle

Post by john_aldrich » Sun Sep 08, 2019 12:43 pm

Got it and thanks!

The FORUM has aided me once more!


Original Smith
Posts: 1424
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Bow Saddle

Post by Original Smith » Sun Sep 08, 2019 5:34 pm

Why not put your top up, so you can see what you are doing?
