Inspection cover. Which side is out?

Post by Rosenfelder » Wed Sep 18, 2019 12:31 pm

A knowledgeable friend told me that the transmission inspection cover on my car was upside down. It was painted on one side, so I figured that was the outside. Is this a prank played on newbies? Should the 'v' shaped 'valley' on the cover point down towards the drums bands (Like it wants to drip oil back down the center line) or away sticking up away from the innards (like it was meant to add clearance)? I'd hate to be a laughing stock. Or does it not make any difference? Thanks.

User avatar

Steve Jelf
Posts: 1590
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Inspection cover. Which side is out?

Post by Steve Jelf » Wed Sep 18, 2019 12:42 pm

Mine all have the V facing down. If that's wrong I have achieved the status of multiple laughing stock. My guess is that in having the oil drip in the center it reduces the tendency to leak.
The inevitable often happens.
1915 Runabout
1923 Touring


Humblej
Posts: 299
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Inspection cover. Which side is out?

Post by Humblej » Wed Sep 18, 2019 12:42 pm

From the Ford Service Bulletin.

User avatar

Mark Nunn
Posts: 164
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
Location: Bennington, NE
MTFCA Number: 50321
Board Member Since: 2017

Re: Inspection cover. Which side is out?

Post by Mark Nunn » Wed Sep 18, 2019 12:46 pm

Dang. Mine's upside down too.


Rich Bingham
Posts: 721
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: Inspection cover. Which side is out?

Post by Rich Bingham » Wed Sep 18, 2019 12:58 pm

Mine is a flat plate. Should I worry ? :lol:
"Get a horse !"


John kuehn
Posts: 530
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Inspection cover. Which side is out?

Post by John kuehn » Wed Sep 18, 2019 4:52 pm

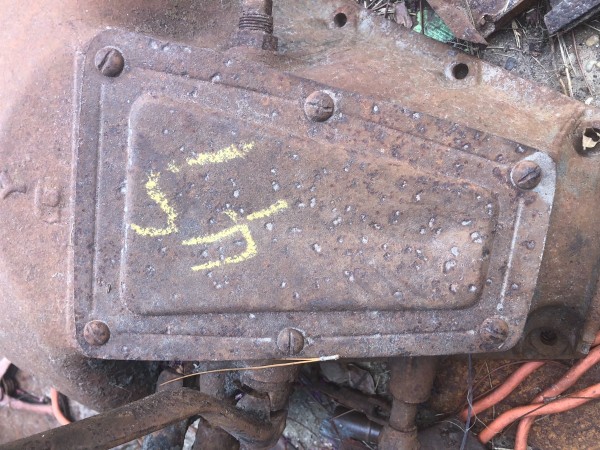

Here’s the one in my 24 Coupe. I’ve had this car since 1959 and that’s the way it was when I got it. The T encyclopedia says the transmission door covers were “embossed” starting in 1917 and became the typical style used from then on. Maybe the embossed door was supposed to help in oil distribution? The T shop manual shows it to be installed with the V pointing down. Maybe the engineers decided to use the V and get away from the flat covers.
Anyway I guess I passed the cover inspection test according to the manual!
Attachments


kerry
Posts: 208
Joined: Mon Jan 07, 2019 2:42 pm
First Name: Frank
Last Name: van Ekeren
Location: Rosedale Vic Australia

Re: Inspection cover. Which side is out?

Post by kerry » Wed Sep 18, 2019 5:10 pm

One of the stop light kits require the plate to be turned upside down.


wayne sheldon
Posts: 1026
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Inspection cover. Which side is out?

Post by wayne sheldon » Wed Sep 18, 2019 6:20 pm

This is one of those silly "I am right you are wrong" things". Yes, Ford does show a "right" way in the books. But for some reason unknown millions of engines over the years have had the covers flipped the other way. More untouched for decades engines I have seen have had the "V" up rather than down. While the "V" down would help drop oil onto vital areas of the transmission, I doubt it would make that much difference inside that splash filled oil bath. And, if you consider it closely, flipped the other way would put a recess down around the inside of the hogshead opening. That would actually do a better job of reducing oil leaks by deflecting splash around the gasket instead of toward the gasket.
So, except for the fitting of your brake light switch? I don't think it really matters at all, and I have gone both ways myself.

User avatar

Corey Walker
Posts: 149
Joined: Sun Jan 06, 2019 11:46 am
First Name: Corey
Last Name: Walker
Location: Brownsboro, TX

Re: Inspection cover. Which side is out?

Post by Corey Walker » Wed Sep 18, 2019 6:32 pm

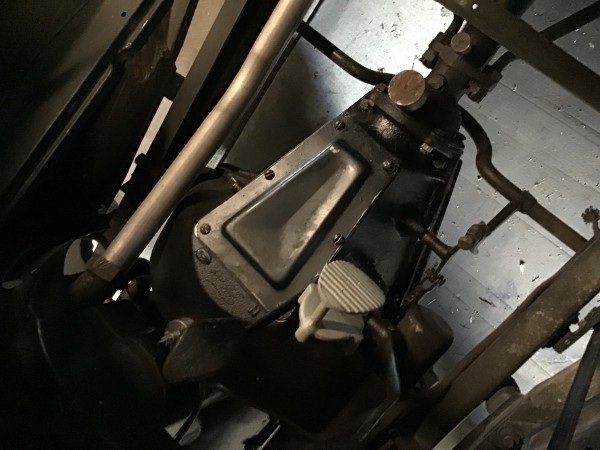

It seems like I read once the V was supposed to face down to deflect oil to the bands. This one has the V down and it also has strips embossed between bolt holes to help the gasket seal which go down into the gasket. Mine has only a flat plate.
Attachments
Corey Walker, Brownsboro, Texas

User avatar

Ruxstel24
Posts: 1523
Joined: Sun Jan 06, 2019 11:25 am
First Name: Dave
Last Name: Hanlon
Location: NE Ohio
MTFCA Number: 50191
Board Member Since: 2018

Re: Inspection cover. Which side is out?

Post by Ruxstel24 » Thu Sep 19, 2019 2:53 pm

Rich Bingham wrote:
Wed Sep 18, 2019 12:58 pm
Mine is a flat plate. Should I worry ? :lol:
:D
Attachments


Rich Bingham
Posts: 721
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: Inspection cover. Which side is out?

Post by Rich Bingham » Fri Sep 20, 2019 11:09 am

:shock: I dunno Dave ! Now I'm worried about that dog. Did the yoghurt kill him ? :shock:

Good one ! :lol: (I really don't worry much - seems a waste of time. When things go wrong, it seems like it's pretty rare that they are the things you've been stewing over ! ;) )
"Get a horse !"


Norman Kling
Posts: 401
Joined: Tue Jan 08, 2019 1:39 pm
First Name: Norman
Last Name: Kling
Location: Alpine California

Re: Inspection cover. Which side is out?

Post by Norman Kling » Fri Sep 20, 2019 7:54 pm

Not only does the V assist in oiling the bands and gears, but it directs the oil away from the edges where it is most likely to leak. Install with the V down.
Norm


Topic author
Rosenfelder
Posts: 33
Joined: Sun Apr 14, 2019 8:47 am
First Name: John
Last Name: Rosenfelder
Location: Southern New Hampshire
MTFCA Number: 49923

Re: Inspection cover. Which side is out?

Post by Rosenfelder » Mon Sep 23, 2019 2:43 pm

Thanks all. That makes sense. J.R.


jiminbartow
Posts: 48
Joined: Sun Jan 06, 2019 10:55 pm
First Name: James
Last Name: Patrick
Location: Bartow, FL
MTFCA Number: 50126

Re: Inspection cover. Which side is out?

Post by jiminbartow » Wed Sep 25, 2019 11:40 pm

Whenever I am unable to recall which side of a panel or cover goes In or out (which sometime occurs if notes and pictures are not taken prior to embarking on a years long restoration), I refer to the side which bears the circular scars of tightened screws and nuts which cut into the steel of the panel leaving a circle around the hole, making it obvious the scarred side goes out. Jim Patrick

User avatar

Oldav8tor
Posts: 368
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Juhl
Location: Thumb of Michigan
MTFCA Number: 50297
MTFCI Number: 24810

Re: Inspection cover. Which side is out?

Post by Oldav8tor » Thu Sep 26, 2019 3:40 pm

If you've installed a oil filter under the cover, what difference would it make how the cover is installed?
1917 Touring
1952 Willys M38a1 Jeep

User avatar

DanTreace
Posts: 706
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: Inspection cover. Which side is out?

Post by DanTreace » Thu Sep 26, 2019 9:43 pm

Tim

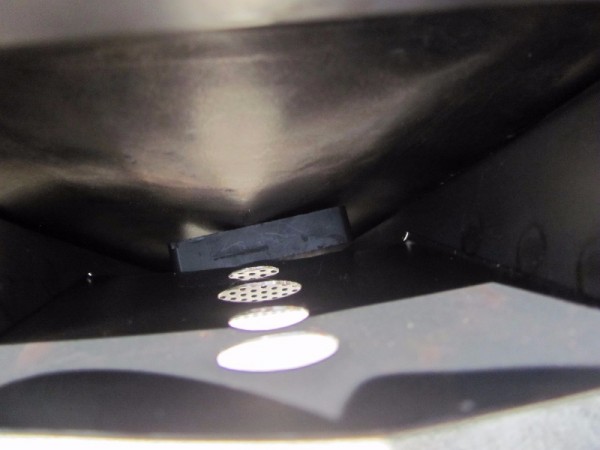

As others have posted, the triangle form (Famous Ford 3-point :P ) inside the cover ....defects the oil to the bands or the screen plate.

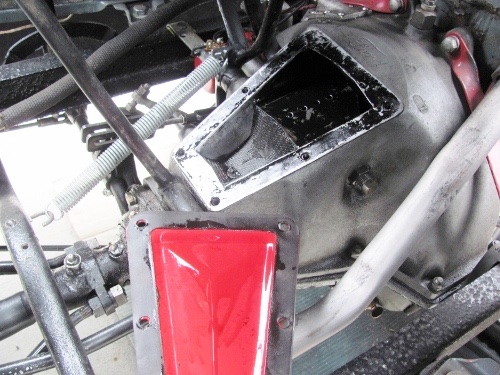

IMG_6731 (500x375).jpg
IMG_6731 (500x375).jpg (131.61 KiB) Viewed 318 times
Note the oil film flow, top of the triangle and down..... :P

And for those with a magnet in the screen, that formed cover may help retain it. You can see in this view the triangle form directs oil to the screen.
