Tire carrier . What am I missing to mount it ?

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
Post Reply Previous topicNext topic

Topic author
Michael Davis
Posts: 297
Joined: Fri Jul 26, 2019 8:18 pm
First Name: Michael
Last Name: Davis
* REQUIRED* Type and Year of Model Ts owned: 1923 Center door
Location: Montrose CO

Tire carrier . What am I missing to mount it ?

Post by Michael Davis » Fri Sep 27, 2019 2:40 pm

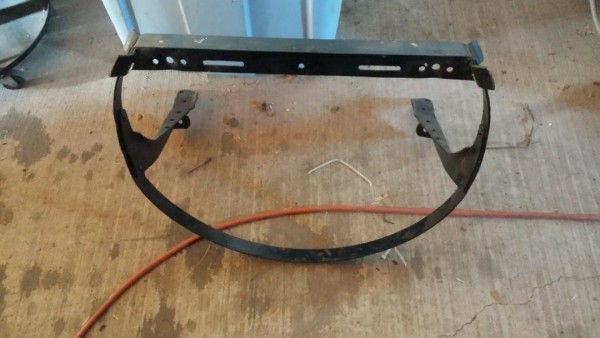

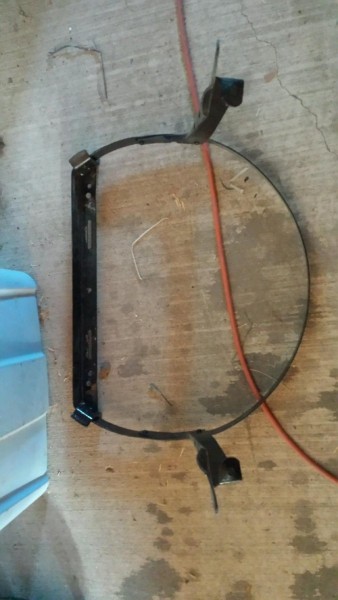

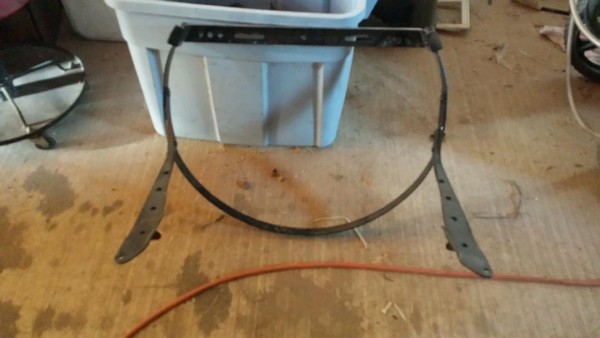

I have no idea what bracket's I am missing to mount this to the frame or is it the wrong one? Trying to mount to 1923 Center Door

Any information appreciated.
Thanks Mike
Attachments
Top

Scott_Conger
Posts: 6523
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
* REQUIRED* Type and Year of Model Ts owned: 1919
Location: not near anywhere, WY
Board Member Since: 2005

Re: Tire carrier . What am I missing to mount it ?

Post by Scott_Conger » Fri Sep 27, 2019 2:50 pm

Michael

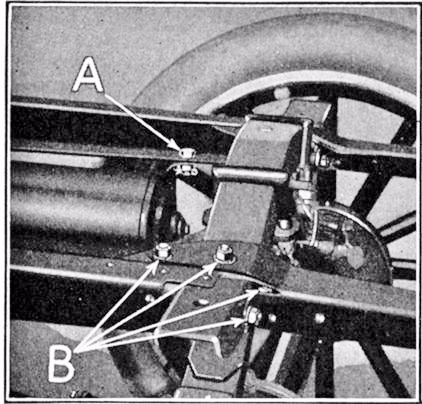

It should slide right on the back of the frame and mount 1 vertical and 2 horizontal bolts on each side if I remember correctly. It is for the rear, not the runningboard
Scott Conger

Tyranny under the guise of law is still Tyranny

NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Top
User avatar

TRDxB2
Posts: 6260
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Tire carrier . What am I missing to mount it ?

Post by TRDxB2 » Fri Sep 27, 2019 2:53 pm

Model T? Seriously what year/body.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

rickg
Posts: 77
Joined: Sun Jan 06, 2019 2:44 pm
First Name: Richard
Last Name: Goelz
* REQUIRED* Type and Year of Model Ts owned: 1924 Fordor, 1926 Coupe, 1923 popcorn Truck
Location: Knoxville, Tn

Re: Tire carrier . What am I missing to mount it ?

Post by rickg » Fri Sep 27, 2019 3:05 pm

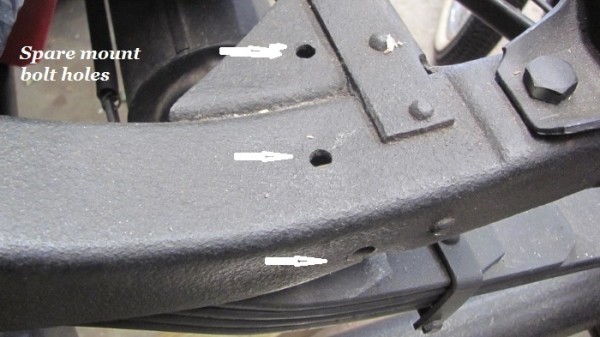

That is the same one I have on my 24 Fordor, I had to remove it and weld it as one of the horizontal pieces was broken, I did it with the body off which makes it easier, there should be holes on the top of the frame for to mount it, 1/4" if I remember right.

Good luck

Rick
Top
User avatar

DanTreace
Posts: 3812
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Tire carrier . What am I missing to mount it ?

Post by DanTreace » Fri Sep 27, 2019 3:32 pm

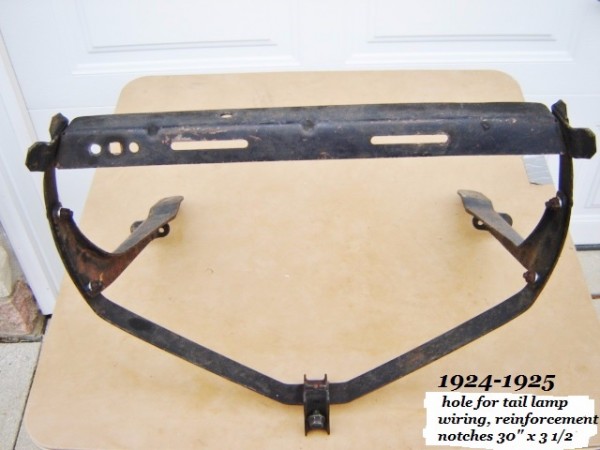

Should bolt on frame, easy. Just check to be sure your demountable rim fits, these were made for clincher and spit rims, different sizes. Your's is missing the flange and bolt assembly that is normally riveted to the lower part of the circle, to secure a rim lug, the upper u-pieces support the rim.

The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top
User avatar

George House
Posts: 2814
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
* REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
Location: Northern Caldwell County TX
MTFCA Life Member: YES
Board Member Since: 1999

Re: Tire carrier . What am I missing to mount it ?

Post by George House » Fri Sep 27, 2019 4:09 pm

It’s missing that bottom riveted-on piece to fasten the spare rim/tire and keep it from swinging back and forth from the top two rim mounting points. It would also have provision for a padlock.
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔
Top

Norman Kling
Posts: 4634
Joined: Tue Jan 08, 2019 1:39 pm
First Name: Norman
Last Name: Kling
Location: Alpine California

Re: Tire carrier . What am I missing to mount it ?

Post by Norman Kling » Fri Sep 27, 2019 4:10 pm

I have one on my 22 Roadster and I just installed one on a 20 Touring. The holes were already drilled in the frame and it just mounted right on.
Norm
Top

RalphS in NE Oregon
Posts: 51
Joined: Sun Jan 06, 2019 2:23 pm
First Name: Ralph
Last Name: Swinehart
* REQUIRED* Type and Year of Model Ts owned: 1914 roadster, 1914 touring, 1923 roadster, 1926 TT
Location: Enterprise, Oregon

Re: Tire carrier . What am I missing to mount it ?

Post by RalphS in NE Oregon » Fri Sep 27, 2019 6:12 pm

There is something different about this carrier compared to the ones I have for 30x3 1/2 tires. In addition to missing the bottom bracket, it has a continuous round shape to it. Mine have straight segments on the sides with a short flat on the bottom like the one shown in Dan Treases photo.
Could this one be for the 21" tire?
Ralph
Top

Topic author
Michael Davis
Posts: 297
Joined: Fri Jul 26, 2019 8:18 pm
First Name: Michael
Last Name: Davis
* REQUIRED* Type and Year of Model Ts owned: 1923 Center door
Location: Montrose CO

Re: Tire carrier . What am I missing to mount it ?

Post by Michael Davis » Fri Sep 27, 2019 8:03 pm

Ok I will look closer and try it again. Something just not right ? This is a Canadian built car ?

Thanks everyone. The pictures really help

Mike
Top
User avatar

perry kete
Posts: 1629
Joined: Sun Jan 06, 2019 11:46 am
First Name: Dennis
Last Name: Seth
* REQUIRED* Type and Year of Model Ts owned: 1922 Coupe 1927 Touring
Location: Jefferson Ohio

Re: Tire carrier . What am I missing to mount it ?

Post by perry kete » Fri Sep 27, 2019 8:16 pm

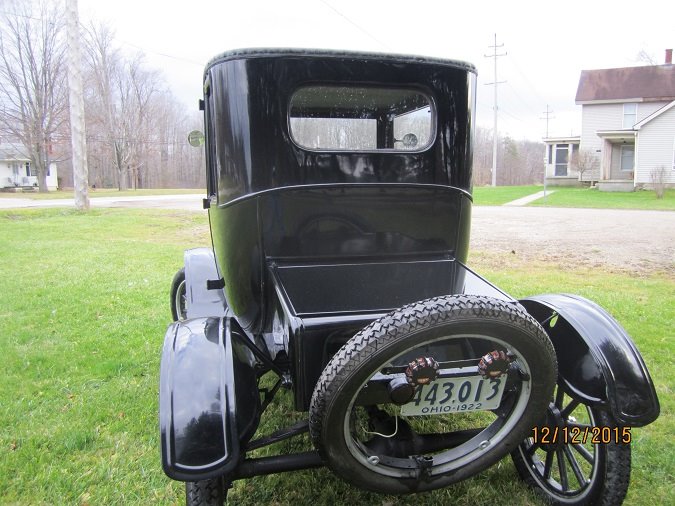

Looks just like the tire carrier on my '22 Coupe

'22 Model T Ford Coupe after restoration 5.JPG
1922 Coupe & 1927 Touring
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Tire carrier . What am I missing to mount it ?

Post by Humblej » Fri Sep 27, 2019 10:19 pm

Mike, that must be a canadian spare tire carrier, it has left hand drive or right hand drive tail light/license plate mounting configurations.
Top

Topic author
Michael Davis
Posts: 297
Joined: Fri Jul 26, 2019 8:18 pm
First Name: Michael
Last Name: Davis
* REQUIRED* Type and Year of Model Ts owned: 1923 Center door
Location: Montrose CO

Re: Tire carrier . What am I missing to mount it ?

Post by Michael Davis » Sat Sep 28, 2019 8:33 am

Thanks again I went out last night and figured out what I was doing wrong. It fits on top of the frame. Very tight fit between the body and the frame.

I think I got it.

Something going wrong here but I am not sure what it is. Do you Mrs Jones ?

Mike
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Tire carrier . What am I missing to mount it ?

Post by RajoRacer » Sat Sep 28, 2019 11:48 am

I believe I read somewhere that the "full circle" carrier was introduced in 1919 with the demountable rim - they don't show up often & it very well could be a Canadian piece !
Top
Post Reply Previous topicNext topic

Return to “General Discussion Forum”
