Cleaning up is a good thing

Post by Steve Jelf » Sat Oct 26, 2019 2:05 am

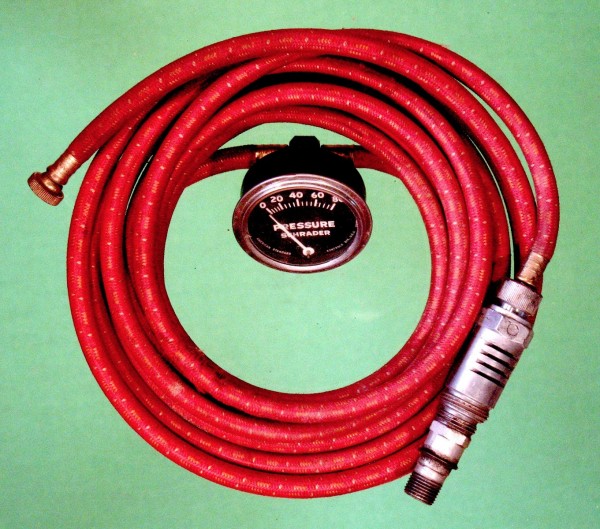

One of the benefits of cleaning up and organizing the shop is finding stuff you forgot you had.
IMG_4344 copy.JPG
I don't remember where I got this, of course, but all it needs is an adapter to fit a Model T engine.
The inevitable often happens.
1915 Runabout
1923 Touring


wayne sheldon
Posts: 1062
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Cleaning up is a good thing

Post by wayne sheldon » Sat Oct 26, 2019 3:44 am

Looks like Christmas came early!
Make sure that hose is in good condition, and up to the task of about 80 psi and you should be good to go! Once you get that adapter.


d stroud
Posts: 616
Joined: Sun Jan 06, 2019 10:45 am
First Name: David
Last Name: Stroud
Location: Mound City, MO. 64470
Board Member Since: 2011

Re: Cleaning up is a good thing

Post by d stroud » Sat Oct 26, 2019 4:01 am

I've got one just about like that Steve, I don't know where it is right now either! :lol: Dave
1925 mostly original coupe.


Tom Hicks
Posts: 761
Joined: Sun Jan 06, 2019 12:07 pm
First Name: Thomas
Last Name: Hicks
Location: Chesterfield, VA
MTFCA Number: 32518

Re: Cleaning up is a good thing

Post by Tom Hicks » Sat Oct 26, 2019 7:30 am

Cleaning up is necessary, but I am not good at it. I tend to start a little project, have to stop for lack of materials or whatever, then go on to another project without putting the tools back because I will need them when I come back to the first project. So too many projects with tools and materials strewn around. When I can't find a 1/2" or 9/16" open end wrench I stop all projects and put all tools away. I have eight 1/2" wrenches and six 9/16" wrenches.

At least I have gotten to the point where I have a place for every tool and know where it goes, that simplifies putting them away.
Technology, the solution to all of our problems... and the cause of most of them.


Dallas Landers
Posts: 999
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: Cleaning up is a good thing

Post by Dallas Landers » Sat Oct 26, 2019 7:43 am

When I was a kid, dad had one like that he carried in every car he ever owned. Standard equipment as was a tool box .

User avatar

JunkyJud
Posts: 42
Joined: Sun Jan 06, 2019 1:19 pm
First Name: Justin
Last Name: H
Location: Western PA

Re: Cleaning up is a good thing

Post by JunkyJud » Sat Oct 26, 2019 8:21 am

I've often wondered if the gasoline vapor that is pumped into the tube with one of these does any kind of damage over time.
Justin in Western PA


Jim Eubanks
Posts: 50
Joined: Mon Jan 07, 2019 6:04 pm
First Name: Jim
Last Name: Eubanks
Location: Powell, TN
MTFCA Number: 49847
MTFCI Number: 8340

Re: Cleaning up is a good thing

Post by Jim Eubanks » Sat Oct 26, 2019 9:04 am

There is no gasoline vapor pumped in, fresh air comes in thru the part that screws in to the head.


John kuehn
Posts: 558
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Cleaning up is a good thing

Post by John kuehn » Sat Oct 26, 2019 9:33 am

We had a spark plug pump we used to pump up tires on the farm. I think it came with 3 adapters. TSC and Western Auto sold them. Do they still make them? If the plug was easy to get to it was easy to use. But when they were popular flat head engines were common so it was easy to hook one up. Not so much anymore!

User avatar

Topic author
Steve Jelf
Posts: 1645
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Cleaning up is a good thing

Post by Steve Jelf » Sat Oct 26, 2019 9:40 am

Do they still make them?

Yes and no. They're available with a shorter hose for use on motorcycles, but they're not made for cars. Something to do with catalytic converters.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Mark Gregush
Posts: 1277
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Cleaning up is a good thing

Post by Mark Gregush » Sat Oct 26, 2019 12:11 pm

I have one too but it is missing all the adapters.
I know the voices aren't real but damn they have some good ideas! :roll:

1921 Huckster
1925 Cut down pickup

User avatar

Topic author
Steve Jelf
Posts: 1645
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Cleaning up is a good thing

Post by Steve Jelf » Sat Oct 26, 2019 4:16 pm

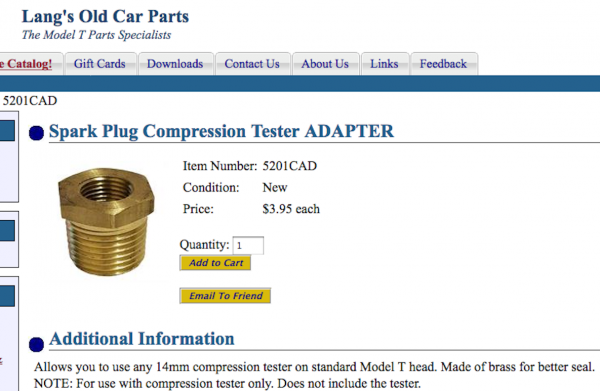

If it has 14mm spark plug thread, you only need this adapter.

Screen shot 2019-10-26 at 3.11.50 PM.png
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

JunkyJud
Posts: 42
Joined: Sun Jan 06, 2019 1:19 pm
First Name: Justin
Last Name: H
Location: Western PA

Re: Cleaning up is a good thing

Post by JunkyJud » Sat Oct 26, 2019 4:44 pm

Jim Eubanks wrote:
Sat Oct 26, 2019 9:04 am
There is no gasoline vapor pumped in, fresh air comes in thru the part that screws in to the head.
Ahh, that's clever. Do they work well?
Justin in Western PA


Kenny Edmondson
Posts: 50
Joined: Mon Jan 07, 2019 8:26 am
First Name: Kenny
Last Name: Edmondson
Location: Indianapolis, IN

Re: Cleaning up is a good thing

Post by Kenny Edmondson » Sat Oct 26, 2019 5:03 pm

Not sure I buy the catalytic converter part. Most newer cars have spark plugs that you can’t get to and coils mounted direct to the plug. Also most people today would be incapable of hooking one up. Probably not enough demand.

User avatar

Topic author
Steve Jelf
Posts: 1645
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Cleaning up is a good thing

Post by Steve Jelf » Sun Oct 27, 2019 12:53 am

Dad used one in the Plymouth for blowing up air mattresses. I'm the guy in the striped shirt. 1946.
The inevitable often happens.
1915 Runabout
1923 Touring


tmodeldriver
Posts: 60
Joined: Mon Jan 07, 2019 3:04 pm
First Name: Robert
Last Name: Hester
Location: Riverview, FL
MTFCA Number: 26459
MTFCI Number: 20813
Board Member Since: 2005

Re: Cleaning up is a good thing

Post by tmodeldriver » Sun Oct 27, 2019 8:35 am

When using one of these adapters be sure to short out the spark plug wire while it is disconnected. Running the engine with the wire just dangling could damage the coil.

Also, I don't think the T engine is going to pump the 55 psi needed for 30x3 or 30x3 1/2 tires.


Original Smith
Posts: 938
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Cleaning up is a good thing

Post by Original Smith » Sun Oct 27, 2019 11:17 am

I wonder if Schrader made those for Ford? I've seen them with Ford script. You could make an adapter out of an old spark plug.

User avatar

Mark Gregush
Posts: 1277
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Cleaning up is a good thing

Post by Mark Gregush » Sun Oct 27, 2019 11:29 am

Well I moved mine so now I can't find it! :lol: After looking on Ebay, knowing the size of the threads on Steve's might not help anyway. I see now there were several different types with different thread arrangements.
I know the voices aren't real but damn they have some good ideas! :roll:

1921 Huckster
1925 Cut down pickup


Scott_Conger
Posts: 1618
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Cleaning up is a good thing

Post by Scott_Conger » Sun Oct 27, 2019 12:04 pm

Bob

Jim Eubanks reply that it draws fresh air in is a clue as to how it develops pressure: the pump is a sort of accumulator pump with a smaller volume cylinder being swept by the larger volume of the piston. It's pump per sweep is much smaller than the piston, but is multiplied in pressure (compressed) for the tire fill.

Most accumulator pumps are hydraulic/air, but with different swept volumes, air/air will work too. This guy's video shows a Schrader pump and you'll see the volume of the actual pump itself: https://www.youtube.com/watch?v=2LjbjtPR8BQ
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!

User avatar

Mark Gregush
Posts: 1277
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Cleaning up is a good thing

Post by Mark Gregush » Sun Oct 27, 2019 1:54 pm

I found mine, right where I put it after I moved it! ;) Mine is like the sample below, without adapters fits 18mm spark plug hole. Poop! I can find adapters to fit 14mm plugs into 18mm hole, not so much the other way. :x You can buy them but the thread is wrong.
https://www.ebay.com/itm/Vintage-Sears- ... Sw5ltdh6dv
But should be an easy make if I can get to the lathe. Got more then I need of the 14mm to 1/2 pipe ones.
I know the voices aren't real but damn they have some good ideas! :roll:

1921 Huckster
1925 Cut down pickup

User avatar

dlmyers
Posts: 69
Joined: Sun Jan 06, 2019 6:00 pm
First Name: Dale
Last Name: Myers
Location: Greenville Pa
MTFCA Number: 24465
MTFCI Number: 19884
Board Member Since: 2001

Re: Cleaning up is a good thing

Post by dlmyers » Sun Oct 27, 2019 2:36 pm

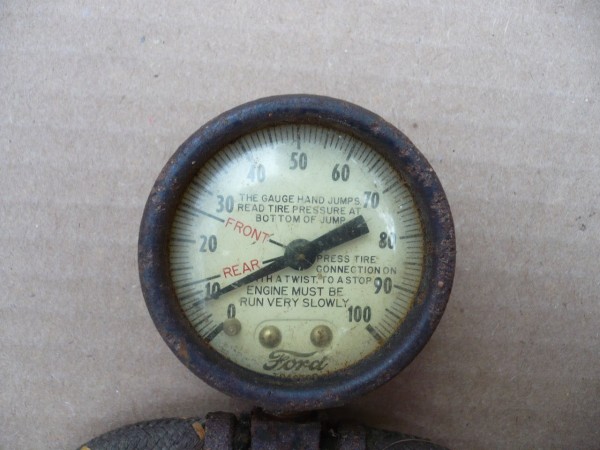

Here's mine.
The word "Tractor" is below the Ford script.
I have no idea why the first photo posted twice. Or why the gauge photo is below the text.
Attachments
The old forums are a gold mine of information.


tmodeldriver
Posts: 60
Joined: Mon Jan 07, 2019 3:04 pm
First Name: Robert
Last Name: Hester
Location: Riverview, FL
MTFCA Number: 26459
MTFCI Number: 20813
Board Member Since: 2005

Re: Cleaning up is a good thing

Post by tmodeldriver » Sun Oct 27, 2019 3:13 pm

Howdy, Scott. Thanks for the explanation and video. That's exactly how a steam powered water pump can push make-up water into the same boiler it's getting the steam from. I shoulda have knowed. :oops: Regards, Bob.


John kuehn
Posts: 558
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Cleaning up is a good thing

Post by John kuehn » Sun Oct 27, 2019 3:39 pm

The Ford (tractor) pump is really neat! I bet that Ford pump was made in the 8-9n Ford era which was 39- 52. Could be later but not much later. The braided cloth covered hose goes way back anyway.
The fluctuating needle brings backs memories when airing up a large back tire on the back of the Ford tractor we had. It took a while and after it got aired up the plug adapter was really hot! We blew out the one we had after speeding up the engine because I thought it was to slow. Got another one from Western Auto to use when we had to.

User avatar

Ken Lefeber
Posts: 20
Joined: Mon Jan 07, 2019 10:40 am
First Name: Ken
Last Name: Lefeber
Location: Plymouth, WI
MTFCA Number: 31968
Board Member Since: 2015

Re: Cleaning up is a good thing

Post by Ken Lefeber » Mon Oct 28, 2019 12:44 am

I saw this on the running board of an American car at the Hershey car show.

User avatar

Mark Nunn
Posts: 170
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
Location: Bennington, NE
MTFCA Number: 50321
Board Member Since: 2017

Re: Cleaning up is a good thing

Post by Mark Nunn » Mon Oct 28, 2019 9:33 pm

Steve, was it beside the speedometer you were looking for? :)

User avatar

Topic author
Steve Jelf
Posts: 1645
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Cleaning up is a good thing

Post by Steve Jelf » Mon Oct 28, 2019 10:45 pm

I wish. That's still on the missing list. :(
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Charlie B in N.J.
Posts: 229
Joined: Mon Jan 07, 2019 7:40 am
First Name: CHARLIE
Last Name: BRANCA
Location: Brick N.J.
MTFCA Number: 28967
Board Member Since: 2010

Re: Cleaning up is a good thing

Post by Charlie B in N.J. » Tue Oct 29, 2019 9:45 am

Cleaning up just seems to make room for more stuff.
Forget everything you thought you knew.

User avatar

RustyFords
Posts: 765
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Cleaning up is a good thing

Post by RustyFords » Tue Oct 29, 2019 10:01 am

Cleaning up is good. I do it about once a month and while I'm building a car, I go through my mis parts bins to remind me what I've already ordered for that car and what I need.

I'm not going to admit to how many times I've ordered the same part multiple times because I didn't remember that I already had it. :oops:
1924 Touring


Dennis_Brown
Posts: 53
Joined: Wed Jan 09, 2019 10:14 pm
First Name: Dennis
Last Name: Brown
Location: Spring Hill Fl
MTFCA Number: 21458

Re: Cleaning up is a good thing

Post by Dennis_Brown » Tue Oct 29, 2019 10:34 pm

Go buy a 1/2 by 1/8 pipe bushing, drill it out to the proper diameter for a 14 mm tap, tap it and you have your adapter. Make 4 and use them for your spark plugs. I prefer steel pipe bushings.

User avatar

Mark Nunn
Posts: 170
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
Location: Bennington, NE
MTFCA Number: 50321
Board Member Since: 2017

Re: Cleaning up is a good thing

Post by Mark Nunn » Tue Oct 29, 2019 11:18 pm

RustyFords wrote:
Tue Oct 29, 2019 10:01 am
I'm not going to admit to how many times I've ordered the same part multiple times because I didn't remember that I already had it. :oops:
I sometimes order parts months before starting a project to spread out the costs. I keep spreadsheets for both of my cars where I list parts or services purchased with "from" and expenditures columns. It helps me keep track of what I have and what I need.


Philip Lawrence
Posts: 37
Joined: Thu Jan 10, 2019 11:42 am
First Name: Philip
Last Name: Lawrence
Location: Auburn, CA
Board Member Since: 2014

Re: Cleaning up is a good thing

Post by Philip Lawrence » Tue Oct 29, 2019 11:43 pm

I have been cleaning and organizing my shop and in the process so far have found enough pieces and parts to build up two more model T's.


Allan
Posts: 783
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Cleaning up is a good thing

Post by Allan » Wed Oct 30, 2019 4:17 am

Mark, if I spent the time getting as organised as you, I wouldn't get anything done. The only spreadsheet I have is used to throw over stuff on which I don't want paint overspray. As for expendidtures, if I kept a record of those and my wife found out, well............... I much rather keep the peace than keep the records.

Allan from down under.

User avatar

RustyFords
Posts: 765
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Cleaning up is a good thing

Post by RustyFords » Wed Oct 30, 2019 8:51 am

Mark Nunn wrote:
Tue Oct 29, 2019 11:18 pm
RustyFords wrote:
Tue Oct 29, 2019 10:01 am
I'm not going to admit to how many times I've ordered the same part multiple times because I didn't remember that I already had it. :oops:
I sometimes order parts months before starting a project to spread out the costs. I keep spreadsheets for both of my cars where I list parts or services purchased with "from" and expenditures columns. It helps me keep track of what I have and what I need.
That is some serious organization Mark.

I work with spreadsheets at work and since my garage is a happy space, spreadsheets are a no-go 😀

I just keep all my extras for spares down the road,
1924 Touring

Post Reply Previous topicNext topic
