Stronghold accessory brake mounting question

Post by nsbrassnut » Sun Nov 17, 2019 6:59 pm

Hi All

I picked up a set of small drum Stronghold brakes a while ago and I'm going through them with the plan of installing them on my roadster.

They are marked LH and RH and when installed on the housing the installation looks different than most as the casting goes over the top of the spring mount instead of under the bottom of the backing plate.

Here are pictures of what the mounting bracket looks like on housing. Does anyone else have the same accessory brake on their car and is it mounted the same way.

Drive Safe

Jeff
Nova Scotia
Attachments

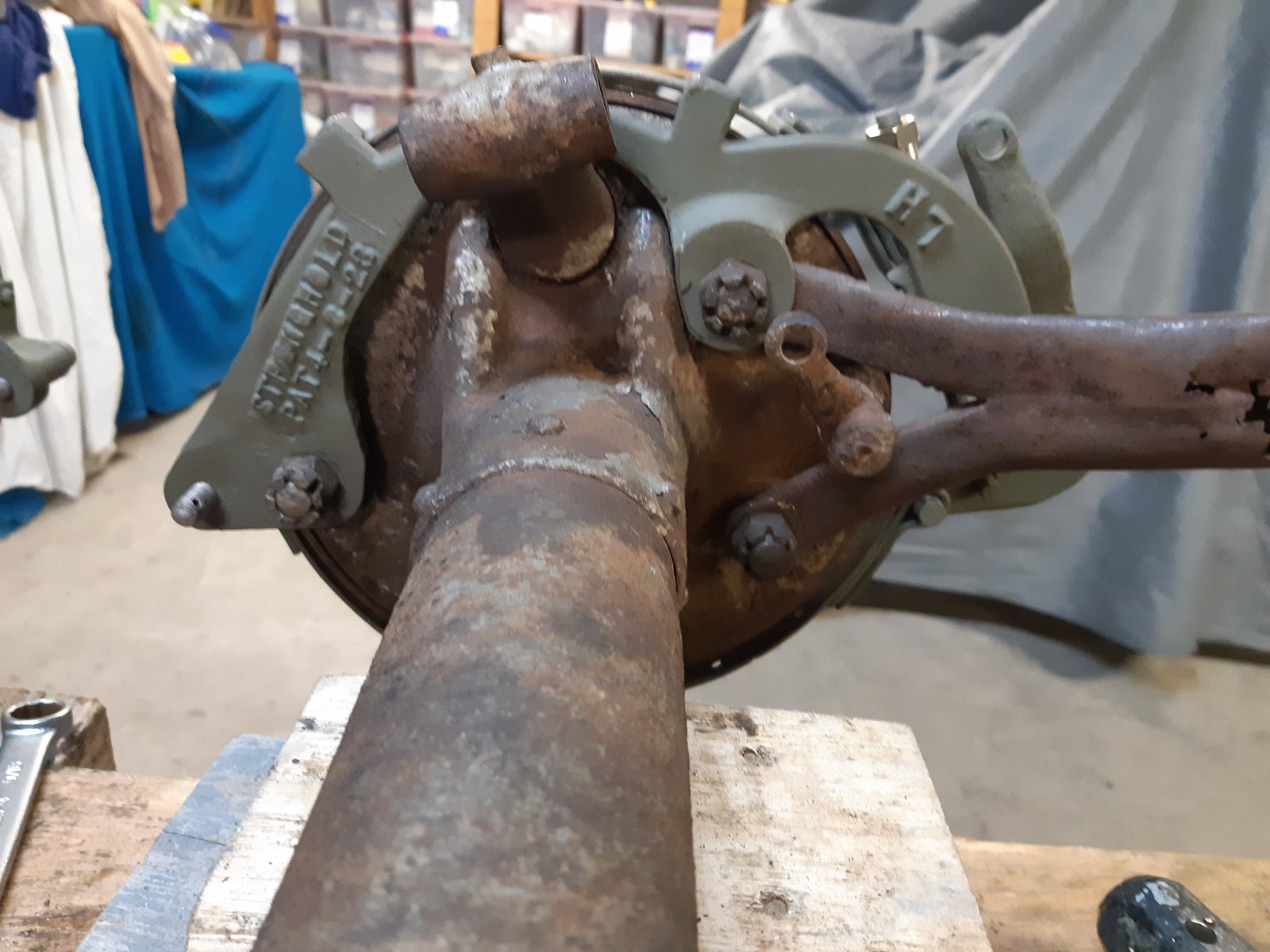

Stronghold Right Hand.jpg
Stronghold Left Hand.jpg


Les Schubert
Posts: 649
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Stronghold accessory brake mounting question

Post by Les Schubert » Sun Nov 17, 2019 7:09 pm

They seem to resemble small drum AC (which I have two sets of). Looks right to me


Scott_Conger
Posts: 2734
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Stronghold accessory brake mounting question

Post by Scott_Conger » Sun Nov 17, 2019 7:13 pm

First off: that's neat!
Second: Do you have different diameter brake bands on those things (larger ones for larger drum and mounted on rearward stud)

Finally: YOWSER! Those radius rods are slated for replacement, right?
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Topic author
nsbrassnut
Posts: 62
Joined: Sun Jan 06, 2019 5:30 pm
First Name: Jeff
Last Name: Lee
Location: Nova Scotia

Re: Stronghold accessory brake mounting question

Post by nsbrassnut » Sun Nov 17, 2019 7:47 pm

Hi Scott

No, just the small bands for the small drums. Not as obvious an addition as a large drum brake.

And yes, the radius rods are scrap. Actually only the last 8 inches are there and are being used for spacers while mocking up the parts.

Jeff
Nova Scotia


Scott_Conger
Posts: 2734
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Stronghold accessory brake mounting question

Post by Scott_Conger » Mon Nov 18, 2019 6:05 pm

:D
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!
