engine pan conversion

Post by Ralph F » Fri Dec 06, 2019 8:03 am

A couple of years ago there was a thread on changing the nose of a four dip pan to a narrow nose of a three dip pan. I was wonder if any one could repost that thread.
Thanks
Fitz

User avatar

DanTreace
Posts: 3299
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: '23 cutoff, '25 touring, '27 touring
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Board Member Since: 2000
Contact:

Re: engine pan conversion

Post by DanTreace » Fri Dec 06, 2019 8:17 am

The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Topic author
Ralph F
Posts: 138
Joined: Wed Jan 09, 2019 7:09 pm
First Name: Ralph
Last Name: Fitz-Gerald
Location: Monkton, Vermont

Re: engine pan conversion

Post by Ralph F » Fri Dec 06, 2019 10:49 am

Dean thanks


dmdeaton
Posts: 730
Joined: Mon Oct 21, 2019 9:43 pm
First Name: Danny
Last Name: Deaton
Location: Ohio

Re: engine pan conversion

Post by dmdeaton » Fri Dec 06, 2019 8:17 pm

What is the main purpose of this modification? Is it to keep a early pan somewhat correct but better?


Allan
Posts: 5201
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: engine pan conversion

Post by Allan » Fri Dec 06, 2019 8:22 pm

Ralph, if the aim is to create a passable early pan out of a later one, there are other things to consider. later pans have the rolled edge all round the pan rail, the pressing shape at the wishbone ball mount is different, the pan arms are different, as is the casting at the rear. If we know your aim, we can steer you closer to the right direction.

Allan from down under.


Kerry
Posts: 1297
Joined: Mon Jan 07, 2019 2:42 pm
First Name: Frank
Last Name: van Ekeren
* REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
Location: Rosedale Vic Australia

Re: engine pan conversion

Post by Kerry » Fri Dec 06, 2019 9:56 pm

I did one years ago for no other reason than to get at the number 4 rod easier if the need arose.


Sarikatime
Posts: 622
Joined: Sun Jan 06, 2019 12:47 pm
First Name: Frank
Last Name: Seress
* REQUIRED* Type and Year of Model Ts owned: 1912 Towncar, 1915 Touring
Location: Prescott, Arizona
MTFCA Number: 27707

Re: engine pan conversion

Post by Sarikatime » Sat Dec 07, 2019 8:08 am

If Gary would have put a nice teacup drain plug to be closer to originality, at first glance you would think it was an original early pan. Sure would cause a heck of a head scratching conversation some years from now in the peanut gallery. Lol. Frank


Kerry
Posts: 1297
Joined: Mon Jan 07, 2019 2:42 pm
First Name: Frank
Last Name: van Ekeren
* REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
Location: Rosedale Vic Australia

Re: engine pan conversion

Post by Kerry » Sat Dec 07, 2019 8:45 am

Ralph,
Return email doesn't seem to be working for me so answer on here.
I had 2 stuffed pans, 1 of each, so no loss to cut them up. Measured and sliced in-between number 1 & 2 with a thin cutting disc in a 4" angle grinder, bolted the 2 pieces to a block and mig welded. Cut 2 dipper plates butt and weld. Cut a new gasket. It's been on my 16 for a few years now.
4 dip pan 003.JPG


Scott Rosenthal
Posts: 364
Joined: Sun Jan 13, 2019 11:29 am
First Name: Scott
Last Name: Rosenthal
* REQUIRED* Type and Year of Model Ts owned: 12 Towncar, 12 Touring, 09 Touring
Location: Cincinnati OH

Re: engine pan conversion

Post by Scott Rosenthal » Sat Dec 07, 2019 9:04 am

I posted this but do not see these comments showing up, so please excuse if this is a duplication. The early style teacup can be retrofitted using the excellent turned repro cup sold by the vendors. This cup gets shortened and attaches with a threaded male nipple and JB Weld. Exterior gets body finished to hide the seam and existing mounting rivets. This conversion is fully functional and fully concealed except by removing the drain plug.
Scott


modeltbarn
Posts: 338
Joined: Sun Jan 06, 2019 6:59 pm
First Name: Gary
Last Name: London
* REQUIRED* Type and Year of Model Ts owned: 1911 Touring
Location: Camarillo
MTFCA Number: 16592

Re: engine pan conversion

Post by modeltbarn » Sat Dec 07, 2019 9:35 am

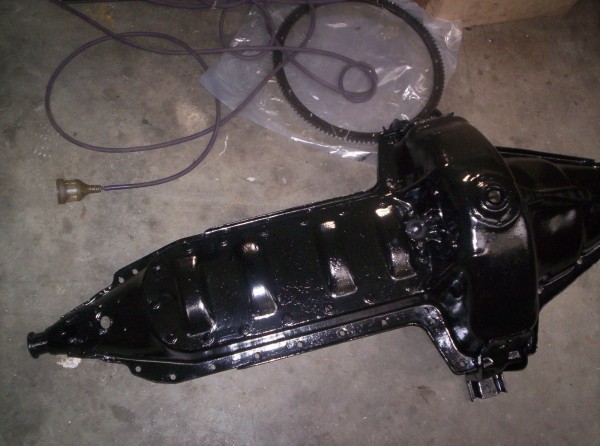

I had a 4 dip with a cracked nose, and a narrow nose with a trashed transmission area. I wanted an easier way to reach the 4th main and have a narrow nose for appearance, so I put one together.
