Valve Stem Comparison

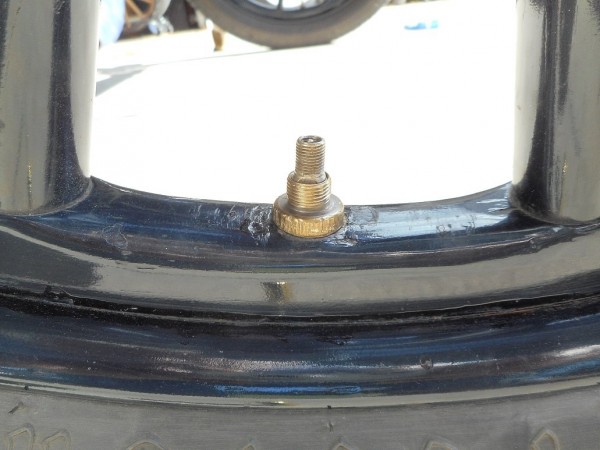

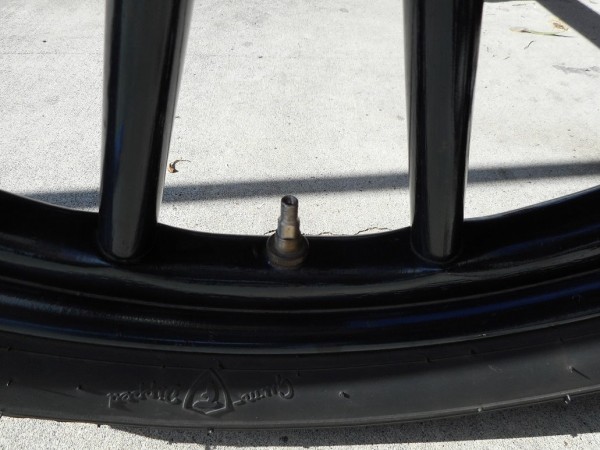

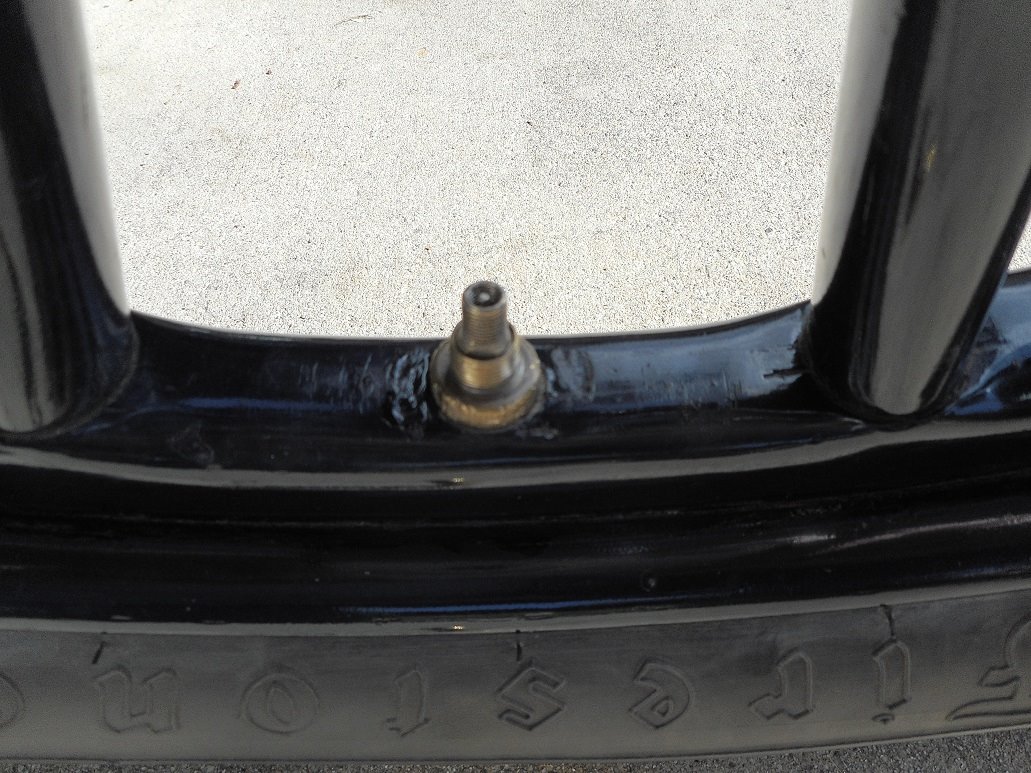

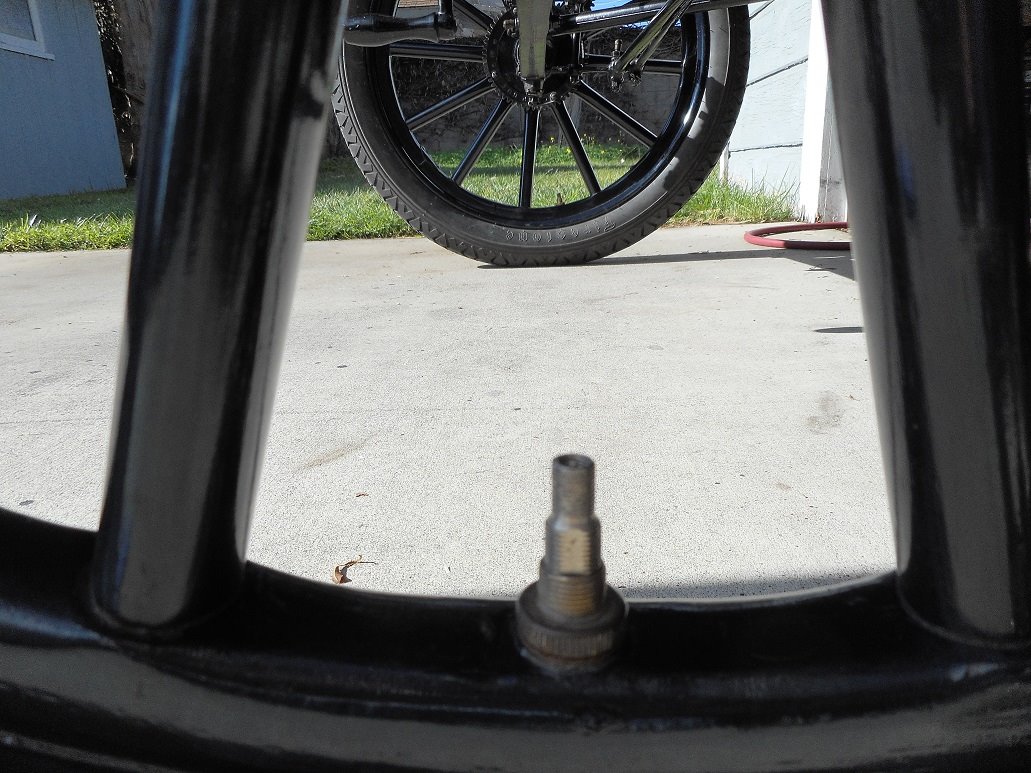

Perhaps many of you have noted my discussions in the past about original Schrader and Dill valve stems. You may have also noted that I prefer an 888 which is not authentic to a 777 which is. I have noted in the past why I prefer the 888 to the 777. For the first time I'm posting and example of these two valve stems on original Pruden 30 X 3 wheels. The height of the felloe is the same front and rear, and of course the thickness of the rim is the same too. For those who have failed to note why I do this, the reason is weight, and balance. With the correct dust cover on the wheel it is not possible to see the difference, which is 1/4".
- Attachments
-
-
-
-
-
CudaMan
- Posts: 2531
- Joined: Fri Jan 04, 2019 4:17 pm
- First Name: Mark
- Last Name: Strange
- * REQUIRED* Type and Year of Model Ts owned: 1924 Cut Off Touring (now a pickup)
- Location: Hillsboro, MO
- Board Member Since: 2013
Re: Valve Stem Comparison

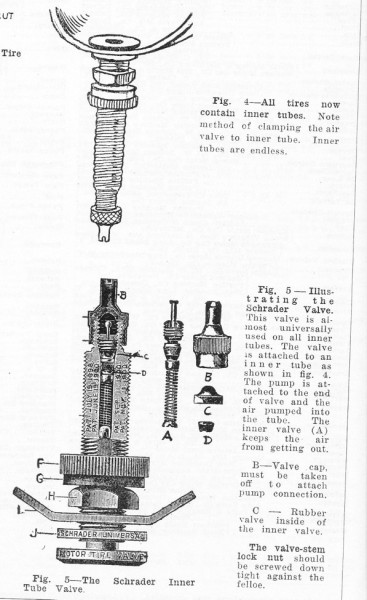

Thanks Larry! Here are some more pics that might be of interest.
- Attachments
-

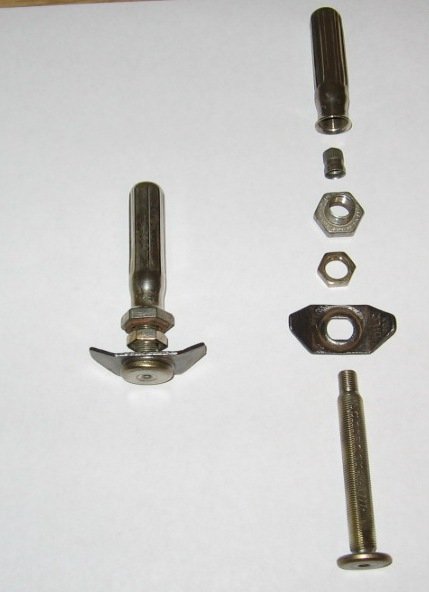

- schrader_777_stem_hardware.jpg (32.47 KiB) Viewed 3112 times
-
-
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
-
Steve Jelf
- Posts: 7238
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Valve Stem Comparison
I use 724 and 725, the same size used on current metal stem tubes. Why the bigger stems? My dust covers happen to fit them.
http://dauntlessgeezer.com/DG110.html
http://dauntlessgeezer.com/DG110.html
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
Playswithbrass
- Posts: 141
- Joined: Sun Jan 06, 2019 8:35 pm
- First Name: Peter
- Last Name: McIntyre
- * REQUIRED* Type and Year of Model Ts owned: 1913 Speedster
- Location: Aylmer,Ontario
Re: Valve Stem Comparison
Larry have you given any thought to using balancing beads.
They do work as claimed.
Cheers Pete
They do work as claimed.
Cheers Pete
-
Original Smith
Topic author - Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Valve Stem Comparison
I have thought of using balancing beads, but don't know how. I really like the photo of the original Schrader valve stem comparison. I have never seen that one before. It is a real good piece to have.
