Pictures needed of 24 coupe inside bottom trim pieces

[Robert Lawson]

My 24 coupe didn’t have the bottom inside horizontal molding pieces of the quarter windows. I’ve tried for years to find them with no luck so would like some pictures and dimensions to try and make them. Would appreciate any help.

[Robert Lawson]

Ttt

[24tcoupe]

Are you looking for the metal or wood pieces? Send over a picture of where this piece of trim goes. Also is it for both sides?

Agreement.pdf

(348.87 KiB) Downloaded 180 times

[Robert Lawson]

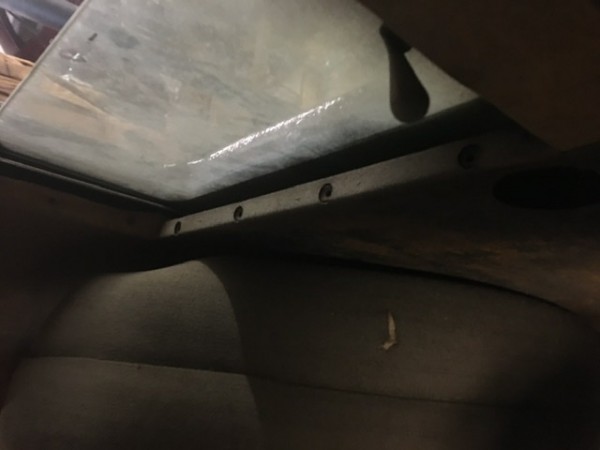

The metal pieces that go on both sides that cover this area.

[Rich Eagle]

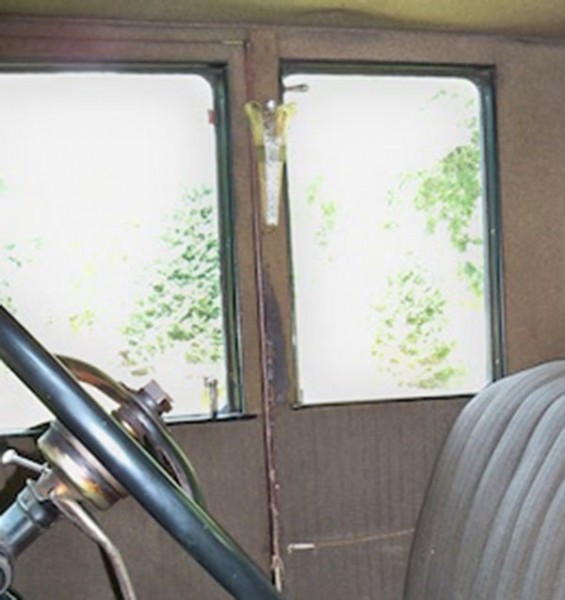

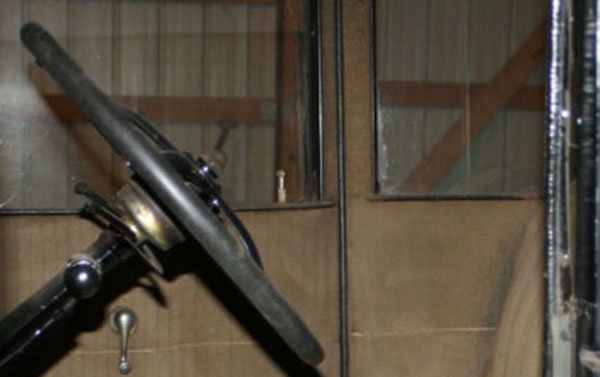

I will look for better photos but here are these for now.
Rich


Apologies to those I stole them from.

[Rich Eagle]

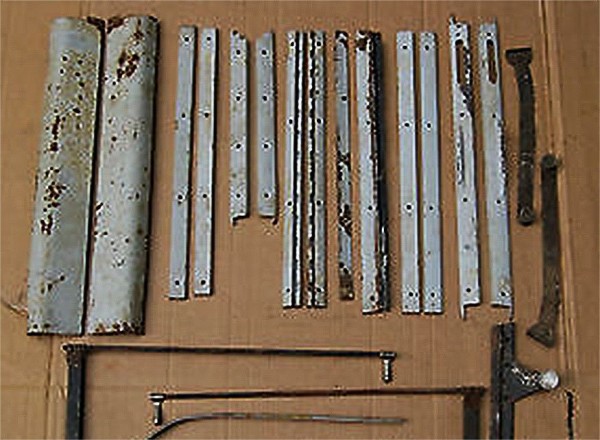

This shows them a bit better.

From:
http://www.vintagecartruckpartsshop.com ... -1923.html
I don't see that add there but that is where the picture came from.

[Robert Lawson]

Do you have any clearer pictures?

[24tcoupe]

So you just need the bottom metal pieces? I'll take a look and see what I have.

[Rich Eagle]

I don't have better photos. I went out to the garage but apparently don't have any of those.

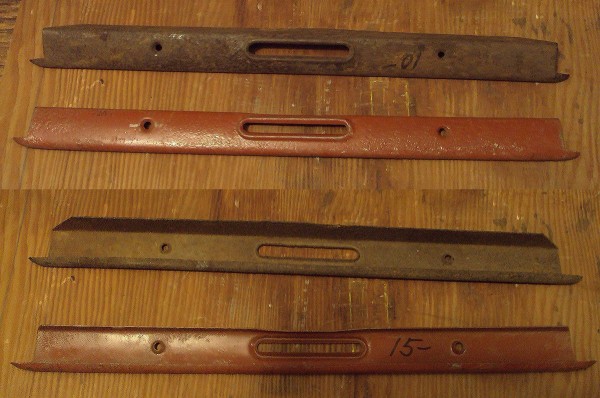

These are earlier ones '20 or so. There may be similarities.

[Robert Lawson]

Thanks for the help.

[John kuehn]

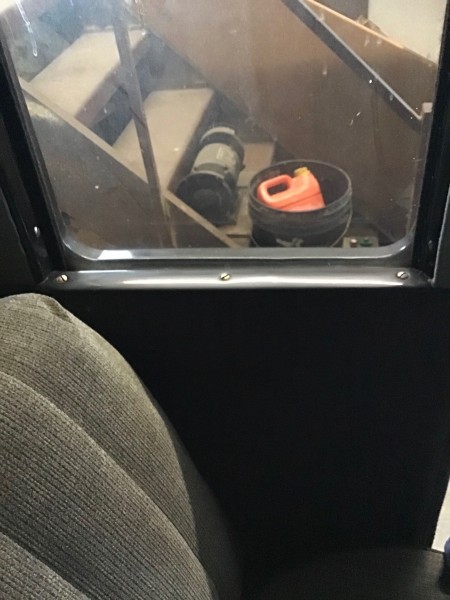

Here is a pic of the inside lower trim piece in my 24 Coupe. It has to be installed first and then the side and top pieces. You might could squeeze it in but it would scratch the paint.
You can see that it has 3 screws for attachment.
There is a post in the classifieds selling Coupe body parts. Maybe he has some interior trim pieces. These don’t show up to often. There is no reproduction interior closed car trim being made. Good luck.

[Robert Lawson]

Thanks for the picture. I figured the piece had four holes because the piece it mounted to had 4 holes.

[Rich Eagle]

The bodies did some evolving through '24 and '25. It may be that the number of screws to hold that piece was a mid year change or a difference with suppliers. The 3rd photo I posted shows 4 holes as does your car.
FWIW Ford called that piece a Strip (Quarter Garnish Finish) and listed a R. H. and a L. H. 17390X and 17391X 1924-25. I can't tell you what the difference would be.
