Making a wide-track rear axle

Post by ChrisB » Thu Jan 09, 2020 3:19 pm

They are not available from the vendors any more due to demand.

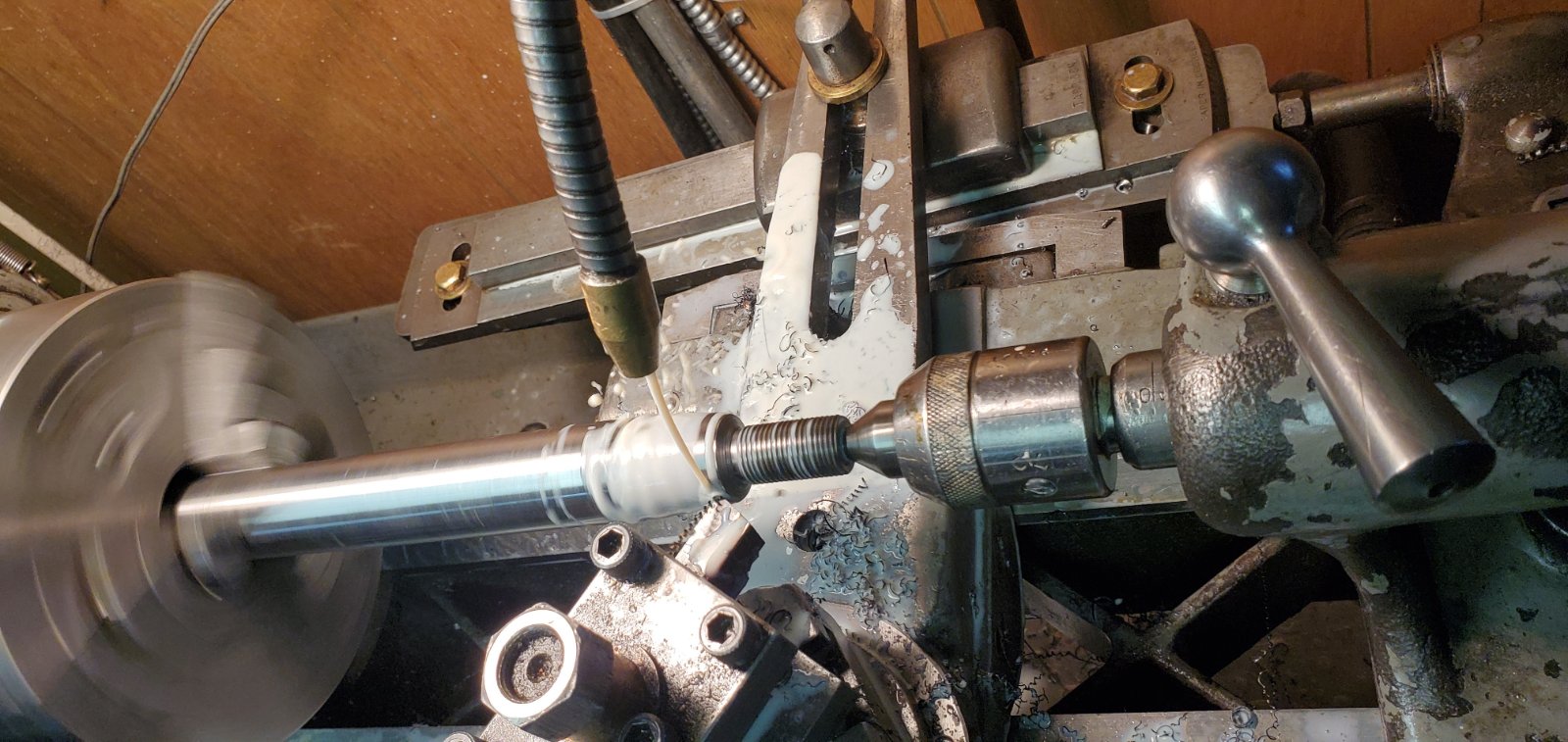

We (mainly Glen) did the work on a South Bend 10" lathe. Have the thread, taper and keyway done.

Notice taper attachment behind lathe bed.
Attachments
Chris Brancaccio
MTFCA Webmaster
MTFCA Forum Admin

User avatar

Topic author
ChrisB
Posts: 230
Joined: Thu Jan 03, 2019 1:38 pm
First Name: Chris
Last Name: Brancaccio
Location: Calgary AB
MTFCA Number: 443
MTFCA Life Member: YES
MTFCI Number: 23136
Board Member Since: 2005
Contact:

Re: Making a wide-track rear axle

Post by ChrisB » Thu Jan 09, 2020 3:25 pm

Better picture of the taper attachment.
Attachments
Chris Brancaccio
MTFCA Webmaster
MTFCA Forum Admin

User avatar

Topic author
ChrisB
Posts: 230
Joined: Thu Jan 03, 2019 1:38 pm
First Name: Chris
Last Name: Brancaccio
Location: Calgary AB
MTFCA Number: 443
MTFCA Life Member: YES
MTFCI Number: 23136
Board Member Since: 2005
Contact:

Re: Making a wide-track rear axle

Post by ChrisB » Thu Jan 09, 2020 3:38 pm

We started with a 1 1/8 inch shaft, heat treated 4140, 36 inches long.

A short video:

https://www.youtube.com/watch?v=wAnpF6EmXlc
Chris Brancaccio
MTFCA Webmaster
MTFCA Forum Admin

User avatar

Quickm007
Posts: 609
Joined: Mon Jan 07, 2019 10:58 am
First Name: Mario
Last Name: Brossard
Location: Canada
MTFCA Number: 30981
MTFCI Number: 30981
Board Member Since: 1999

Re: Making a wide-track rear axle

Post by Quickm007 » Thu Jan 09, 2020 7:20 pm

Nice Job Gentlemen.
Super Mario Bross ;)

1911 Touring
1914 race car project

User avatar

John E. Guitar
Posts: 279
Joined: Sun Jan 06, 2019 2:52 pm
First Name: John
Last Name: Guitar
Location: Sydney
Board Member Since: 2012

Re: Making a wide-track rear axle

Post by John E. Guitar » Thu Jan 09, 2020 8:25 pm

Looks good!

Is this going into a speedster?


Philip
Posts: 132
Joined: Sun Jan 06, 2019 12:09 pm
First Name: Philip
Last Name: Thompson
Location: Graham NC

Re: Making a wide-track rear axle

Post by Philip » Thu Jan 09, 2020 8:45 pm

What Rockwell is the stock you are using and where did you get it?. Philip

User avatar

John Warren
Posts: 780
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Making a wide-track rear axle

Post by John Warren » Thu Jan 09, 2020 9:09 pm

I think I have a set of wide track axles. The gears are made on the axles
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P
