Been a few years since i put one on
Anyone running one are these clockwise or counter clockwise for the mag have one of each dont wanna send wrong mag in as im waiting on DMC gear set
Bob
Columbo cross drive
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Dropacent
- Posts: 3384
- Joined: Sun Jan 06, 2019 11:39 am
- First Name: Tim
- Last Name: Morsher
- * REQUIRED* Type and Year of Model Ts owned: 1925TT, 1926 Martin-Parry bodied wagon, 1927 mercury bodied speedster
- Location: Norwalk Ohio
ROTATION Columbo cross drive

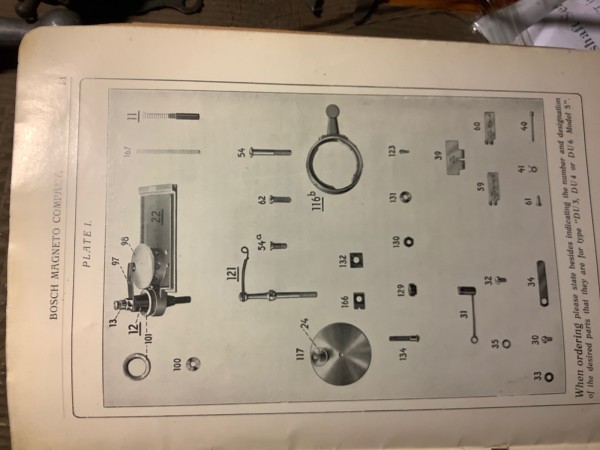

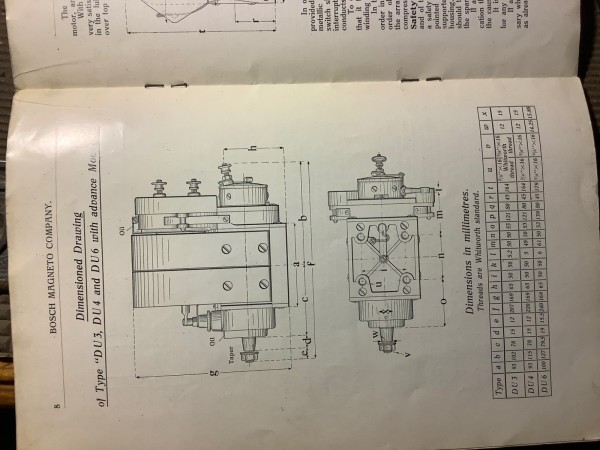

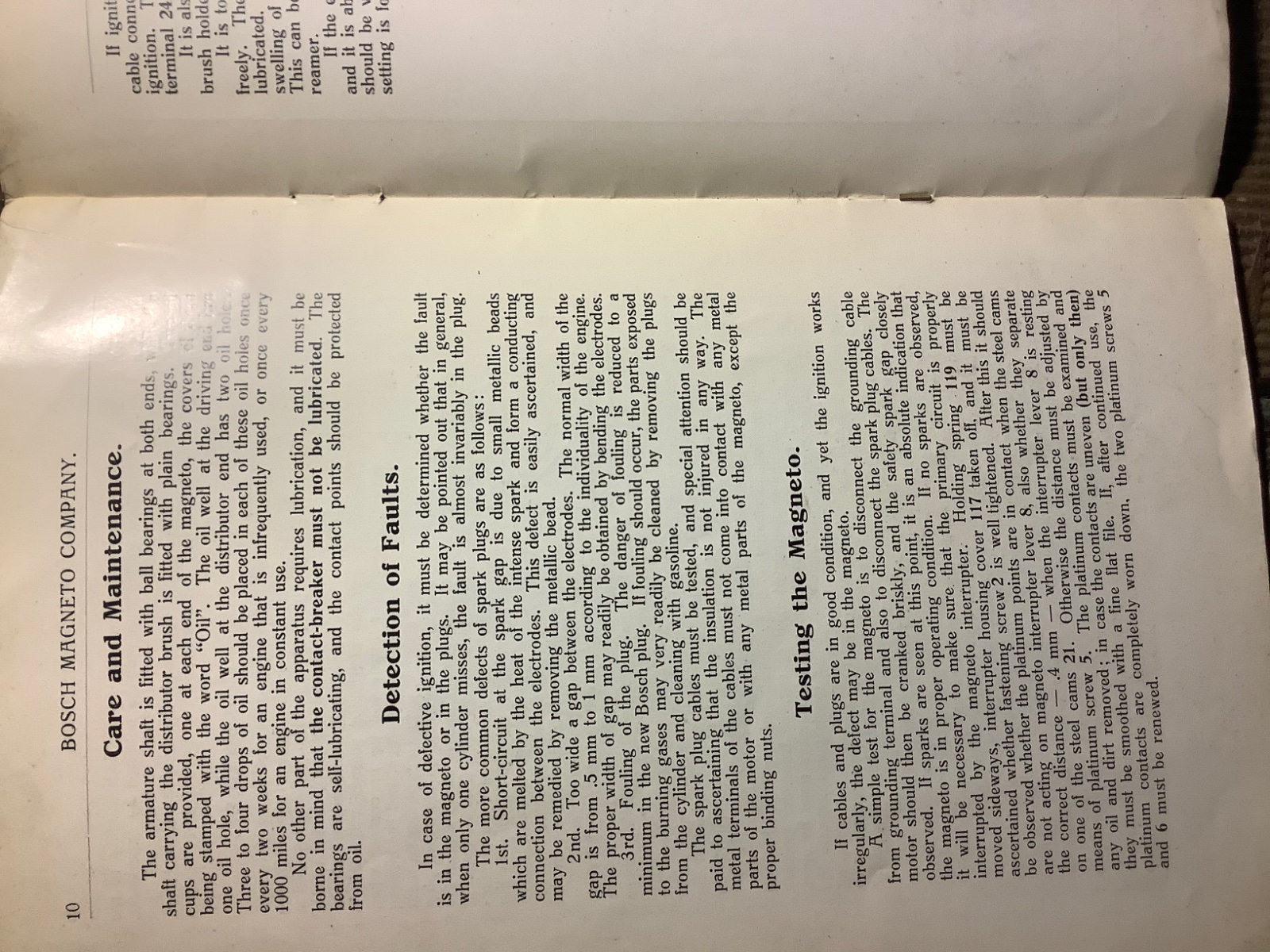

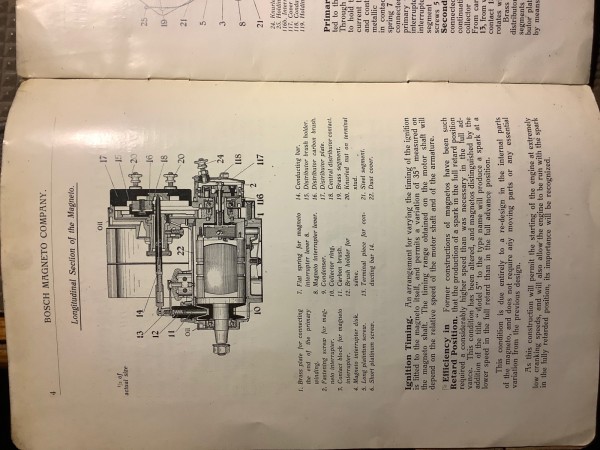

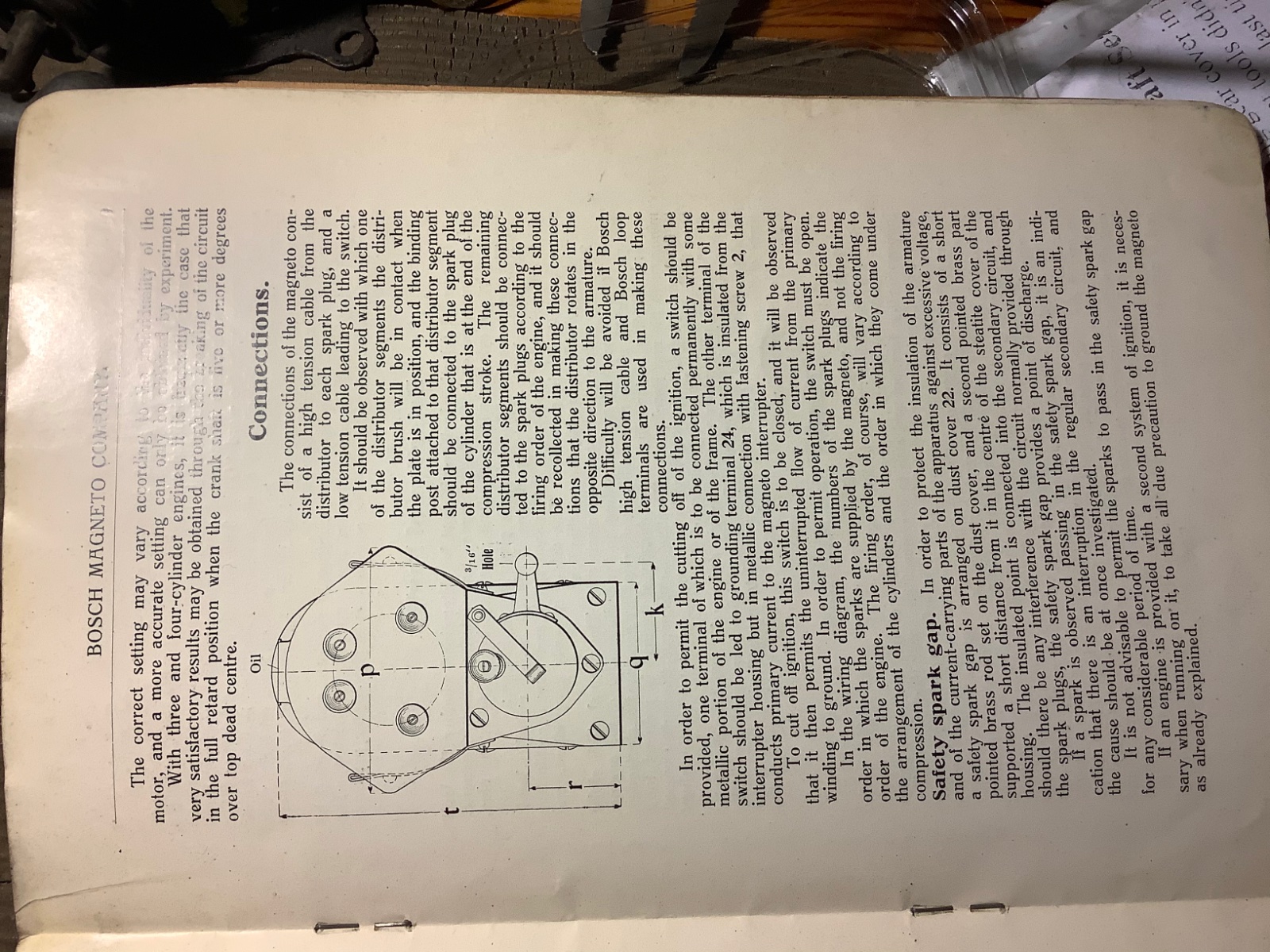

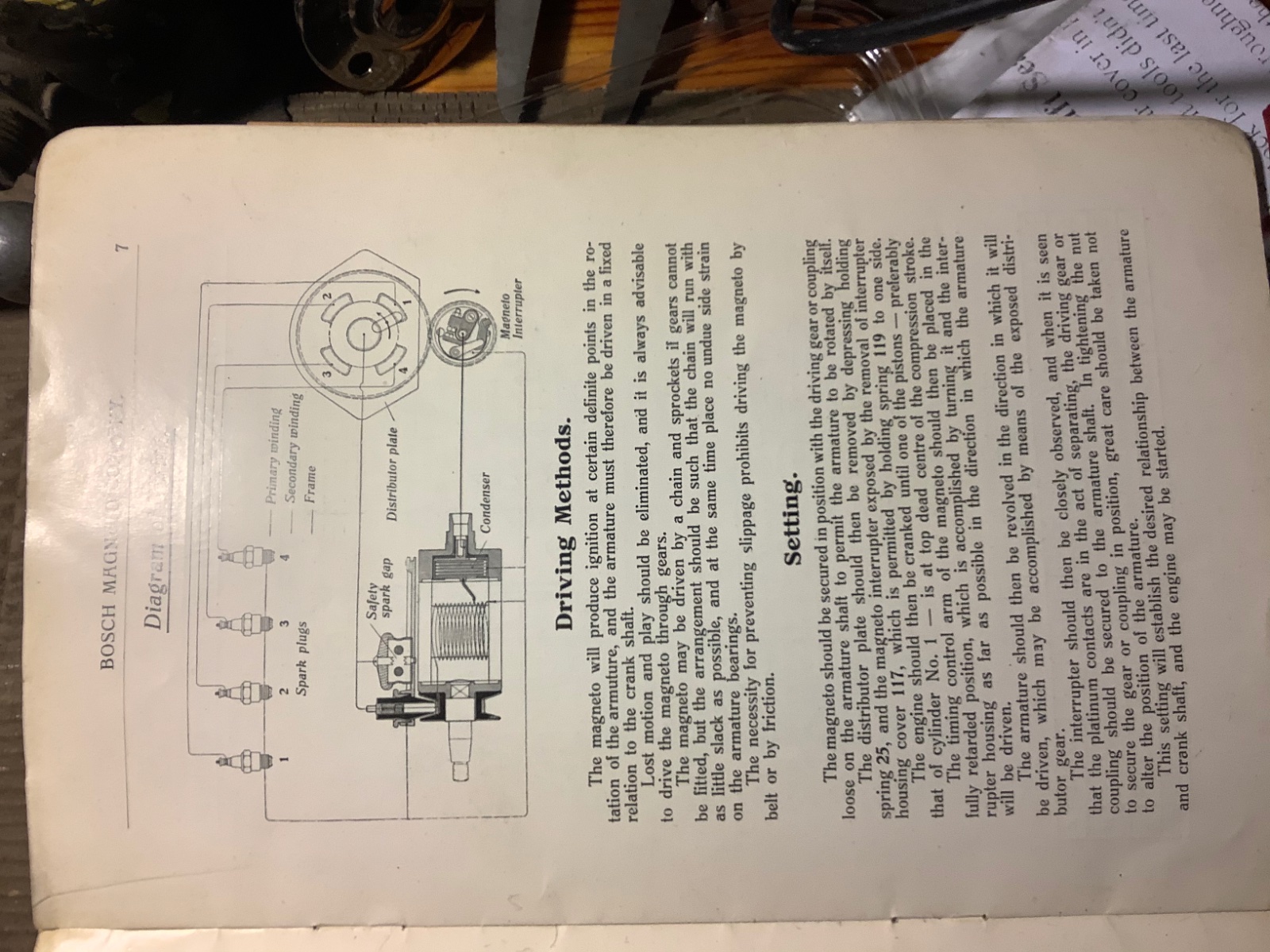

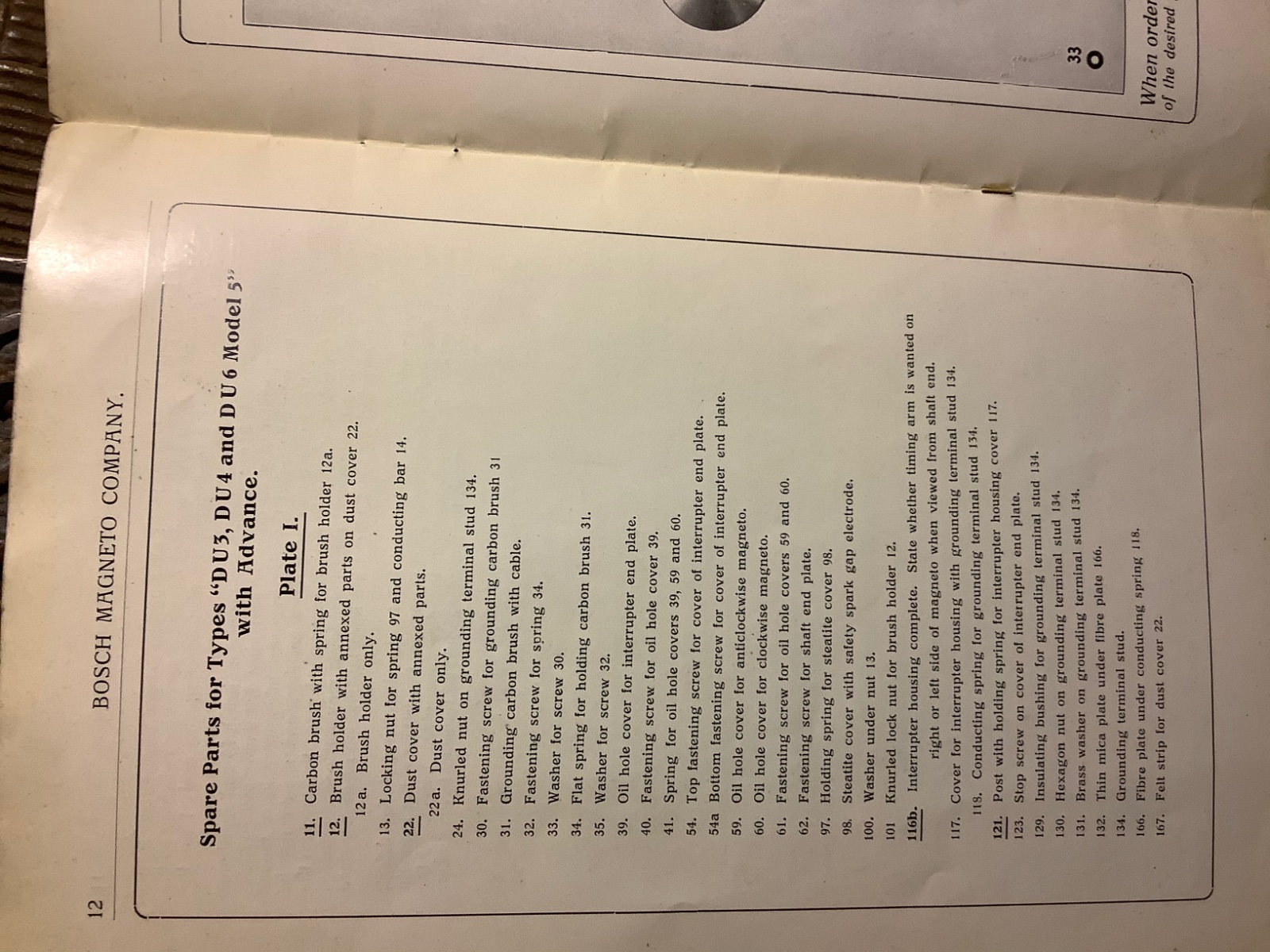

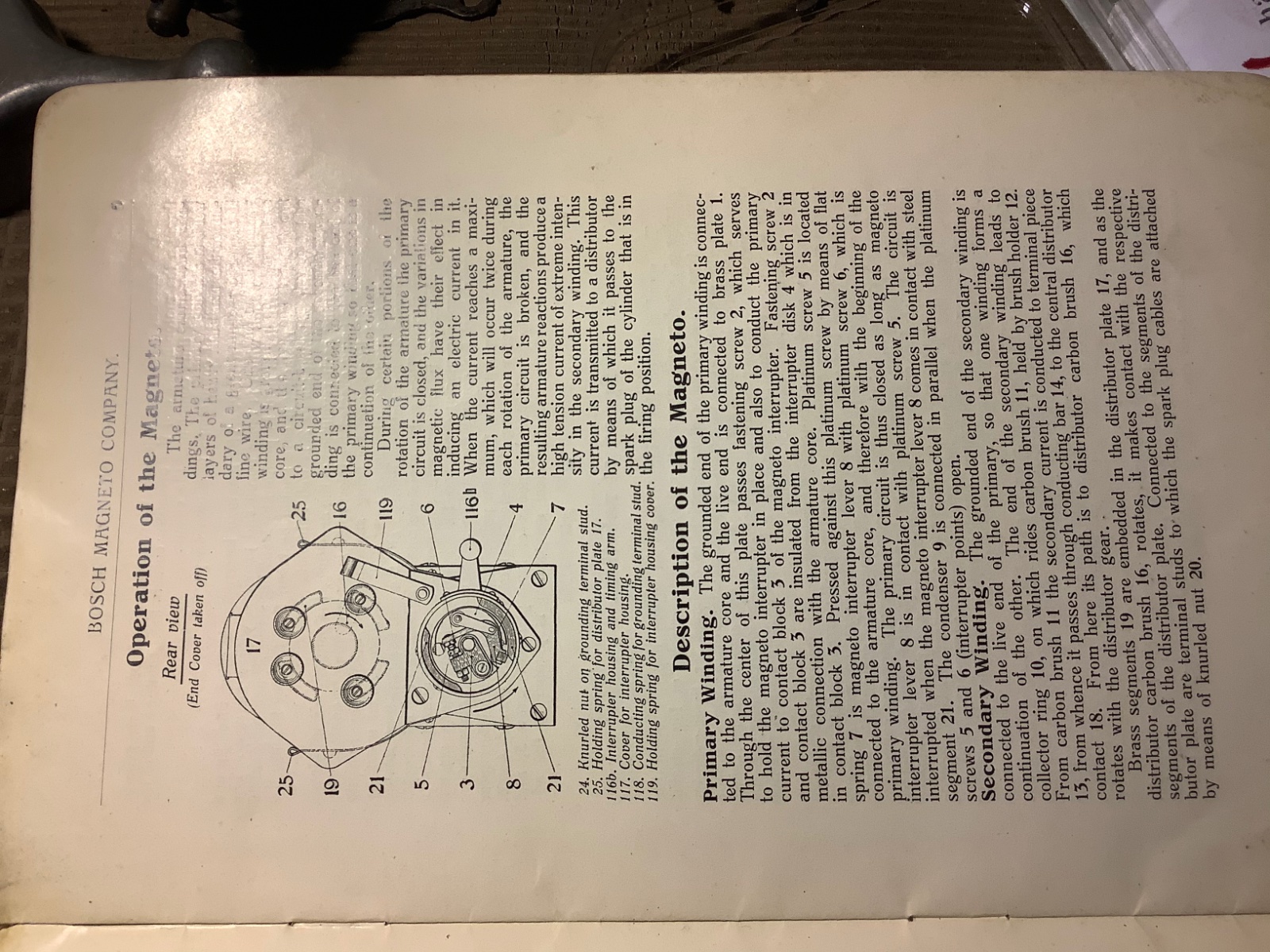

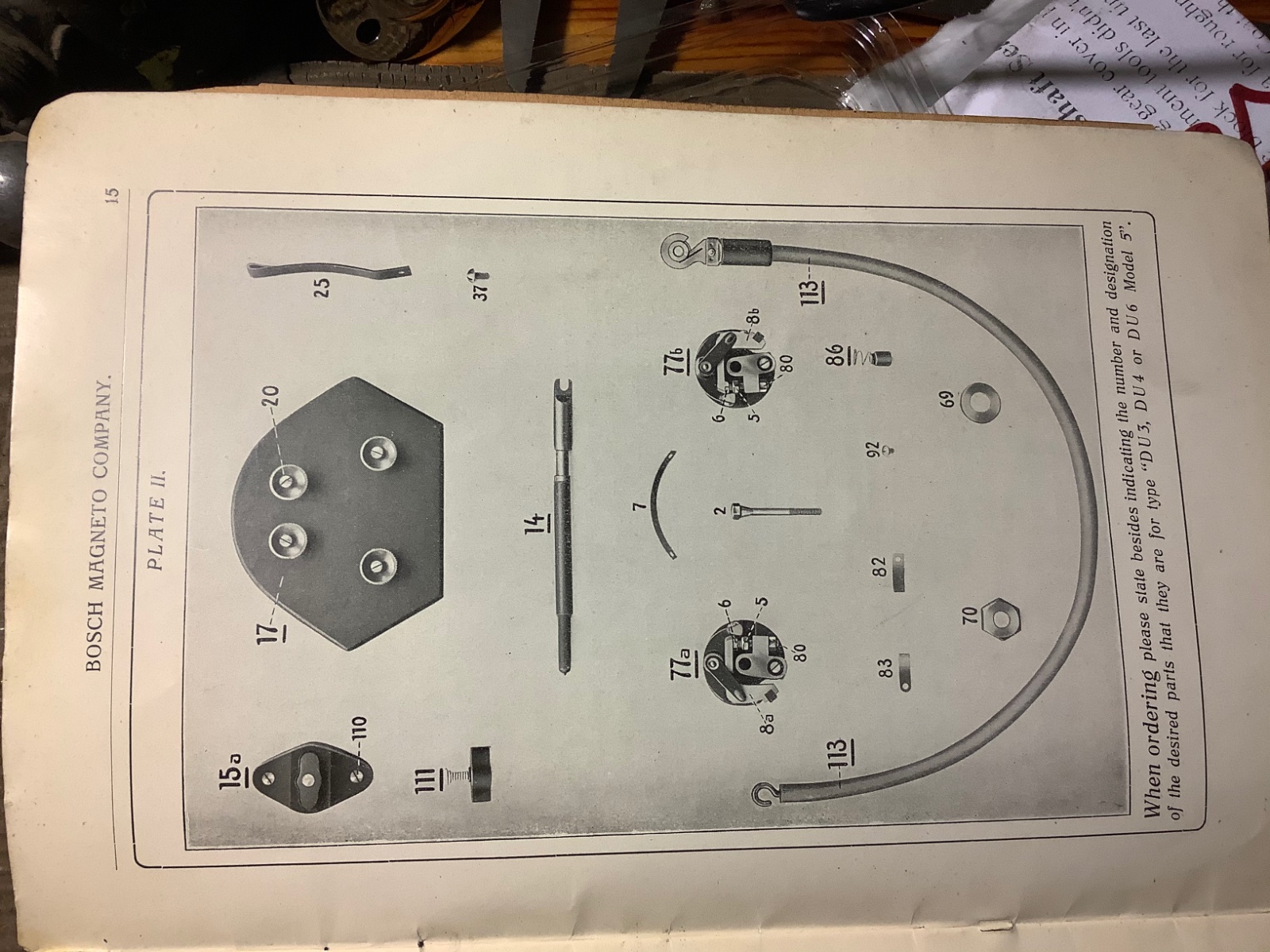

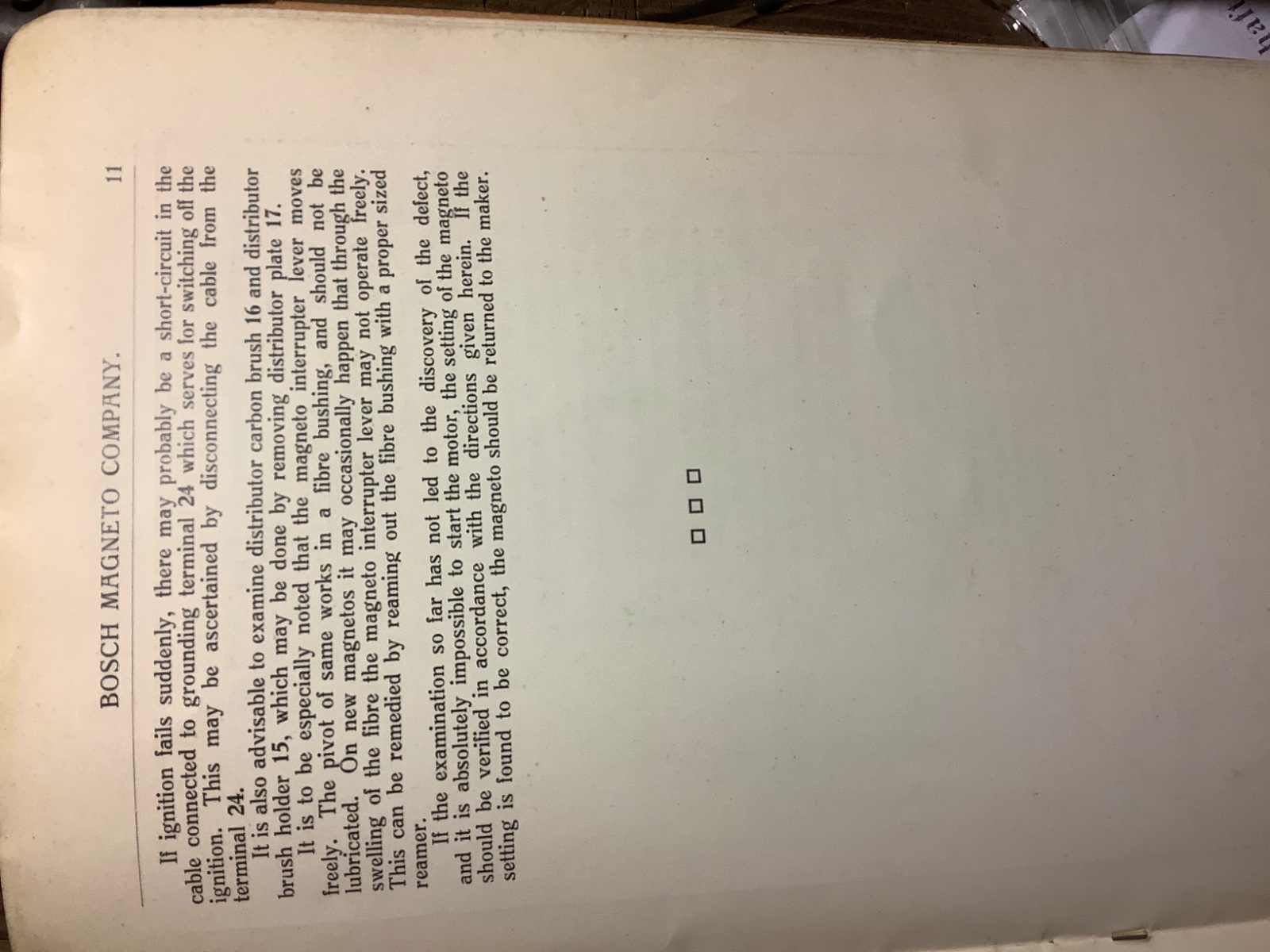

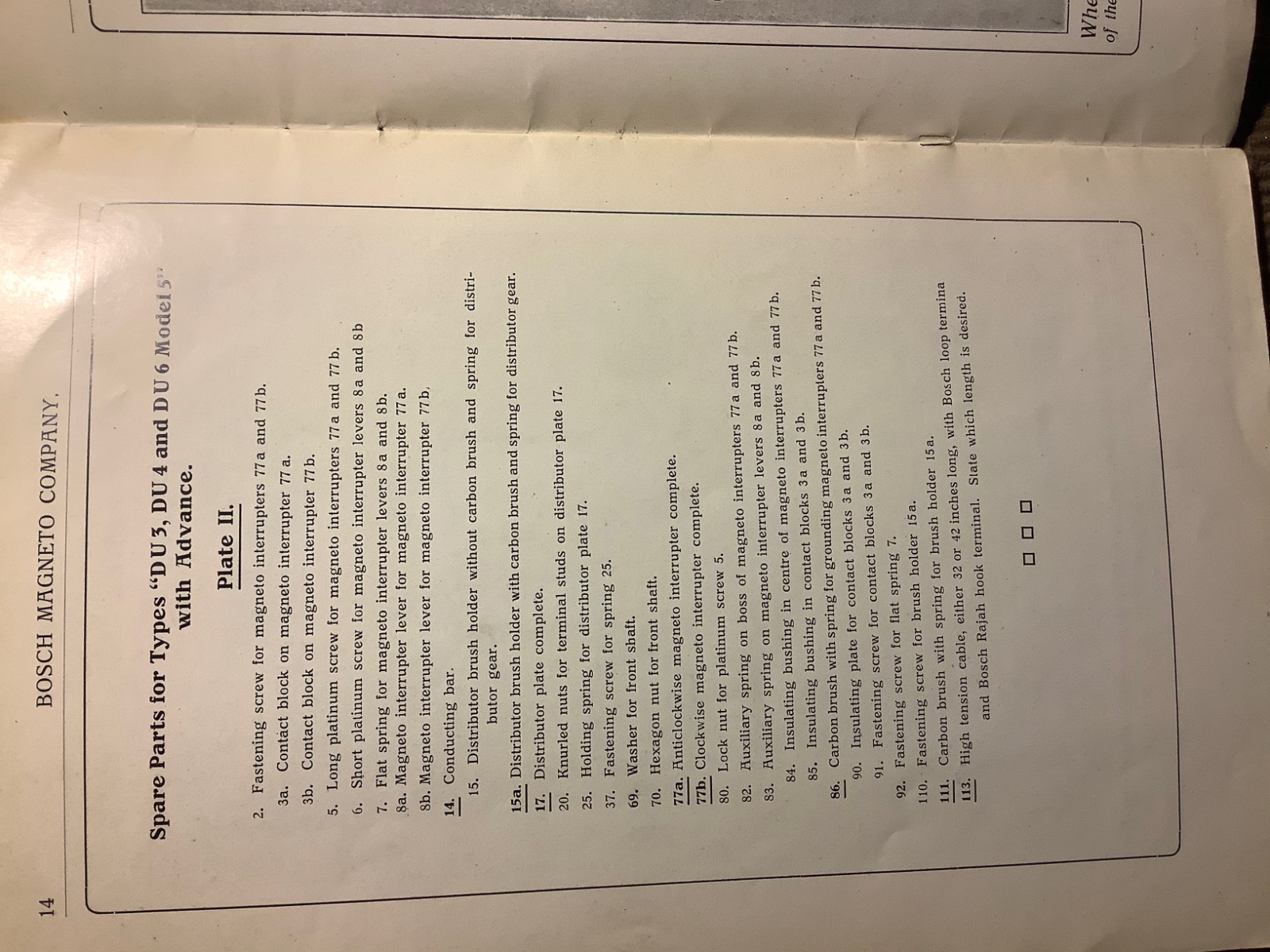

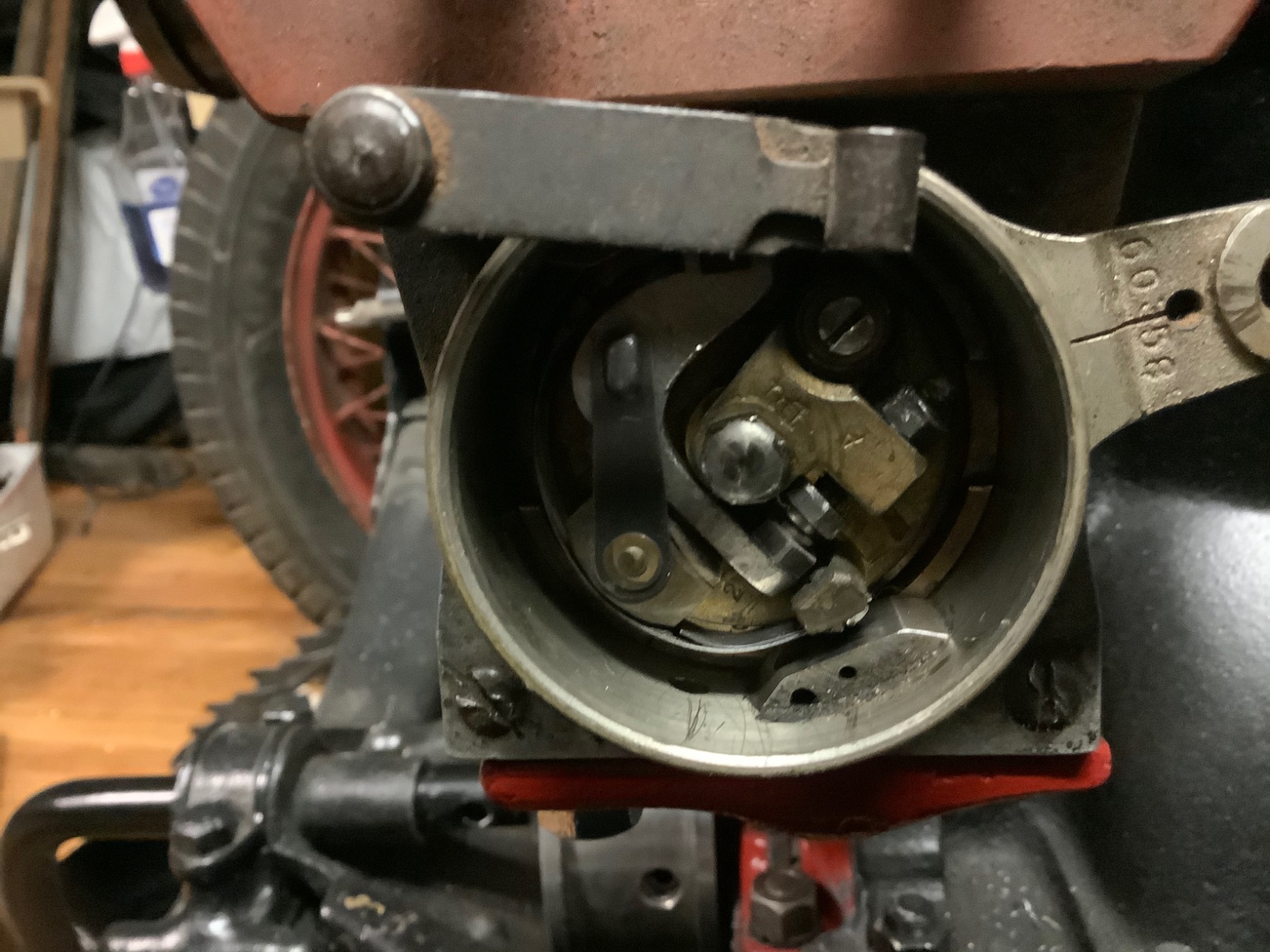

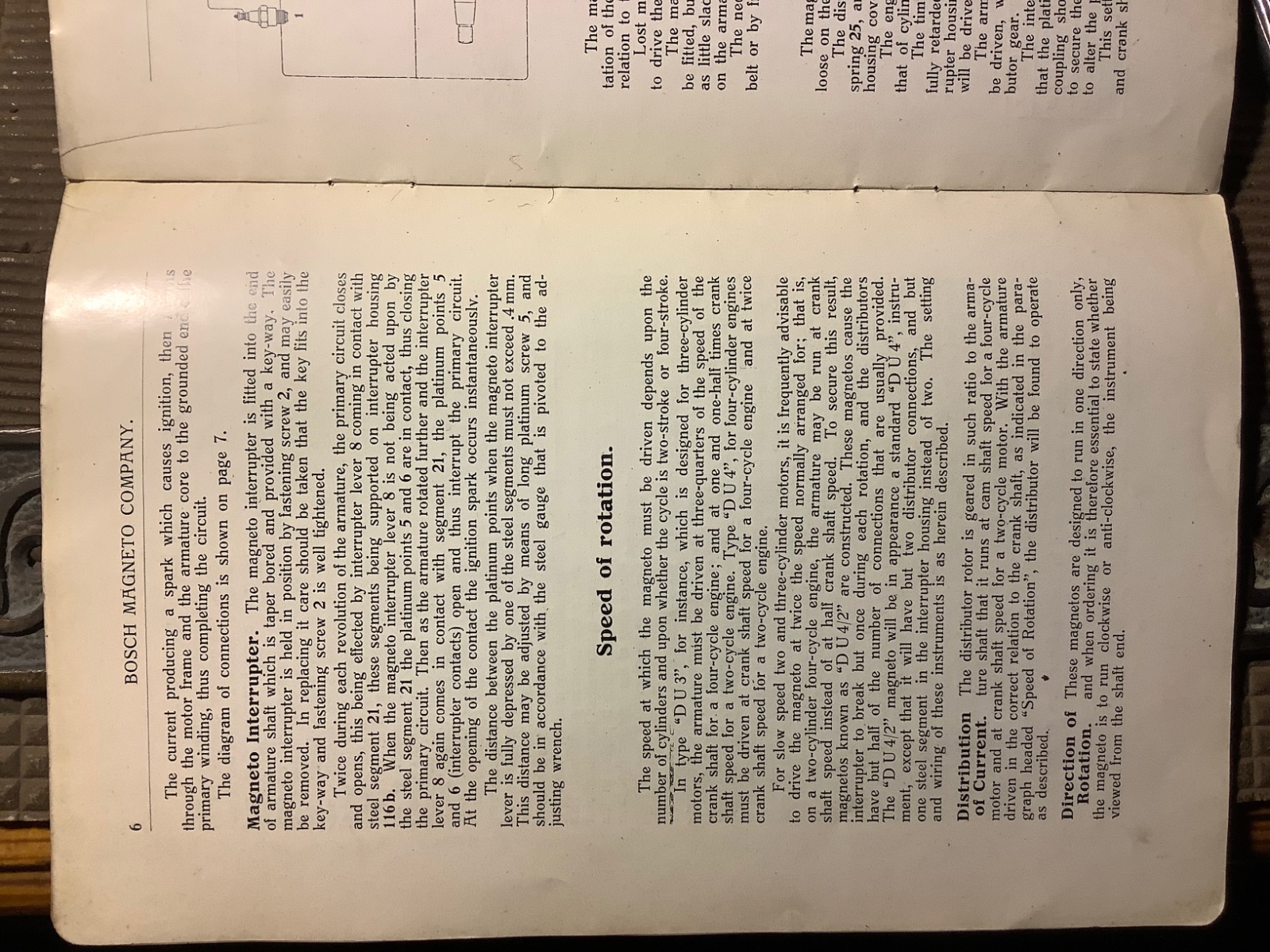

Bob, hope this helps. This is what the points set (Bosch) should look like for a crossdrive front magneto plate. I’d have to dig into it as to what it’s called, clockwise or anti-clockwise. The side drive ,that mounts on a shelf and attached where the generator would go uses the same rotation. The 3 gear side drive (splitdorf) uses the opposite rotation as shown.
-
Dropacent
- Posts: 3384
- Joined: Sun Jan 06, 2019 11:39 am
- First Name: Tim
- Last Name: Morsher
- * REQUIRED* Type and Year of Model Ts owned: 1925TT, 1926 Martin-Parry bodied wagon, 1927 mercury bodied speedster
- Location: Norwalk Ohio
Clockwise -Columbo cross drive
Getting my head wrapped around it again, it’s called a clockwise rotation. It’s important to remember this. The Bosch DU4 mag will revolve either way, but you need to have the correct interrupter plate ( points plate ) in place. The rest can easily be changed by moving the gears to time.
-
dobro1956
- Posts: 1413
- Joined: Sun Jan 06, 2019 10:13 pm
- First Name: Donnie
- Last Name: Brown
- * REQUIRED* Type and Year of Model Ts owned: 1927 Sport Touring, 1919 Speedster, 1914 Speedster, Wards tractor conversion, non starter 1926 Improved Touring
- Location: Hills of Arkansas
Re: Columbo cross drive
I'm currently installing a Columbo cross drive on the speedster project. If it will help I can look at the rotation of the Columbo output shaft tomorrow
One thing I noticed is the ball bearing thrust assembly is poorly designed. On my assembly there is no way to stop the assembly from rotating with the shaft. So the whole assembly just becomes a big thick thrust washer. Also there is no way for grease or oil to reach the ball bearings from the oil or grease cup depending on what style is on you unit. I just put grease in the ball bearings and used brass thrust washers between the ball bearing assembly and the casting. That way everything acts as a thrust washer. I'm going to use an oil cup with a felt wick on mine. As long as the end thrust is controlled almost anything should work. If you have not already taken the shaft and ball bearing assembly apart. Be careful and do not lose a ball bearing. Do not ask how I know this.
. I have another set of new ball bearings if you need any. I had to buy 50 of the little buggers...
One thing I noticed is the ball bearing thrust assembly is poorly designed. On my assembly there is no way to stop the assembly from rotating with the shaft. So the whole assembly just becomes a big thick thrust washer. Also there is no way for grease or oil to reach the ball bearings from the oil or grease cup depending on what style is on you unit. I just put grease in the ball bearings and used brass thrust washers between the ball bearing assembly and the casting. That way everything acts as a thrust washer. I'm going to use an oil cup with a felt wick on mine. As long as the end thrust is controlled almost anything should work. If you have not already taken the shaft and ball bearing assembly apart. Be careful and do not lose a ball bearing. Do not ask how I know this.
. I have another set of new ball bearings if you need any. I had to buy 50 of the little buggers...
