Model T Racing/Speedster Engine *SOLD*

Post parts wanted or for sale here
Post Reply Previous topicNext topic

Topic author
jakeknapp29
Posts: 11
Joined: Thu Jan 31, 2019 7:18 pm
First Name: Jake
Last Name: Knapp
* REQUIRED* Type and Year of Model Ts owned: 1927 Speedster
Location: Indiana

Model T Racing/Speedster Engine *SOLD*

Post by jakeknapp29 » Sat Mar 11, 2023 3:48 pm

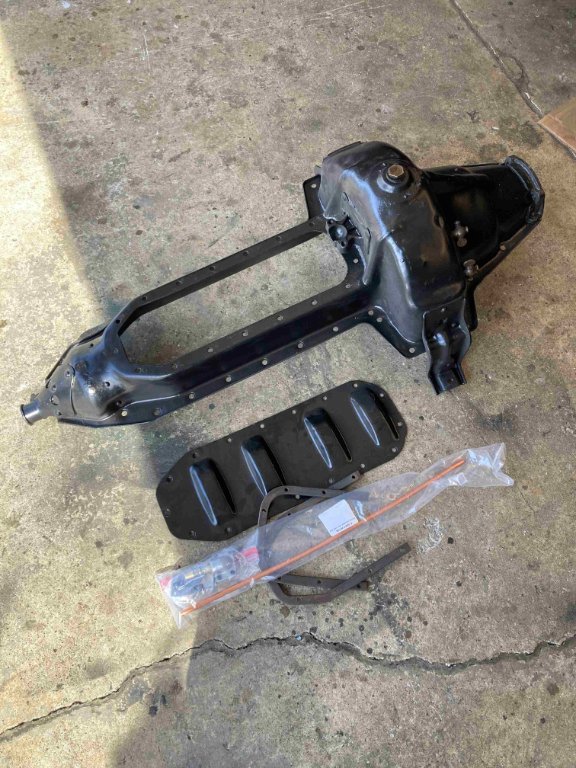

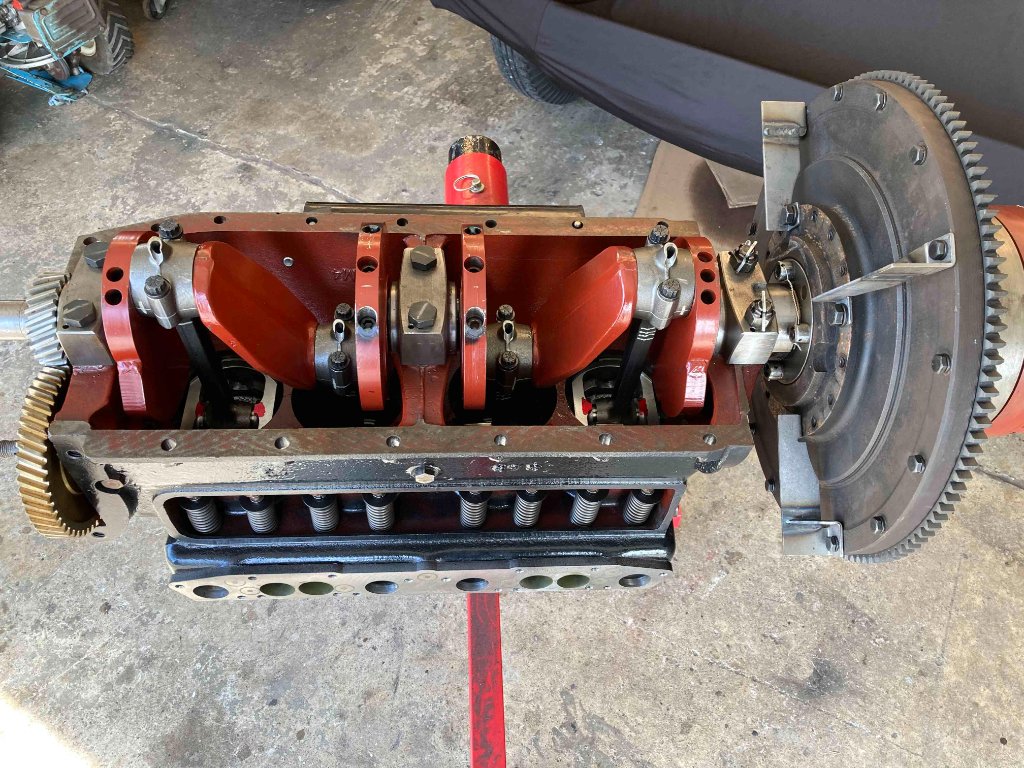

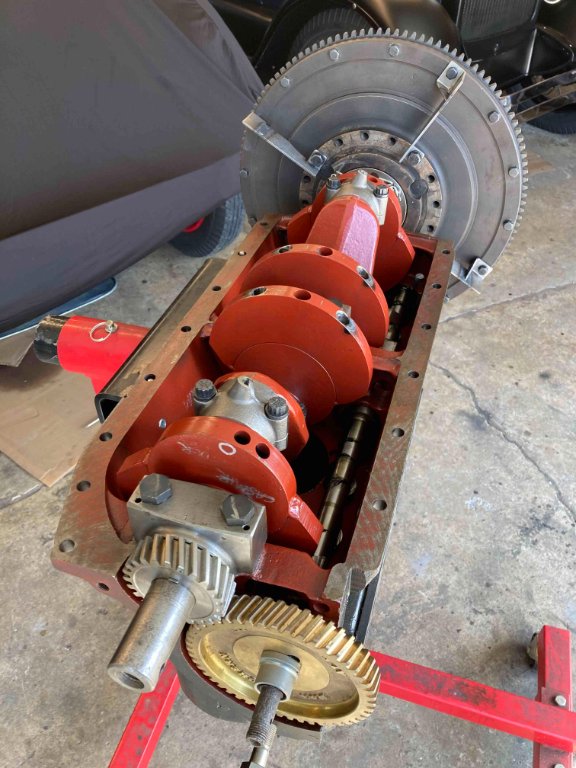

I am selling my T racing engine that I was building for a speedster/hill climber. Unfortunately I will not be able to finish my project. This is a 26/27 block with all the work done. Insert main bearings and rod bearings. Model A counterbalanced crankshaft and Model A camshaft. Bored out with Buick pistons installed. Hard valve seats. 1.7" intakes, 1.6" Exhaust. Adjustable lifters. As you can see, intake ports were divided so that each cylinder has its own intake port. Intake ports have been molded and shaped with a special epoxy (common practice in drag racing engines). I have flanges that bolt to the block for building intake manifold and exhaust header. Rebuilt transmission with kevlar lined bands. Dan McEahern timing gear. Billet main caps. Aluminum head clearanced for the big valves and new solid copper head gasket. Hogs head and four dipper pan with external oiler kit. Pretty cool set up. I know its a lot but do some research and see what it costs to build just a regular T engine. Lots invested in this thing. Asking $5000 OBO. I need to get it out of the shop.
Attachments
Last edited by jakeknapp29 on Wed Mar 15, 2023 7:30 am, edited 1 time in total.
Top

Topic author
jakeknapp29
Posts: 11
Joined: Thu Jan 31, 2019 7:18 pm
First Name: Jake
Last Name: Knapp
* REQUIRED* Type and Year of Model Ts owned: 1927 Speedster
Location: Indiana

Re: Model T Racing/Speedster Engine

Post by jakeknapp29 » Sat Mar 11, 2023 3:51 pm

More Pictures
Attachments
Top
User avatar

Mark Chaffin
Posts: 4343
Joined: Sat Jan 12, 2019 12:11 pm
First Name: Mark
Last Name: Chaffin
* REQUIRED* Type and Year of Model Ts owned: 1911 Speedster, 1927 Lake Roadster
Location: Lake Elsinore
Board Member Since: 2001

Re: Model T Racing/Speedster Engine

Post by Mark Chaffin » Sat Mar 11, 2023 6:05 pm

That cylinder head is a super hard piece to find. Don't believe those are available any longer.
Top

Joe Bell
Posts: 1174
Joined: Thu Feb 21, 2019 1:20 pm
First Name: Joe
Last Name: Bell
* REQUIRED* Type and Year of Model Ts owned: 24 Fordor
Location: Tiffin Ohio

Re: Model T Racing/Speedster Engine

Post by Joe Bell » Sat Mar 11, 2023 7:23 pm

I thought the same thing on the head!
Top

Topic author
jakeknapp29
Posts: 11
Joined: Thu Jan 31, 2019 7:18 pm
First Name: Jake
Last Name: Knapp
* REQUIRED* Type and Year of Model Ts owned: 1927 Speedster
Location: Indiana

Re: Model T Racing/Speedster Engine

Post by jakeknapp29 » Sat Mar 11, 2023 8:16 pm

Looks like I've got it sold. Have a person coming tomorrow to check it out/most likely buy it. I will bump back to the top if the deal falls through.
Thanks!
Top
User avatar

henryford2
Posts: 811
Joined: Sun Jan 06, 2019 4:14 pm
First Name: Joseph
Last Name: Andulics
* REQUIRED* Type and Year of Model Ts owned: 1926 Fordor, 1926 Truck, 1927 Roadster GOW, RAJO Sprint car
Location: North Ridgeville, OH
Contact:
Contact henryford2

Re: Model T Racing/Speedster Engine

Post by henryford2 » Sat Mar 11, 2023 9:39 pm

Lot of engine for splash oiling, or am I missing something? Otherwise looks awesome. Just my humble opinion
Top
User avatar

David Greenlees
Posts: 169
Joined: Wed Feb 02, 2022 1:18 pm
First Name: David
Last Name: Greenlees
* REQUIRED* Type and Year of Model Ts owned: 1913 Model T racing car, 1924 Model T Depot Hack with original York #803 body.
Location: Guilford, VT
Contact:
Contact David Greenlees

Re: Model T Racing/Speedster Engine

Post by David Greenlees » Sun Mar 12, 2023 11:33 am

Mark Chaffin wrote: ↑
Sat Mar 11, 2023 6:05 pm
 That cylinder head is a super hard piece to find. Don't believe those are available any longer.
Mark, Do you know the name of the person or company that cast and machined this head?
Top
User avatar

Mark Chaffin
Posts: 4343
Joined: Sat Jan 12, 2019 12:11 pm
First Name: Mark
Last Name: Chaffin
* REQUIRED* Type and Year of Model Ts owned: 1911 Speedster, 1927 Lake Roadster
Location: Lake Elsinore
Board Member Since: 2001

Re: Model T Racing/Speedster Engine

Post by Mark Chaffin » Sun Mar 12, 2023 12:41 pm

No sir. Been many years ago.
Top
User avatar

Mark Chaffin
Posts: 4343
Joined: Sat Jan 12, 2019 12:11 pm
First Name: Mark
Last Name: Chaffin
* REQUIRED* Type and Year of Model Ts owned: 1911 Speedster, 1927 Lake Roadster
Location: Lake Elsinore
Board Member Since: 2001

Re: Model T Racing/Speedster Engine

Post by Mark Chaffin » Sun Mar 12, 2023 12:43 pm

I do know who currently has the patterns and I am trying to aquire them.
Top

Dan Hatch
Posts: 5018
Joined: Tue Jan 08, 2019 7:31 pm
First Name: Dan
Last Name: Hatch
Location: Alabama

Re: Model T Racing/Speedster Engine

Post by Dan Hatch » Sun Mar 12, 2023 2:21 pm

Which Buick pistons are those? Thanks Dan
