Hayes rim

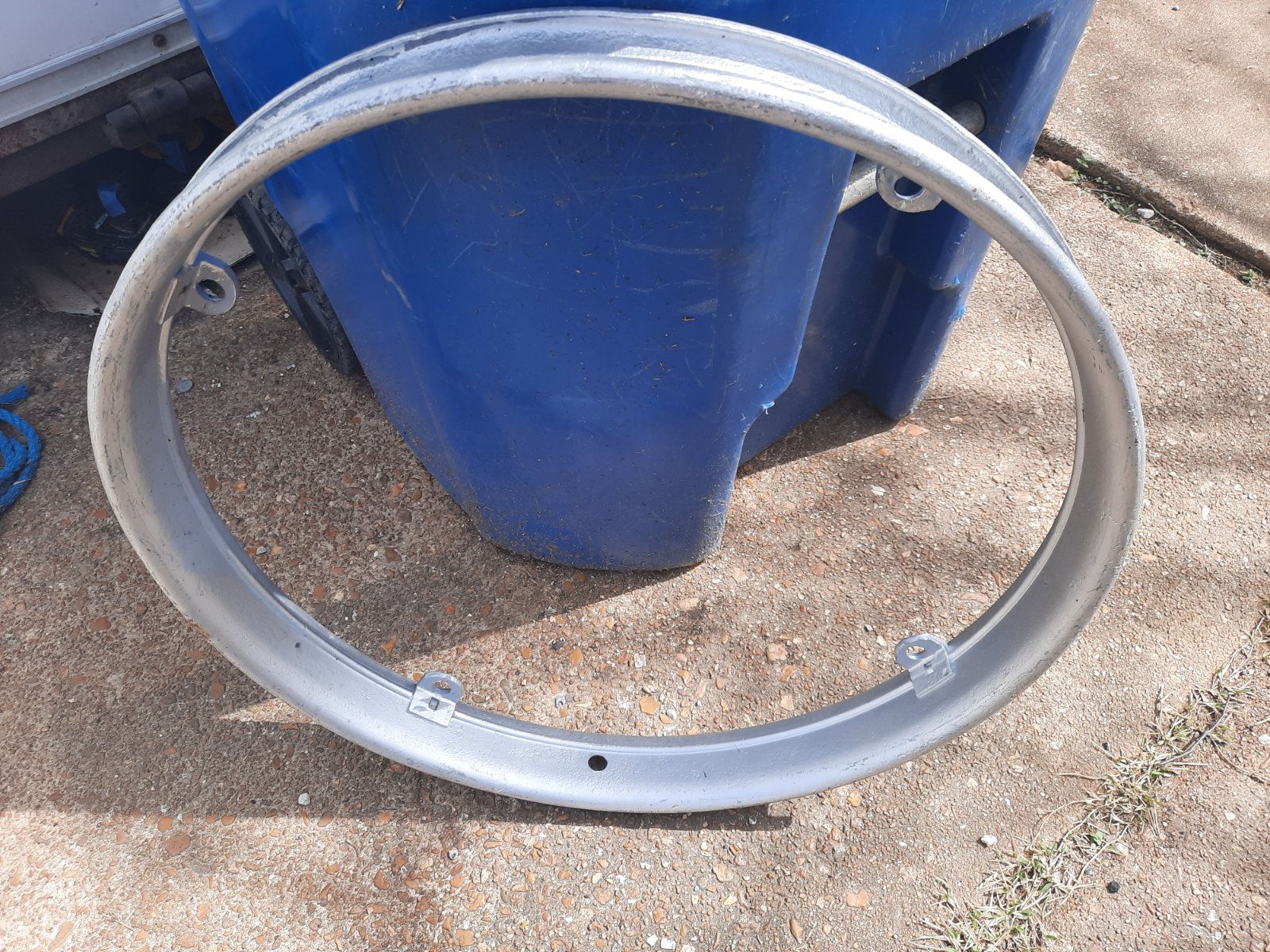

For sale: Hayes rim $100 plus shipping
-
wmscottsutherland
- Posts: 45
- Joined: Sat Oct 15, 2022 10:21 am
- First Name: Scott
- Last Name: Sutherland
- Location: Cheyenne WY
Re: Hayes rim
what size is it? Didn't the make two?
-
Allan
- Posts: 7112
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Hayes rim

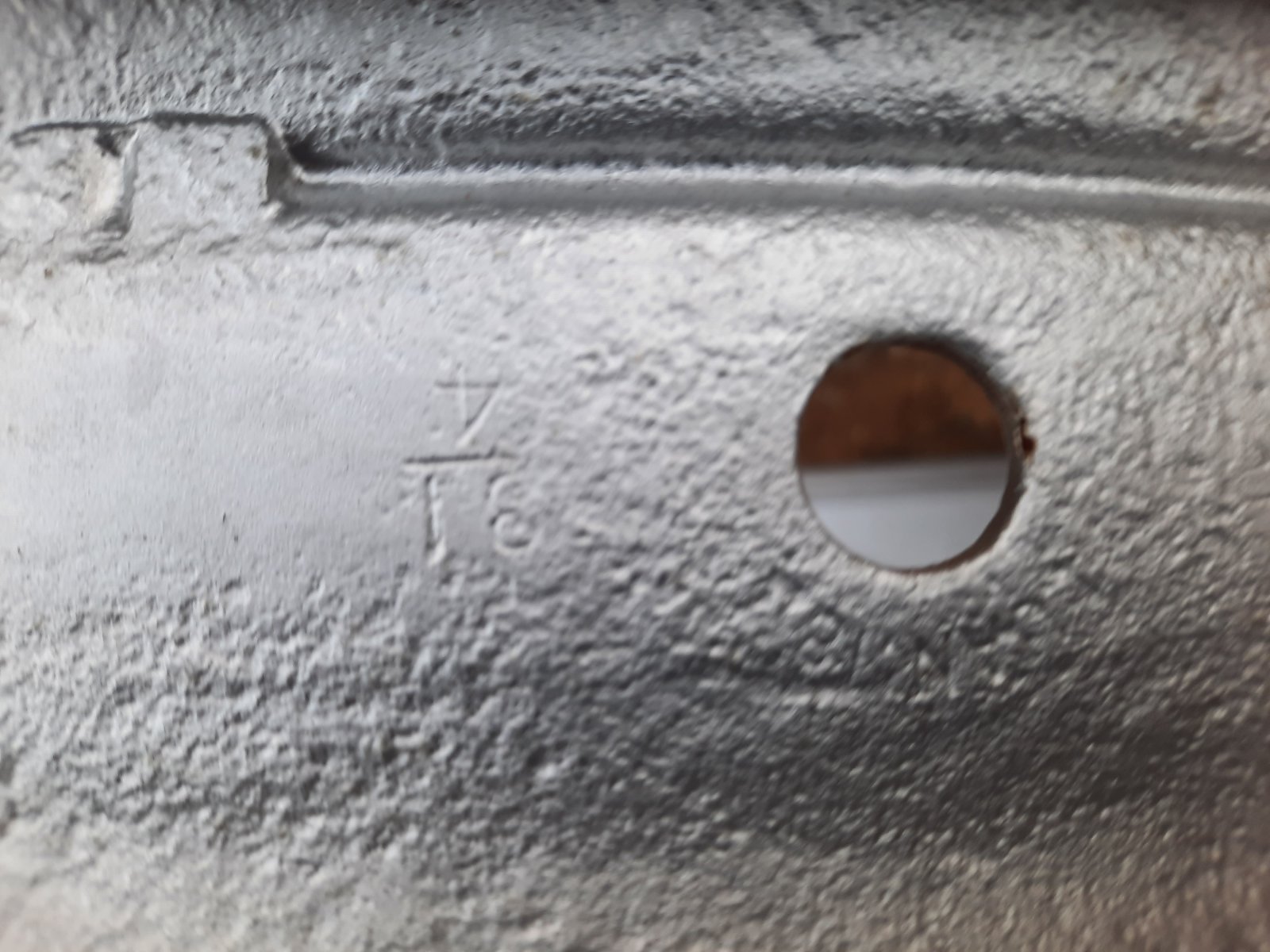

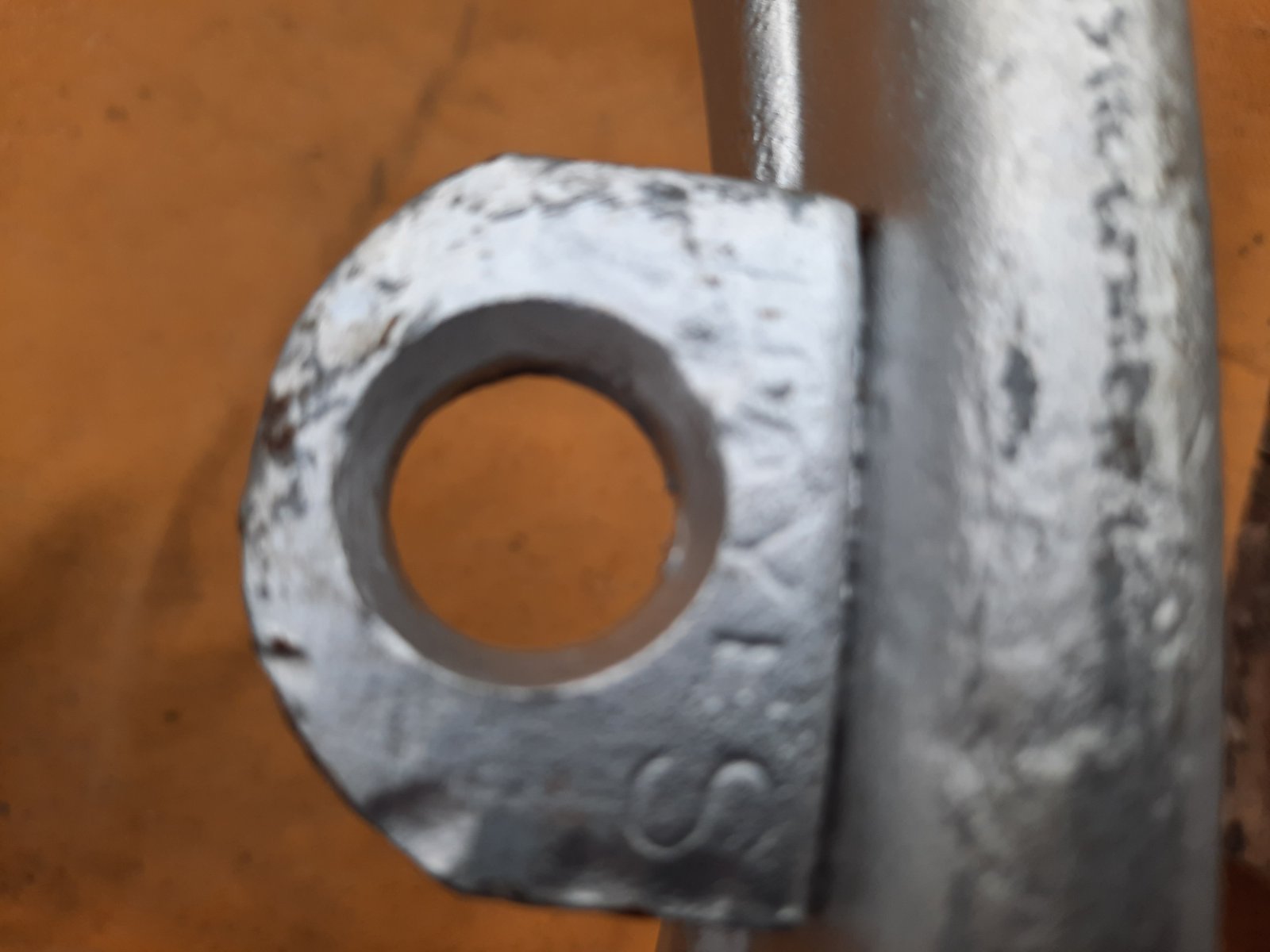

The 31 over 4 stamped by the valve stem hole translates to a 23" rim. There were many similar Hayes rims for Chevs, but these have the valve stem hole in a different place and the lug nearest the stem hole was slotted to enable the rim to be fitted on the wheel. This one looks like a Ford style rim to me, just like the ones on my Hayes wire wheels fitted to my 1912 van and 1925 roadster.
Allan from down under.
