Disc drum question
Is the disc drum used with the 3 washers different that the one used with the flange bushing? I am working on a 27 and need to replace the disc drum. I have about half a dozen spares and they all look the same, even the one that came out of a 1912 transmission.
-
Dan McEachern
- Posts: 1400
- Joined: Sun Jan 06, 2019 11:08 am
- First Name: DAN
- Last Name: MCEACHERN
- * REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
- Location: ALAMEDA,CA,USA
Re: Disc drum question
Yes there is a difference. it is not really well documented, but the difference is between the thrust surface and the centerline of the lock screw. I'll check at the shop, but I recall the one without the Ford script is the early version. RV Anderson originally posted this info 3-4 years ago if I recall, quoting a brief entry in a service bulletin from round 1921.
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Disc drum question
From what I picked up; that the early one has several holes around it, the later style has just two. (the holes you would use for pulling it)
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
RGould1910
Topic author - Posts: 1128
- Joined: Tue Jan 22, 2019 8:16 am
- First Name: Richard
- Last Name: Gould
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1912 roadster , 1927 roadster
- Location: Folsom, CA
Re: Disc drum question
Thanks for the info gentlemen.
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Disc drum question
There are actually 6 holes around the circumference and a spiral oil groove machined/cast into the bottom where it rides against the "top hat" bushing - I dig one out & post a photo.
-
Dan McEachern
- Posts: 1400
- Joined: Sun Jan 06, 2019 11:08 am
- First Name: DAN
- Last Name: MCEACHERN
- * REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
- Location: ALAMEDA,CA,USA
Re: Disc drum question
To clarify this for everyone- I went back and looked up my printed copy of the forum posting that Trent Boggess did on this several years ago.
The clutch hub that was made for use with the top had brake drum bushing can be identified by there being NO ford script on the hub at all or the Ford script will be located on the brake drum (front) side of the clutch hub.
Later clutch hubs made for use with the 3 steel washers have the Ford script on the side opposite the brake drum (rear) or set screw side.
Steve- FYI: I have both styles that only have 1 pair of puller holes 180 degrees apart, so I don't believe the # of puller holes will completely identify the early or late hub.
Trent noted that this info came from a 1920 Ford service bulletin.
The clutch hub that was made for use with the top had brake drum bushing can be identified by there being NO ford script on the hub at all or the Ford script will be located on the brake drum (front) side of the clutch hub.
Later clutch hubs made for use with the 3 steel washers have the Ford script on the side opposite the brake drum (rear) or set screw side.
Steve- FYI: I have both styles that only have 1 pair of puller holes 180 degrees apart, so I don't believe the # of puller holes will completely identify the early or late hub.
Trent noted that this info came from a 1920 Ford service bulletin.
-
Corey Walker
- Posts: 637
- Joined: Sun Jan 06, 2019 11:46 am
- First Name: Corey
- Last Name: Walker
- * REQUIRED* Type and Year of Model Ts owned: 1914 runabout, 1921 homemade truck, 1921 Speedster
- Location: Brownsboro, TX
- Board Member Since: 2007
Re: Disc drum question

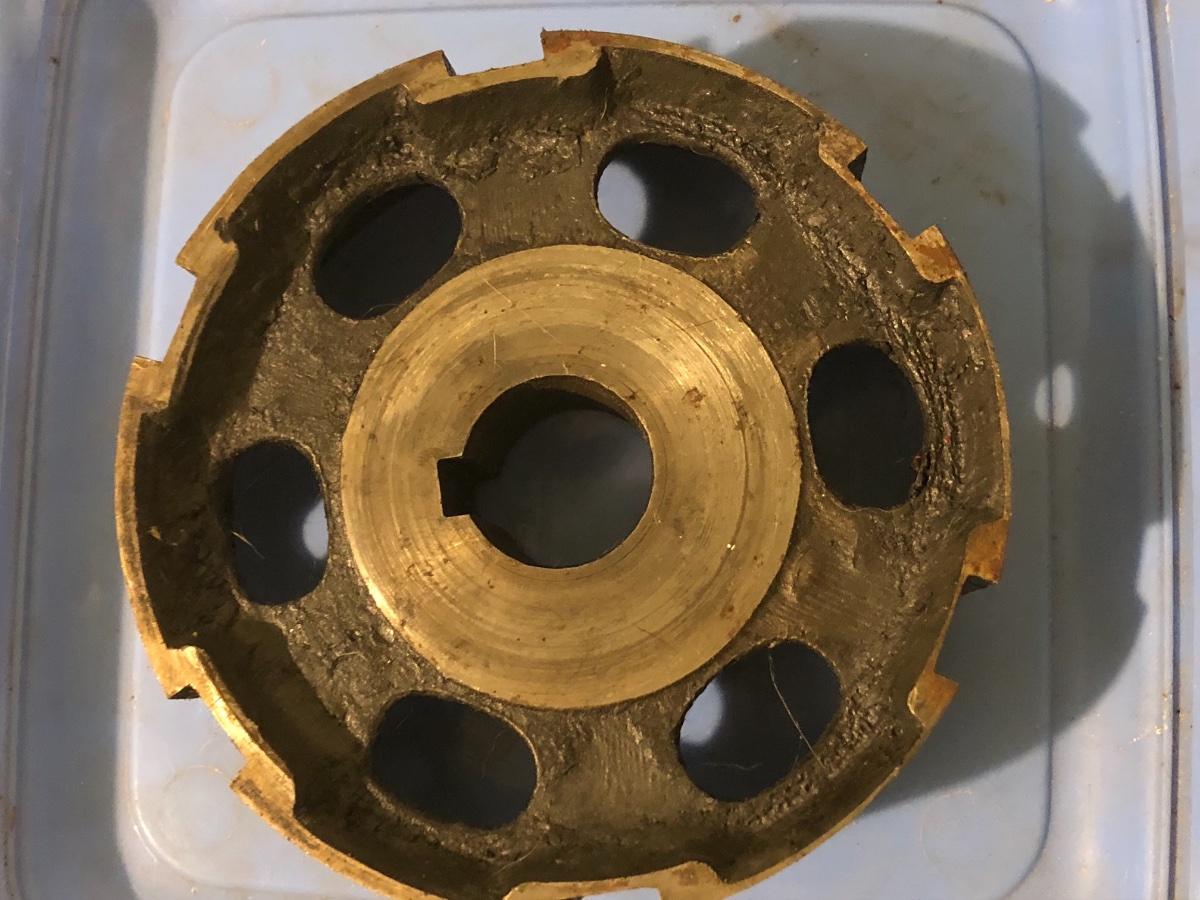

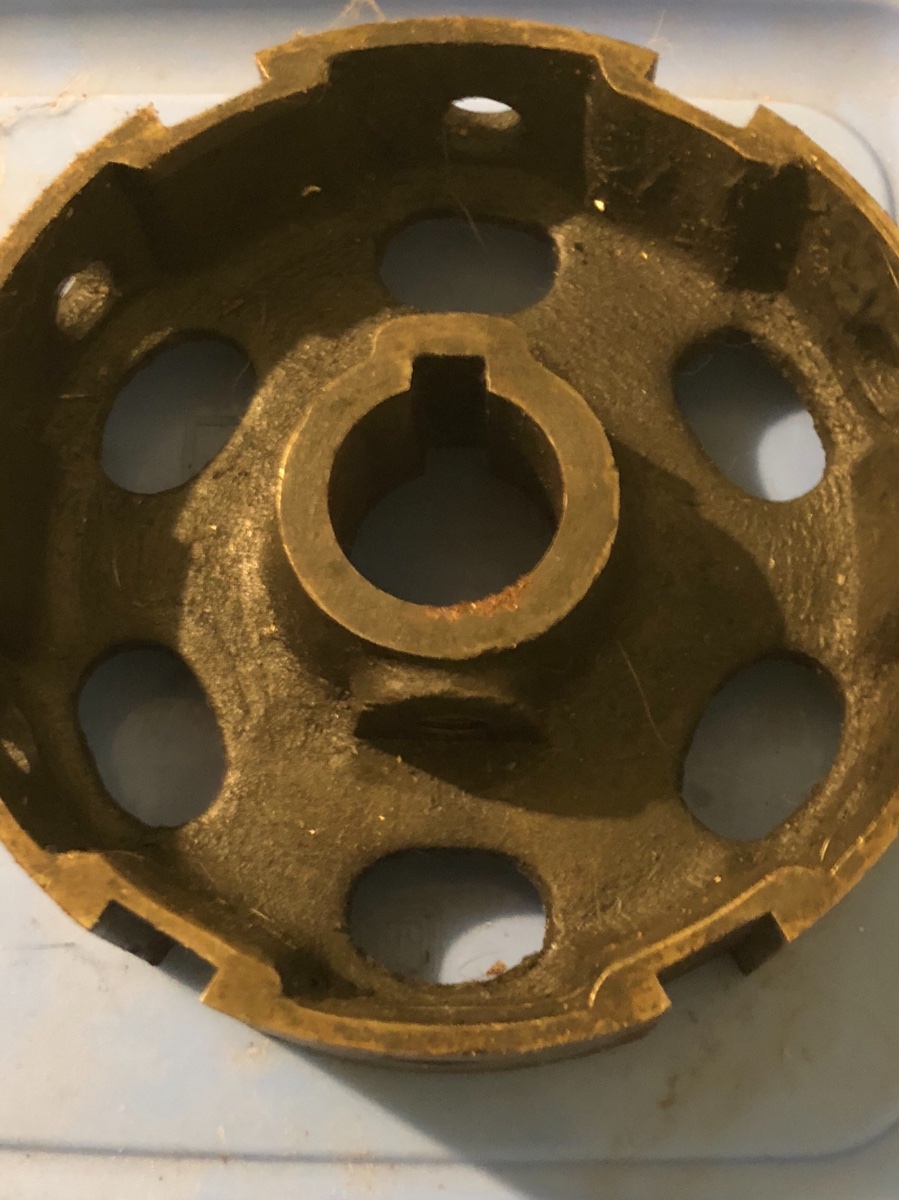

This one came out of a 1914 transmission. It has no Ford script anywhere, I thought there was a DB but there’s not. The flywheel was marked Dodge Bros. I guess is why I thought that.
- Attachments
-
-
Corey Walker, Brownsboro, Texas
-
Dan McEachern
- Posts: 1400
- Joined: Sun Jan 06, 2019 11:08 am
- First Name: DAN
- Last Name: MCEACHERN
- * REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
- Location: ALAMEDA,CA,USA
Re: Disc drum question
Correction- "top had brake drum bushing" should have been "top HAT brake drum bushing". sorry for any confusion.
