Strange Hub for rim

Post by towncar16 » Fri Apr 22, 2022 11:40 am

I got a spare hub with my 1916 Town car.
Tomorrow i have to go to a pre 1918 vehicle event far from home. As my rear hub make some crunchy noises i thought it good to carry a spare hub.
So i checked with a spare rim to put it together in my car. To my surprise the location of the valve for the tube on the hub and on the rim do not correspond with the lugs of the rim.The car has detachable rims for 30 x 30 1/2 tires and the spare rim has the same tyre dimensions.
Hope i can attach the pictures.
So the question is are there different hubs? or there different rims other than for clincher or split rim?

The valve is put through the hole on the rim and the lug points on the hub do not aline with the holes on the hub in the first 2 pictures.
The valve hole on the hub is aligned to the valve on picture with the wheel on the car.
Thank you for your help
Thomas
Felge Res Passung 2.jpeg
Felge Res Passung 1.jpeg
Felge Res Passung 3.jpeg
Top
User avatar

Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:
Contact Steve Jelf

Re: Strange Hub for rim

Post by Steve Jelf » Fri Apr 22, 2022 12:03 pm

I think what you're calling the hub is actually the wheel. The hub is the steel part in the center which fits on the axle. The outer steel part is the felloe. The demountable clincher rim bolts onto the felloe. If the stem holes don't match, I suspect either the wheel or the rim is for some other car. Chevrolet rims are very similar but slightly wider and have the stem hole in a different position.

https://dauntlessgeezer.com/DG113.html
The inevitable often happens.
1915 Runabout
1923 Touring
Top
User avatar

TRDxB2
Posts: 6260
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Strange Hub for rim

Post by TRDxB2 » Fri Apr 22, 2022 1:28 pm

I would be more concerned with matching the tire/rim to the wheel in question. The slots for the lug bolts look entirely different and if so then it may be unsafe to use. It would be worthwhile to also show a picture of the wheel making the crunching noise as you may have an incomparable combination of de-mountable rims.
Attachments
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

Topic author
towncar16
Posts: 11
Joined: Mon Jul 08, 2019 4:14 pm
First Name: Thomas
Last Name: Billicsich
* REQUIRED* Type and Year of Model Ts owned: 1916 Towncar
Location: Austria

Re: Strange Hub for rim

Post by towncar16 » Fri Apr 22, 2022 2:08 pm

Steve
Thank you for your answer. Was not sure how the parts are named as english is not my first language but thank you for clarification. Appreciate your work and help for T model owners.
Has Chevrolet the same method if fixing the hub to the drive shaft? With conus and key? Think have to get the wheel off the car and measure.

TRDxB2:
The noise come from where the spokes join the fellow of the wheel in the picture.The have a little play there. Think have to renew the spokes in the near future.
The rim is for the car as it matches all fellows on the car and was on the car when i bought it.
Only the spare wheel has this mismatch of stem hole and lugs you see on the picture as the stem holes are in line and the holes for lugs are in different places.You have marked it on the spare wheel and the lug on the cars wheel are in a different place.

Thank you
regards
Thomas
Top

Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Strange Hub for rim

Post by Allan » Fri Apr 22, 2022 8:34 pm

Thomas, it looks like you have a rim from a different car for your spare. The major difference between a Ford rim and a Chev rim is the different location of the valve stem hole. You have the same problem. The cure may be a simple as drilling a new valve stem hole in the position required. Before you do this, I would advise removing the spare tyre from the rim and fitting the rim to the wheel without the tyre. This will tell you if the rim does suit your felloes.
Your wheels do not appear to be standard Ford issue, so you do need to double check the fit of the rims/felloes. You are correct in your observation about the spokes moving in the felloes. Time to have the wheels rebuilt.

Hope this helps,
Allan from down under.
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Strange Hub for rim

Post by Humblej » Sat Apr 23, 2022 6:43 am

Can you please post a picture of your town car.
Top

Topic author
towncar16
Posts: 11
Joined: Mon Jul 08, 2019 4:14 pm
First Name: Thomas
Last Name: Billicsich
* REQUIRED* Type and Year of Model Ts owned: 1916 Towncar
Location: Austria

Re: Strange Hub for rim

Post by towncar16 » Fri Apr 29, 2022 2:29 pm

Allen,
Sorry for late answer but was in near Livorno driving the T in the Toskana and no passwords for the forum on my mobile.
Coils hat no power from the batterie due to rain. Next day it was all well and car was running again.
Thank you for your suggestion, will do it that way.
Attachments

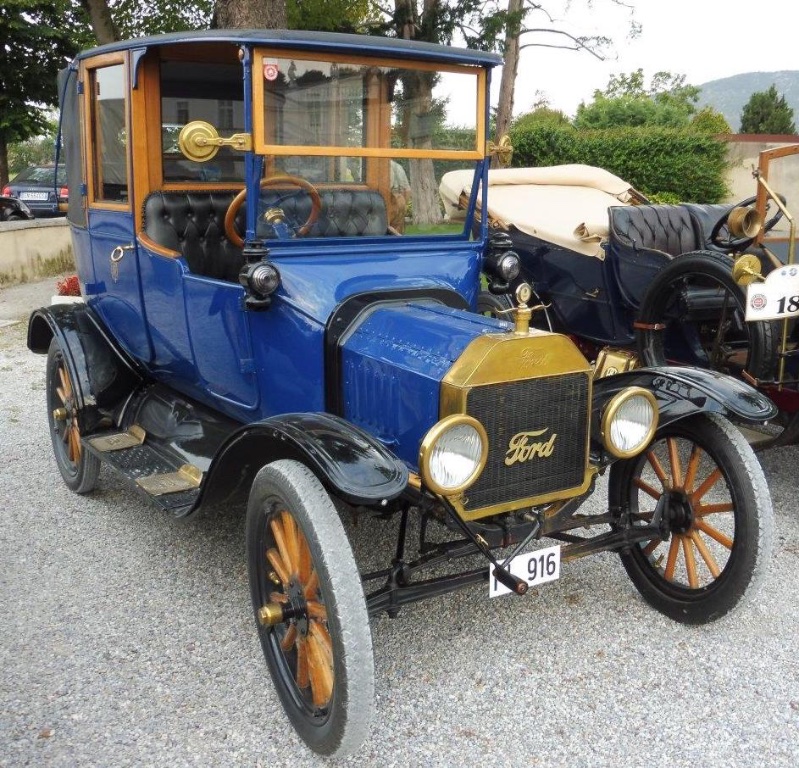

Brescia c2.jpg
Top

Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Strange Hub for rim

Post by Allan » Fri Apr 29, 2022 7:22 pm

That is a lovely car Thomas. It is well worth a set of good wheels.

Allan from down under.
Top

Topic author
towncar16
Posts: 11
Joined: Mon Jul 08, 2019 4:14 pm
First Name: Thomas
Last Name: Billicsich
* REQUIRED* Type and Year of Model Ts owned: 1916 Towncar
Location: Austria

Re: Strange Hub for rim

Post by towncar16 » Sat Apr 30, 2022 5:09 pm

Thank you Allan, think so too.
i am the 3.rd owner but as i now know has wrong mudguards for a 1916 and the upper part of the windshield should be in metal not in wood but would be difficult to find or remade.
Top
User avatar

Oldav8tor
Posts: 2245
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Juhl
* REQUIRED* Type and Year of Model Ts owned: 1917 Touring
Location: Thumb of Michigan
Board Member Since: 2018

Re: Strange Hub for rim

Post by Oldav8tor » Sat Apr 30, 2022 5:16 pm

You have a beautiful car Thomas. Thank you for showing it to us.
1917 Touring
1946 Aeronca Champ
1952 Willys M38a1 Jeep (sold 2023)
1953 Ford Jubilee Tractor
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Strange Hub for rim

Post by Humblej » Sat Apr 30, 2022 5:42 pm

I love the town cars. Thanks for posting.
Top
