Coil hardware question

[Jim11787]

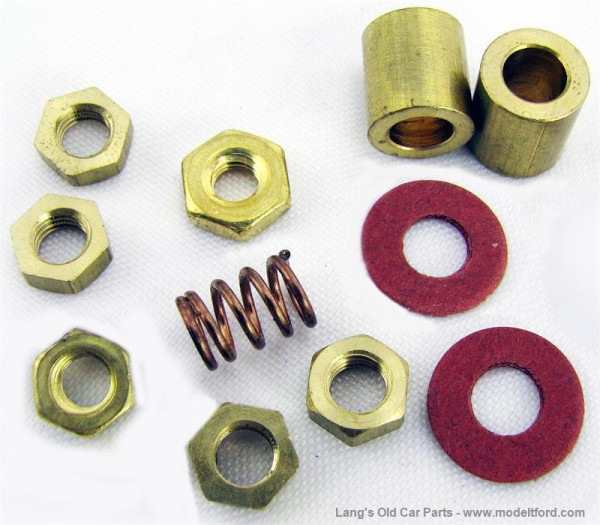

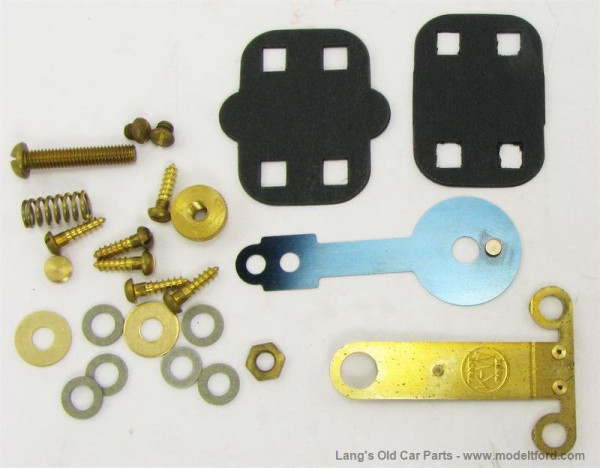

When replacing the coil top hardware can someone tell me where the 2 fiber washers go in the assembly process? The old coil I disassembled did not have them. I assume they are insulating washers.

[Moxie26]

Are you referring to the metal top coil, or the wood top coil?

[Mark Gregush]

The two fiber washers are used under and over the bridge at the adjustment screw. I generally only use one under it.

[Jim11787]

The two fiber washers are used under and over the bridge at the adjustment screw. I generally only use one under it.

Thanks Mark. That’s what I thought.

[Ron Patterson]

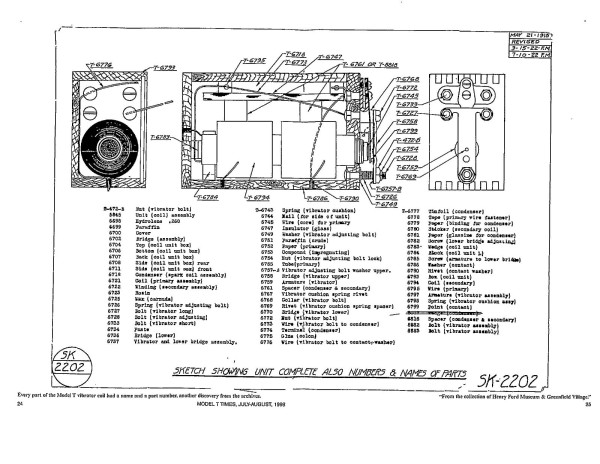

This Ford diagram depicts the details for what and where point mouning hardware should be installed on the Williams KW Ford ignition coil.

[Ron Patterson]

Coil Sketch SK-2202.pdf

(1.24 MiB) Downloaded 178 times

[Jim11787]

This Ford diagram depicts the details for what and where point mouning hardware should be installed on the Williams KW Ford ignition coil.

Thank you Ron.

[Chris Barker]

I agree with Mark; I find that the coil is best set up with just the fibre washer under the contact plate, above the coil spring.
And then TWO nuts above, locked.

[Ron Patterson]

I got this sketch out of JPG format so it is easier to print.
