TT Jack Handle?

Post by MWalker » Tue Mar 12, 2019 9:38 am

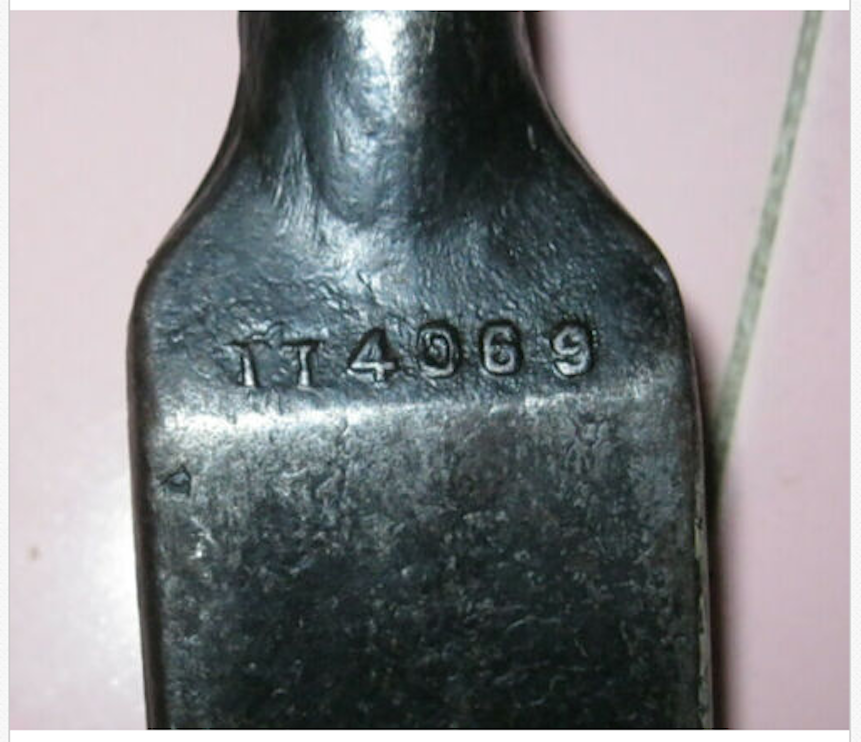

Here is a current listing on ebay for a tire iron with a TT part number.

https://www.ebay.com/itm/Antique-Ford-M ... MU&LH_GD=0

Here is an old Forum thread with a discussion of Model T jacks and handles.

http://www.mtfca.com/discus/messages/50 ... 1230658292

Is the first iron also a combo jack handle, or just a tire iron? I need to look for a real TT jack handle at Chickasha, and I want to know what to look for. I assume the "twisted" handle shown in the latter pic is correct, but wonder whether the one on ebay is as well.
Top
User avatar

Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:
Contact Steve Jelf

Re: TT Jack Handle?

Post by Steve Jelf » Tue Mar 12, 2019 10:16 am

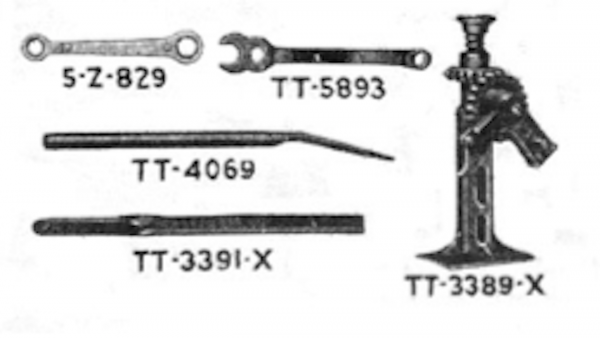

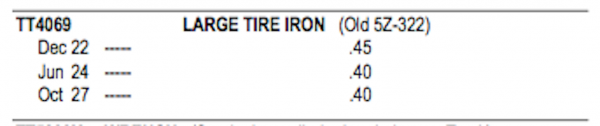

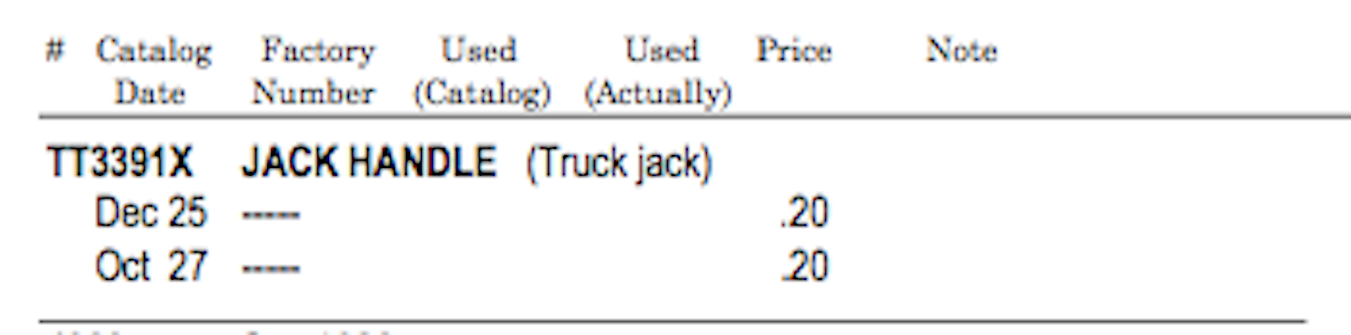

I think it's only a tire iron. The little pictures in the parts books aren't very clear, but the parts are different.

Screen shot 2019-03-12 at 9.01.21 AM.png
Screen shot 2019-03-12 at 9.03.37 AM.png
Screen shot 2019-03-12 at 9.04.14 AM.png
Screen shot 2019-03-12 at 9.08.20 AM.png
The inevitable often happens.
1915 Runabout
1923 Touring
Top

Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: TT Jack Handle?

Post by Allan » Wed Mar 13, 2019 8:10 am

I found a TT jack at Ballarat swap meet this year. It was made by Auto Specialties just like our car jacks. The handle is a casting permanently fixed to the jack. The jack differs from the car jack in that there is a taller section at the top of the screw to take up the extra height of the rear axle. To accommodate the much lower front axle height, there is a step on the side which goes up and down with the screw. This part is often broken off, like the second one the vendor had. The whole piece is of heavier construction.

Allan from down under.
