22 starter switch

Post by Art Ebeling » Wed Sep 01, 2021 7:56 pm

I put the 22 Touring body on the chassis today and noticed the starter switch with the extension on it is not high enough to extend thru the floorboard. Can someone post a picture of the starter switch mounting and how it comes thru the floorboard? Thanks, Art


Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: 22 starter switch

Post by Allan » Wed Sep 01, 2021 11:55 pm

Art, do you have the switch mounting plate in the frame rail or on top of it? I believe it goes on top, and that will give you more length in the plunger.

Allan from down under.


Topic author
Art Ebeling
Posts: 483
Joined: Sun Jan 06, 2019 10:43 am
First Name: Art
Last Name: Ebeling
* REQUIRED* Type and Year of Model Ts owned: 1911 touring 14 runabout
Location: Hillsboro IL

Re: 22 starter switch

Post by Art Ebeling » Thu Sep 02, 2021 2:22 am

The mounting plate is mounted under the top frame rail with the switch mounted to the bottom of the plate. Art


Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: 22 starter switch

Post by Allan » Thu Sep 02, 2021 3:14 am

OK. That is not the standard mounting with which I am familiar. Both the switch types we have in Australia, those with bent over tangs on the cover or the two screw covers, are mounted on top of the plate. Sounds like you have some kind of replacement item.

Allan from down under.

User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: 22 starter switch

Post by Humblej » Thu Sep 02, 2021 6:57 am

Post deleated because I didnt know what I was saying and sounded stupid.
Last edited by Humblej on Thu Sep 02, 2021 11:21 am, edited 1 time in total.


Topic author
Art Ebeling
Posts: 483
Joined: Sun Jan 06, 2019 10:43 am
First Name: Art
Last Name: Ebeling
* REQUIRED* Type and Year of Model Ts owned: 1911 touring 14 runabout
Location: Hillsboro IL

Re: 22 starter switch

Post by Art Ebeling » Thu Sep 02, 2021 8:34 am

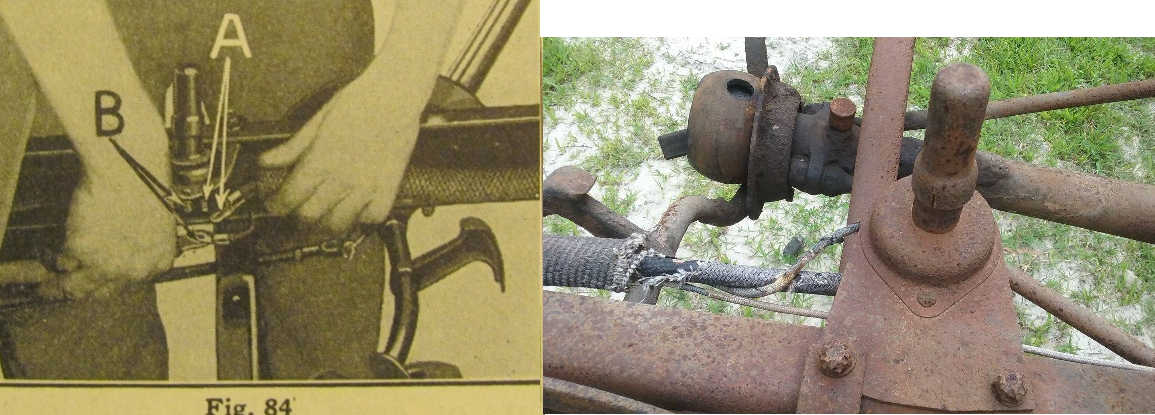

Here is the best picture I have of the switch before It was taken off. I put it back the same way. If the switch plate was mounted in top of the frame it might just correct the problem. Art
Attachments

User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: 22 starter switch

Post by TRDxB2 » Thu Sep 02, 2021 10:14 am

Attachments
switch mnt.png
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger

User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: 22 starter switch

Post by Mark Gregush » Thu Sep 02, 2021 10:44 am

Seeing the pictures in the one link, is what I was thinking. When mounted under the frame rail, there was a jog in the bracket. When mounting on top, was flat. Is this 100%, probably not but might be good rule of thumb. :)
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup


Original Smith
Posts: 3699
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: 22 starter switch

Post by Original Smith » Thu Sep 02, 2021 6:48 pm

I had a similar problem on my '25. I wanted to use the early design switch that is held together with two screws. When installed correctly in the car, it wouldn't quite reach through the floor. I put in a later design which has four tabs. I'll bet if I tried to bend those tabs they might break off? At any rate I found a NORS switch, which has been on the car for ten years.

Post Reply Previous topicNext topic
