starter switch information

[exwisehe]

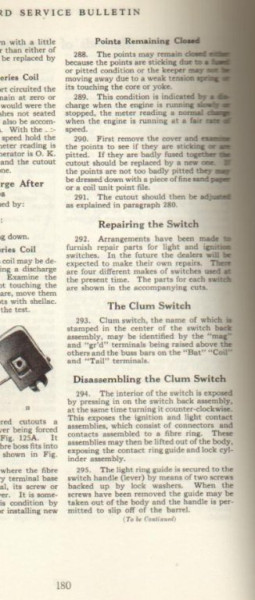

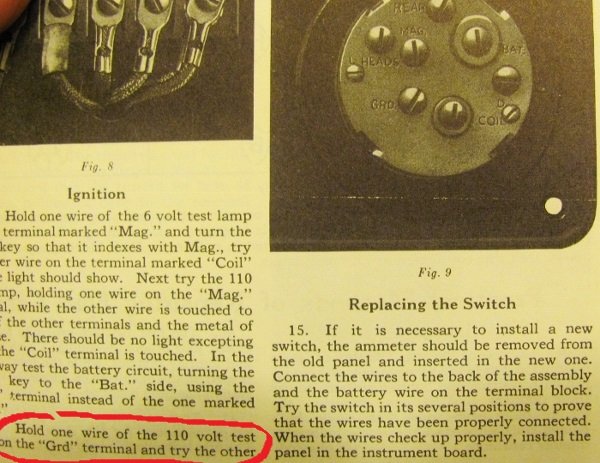

the attached image regarding servicing the clum ignition/lighting switch is from a ford service bulletin... i am trying to research these switches in general and assume that switches from other vendors may also be covered elsewhere... i am trying to identify the the actual (or similar) source so that i can acquire a copy.... are there copies of these bulletins available? thanks...

[TRDxB2]

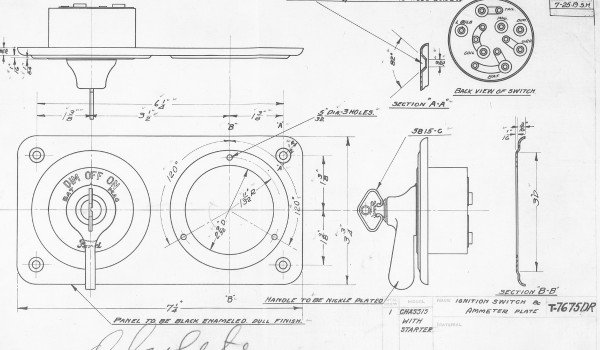

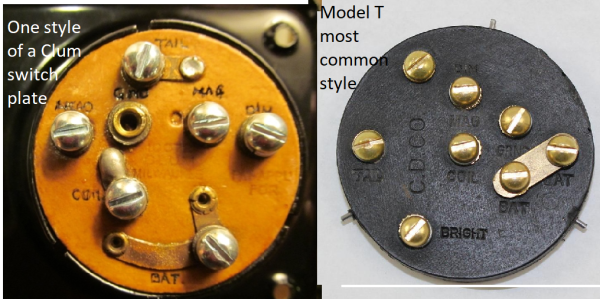

The description of repairing the switch is no different than it would be for the pin type that the Model T suppliers sell (when in stock). However the layout is not exactly the same. But there are Clum backing plates that are the same as the common Model T so its necessary to see the backing plate and internal parts to properly ID a switch.

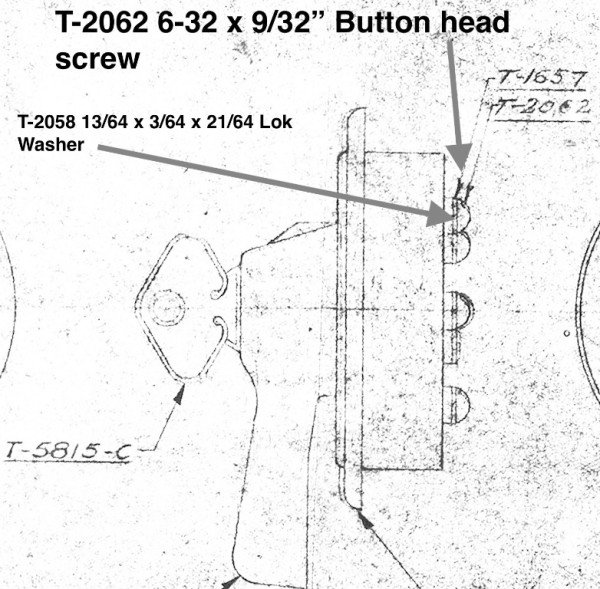

Ignition switch wiring screws.jpg (94.45 KiB) Viewed 1651 times

--
--

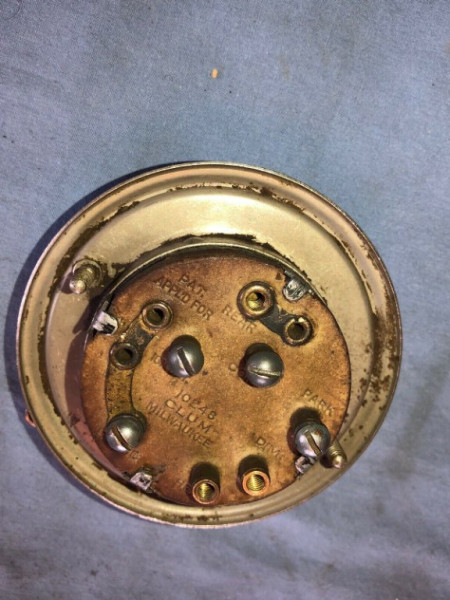

The following shows a switch backing plate that is even different than the two above


--
--
and another Clum for a different switch

[TRDxB2]

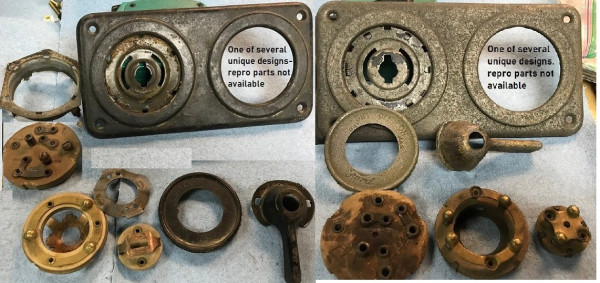

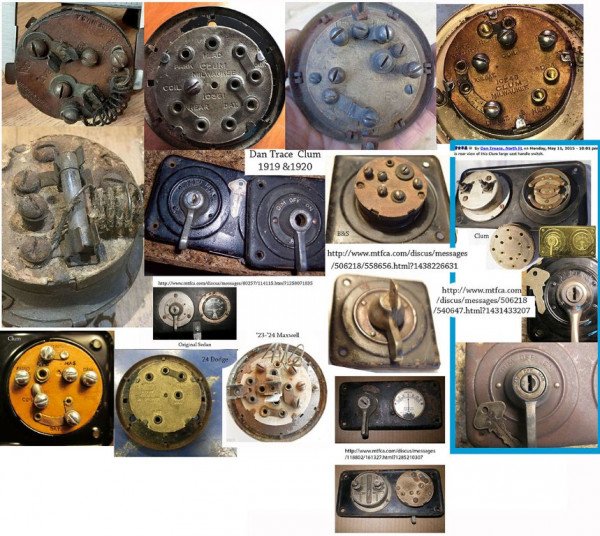

and there are more variations not just from the outside but inside as well


--
--

[exwisehe]

frank, i appreciate your quick response... the information that you've provided is great and i can certainly use it.... I am actually trying to find the publication that contained the page that i had posted... i don't know too much about the publications for the model t but the page i posted appears to say 'ford service bulletin' at the top of the page and each paragraph is numbered... is this from an original bulletin, or is it from a compilation of bulletins... is it part of an aftermarket book.... how can i identify the publication....

thanks....

//michael//

[TRDxB2]

frank, i appreciate your quick response... the information that you've provided is great and i can certainly use it.... I am actually trying to find the publication that contained the page that i had posted... i don't know too much about the publications for the model t but the page i posted appears to say 'ford service bulletin' at the top of the page and each paragraph is numbered... is this from an original bulletin, or is it from a compilation of bulletins... is it part of an aftermarket book.... how can i identify the publication....

thanks....

//michael//

Ha!

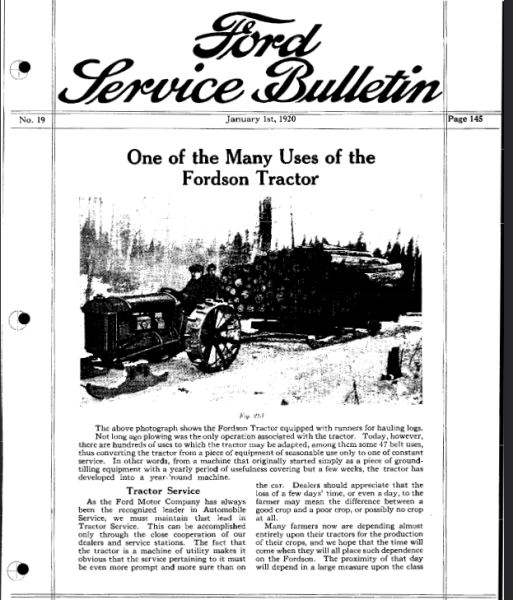

I may have found the source of what you have a copy of. Same everything but page numbers are different

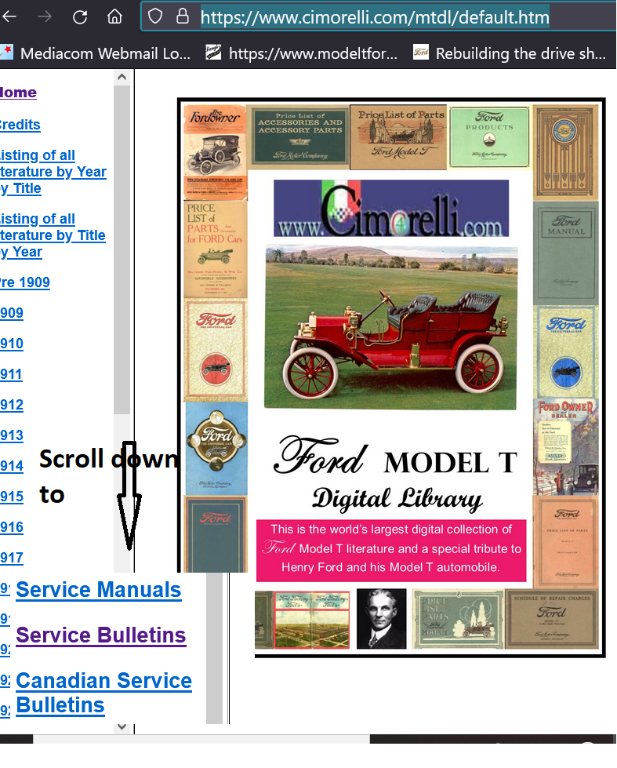

This is a great reference www.cimorelli.com/mtdl/default.htm

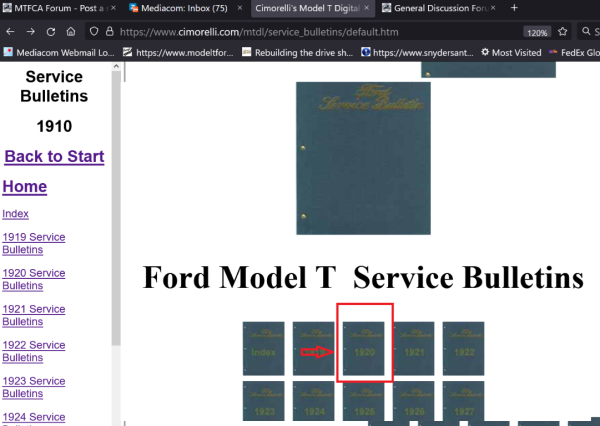

-- I then selected Bulletins

Didn't know which so I started to search 1919 - nothing

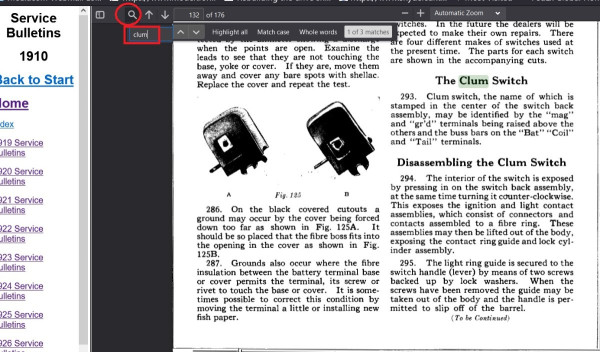

--Then1920 and git a hit (To search click on the magnifying glall then enter the search word and hit the ENTER key (@takes a bit to find it)

--
-- the documents are PDF's you can skip the above and just go to the 1920 Service Bulletin www.cimorelli.com/mtdl/service_bulletins/sb1920.pdf

[Steve Jelf]

... are there copies of these bulletins available?

Bottom line: the Cimorelli site Frank posted has all of them.

[exwisehe]

perfect..... exactly what i was looking for... the link that you provided did not work, however i was able to google the title of the book and it took me to the site... found the passage in the book.... thanks for your assistance...

//michael//

[TRDxB2]

perfect..... exactly what i was looking for... the link that you provided did not work, however i was able to google the title of the book and it took me to the site... found the passage in the book.... thanks for your assistance...

//michael//

Thanks for letting me know about the link problem. I corrected them, up above, by removing the prefix https:// which indicates (s suffix) a secure web site
