Original Warford Transmission Mount Information

Post by David Greenlees » Sun Jul 17, 2022 1:24 pm

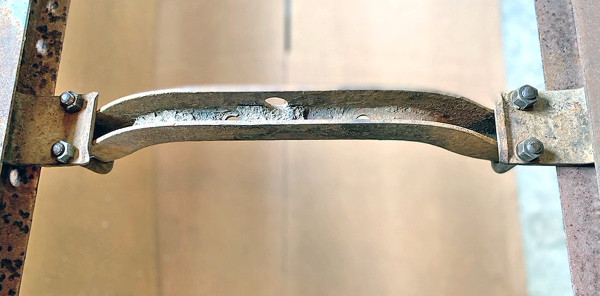

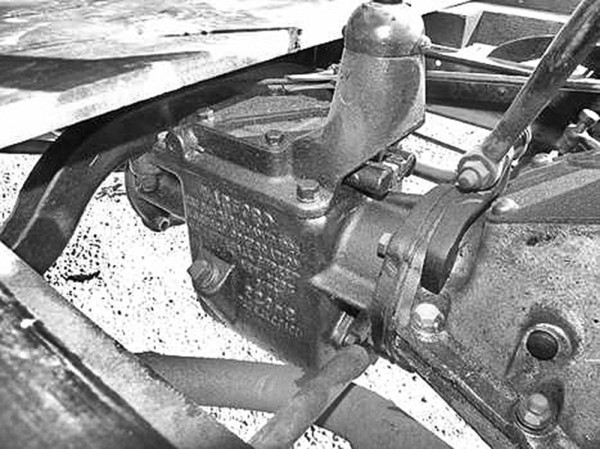

The photo above contains a late Warford transmission cross member and the clamps that fasten it to the frame. The image below shows where it is located in relation to the transmission.

I'm looking for a photo or illustration that shows the transmission mount itself, which is fastened to the bottom of the cross member and then to the rear of the gearbox or the rear flange.

I want to try to find a mount or fabricate an authentic reproduction, and knowing exactly what it looks like would be helpful. Thanks in advance to anyone who can help.
Top
User avatar

TRDxB2
Posts: 6260
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Original Warford Transmission Mount Information

Post by TRDxB2 » Sun Jul 17, 2022 2:33 pm

Some links with photos and different styles
Warford cross member for use with the cast iron case version with the front U-joint.
http://www.mtfca.com/discus/messages/80257/98538.html
--
--

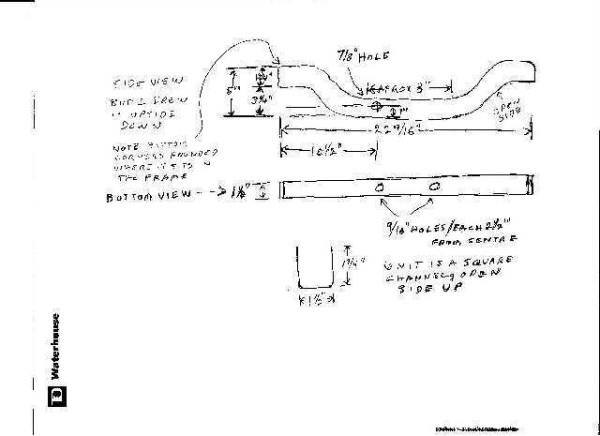

Some types and the diagram http://www.mtfca.com/discus/messages/59 ... 1463157685
--
--
