Side Curtain Snaps

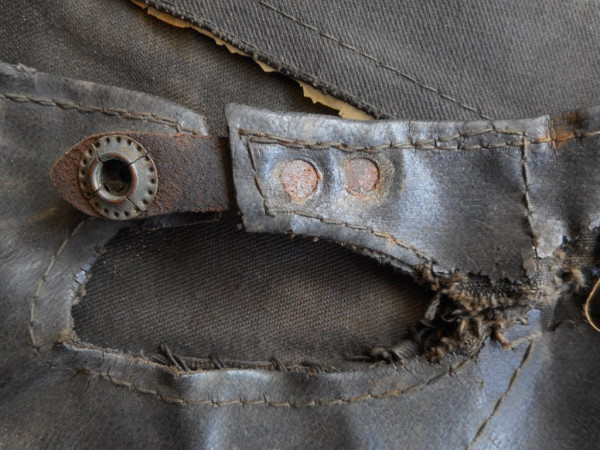

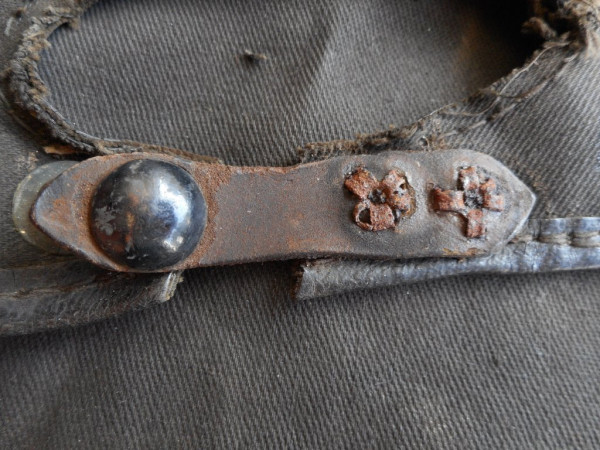

Does anyone know what the tool looks like to stake this type of rivet? These photos are from a '13-14 front side curtain in bad condition.
- Attachments
-
-
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Side Curtain Snaps
A normal tube rivet tool you are familiar with has a center raised tit.
The type that splits the tube has radiating raised edges. Looks like a daisy.
I have seen them in those large foot operated brake riveting machines.
The type that splits the tube has radiating raised edges. Looks like a daisy.
I have seen them in those large foot operated brake riveting machines.
-
Tony Delbianco
- Posts: 23
- Joined: Mon May 16, 2022 2:36 am
- First Name: Tony
- Last Name: Delbianco
- * REQUIRED* Type and Year of Model Ts owned: 1913 Runabout
- Location: Seattle, WA
- Board Member Since: 2022
Re: Side Curtain Snaps
They are called "Tubular Rivets". The shank is hollow to a certain depth depending on the thickness of the materials being riveted together.

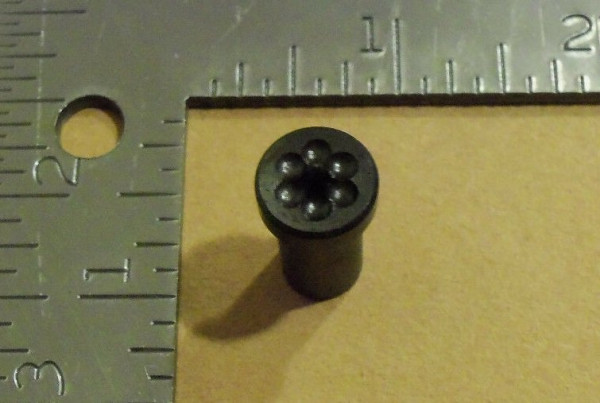

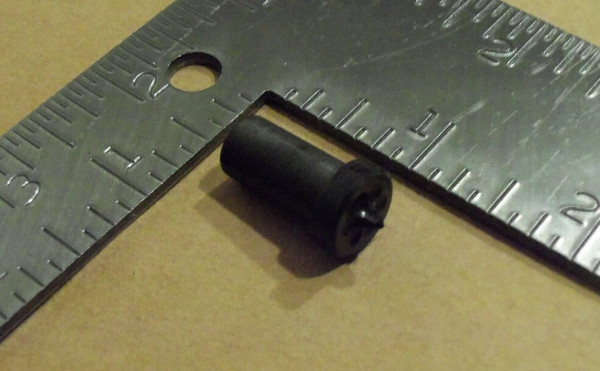

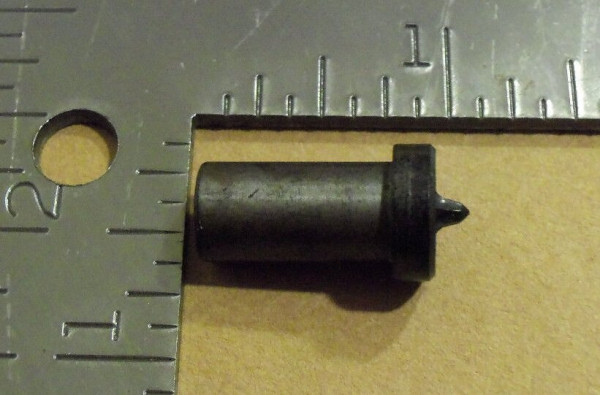

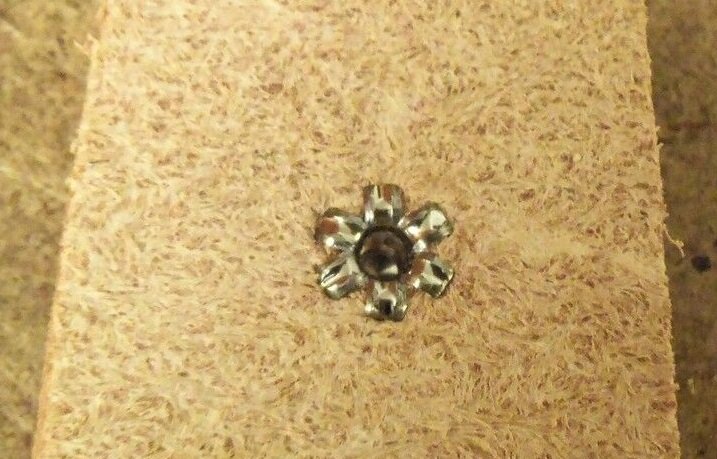

The die used is called a "Tubular Rivet Setter" or "Splash Anvil" (see photos below). I bought one on ebay for $29 with shipping. It is for rivets with a 1/8" dia. shank.
https://www.ebay.com/itm/112173068097?h ... R7C7l7zbYA
The "Tubular Rivet Setter" can be used in an Arbor Press, or used by hand with a hammer, with a little finessing.
Here is a link to a youtube.com video showing how it is done. "How to Set Tubular Rivets in Leather".
https://www.youtube.com/watch?v=j2B64jbXezk
The die used is called a "Tubular Rivet Setter" or "Splash Anvil" (see photos below). I bought one on ebay for $29 with shipping. It is for rivets with a 1/8" dia. shank.
https://www.ebay.com/itm/112173068097?h ... R7C7l7zbYA
The "Tubular Rivet Setter" can be used in an Arbor Press, or used by hand with a hammer, with a little finessing.
Here is a link to a youtube.com video showing how it is done. "How to Set Tubular Rivets in Leather".
https://www.youtube.com/watch?v=j2B64jbXezk
- Attachments
-
-
-
-
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Side Curtain Snaps
That die does a nice job. Pretty.
Larry cant use such a tool to set rivets. This would be an "over restoration."
Original Smith has a reputation to uphold.
Larry cant use such a tool to set rivets. This would be an "over restoration."
Original Smith has a reputation to uphold.
-
Original Smith
Topic author - Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Side Curtain Snaps
I appreciate the response to my post. The average T guy would never care about such a thing, but I like to know that stuff! Thanks.
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Side Curtain Snaps
Somebody has to care. I tip my hat to you.Original Smith wrote: ↑Sat Aug 27, 2022 11:01 amI appreciate the response to my post. The average T guy would never care about such a thing, but I like to know that stuff! Thanks.
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: Side Curtain Snaps
I too enjoy knowing these kinds of things whether I need to or not.
Even more, I really like everything about the photos you posted. That old stuff is truly beautiful.
Thanks
Rich
Even more, I really like everything about the photos you posted. That old stuff is truly beautiful.
Thanks
Rich
When did I do that?
-
modeltspaz
- Posts: 253
- Joined: Sun Jan 06, 2019 11:15 am
- First Name: Mike
- Last Name: Spaziano
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring
- Location: Bellflower, California
Re: Side Curtain Snaps
I'll second John's and Rich's comment.
Thank you for sharing these important details with us Larry.
McMaster-Carr or Big Flats Rivet Company may have the tool you need.
Mike.
Thank you for sharing these important details with us Larry.
McMaster-Carr or Big Flats Rivet Company may have the tool you need.
Mike.
Knowledge that isn't shared, is wasted knowledge.
-
Original Smith
Topic author - Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Side Curtain Snaps
I think a semi tubular rivet would work just fine?
-
Original Smith
Topic author - Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Side Curtain Snaps
I received the new rivet setting tool pictured above yesterday. I'm glad I posted this question. I've been doing riveting all my life, and never heard of this tool. This is the real purpose of this forum.
