Front Spring Clip Configuration

Post by RustyFords » Wed Nov 13, 2019 1:06 pm

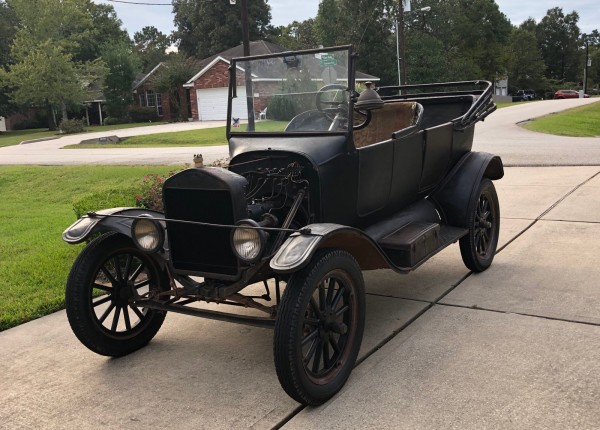

I'm about to replace the front spring, perches, shackles, etc on my 24 Touring and am wondering about this spring clip configuration on the car and whether it is stock.

All the forensic evidence points to this car as having been revived during WW2. What I believe they did was take a pretty much rust-free, thoroughly orginal (paint and all) 24 T Touring that had been wrecked (and recieved sheet metal damage on one side in the front as well as the radiator) and repaired it with either junkyard T parts or parts they had laying around from other T's.

Having been raised on and around farms, I recognize this sort of "look" as coming from a car/truck/tractor that has seen hard use but has always been stored inside. It's a unique look, but I've seen it several times over the years.

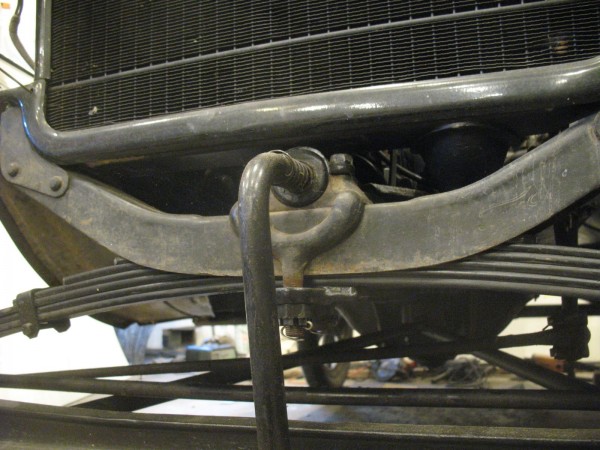

My question is about the front spring clip. I see that there's one in the middle that I've seen on the improved cars, then two outer ones that I've seen on earlier cars. Whatever was done here, was done a very long time ago, possibly at the same time all the other repairs were made.

I'm not restoring this car but rather returning it to the time in WW2 after all the repairs were made. So...if the current spring clip configuration isn't stock, but would still work well, I'll just replace the springs and put it back like it is.
Attachments
1924 Touring

User avatar

Topic author
RustyFords
Posts: 766
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Front Spring Clip Configuration

Post by RustyFords » Wed Nov 13, 2019 1:09 pm

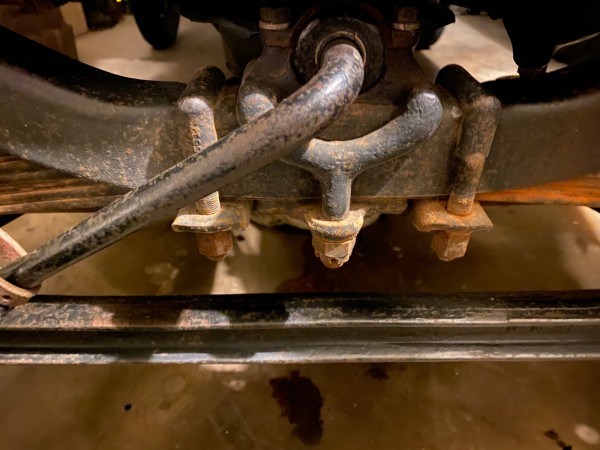

Here’s another, higher resolution photo.

The two outer ones sort of look like rear spring clips.
Attachments
1924 Touring

User avatar

Steve Jelf
Posts: 1650
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Front Spring Clip Configuration

Post by Steve Jelf » Wed Nov 13, 2019 1:18 pm

Yes, your car is wearing some extra parts.

The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Topic author
RustyFords
Posts: 766
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Front Spring Clip Configuration

Post by RustyFords » Wed Nov 13, 2019 1:21 pm

Steve Jelf wrote:
Wed Nov 13, 2019 1:18 pm
Yes, your car is wearing some extra parts.
I wonder what their logic was.

Do you think the extra two could be to keep the car from leaning so much when they had it loaded down?

Maybe I'll get the springs out and discover that one of them is broken and they were using the other two clips to patch that problem.
1924 Touring


John kuehn
Posts: 558
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Front Spring Clip Configuration

Post by John kuehn » Wed Nov 13, 2019 2:24 pm

The earlier T’s used a one piece wider bracket to clip the front spring to the front cross member. Maybe that’s why the 2 extra clamps were added to add more substantial bracing in their mind like the earlier ones were.
If that’s what was on their mind maybe they couldn’t find the earlier wider spring bracket and added the 2 extra ones to “make” one. After all the 2 are interchangeable.


Scott_Conger
Posts: 1623
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Front Spring Clip Configuration

Post by Scott_Conger » Wed Nov 13, 2019 2:41 pm

It rides better with the single bracket, but given what I think you're doing with this car, it is an interesting oddity. When you get to it, you may a broken leaf or two and that may be the reason for the extra clamps.

As an aside, my grandmother used to tell me that during/post WWII, lots of T's hit the road again as purchasing tires for "newer" cars was all but impossible for a good while, and "T" tires were plentiful. Perhaps that is the genesis of your "resurection"...who knows?
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!

User avatar

Steve Jelf
Posts: 1650
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Front Spring Clip Configuration

Post by Steve Jelf » Wed Nov 13, 2019 2:58 pm

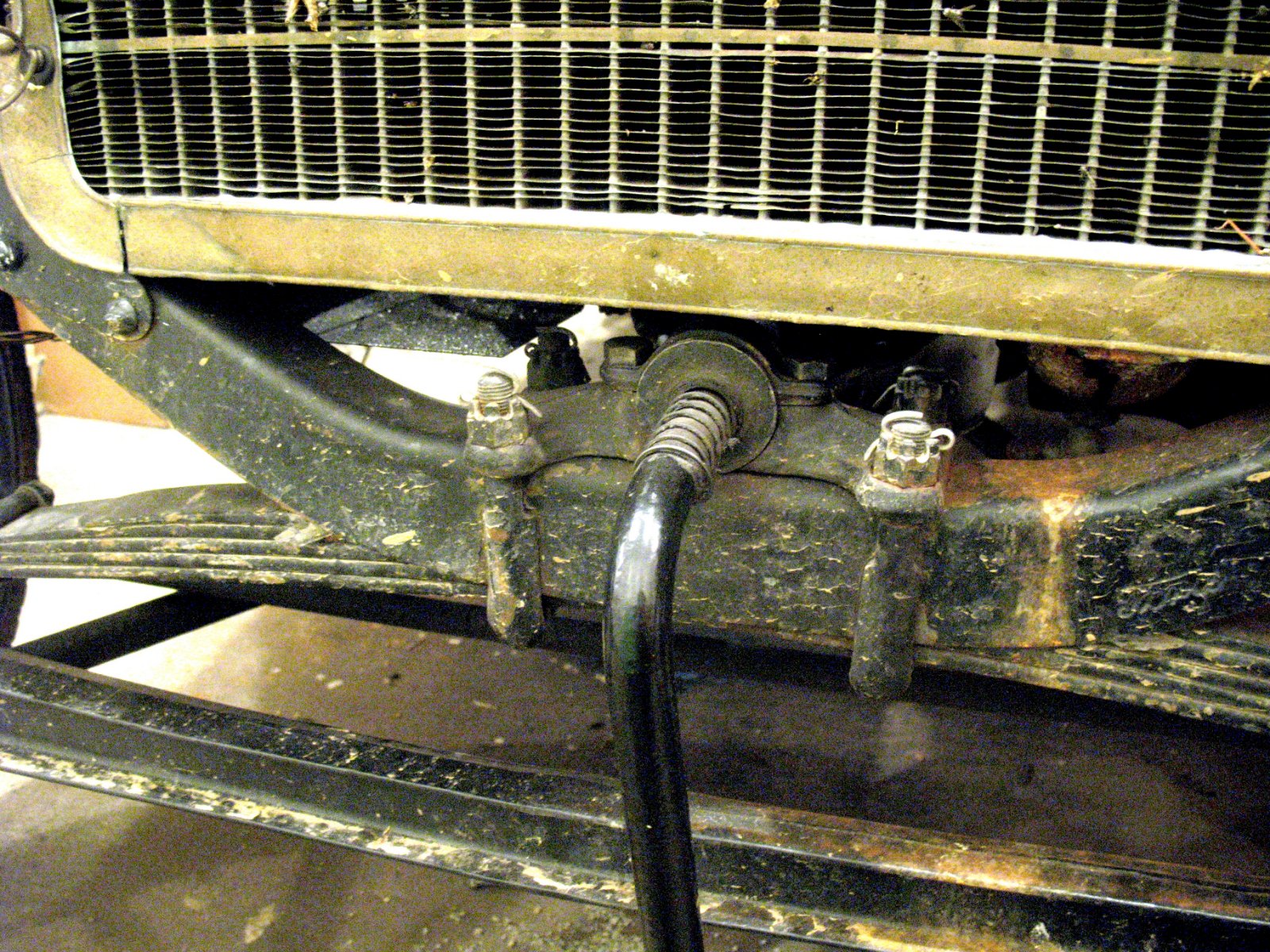

Here is the setup used on the earlier cars.

IMG_4403 copy.JPG
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Topic author
RustyFords
Posts: 766
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Front Spring Clip Configuration

Post by RustyFords » Wed Nov 13, 2019 5:01 pm

What year did they switch?
1924 Touring


wayne sheldon
Posts: 1065
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Front Spring Clip Configuration

Post by wayne sheldon » Wed Nov 13, 2019 5:22 pm

An early taper leaf front spring also. It naturally belongs on a 1916 or earlier T, but as another piece of the car's history, maybe a taper leaf spring should still be there? It may be that whoever added the extra clamps was trying to compensate for the lighter spring?
There were six-hole castings sold after-market that were made to use both the '20 to '27 engine/spring mount and U-bolts in a similar fashion. They were supposed to stiffen and strengthen the front suspension (frankly they didn't really help that much), and mostly used on trucks of some sort. But that does not look like what you have.


John kuehn
Posts: 558
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Front Spring Clip Configuration

Post by John kuehn » Wed Nov 13, 2019 6:17 pm

If you removed the 2 extra clamps you would have the original set up for your car. The one in the center. The earlier and wider set up that Steve Jeff posted was used up to early 22 but maybe earlier. Others would know for sure. Someone added the extra clamps to make it a little better in their mind.

User avatar

Topic author
RustyFords
Posts: 766
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Front Spring Clip Configuration

Post by RustyFords » Wed Nov 13, 2019 7:09 pm

I’ll be interested to see what it all looks like as it cones apart.

The bushings in the perches are worn all the way through, into the perches themselves. So...they’re getting replaced.

The spring bushing on the driver’s side was worn all the way through and has cut away part of the spring eye, so I just went ahead and ordered a complete new front spring set. It should be here next week. Once finished, I’ll have a very nice front suspension.

I’m leaning (pun intended) toward not reinstalling the two extra clips. The T has seen the last of its heavy farm work and I’d prefer a softer ride. But, I’ll hold off on the decision until I put eyes on all of it disassembled.
1924 Touring

User avatar

Topic author
RustyFords
Posts: 766
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Front Spring Clip Configuration

Post by RustyFords » Wed Nov 13, 2019 7:20 pm

Last year, I disassembled, cleaned, slip-painted and reinstalled the rear spring and installed new perches and bushings and wow...what a difference.

The front spring is in even worse shape. The side with the most wear, is worn so badly that the spring eye is actually sitting on top of the axle. So...I have zero suspension travel on that side. And, it’s evident when I go over bumps.

I’m anxious to see what the little car feels like with both front and rear suspensions at 100%.
1924 Touring

User avatar

Topic author
RustyFords
Posts: 766
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Front Spring Clip Configuration

Post by RustyFords » Wed Nov 13, 2019 7:31 pm

Scott_Conger wrote:
Wed Nov 13, 2019 2:41 pm
As an aside, my grandmother used to tell me that during/post WWII, lots of T's hit the road again as purchasing tires for "newer" cars was all but impossible for a good while, and "T" tires were plentiful. Perhaps that is the genesis of your "resurection"...who knows?
Could very well be what happened.

I’ve talked to a guy who was a young teenager in Comanche, TX during the war and he does remember a farmer who resurrected a T because of the shortage of cars, and he thinks this is that T but he’s not sure. I have several bits of evidence that point to it be resurrected during that general time frame and one very specific piece of evidence that narrows it down to the WW2 years.
1924 Touring


John kuehn
Posts: 558
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Front Spring Clip Configuration

Post by John kuehn » Wed Nov 13, 2019 7:39 pm

Have you replaced or checked out any or other bushings in the entire front axle assembly? If the spring perches are worn than probably all or most of the rest need to be checked or replaced. You may have already replaced some of them but if you haven’t now would be a good time to drop the front axle assembly, place it on the workbench and replace what’s needed. Once that’s all done you’ll be pleasantly surprised how much your front end response will be. In my experience when the spring perches are really worn the rest of the bushings are also.
Good luck.

User avatar

Steve Jelf
Posts: 1650
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Front Spring Clip Configuration

Post by Steve Jelf » Wed Nov 13, 2019 10:47 pm

The parts book lists the 3075 front bearing & spring clip assembly for 1921-1927. The 3810 spring clip bar that goes on the bottom to hold the spring is also 1921-1927, of course. Parts books will often answer questions like this.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Topic author
RustyFords
Posts: 766
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Front Spring Clip Configuration

Post by RustyFords » Thu Nov 14, 2019 12:04 am

John kuehn wrote:
Wed Nov 13, 2019 7:39 pm
Have you replaced or checked out any or other bushings in the entire front axle assembly? If the spring perches are worn than probably all or most of the rest need to be checked or replaced. You may have already replaced some of them but if you haven’t now would be a good time to drop the front axle assembly, place it on the workbench and replace what’s needed. Once that’s all done you’ll be pleasantly surprised how much your front end response will be. In my experience when the spring perches are really worn the rest of the bushings are also.
Good luck.
Good advice John

I plan on inspecting and, if needed, replacing any bushing or moving part in the steering and front axle. I have new perches and bushings and a rebuilt lower steering bracket in my possession and have rebuilt spindles, steering arms and a spring set on the way. I’m guessing I probably need to have the axle reamed and bushed as well. The aforementioned will take care of quite a bit of the total moving parts but there will still be more that needs attention.
1924 Touring

User avatar

Corey Walker
Posts: 153
Joined: Sun Jan 06, 2019 11:46 am
First Name: Corey
Last Name: Walker
Location: Brownsboro, TX

Re: Front Spring Clip Configuration

Post by Corey Walker » Thu Nov 14, 2019 6:28 pm

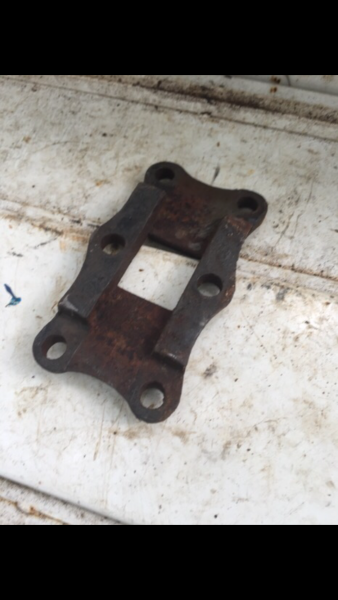

i think I read that is to prevent the front crossmember from cracking because the newer spring mounting is too flexible and it makes a stress point. I found this one on a chassis I bought years ago.
Attachments
Corey Walker, Brownsboro, Texas
