Removing the #3317 driven gear: Am I doing it wrong?

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
User avatar

Topic author
Steve Jelf
Posts: 2099
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Removing the #3317 driven gear: Am I doing it wrong?

Post by Steve Jelf » Wed Jan 15, 2020 2:23 pm

IMG_4606 copy.JPG
I've done this before, but maybe I've slipped a cog. Seems like this thing doesn't want to budge. Am I forgetting something?
The inevitable often happens.
1915 Runabout
1923 Touring


Kerry
Posts: 306
Joined: Mon Jan 07, 2019 2:42 pm
First Name: Frank
Last Name: van Ekeren
Location: Rosedale Vic Australia

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by Kerry » Wed Jan 15, 2020 2:49 pm

Some can just be a pain, even using a puller twice the size of yours, lucky I have many spare ones because sometimes the only way to get the sucker off is with heat, even slicing with a hot stick.


Jack Putnam, in Ohio
Posts: 78
Joined: Sun Jan 06, 2019 7:19 pm
First Name: Jack
Last Name: Putnam
Location: Bluffton, Ohio
MTFCA Number: 13833
MTFCI Number: 13353

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by Jack Putnam, in Ohio » Wed Jan 15, 2020 2:54 pm

Screw the puller extra tight, add a big hammer blow to the end of the screw. Repeat as needed.

User avatar

Topic author
Steve Jelf
Posts: 2099
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by Steve Jelf » Wed Jan 15, 2020 3:28 pm

Got it.

IMG_4607 copy.JPG
"Give me something to stand on and a long enough lever, and I can move the earth."
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

George Mills
Posts: 147
Joined: Sun Jan 06, 2019 12:32 pm
First Name: George
Last Name: Mills
Location: Cherry Hill NJ/Anona Largo FL
MTFCA Number: 29497
MTFCI Number: 10032
Board Member Since: 1999

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by George Mills » Wed Jan 15, 2020 3:39 pm

I’d concur with Jack P suggestion.

When I was ‘young’ someone made the same suggestion to me. In for a nickle, in for a dime what did I know? They told me to go so tight it was just before the center wanted to cock...and then every time I walked by it rap it with a 3 pound maul. Same advice, do it as many times as necessary. I did it diligently and was fast becoming a non-believer.

While eating lunch the following weekend at a table just in the house with only the screen door between...there was a sound like someone threw a really big rock at the main garage door. I ran out, there was the 3 jaw laying lazy...mission accomplished!


Dan McEachern
Posts: 262
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
Location: ALAMEDA,CA,USA

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by Dan McEachern » Wed Jan 15, 2020 3:50 pm

They can be pretty stubborn at times. A Ford puller is best but. . .
Put pressure on it with your puller and heat the ROUND portion CAREFULLY and SLOWLY with a torch. Usually a very small amount of heat will allow the gear to pop loose, and from there its a steady pull to remove it.

User avatar

CudaMan
Posts: 566
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by CudaMan » Wed Jan 15, 2020 3:56 pm

I have a puller just like your big one. It used to be my "go to" persuader until I got my press. :)
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)


Allan
Posts: 1011
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by Allan » Wed Jan 15, 2020 5:00 pm

My favourite tool is an hydraulic/grease filled puller.Their power is greater than a screw type, and it is applied in smaller, smoother increments. I have never found a gear which will not immediately succumb to its persuasion.

Allan from down under.


John M Maslack
Posts: 11
Joined: Mon Jan 21, 2019 8:16 pm
First Name: John
Last Name: Maslack
Location: Poultney Vt.

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by John M Maslack » Wed Jan 15, 2020 7:20 pm

They can be a real bear...That one is worth having the right puller...


Stephen_heatherly
Posts: 96
Joined: Wed Jan 09, 2019 6:03 pm
First Name: Stephen
Last Name: Heatherly
Location: St. Louis MO

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by Stephen_heatherly » Wed Jan 15, 2020 11:10 pm

I have a ford driven gear puller. I put the puller on the gear and then clamp one of the arms tight in the vice. I had one gear so tight I had to hang on the end of my 3 foot long cheater pipe to get it to pop loose. They can be a bear to remove.

Stephen

User avatar

ABoer
Posts: 60
Joined: Mon Jan 07, 2019 2:41 pm
First Name: Anthonie
Last Name: Boer
Location: Klaaswaal NL
MTFCA Number: 19790

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by ABoer » Thu Jan 16, 2020 3:38 am

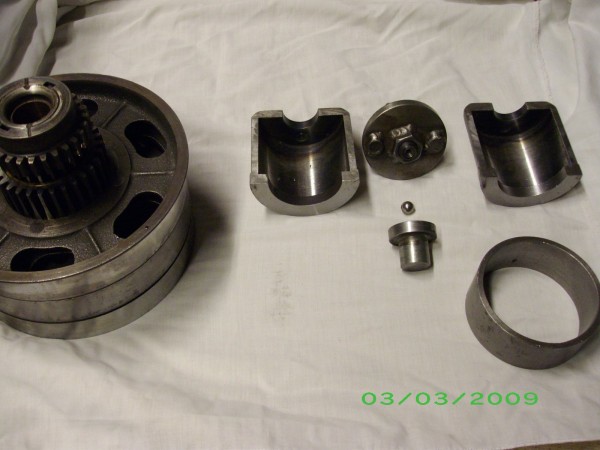

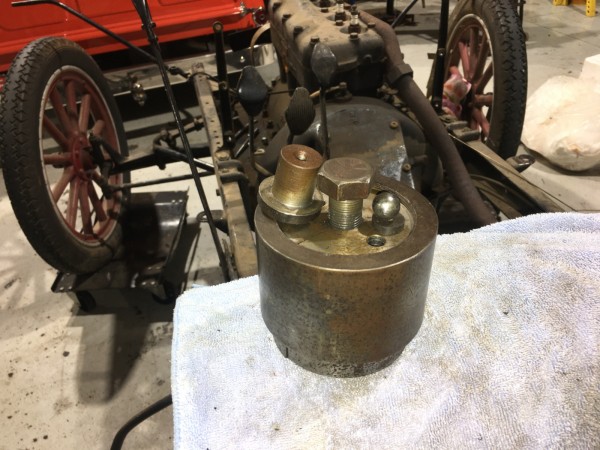

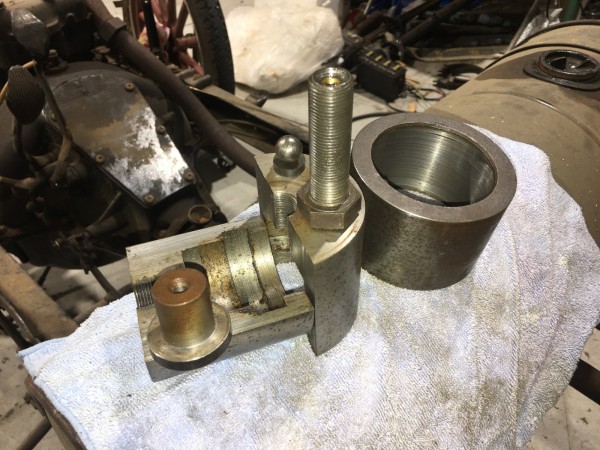

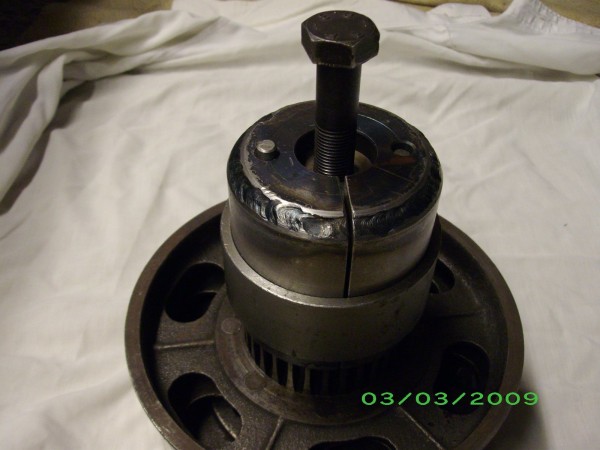

I use this homemade puller with great succes .
Toon

User avatar

RajoRacer
Posts: 1097
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by RajoRacer » Thu Jan 16, 2020 11:21 am

Stevens Speed-Up Tools also made a puller similar to Toons.


Original Smith
Posts: 1198
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by Original Smith » Thu Jan 16, 2020 10:03 pm

There is nothing better than a genuine Ford script driven gear puller. I see them frequently for sale on ebay from $25-$50. I was lucky when I got mine when the price was around $10. Been using it for over 55+ years. As mentioned above, a sharp blow with a hammer will usually break them loose.

User avatar

TFan
Posts: 115
Joined: Sun Jan 06, 2019 2:24 pm
First Name: Jim
Last Name: Riedy
Location: Sandusky,Ohio
MTFCA Number: 25079
MTFCI Number: 18732
Board Member Since: 2005

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by TFan » Thu Jan 16, 2020 11:17 pm

Larry, could you post a picture of yours. Thanks Jim
Back road kinda guy stuck on the freeway of life.


wayne sheldon
Posts: 1426
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by wayne sheldon » Fri Jan 17, 2020 2:08 am

Like Dan McEachern says. The last past one I removed was in beautiful condition, so I wanted to use it and not damage the gear in any way. I put a LOT of pressure on it with a good (fairly large!) gear puller, and it wasn't budging a bit! And I hit the puller with one of the largest ball-peen hammers I have, and it didn't budge. So I got the torch out. Left the puller under considerable pressure, began heating the gear carefully with the torch, careful to not put any heat on the drum it was stuck to, then hit it lightly with a medium hammer. The thing popped loose. I shut off the torch, cranked wildly with a big wrench on the puller, and the gear slid of easily. It wasn't even hot enough to to not pick it up in my fingers (It has been measured! I can pick up something that is 160 degrees Fahrenheit.) Nowhere near hot enough to hurt the gear. It actually gets hotter than that in a running engine. It often doesn't take much of a temperature differential to make a big difference. And usually, once these type gears break loose from where they have been for a very long time, they go the rest of the way with ease. ("Usually")


Original Smith
Posts: 1198
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by Original Smith » Fri Jan 17, 2020 10:38 am

I'm not real fond of taking pictures, but the puller is shown in any Ford parts book on the tool page, and I believe it's also shown in the Ford Service book pulling a driven gear.


Mark Osterman
Posts: 653
Joined: Mon Jan 07, 2019 10:18 pm
First Name: Mark
Last Name: Osterman
Location: Rochester, NY

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by Mark Osterman » Fri Jan 17, 2020 10:50 am

I used the original tool and then sold it thinking I would never need it again. Fingers crossed. 😮

User avatar

CudaMan
Posts: 566
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by CudaMan » Fri Jan 17, 2020 11:01 am

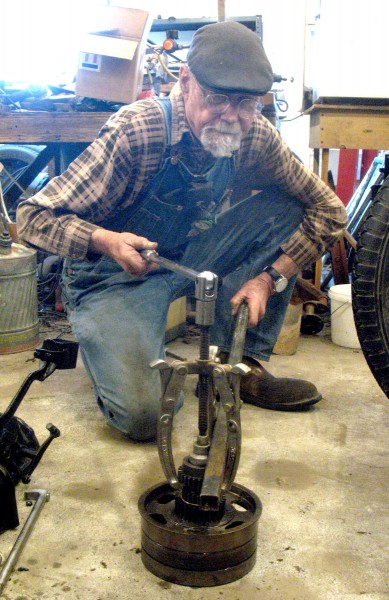

Here's the thread where Mark O. shows the use of the OEM puller (the one he later sold). :)

http://www.mtfca.com/discus/messages/70 ... 1487704581
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)

User avatar

Topic author
Steve Jelf
Posts: 2099
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by Steve Jelf » Fri Jan 17, 2020 1:15 pm

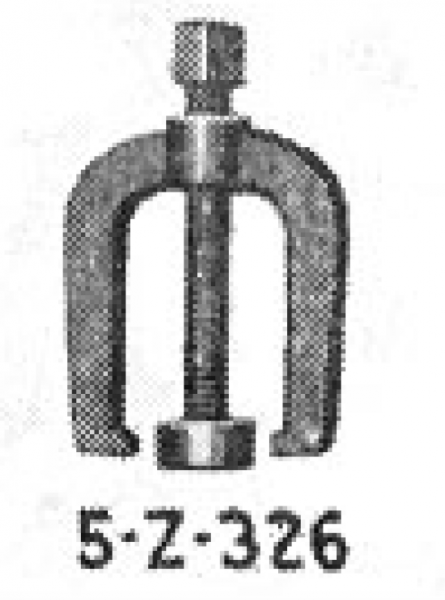

The Ford puller is 4006, 1936X, 3Z-611, or 5Z-326 depending on when it was made.

Screen Shot 2020-01-17 at 12.14.16 PM.png
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

John Warren
Posts: 577
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by John Warren » Fri Jan 17, 2020 10:35 pm

Wow Anthonie, that is a nicely built puller. Steve I would definitely check the oil lines and all oil holes for debris. Good luck on everything.
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P


Randall strickland
Posts: 61
Joined: Sun Jan 06, 2019 5:50 pm
First Name: Randall
Last Name: Strickland
Location: lambsburg va

Re: Removing the #3317 driven gear: Am I doing it wrong?

Post by Randall strickland » Sat Jan 18, 2020 6:13 pm

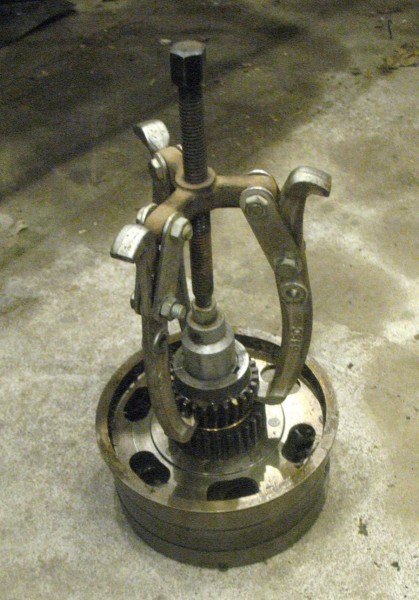

Hard to beat this type of puller !!
Attachments

Post Reply Previous topicNext topic
