Regan wheel press

Post by pgbaresel » Thu Oct 08, 2020 10:04 am

Does any one have construction plans for a Regan wheel (spoke) press? I would like to build one. Thanks
Top
User avatar

Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:
Contact Steve Jelf

Re: Regan wheel press

Post by Steve Jelf » Thu Oct 08, 2020 10:21 am

The inevitable often happens.
1915 Runabout
1923 Touring
Top

MCobb
Posts: 35
Joined: Tue Jan 08, 2019 8:50 am
First Name: Martin
Last Name: Cobb
* REQUIRED* Type and Year of Model Ts owned: 1917 engine only
Location: Northbrook IL 60062

Re: Regan wheel press

Post by MCobb » Mon Jan 23, 2023 4:24 pm

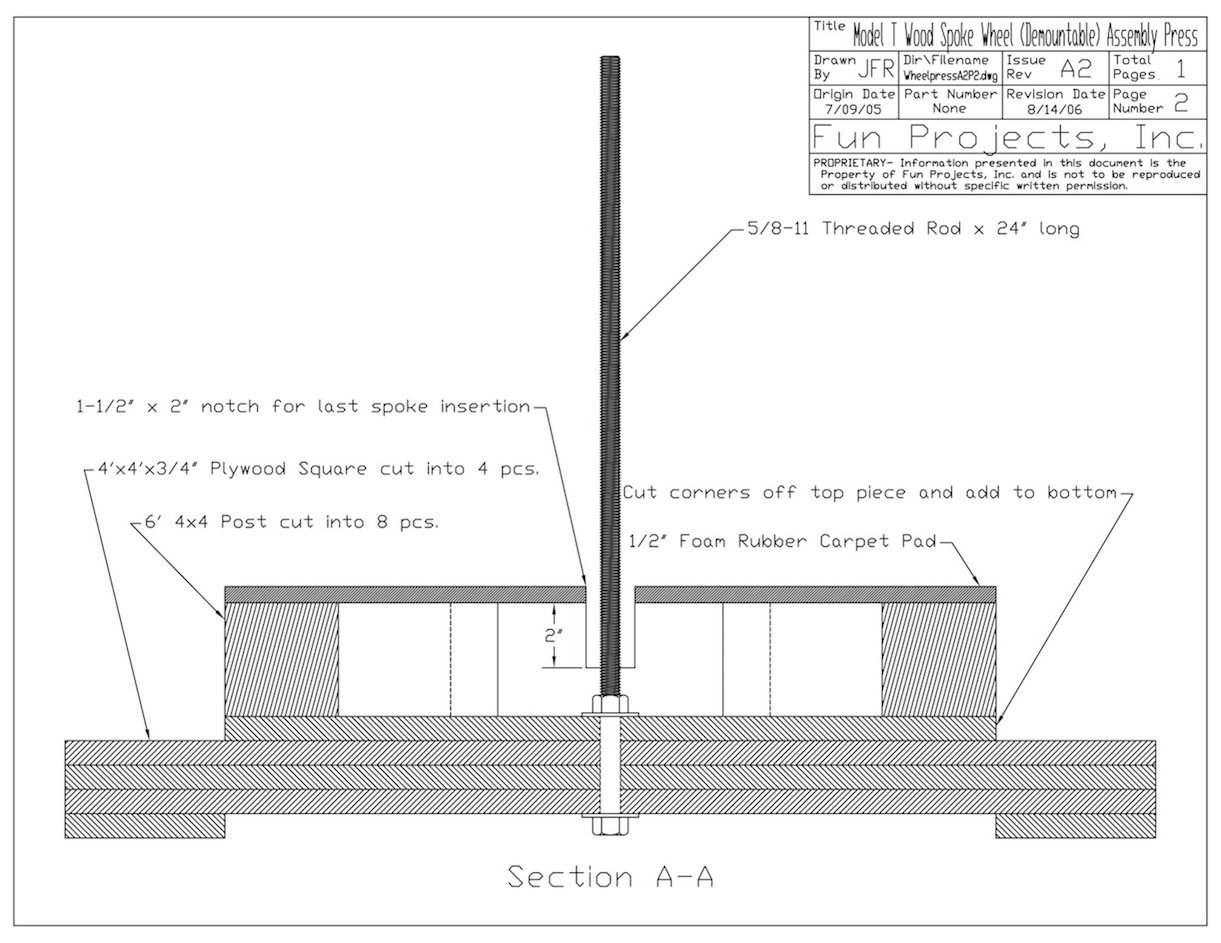

I would like to build a press with these plans but they are not quite clear enough for me to read them, even when I enlarged them. Can anyone post clearer drawings?
Top

MCobb
Posts: 35
Joined: Tue Jan 08, 2019 8:50 am
First Name: Martin
Last Name: Cobb
* REQUIRED* Type and Year of Model Ts owned: 1917 engine only
Location: Northbrook IL 60062

Re: Regan wheel press

Post by MCobb » Mon Jan 23, 2023 4:29 pm

Thank you! these are very clear.
Top

tdump
Posts: 1404
Joined: Sun Jan 06, 2019 7:00 pm
First Name: Mack
Last Name: Cole
* REQUIRED* Type and Year of Model Ts owned: TT. T express pickup,speedster project.
Location: North Carolina

Re: Regan wheel press

Post by tdump » Mon Jan 23, 2023 5:16 pm

i had a similar issue with not being able to see some things like these plans well enough to read them. I went by the local christian ministry that sells donated items to help the poor and bought a 42 inch plasma monitor for 20 bucks. Been using it now for about 3 years. I can SEE stuff now! :D
If you can't help em, don't hinder em'
Top

Emeraude
Posts: 87
Joined: Tue Jan 08, 2019 10:00 am
First Name: George
Last Name: Loranger
* REQUIRED* Type and Year of Model Ts owned: 1921 touring
Location: Grafton ND

Re: Regan wheel press

Post by Emeraude » Tue Jan 24, 2023 9:40 am

I have used this press on 2 cars and it has 2 issues. The height of the 4-4 s are only high enough for the rear wheel and for the front I had to add 2-4s to get enough height. Other wise worked ok
